User Manual for Rode Stereo VideoMic On-Camera Microphone Click to enlarge the picture
Contents of the user manual for the Rode Stereo VideoMic On-Camera Microphone
- Product category: Stereo & Specialty Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Stereo & Specialty Microphones
 |
User manual for the Rode Stereo VideoMic On-Camera Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|

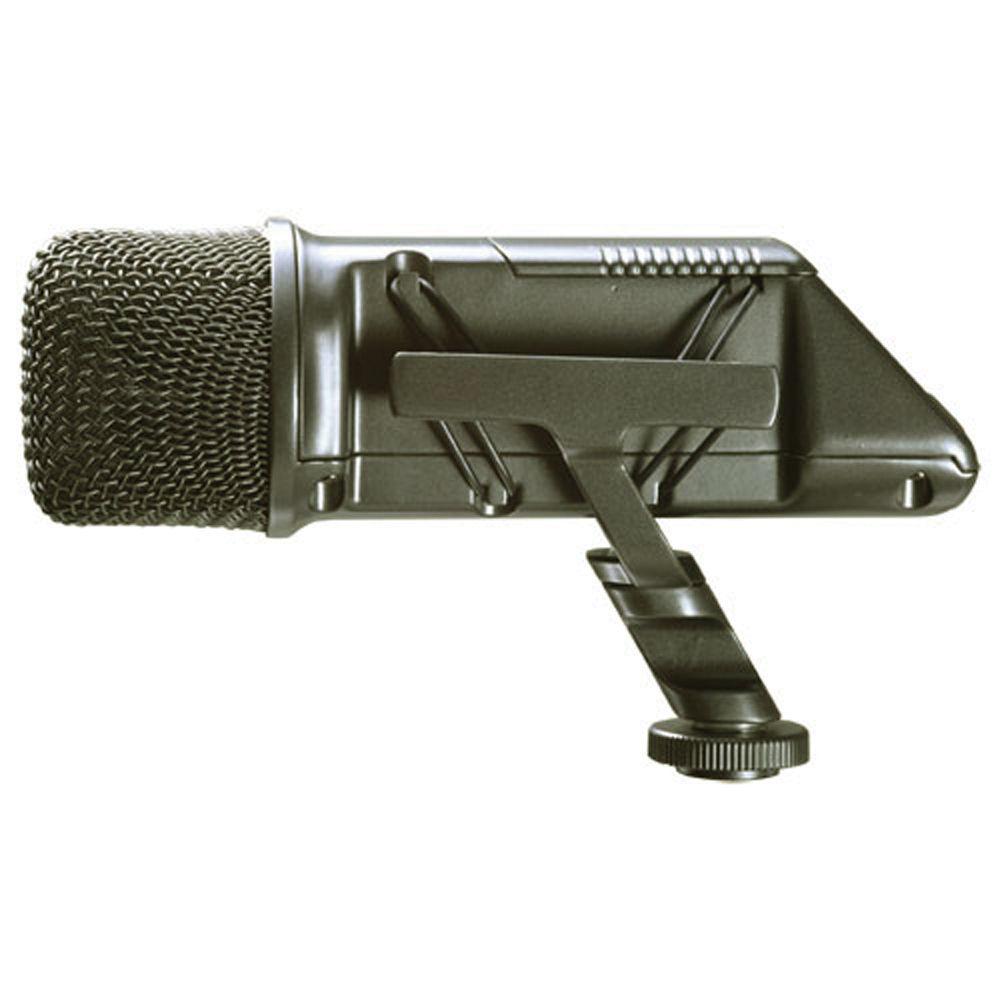

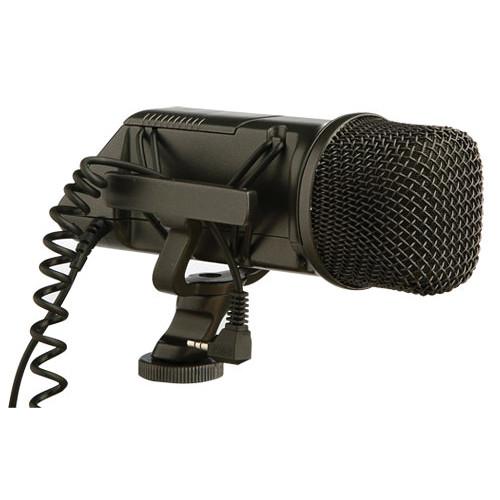

Product description The Stereo VideoMic On-Camera Microphone from Rode is a high-quality microphone designed for use with camcorders, DSLR cameras, and portable audio recorders. It features two high-resolution 1/2" condenser capsules mounted in a fixed X/Y stereo array, providing a natural stereo recording, while offering a high level of rear rejection.The Stereo VideoMic can be used to capture environmental and ambient sounds, as well as live music. A built-in shockmounting system isolates the Stereo VideoMic's capsule and electronics from its mount, providing isolation from external physical factors that can cause unwanted rumble and vibrations in the microphone.Other features include a standard sized shoe mount for mounting on cameras, a 3/8" thread in the base for mounting to a boom pole or stand, a high-pass filter at 80 Hz to prevent low-end noise, and a -10 dB pad that allows for the recording of loud sound sources. The Rode Stereo VideoMic is powered with a standard 9 Volt battery. - Stereo X/Y Recording
- The Rode Stereo VideoMic features true X/Y stereo pick up for accurate ambience reproduction. Excellent off-axis rejection minimizes residual noise.
- -10 dB Pad
- The Stereo VideoMic features a -10 dB Pad switch for enhanced headroom and minimal distortion.
- Camera and Boom Pole Mountable
- The versatile shoe mount allows the microphone to be mounted to camcorders, stands, or boom poles.
- Integrated Shockmount
- The Stereo VideoMic features a permanently attached shockmount with a camera mounting shoe underneath. The shockmount features replaceable rubber O-rings that protect against noise caused by abrupt movement and shock.
- High-Pass Filter Switch
- A high-pass filter switch eliminates room ambiance and noise below 80 Hz. This results in improved intelligibility while recording around machinery, air conditioners, and traffic.
- Internal Power
- The condenser element is powered with a standard 9-V battery.

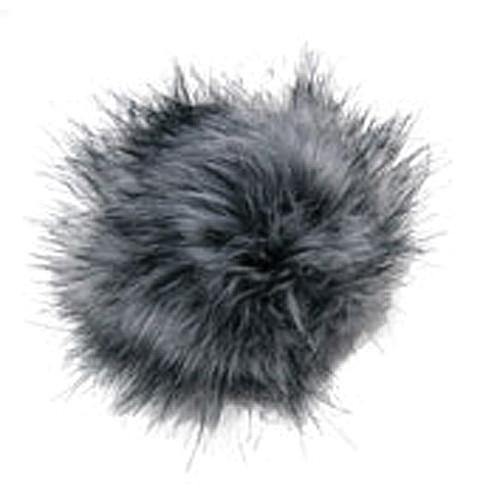

UPC: 698813000890 In the Box Rode Stereo VideoMic On-Camera Microphone Dead Kitten Artificial Fur Wind Shield twdwawfqufsx Integrated Cold-Shoe Shock Mount 3/8" Thread Adaptor Limited 10-Year Warranty with Online Registration User Manual PDF 1.2mbtwdwawfqufsx Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode Stereo VideoMic On-Camera Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

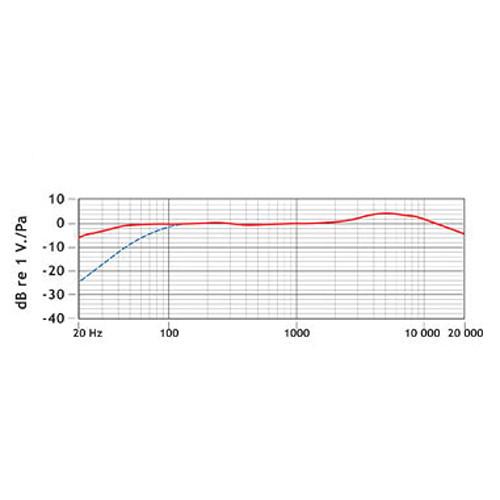

Technical parametersRode Stereo VideoMic Specs | | | Sound Field | Stereo | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.5" / 12.70 mm | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 74 dB A-Weighted | | Equivalent Noise Level | 20 dB A-Weighted | | Maximum SPL | 134 dB SPL | | Pad | -10 dB | | Impedance | 200 Ohms | | Sensitivity | -38 dB | | Low-Cut Filter | @ 80 Hz | | | | Output Connectors | 1 x 1/8" (3.5 mm) TRS | | Battery Type | 1 x 9 V | | Operating Voltage | 9 V | | Length | 6.69" / 170 mm | | Diameter | 2.56" / 65 mm | | Weight | 10.16 oz / 288 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.9 x 5.2 x 3.0" |
