User Manual for Rode Stereo VideoMic Pro Rycote Click to enlarge the picture
Contents of the user manual for the Rode Stereo VideoMic Pro Rycote
- Product category: Stereo & Specialty Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Stereo & Specialty Microphones
 |
User manual for the Rode Stereo VideoMic Pro Rycote contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|

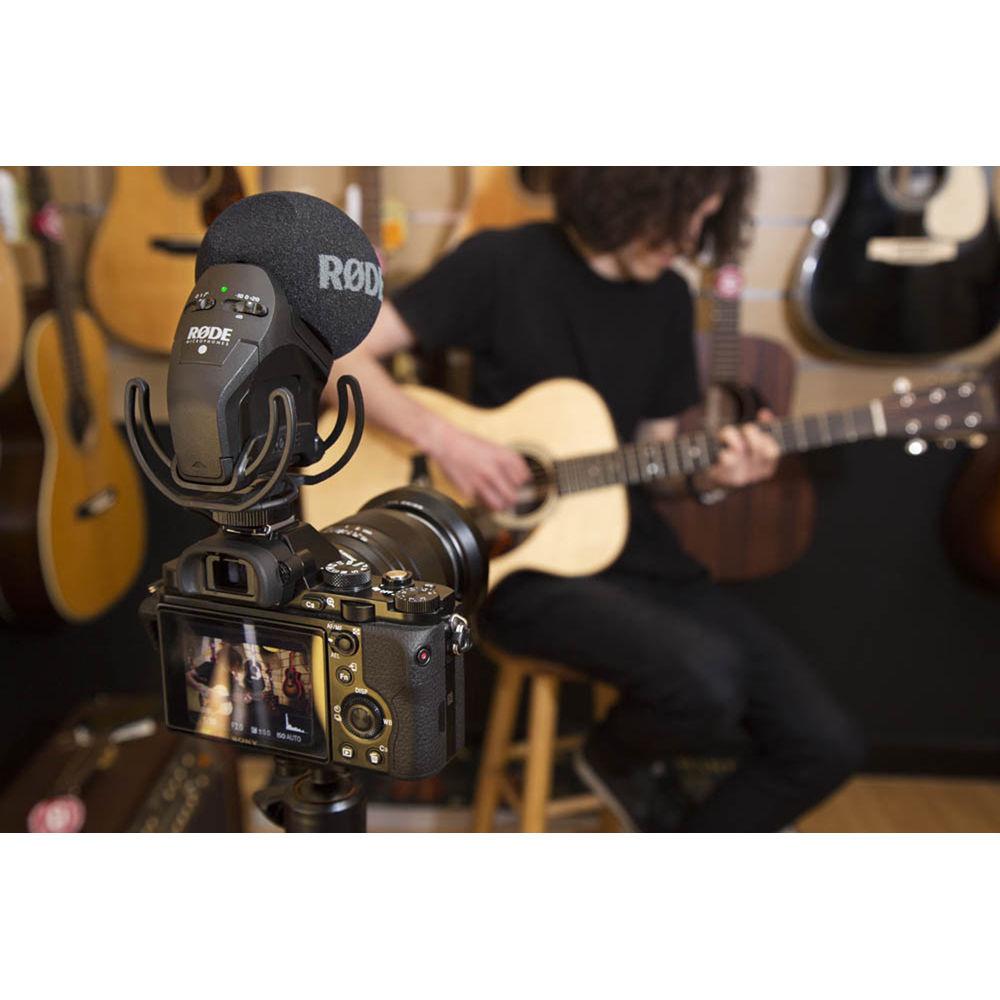

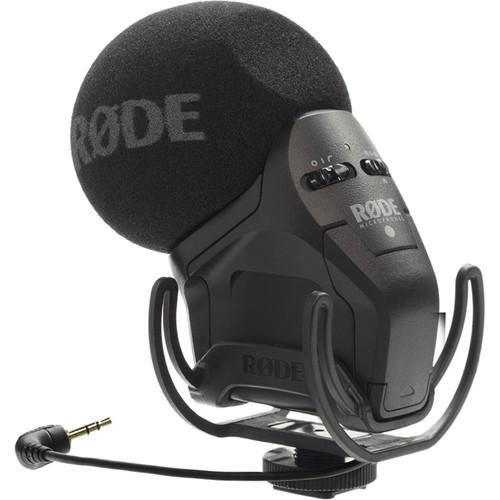

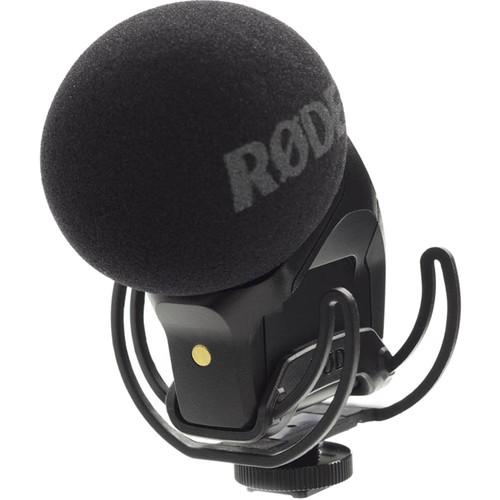

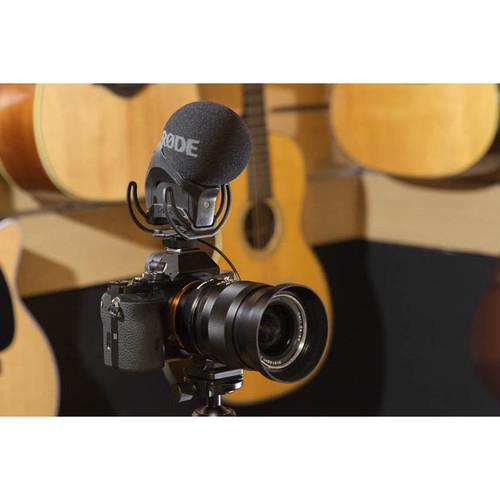

Product description - Introducing the new Stereo VideoMic Pro with Rycote Onboard
The Stereo VideoMic Pro Rycote from Rode builds on the success of the Stereo VideoMic Pro with a few improved upgrades such as a Rycote Lyre shockmount, higher-sensitivity X/Y capsules, denser foam windscreen, better RF shielding, and a thicker Kevlar braided cable. The microphone retains all of the switch locations and other features as the previous model, for use as an on-camera DSLR and camcorder microphone for video applications. The integrated Rycote Lyre shockmount system protects against handling noise. The Stereo VideoMic features a high-pass filter switch at 75 Hz for minimizing low-frequency noise, and a -10 dB pad for maximizing headroom on behalf of capturing loud signals without distortion. The +20 dB level-boost switch is specifically designed to provide a higher-quality signal with DSLR cameras. When activated, the camera preamp level is reduced, resulting in a lower noise floor and a much clearer recording. - Broadcast-recording-quality on-camera microphone
- Matched pair, 1/2" condenser capsules in X/Y stereo configuration
- Ultra-lightweight, compact form factor
- Two-step high-pass filter (flat, 75 Hz)
- Three-position level control (-10, 0, +20 dB)
- 9V-battery-powered - over 100 hours of use (alkaline)
- Integrated Rycote Lyre shockmount
- 1/8" (3.5mm) stereo mini-jack output
- Billeted metal camera shoe mount with 3/8" thread for easy boompole mounting
UPC: 698813004805 In the Box Rode Stereo VideoMic Pro Rycote Metal Camera Shoe Mount with 3/8" Thread Foam Windscreen Limited 10-Year Extended Warranty with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode Stereo VideoMic Pro Rycote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode STEREO VIDEOMIC PRO-R Specs | Transducer | Pressure gradient | | Polar Pattern | XY Cardioid | | Frequency Range | 40 Hz to 20 kHz (selectable HPF @ 75 Hz) | | Sensitivity | -38 dB (12.6 mV @ 94 dB SPL) ±2 dB re 1 V/Pa @ 1 kHz | | Output Impedance | 200 Ohms | | Maximum Output | +4.2 dBu (@ 1% THD into 1 kOhms) | | Dynamic Range | 100 dB | | Maximum SPL | 134 dB, max (1 kHz, 1% THD into 1 kOhms load) | | Signal / Noise | 76 dBA (A-weighted per IED651) | | Power Supply | 9 V alkaline battery | | Connection | 1/8" (3.5 mm) stereo mini-jack | | Signal to Noise Ratio | 76 dBA SPL (A-weighted per IEC651) | | Dimensions (D x W x H) | 4.5 x 3.1 x 5.3" (115 x 80 x 134 mm) | | Weight | 0.26 lb (116 g) (without battery) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.5 x 5.1 x 3.2" |
Rating66% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
