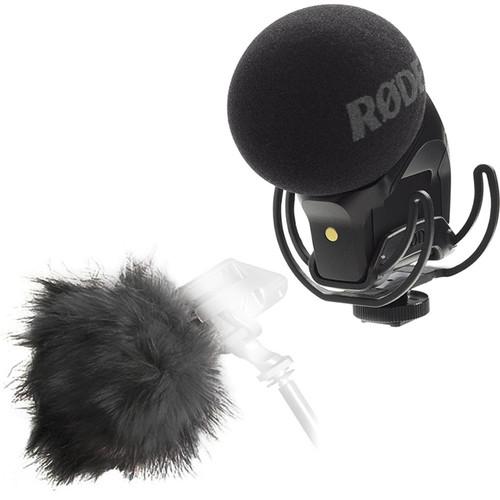

User Manual for Rode Stereo VideoMic Pro Rycote with Deadkitten Fur Windshield Kit Click to enlarge the picture
Contents of the user manual for the Rode Stereo VideoMic Pro Rycote with
- Product category: Stereo & Specialty Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Stereo & Specialty Microphones
|
User manual for the Rode Stereo VideoMic Pro Rycote with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode Stereo VideoMic Pro Rycote with Deadkitten Fur Windshield Kit from features an upgraded version of the popular Stereo VideoMic Pro microphone but now includes a Rycote Lyre shockmount, higher-sensitivity X/Y capsules, a denser foam windscreen, better RF shielding, a thick Kevlar braided cable, and a Rode Deadkitten artificial fur windshield. It can be used for DSLR and camcorders and is suitable for recording music and atmospheric ambience, which is essential in building a realistic audio scene. The microphone retains all of the switch locations and other features as the previous model and features a high-pass filter switch at 75 Hz for minimizing low-frequency noise, and a -10 dB pad for maximizing headroom on behalf of capturing loud signals without distortion. It allows you to capture broadcast recording quality with the on-camera microphone. In addition, the kits Rode Deadkitten artificial fur windshield is designed to minimizes wind noise, while also remaining acoustically transparent. - Rode Stereo VideoMic Pro Rycote
- Introducing the new Stereo VideoMic Pro with Rycote Onboard
The Stereo VideoMic Pro Rycote from Rode builds on the success of the Stereo VideoMic Pro with a few improved upgrades such as a Rycote Lyre shockmount, higher-sensitivity X/Y capsules, denser foam windscreen, better RF shielding, and a thicker Kevlar braided cable. The microphone retains all of the switch locations and other features as the previous model, for use as an on-camera DSLR and camcorder microphone for video applications. The integrated Rycote Lyre shockmount system protects against handling noise. The Stereo VideoMic features a high-pass filter switch at 75 Hz for minimizing low-frequency noise, and a -10 dB pad for maximizing headroom on behalf of capturing loud signals without distortion. The +20 dB level-boost switch is specifically designed to provide a higher-quality signal with DSLR cameras. When activated, the camera preamp level is reduced, resulting in a lower noise floor and a much clearer recording. - Broadcast-recording-quality on-camera microphone
- Matched pair, 1/2" condenser capsules in X/Y stereo configuration
- Ultra-lightweight, compact form factor
- Two-step high-pass filter (flat, 75 Hz)
- Three-position level control (-10, 0, +20 dB)
- 9V-battery-powered - over 100 hours of use (alkaline)
- Integrated Rycote Lyre shockmount
- 1/8" (3.5mm) stereo mini-jack output
- Billeted metal camera shoe mount with 3/8" thread for easy boompole mounting
UPC: 698813004805 - Rode Dead Kitten Artificial Fur Wind Shield
- Introducing the new Stereo VideoMic Pro with Rycote Onboard
The RODE Dead Kitten Artificial Fur Wind Shield is designed for use with the RODE Stereo VideoMic, RODE Stereo VideoMic Pro, RODE Stereo VideoMic Pro Rycote, RODE WS4, and RODE NT4 microphone. It's specially designed with artificial fur that minimizes wind noise, while also remaining acoustically transparent. The Dead Kitten is actually the exact wind shield included with the Stereo VideoMic and is designed to suppress noise caused by high wind while outdoors. - The Dead Kitten wind shield is designed for minimizing any wind noise when using a microphone in high-wind conditions
- The artificial fur is specially designed to minimize wind noise while also remaining acoustically transparent
- Compatible with the RODE NT4, RODE WS4, RODE Stereo VideoMic, and RODE Stereo VideoMic Pro
UPC: 698813000982 In the Box - Stereo VideoMic Pro Rycote yrwybzaxwxurtdxzceuasseefaufbxbsxv
- Metal Camera Shoe Mount with 3/8" Thread
- Foam Windscreen
- Limited 10-Year Extended Warranty with Registration
- Dead Kitten Artificial Fur Wind Shield
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode Stereo VideoMic Pro Rycote with Deadkitten Fur Windshield Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode Stereo VideoMic Pro Rycote
| Transducer | Pressure gradient | | Polar Pattern | XY Cardioid | | Frequency Range | 40 Hz to 20 kHz (selectable HPF @ 75 Hz) | | Sensitivity | -38 dB (12.6 mV @ 94 dB SPL) ±2 dB re 1 V/Pa @ 1 kHz | | Output Impedance | 200 Ohms | | Maximum Output | +4.2 dBu (@ 1% THD into 1 kOhms) | | Dynamic Range | 100 dB | | Maximum SPL | 134 dB, max (1 kHz, 1% THD into 1 kOhms load) | | Signal / Noise | 76 dBA (A-weighted per IED651) | | Power Supply | 9 V alkaline battery | | Connection | 1/8" (3.5 mm) stereo mini-jack | | Signal to Noise Ratio | 76 dBA SPL (A-weighted per IEC651) | | Dimensions (D x W x H) | 4.5 x 3.1 x 5.3" (115 x 80 x 134 mm) | | Weight | 0.26 lb (116 g) (without battery) | | | | Box Dimensions (LxWxH) | 8.5 x 5.1 x 3.2" | - Rode Dead Kitten Artificial Fur Wind Shield
| Material | Faux Fur | | Outer Diameter | 3.2" / 8 cm | | Length | 3.2" / 8 cm | | Weight | 0.9 oz / 25 g | | | | Box Dimensions (LxWxH) | 4.5 x 4.2 x 0.5" |
