Product description - Product Demo 1
- Product Demo 2

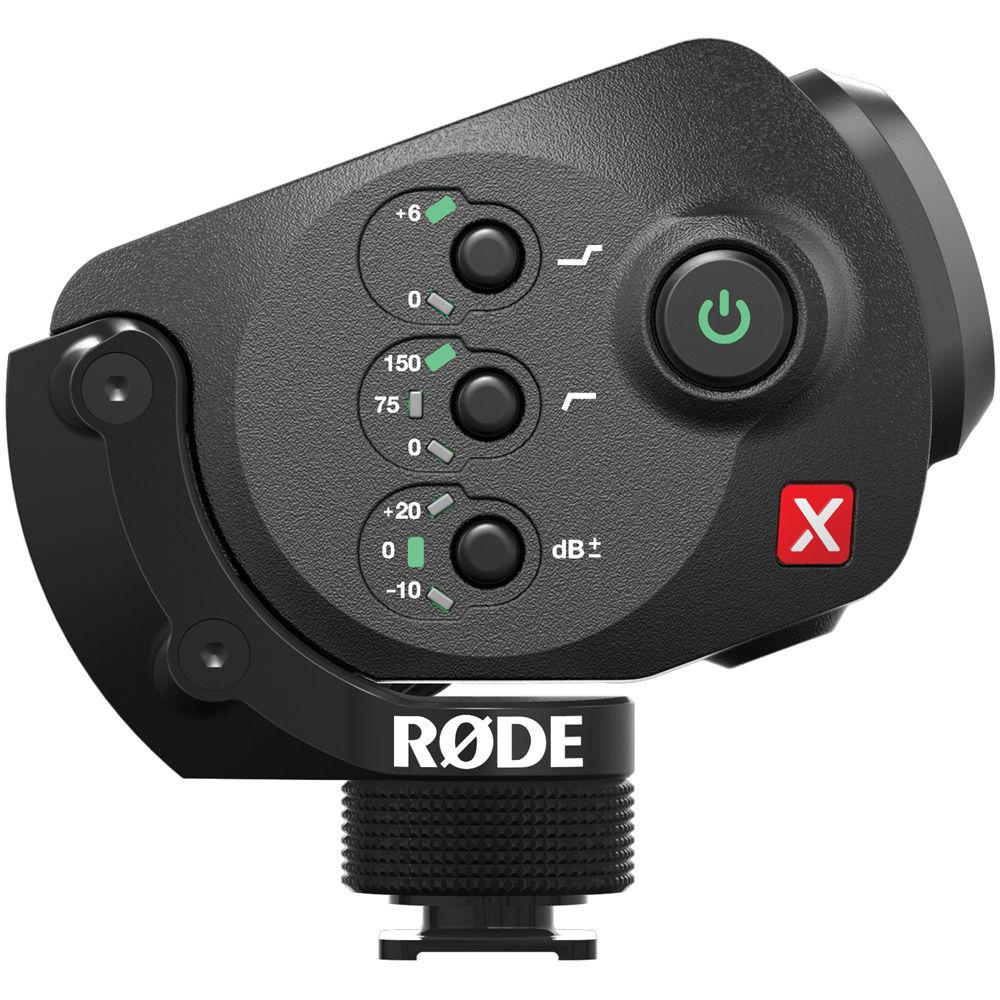

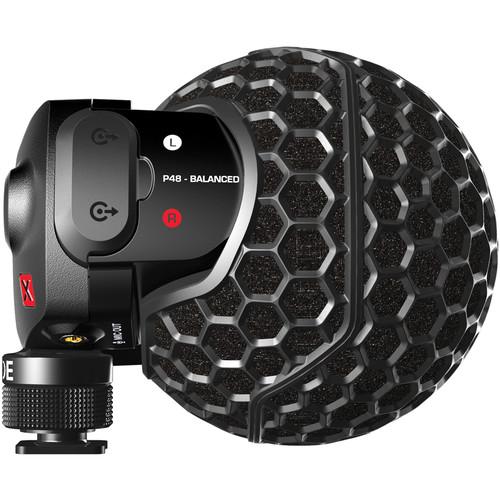

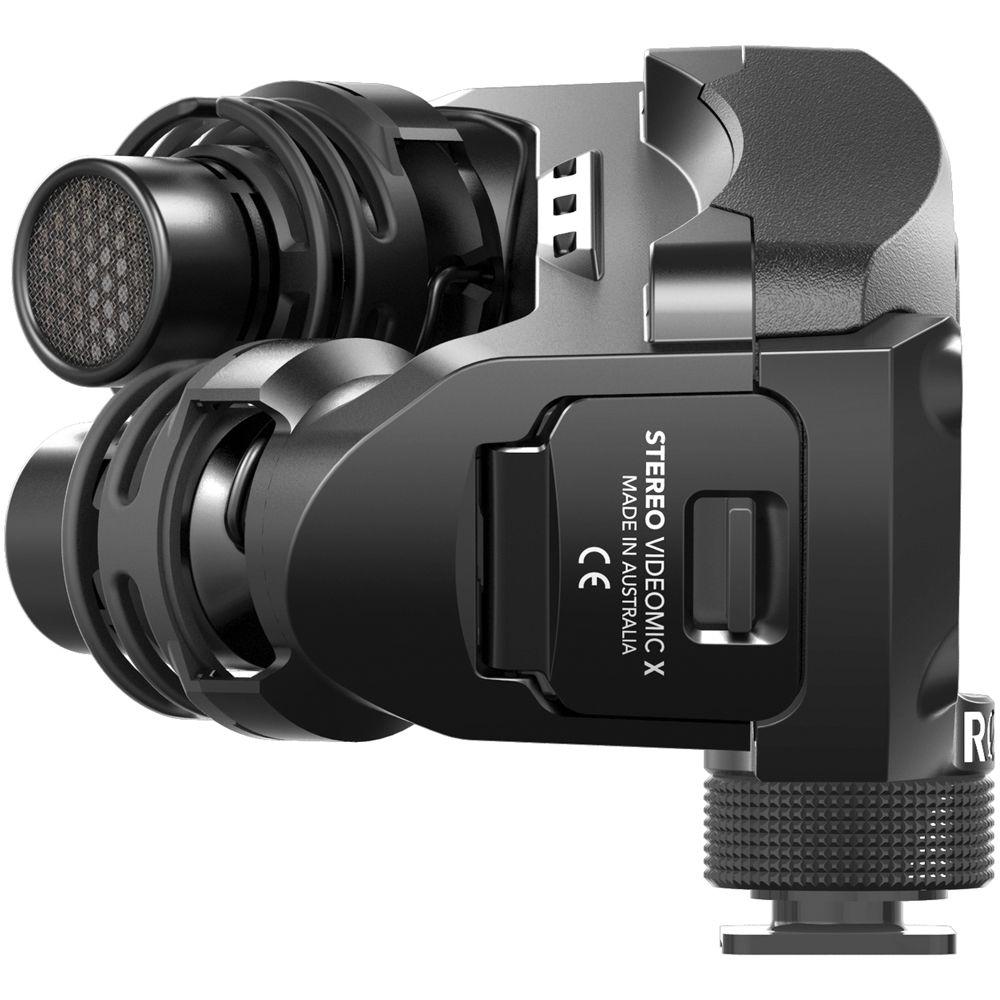

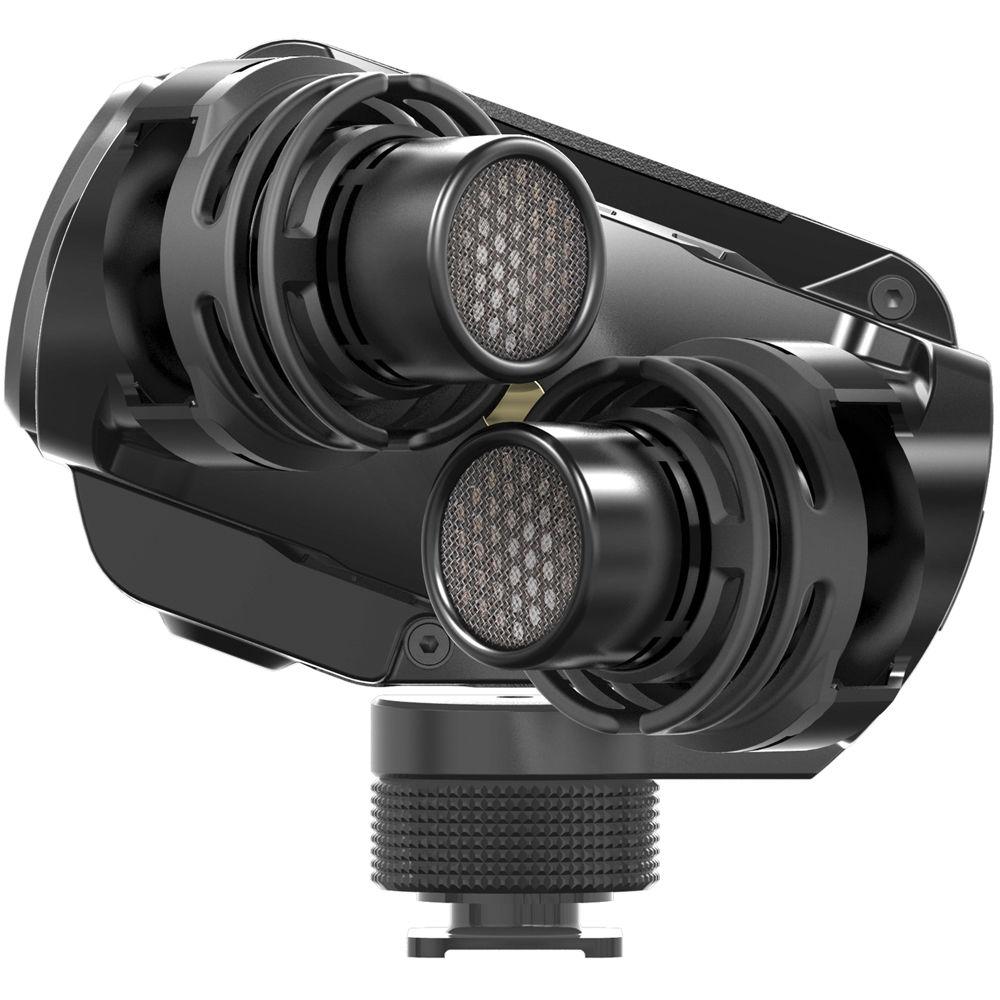

For capturing audio the Stereo VideoMic X by RODE Microphones offers professional quality. It can be used as an on-camera mic in various environments, for applications such as interviews, weddings, sports and nature shoots, and more. It features a matched pair of 1/2" condenser capsules configured in a stacked X-Y configuration with cardioid polar patterns, a 40 Hz to 20 kHz frequency response, and 9V battery or 48V phantom power. It is built with a balanced mini XLR (TA3F) output connector, and an unbalanced 1/8" output stereo mini jack plug. The Stereo VideoMic X can deliver professional-grade audio and gets the job done when capturing audio in various environments.The VideoMic features digital switching on the rear that allows the user to control level adjustment, high-pass filter, and high-frequency boost to increase intelligibility of dialogue. The enclosure is constructed of a lightweight aluminum, and, inside the enclosure, the capsules are supported by the Rycote Lyre shock-mounting system, providing isolation from vibration as well as knocks and bumps. In addition, a pop shield and wind shield is included. - Acoustically matched true condenser capsules

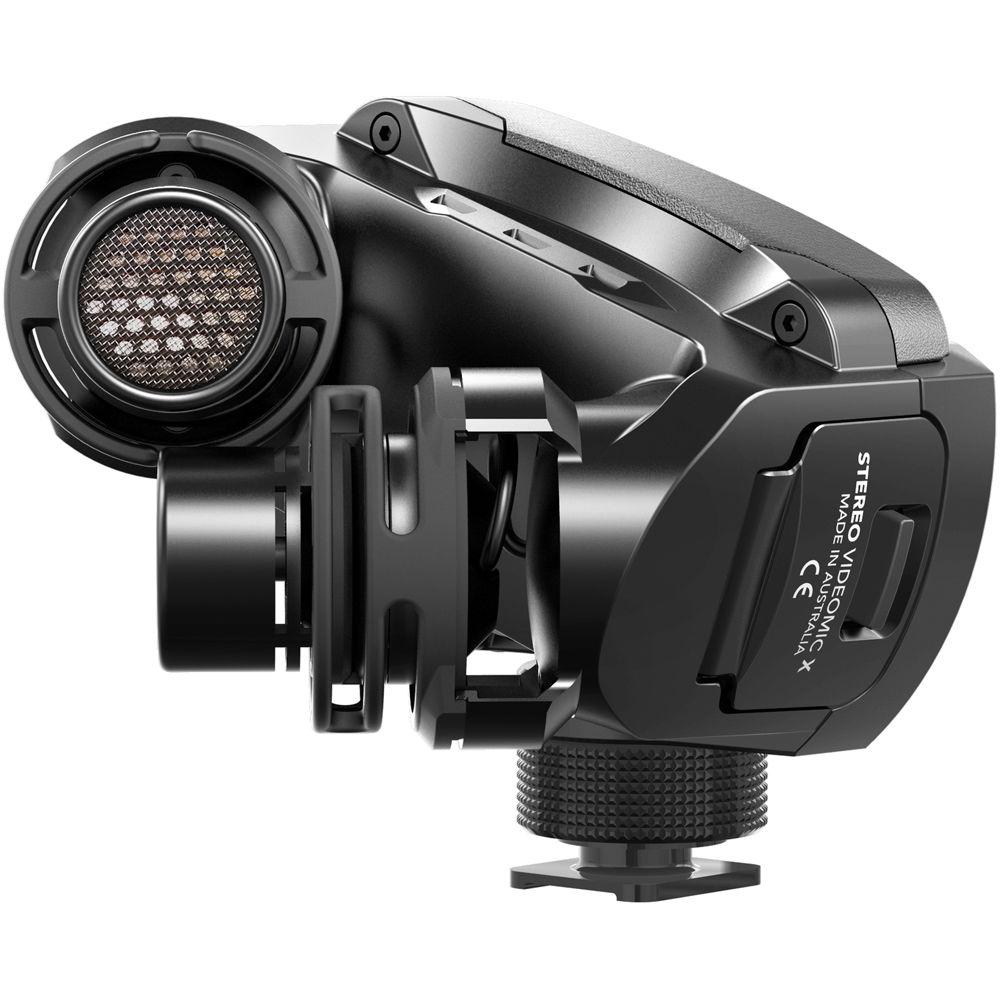

- Rycote Lyre onboard shock mounting to isolate from knocks and bumps
- Balanced professional XLR outputs, and unbalanced 1/8" stereo mini-jack outputs are provided
- Rugged metal construction insures durability
- Three step high-pass filter (0, 75 Hz, 150 Hz)
- Three position level control (-10dB, 0dB, +20dB)
- High frequency boost (+6dB)
- LED power on/low battery indicator
- 10 Year Warranty* 1
Please Note: *Online registration required close UPC: 698813004096 In the Box Rode Stereo VideoMic X SC2 1/8" (3.5 mm) TRS Patch Cable for iPhone Pop Shield Wind Shield Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode Stereo VideoMic X in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode SVMX Specs | Acoustic Principle | Pressure Gradient | | Polar Pattern | Cardioid | | Frequency | Rate: 40 Hz to 20 kHz | | Frequency Range | High Pass Filter: 0, 75, 150 Hz | | Level | Variable: -10, 0, +20 dB | | Output Impedance | 200 Ω | | Signal to Noise Ratio | 82 dBA SPL (as per IEC 651) | | Equivalent Noise | 12 dBA SPL (as per IEC 651) | | Maximum SPL | 143 dB SPL | | Sensitivity | -32 dB re 1V/Pa (25 mV @ 94 dB SPL) ± 2 dB @ 1kHz | | Dynamic Range | 131 dB SPL | | Power Requirements | 9 V alkaline battery or P48 (via miniXLR) | | Output Connection | Unbalanced: 1/8" (3.5 mm) stereo mini jack plug (dual mono), tip = left channel, ring = right channel
Balanced: Mini XLR (TA3F style connector) pin 1 (ground), pin 2 (+), pin 3 (-) | | Battery Life | 30 hours | | Dimensions (L x W x H) | 4.6 x 4.0 x 3.9" (118 x 102 x 100 mm) | | Weight | 11 oz (300 g) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 9.2 x 9.0 x 5.3" |
