User Manual for Rode TX-BELT Beltpack Wireless Transmitter with Lavalier Mic Click to enlarge the picture
Contents of the user manual for the Rode TX-BELT Beltpack Wireless Transmitter with
- Product category: Wireless Transmitters Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Wireless Transmitters
 |
User manual for the Rode TX-BELT Beltpack Wireless Transmitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|

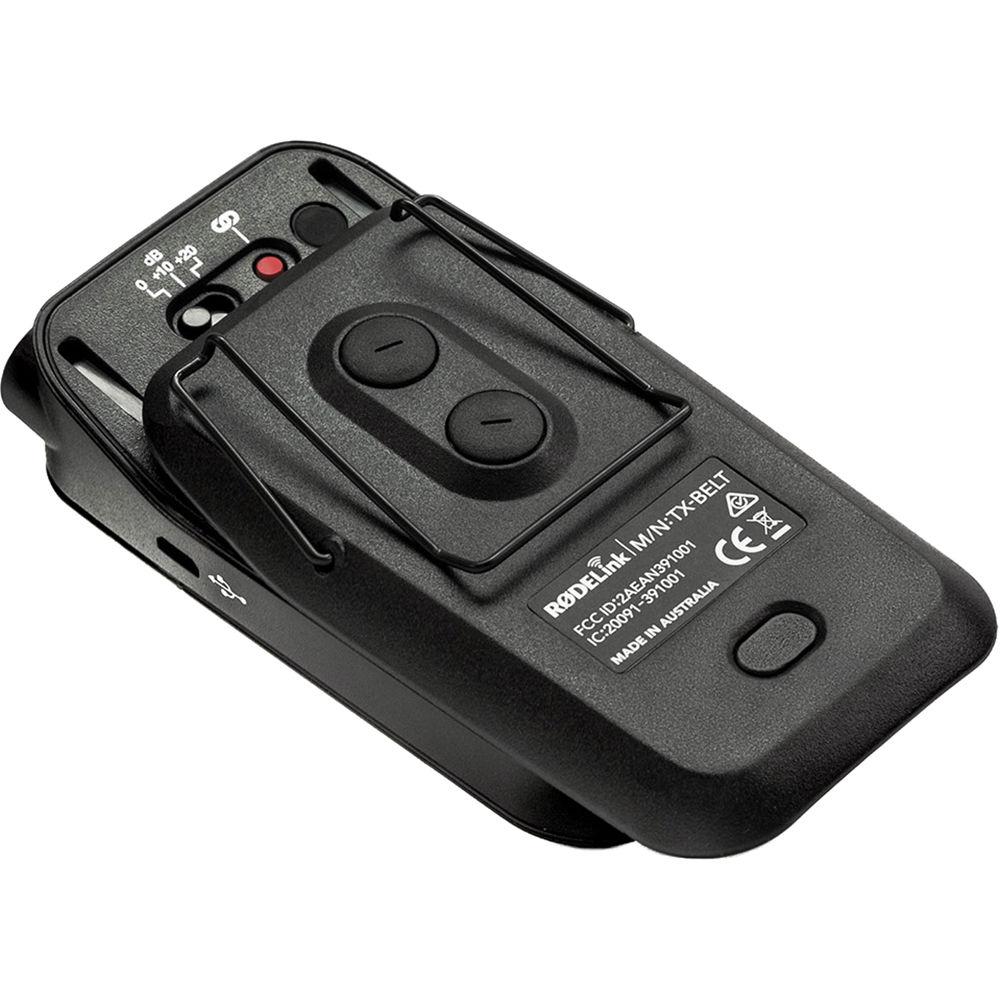

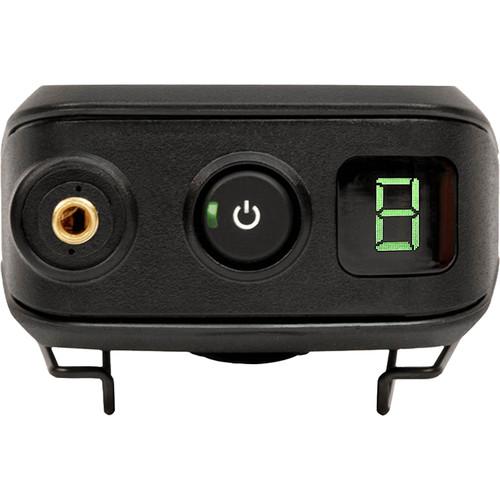

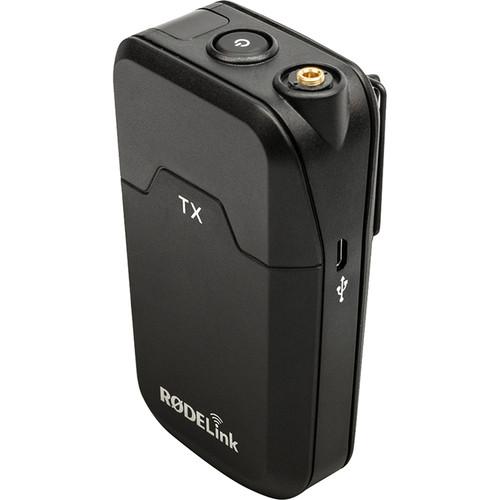

Product description The Rode TX-BELT is a beltpack wireless transmitter designed to provide easy and secure transmission of wireless audio for videographers, filmmakers, and electronic news gatherers. It works with RODELink digital wireless systems and can be powered via two AA batteries or a micro-USB connection.An internal antenna contributes to the compactness of the TX-BELT. It can be attached to a belt, strap, or clothing via the belt clip. The bottom panel slides down for access to the gain switch, which has positions for 0 dB, +10 dB, and +20 dB. Current channel selection is indicated on a large display by the dedicated power button. The 3.5mm TRS input features a locking jack socket to prevent accidental disconnection. The TX-BELT ships with a lavalier microphone and a captive TRS cable. - Designed for use with RODELink digital wireless systems
- Belt clip allows quick attachment to a belt or clothing
- Selectable 0 dB, +10 dB, or +20 dB gain via switch beneath the slide-down bottom panel
- Large indicator for channel selection
- Input connection utilizes a 3.5mm TRS locking jack socket
- Powered via two AA batteries or micro-USB connection

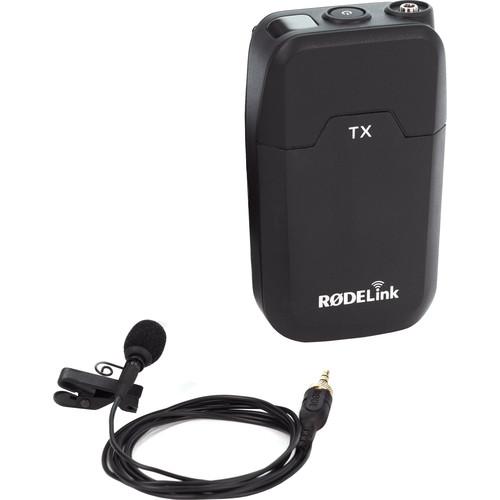

UPC: 698813004348 In the Box Rode TX-BELT Beltpack Wireless Transmitter with Lavalier Mic Lavalier Microphone Captive TRS Cable Limited 2-Year Warranty for Transmitter Limited 10-Year Warranty for Lavalier Microphone Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode TX-BELT Beltpack Wireless Transmitter with Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode TX-BELT Specs | Antenna | Internal | | Input | 1 x 1/8" (3.5 mm) TRS locking jack socket | | Input Impedance | 10 kOhms | | Power Requirement | 2 x AA batteries or micro-USB connection | | Dimensions (W x H x D) | 2.6 x 1.6 x 4.4" / 65 x 40 x 111 mm | | Weight | 6.7 oz / 190 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.0 x 4.9 x 2.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
