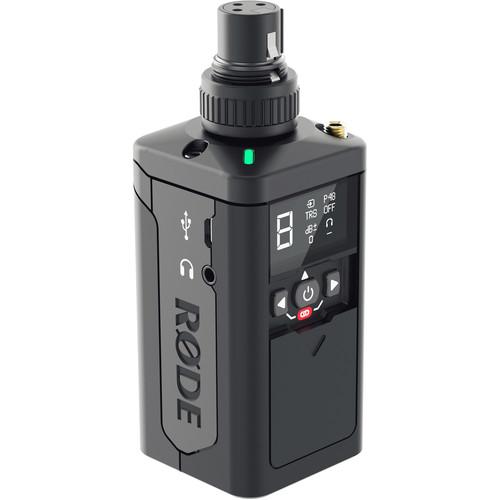

User Manual for Rode TX-XLR Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the Rode TX-XLR Wireless Transmitter
- Product category: Wireless Transmitters Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Wireless Transmitters
 |
User manual for the Rode TX-XLR Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|

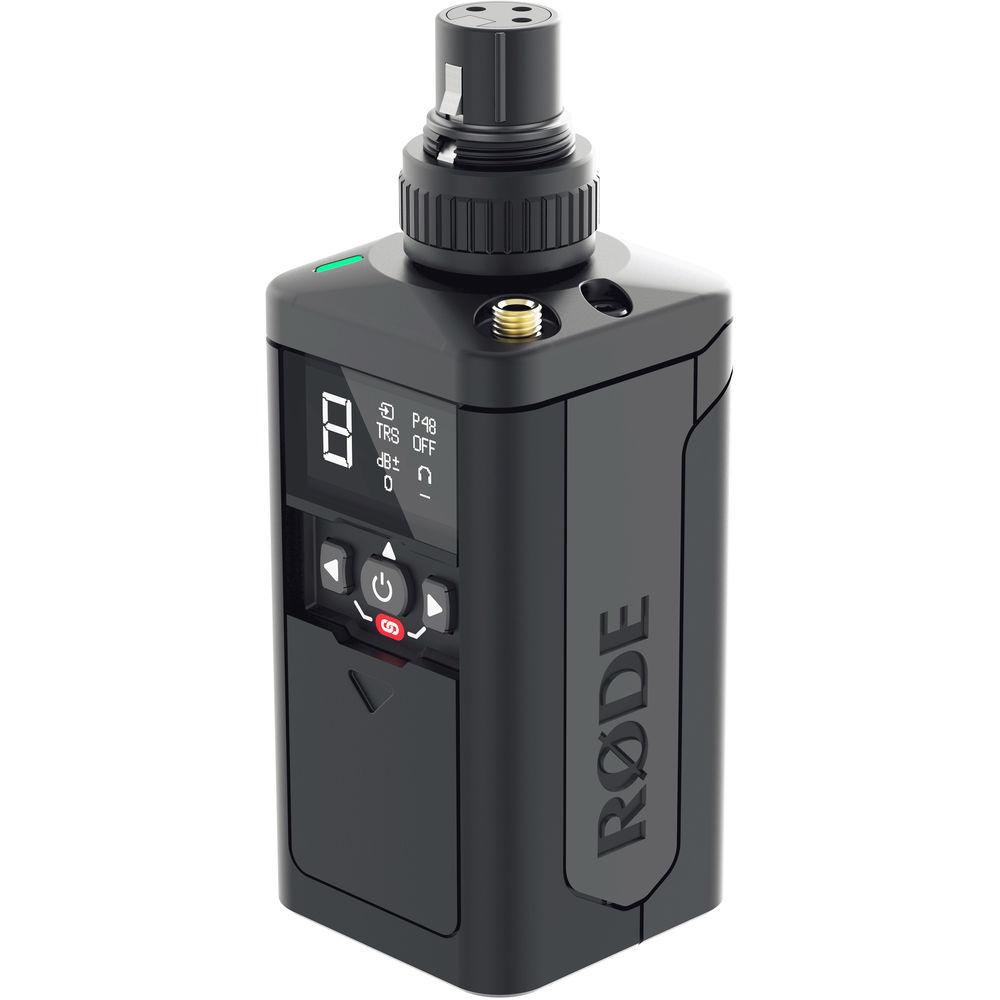

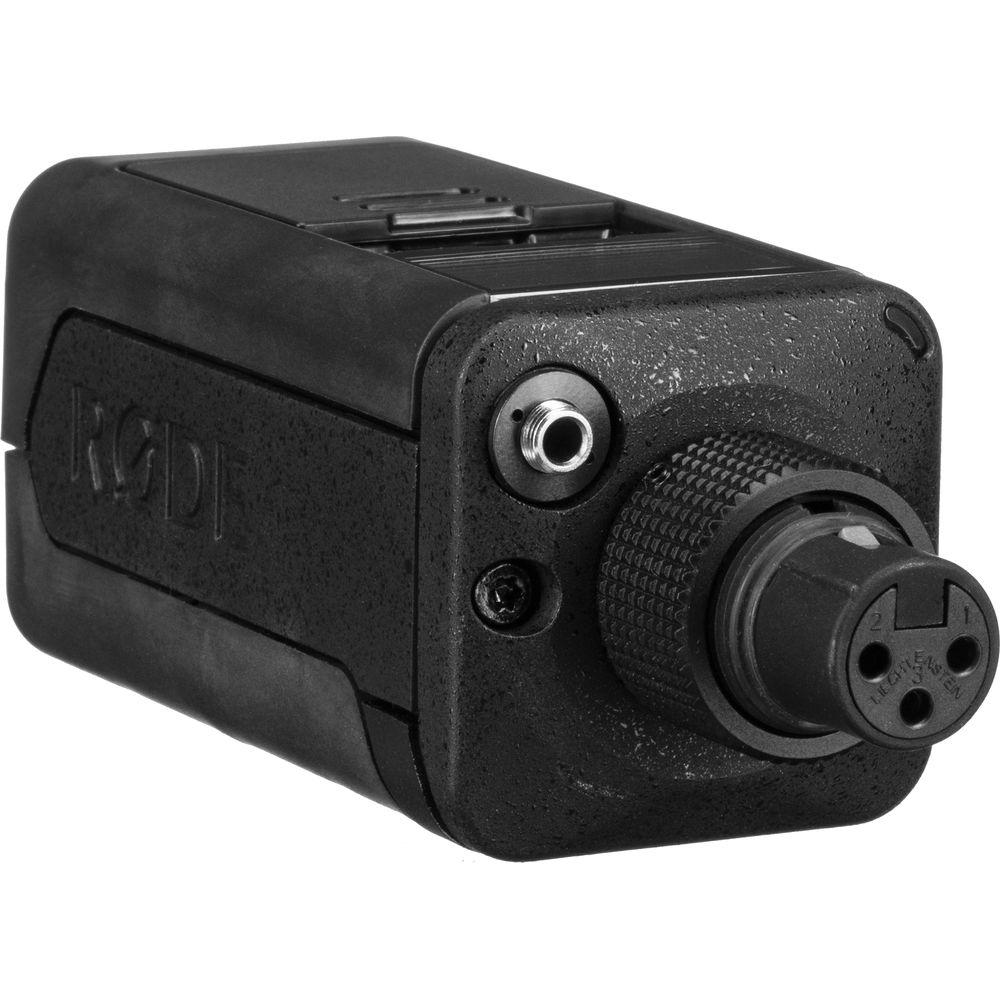

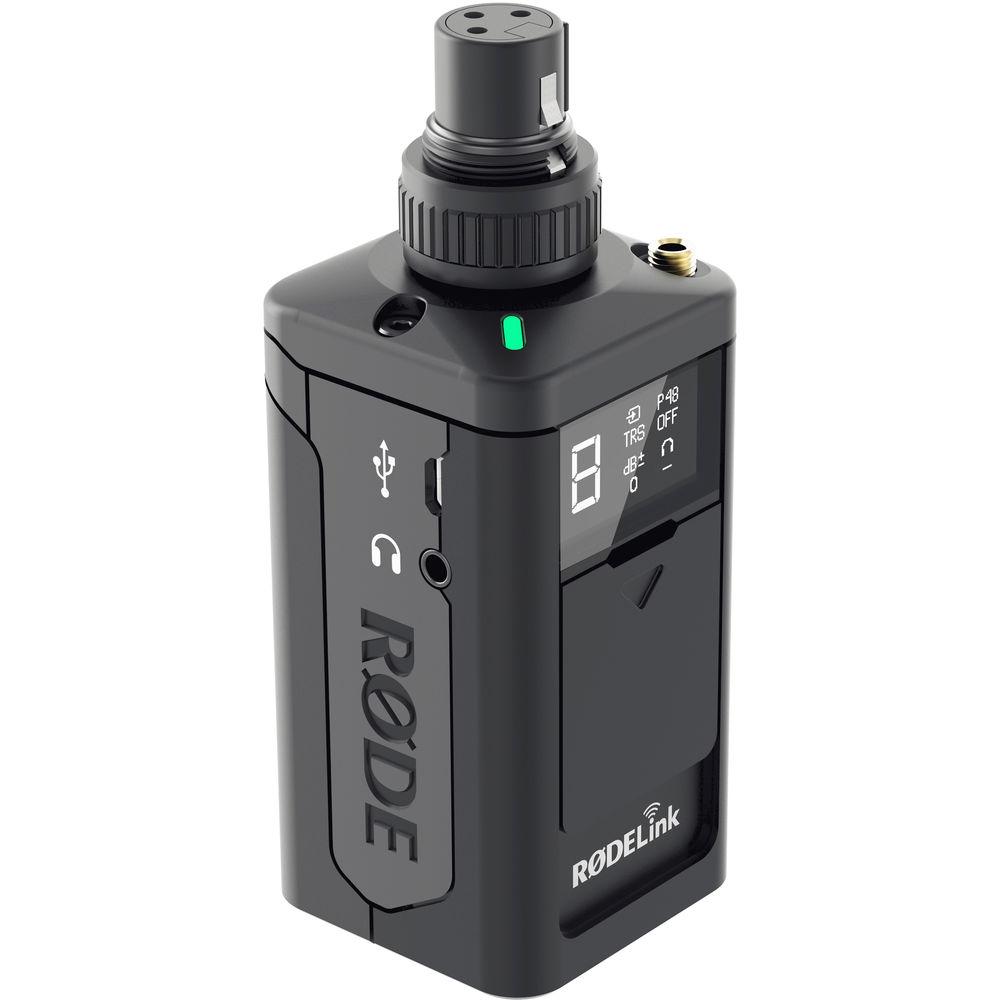

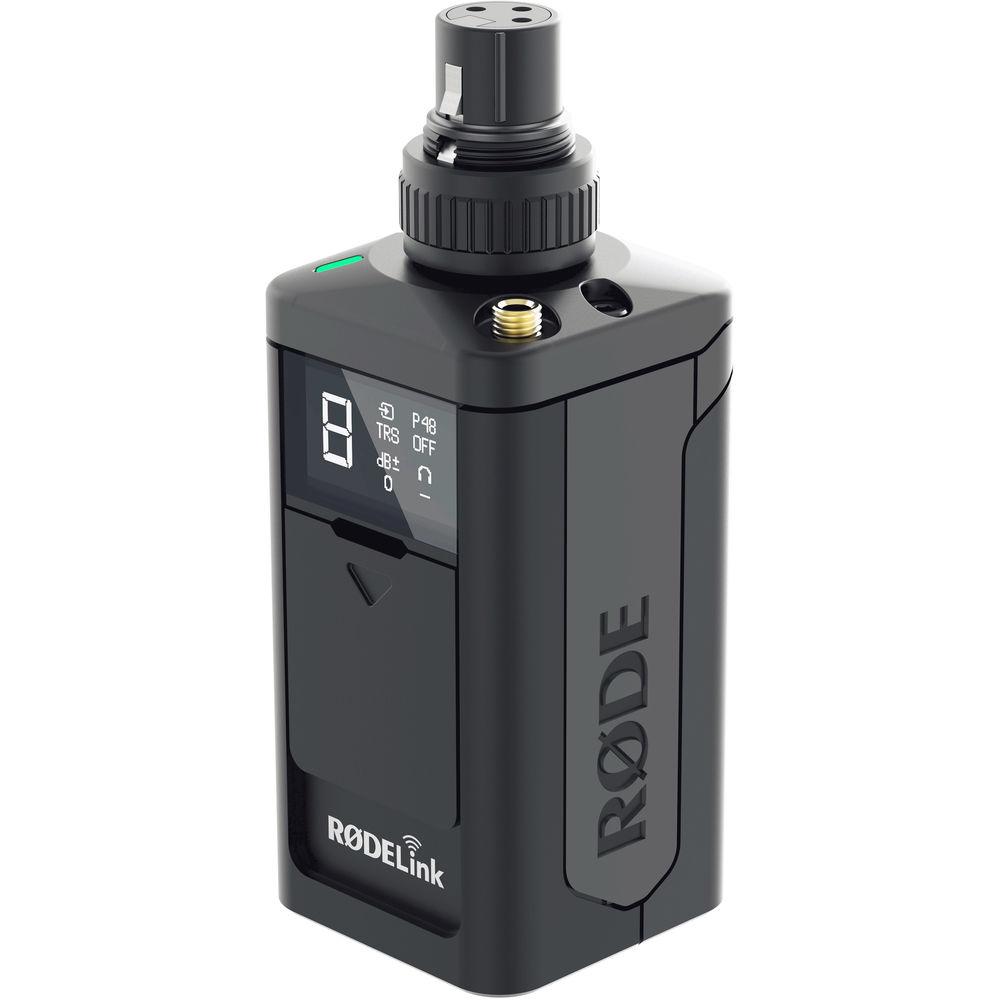

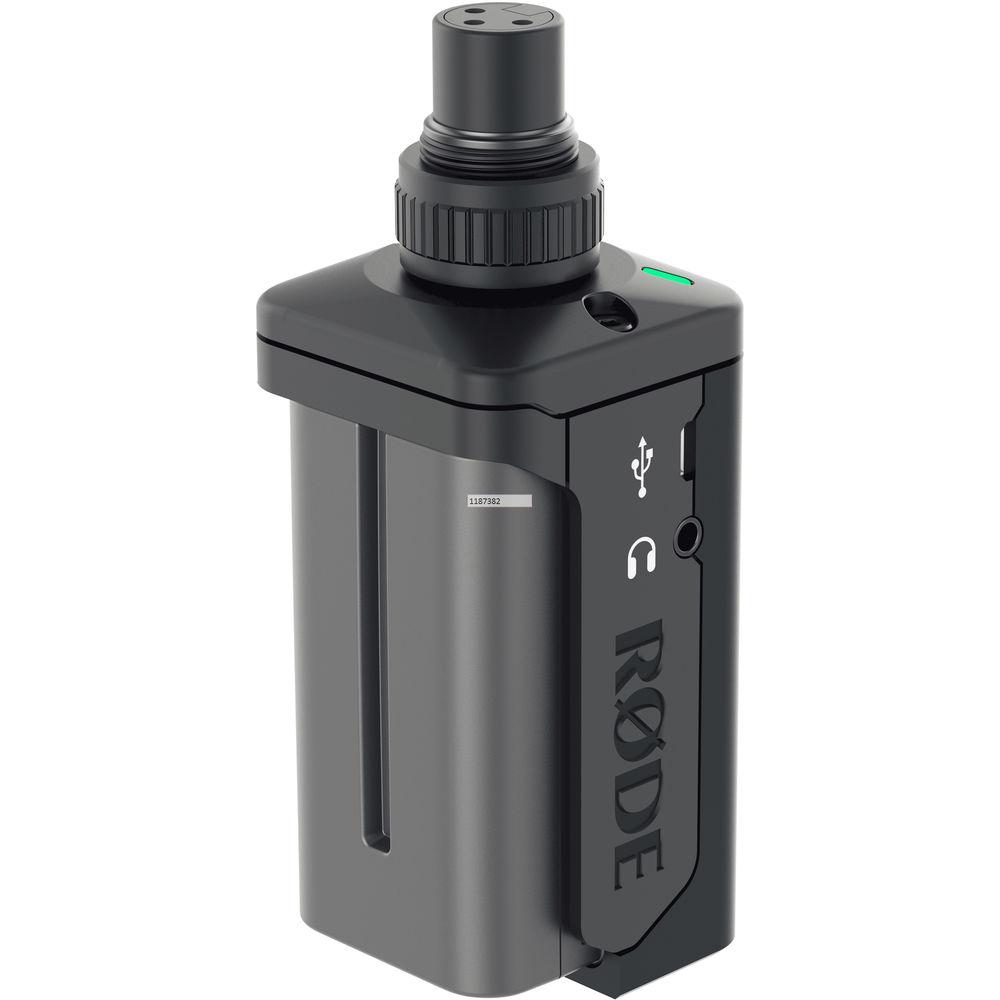

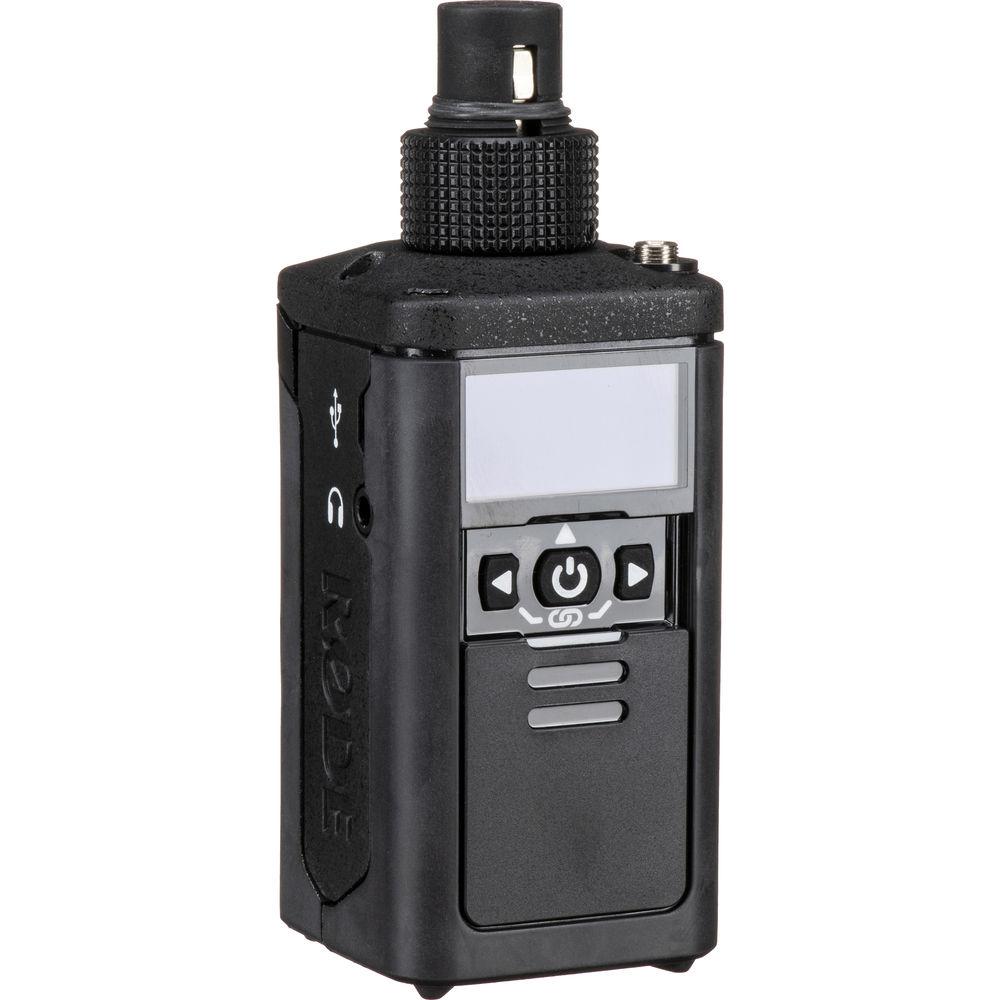

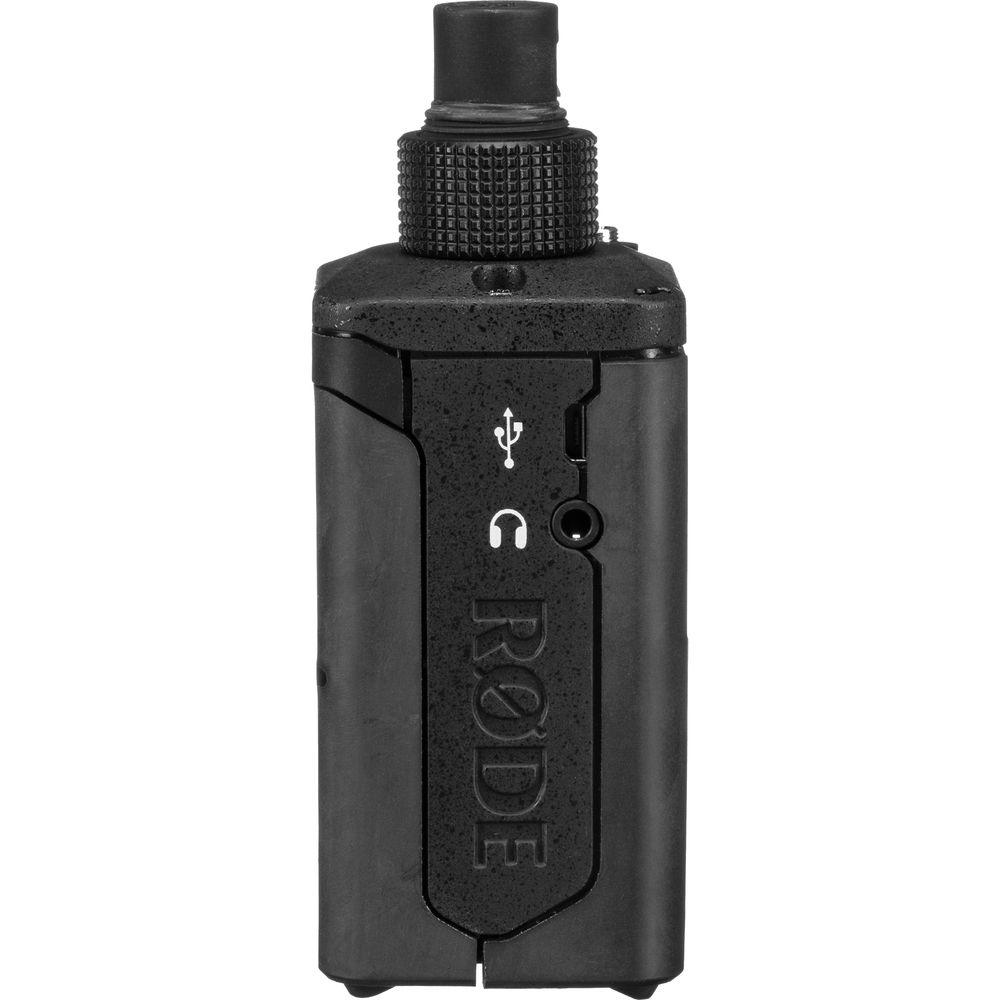

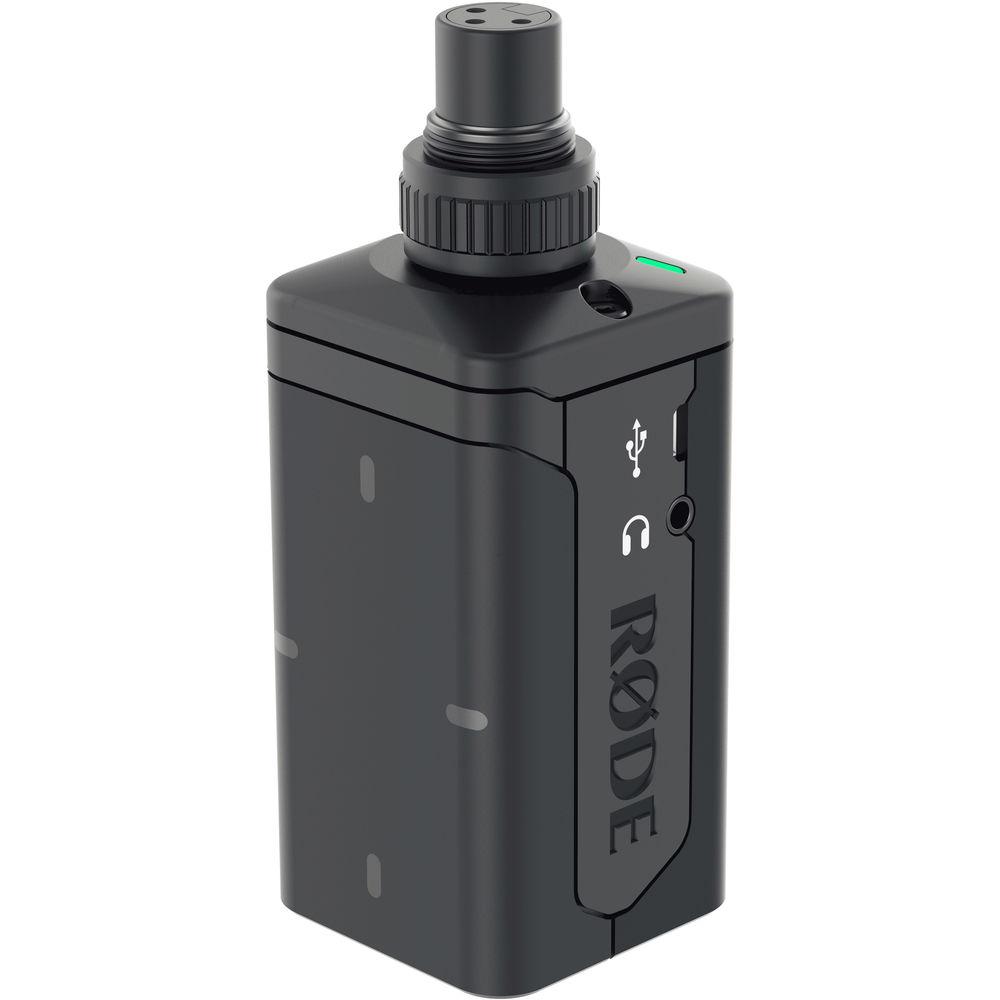

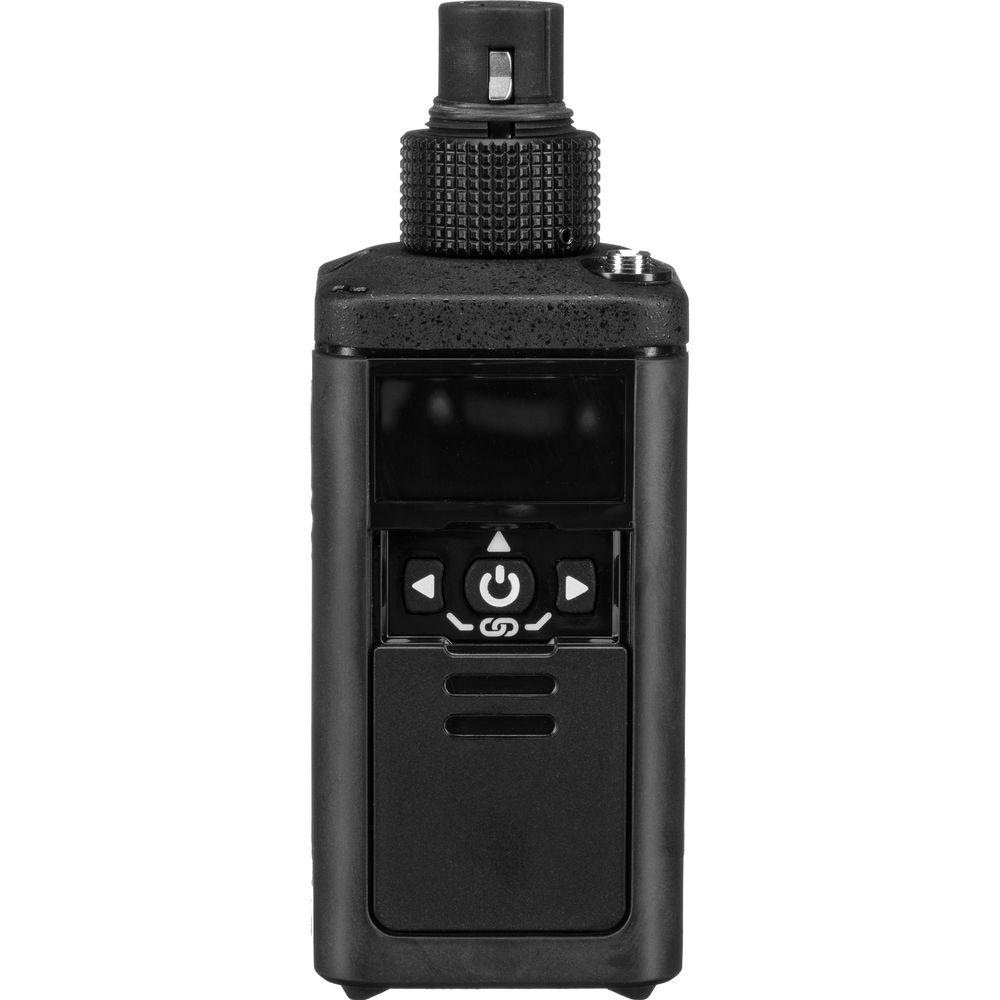

Product description The TX-XLR from Rode is a wireless XLR transmitter for the RodeLink digital wireless system (available separately). It can be used to provide one-touch sync with your wireless system, is capable of supplying 48V of phantom power for microphones through its XLR input, and plug-in power through its TRS input. The TX-XLR sports an OLED panel, as well as an XLR input with a locking collar and a 3.5mm TRS locking input jack. This allows you to use various input configurations; though the TX-XLR can switch between its XLR and TRS inputs, you cannot use both at the same time. Whichever input you choose, you can power the unit with two AA batteries, a Sony NP-F battery, or even continuously via a micro-USB connection. While the unit will run up 7 hours, please note that activating phantom power will reduce the usable running time, depending on the power source you're using. The unit comes with a built-in internal antenna. UPC: 698813004461 In the Box Rode TX-XLR Wireless Transmitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode TX-XLR Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode TX-XLR Specs | Input | XLR with locking collar
3.5 mm TRS locking mini-jack | | Antenna | Internal | | Input Impedance | XLR: 1 kOhm
3.5 mm TRS: 10 kOhms | | Phantom Power | 48 V through XLR jack | | Plug-in power | Available through TRS Jack | | Power Source | 2 X AA battery, Sony NP-F battery or micro-USB | | Battery Life | Approximately seven hours, less with phantom power running | | Dimensions (H x W x D) | 4.7 x 1.8 x 1.8" / 12 x 4.5 x 4.5 cm | | Panel | OLED | | Weight | 7.8 oz / 222 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.9 x 4.9 x 2.6" |
