User manual
Rode VideoMic GO Lightweight on Camera

User Manual for Rode VideoMic GO Lightweight on Camera Mic and Dual Shoe Bracket Kit

• Product category: Shotgun Microphones Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Shotgun Microphones

Product description

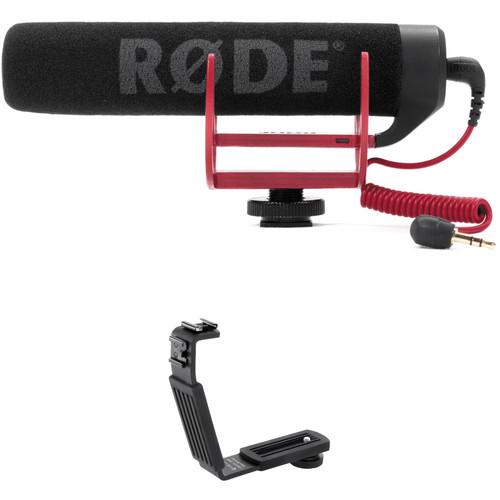

• Rode VideoMic GO Lightweight On-Camera Microphone The VideoMic GO Lightweight On-Camera Microphone from Rode is a lightweight microphone which adds high-quality audio recording to your small camcorder and HDSLR camera. At only 2.6 ounces, the microphone keeps your camera setup lightweight, making it ideal for handheld shooting. It features an integrated Rycote Lyre shock mount for isolation from bumps and vibration, and offers battery-free operation, using instead the plug-in power from your camera's 3.5mm microphone input. Please note that the microphone will not work with cameras that don't supply plug-in power to their 3.5mm audio input jack.

  The VideoMic GO is a directional microphone. It utilizes a supercardioid polar pattern to attenuate sounds from the sides, resulting in a signal that sounds closer to the camera, even when shooting in noisy environments or at moderate distances. The integrated shoe mount provides a 3/8" thread for additional mounting options. A foam windshield and 7.9" dual mono 3.5mm coiled output cable is included.
  Lightweight Design
  • At only 2.6 ounces, the VideoMic GO is ideal for run-and-gun HDSLR recording without the additional weight of larger on-camera microphone options.
  Integrated Rycote Lyre Shock Mount
  • Constructed from a single piece of hard-wearing thermoplastic, the Lyre provides superior acoustic suspension to traditional elastic solutions, and won't wear out, sag, snap, or require any rethreading to maintain its effectiveness.
  No Battery Needed
  • The VideoMic Go does not require batteries for operation, but instead uses the plug-in power supplied via your camera's 3.5mm microphone input. Simply plug in, and you're ready to record.
  Additional Features
  • • Reinforced ABS construction
    • Foam windshield
    • Integrated shoe mount with 3/8" thread
    • 3.5mm TRS mini-jack audio output connection
    UPC: 698813003396
  • Vello CB-510 Dual Shoe Bracket with Silicon Rubber Grip The Vello CB-510 Dual Shoe Bracket with Silicon Rubber Grip is a side bracket that attaches to the bottom of your camera and provides two cold shoes, one on top and one on the side, for attaching lights and other accessories. An included dual-purpose thumbscrew enables mounting the bracket along with a camera onto a tripod, fluid head, ball head or other gear. The thumbscrew features a 1/4" stud on top and a 1/4" female thread underneath. A silicon rubber grip will serve as an effective handle when you use this bracket solely with a camera, and as a pan handle when you mount it on a tripod.

    The two shoe mounts will let you light your subjects from the side and will also free up your camera's shoe mount. The bracket is 4.5" wide, 5" in height, and is compatible with most camcorders and DSLRs. The thumbscrew is adjustable 2.5" along the width. Note: A TTL cord is strongly recommended when using a flash combined with a DSLR. The bracket might not sufficiently support a typical hot shoe flash attached directly.
    Camera & Tripod Mount Bracket
    • • Attaches to the bottom of a camera and provides a cold shoe on top and one on the side
      • A dual-purpose thumbscrew enables mounting the bracket with a camera onto a tripod
      • Features a silicon rubber grip handle
      • Compatible with most camcorders and DSLRs
    UPC: 847628568921
  In the Box
  • VideoMic GO Lightweight On-Camera Microphone seuvrdrrzdsrxbczefrdauaxyucxryrzdtvyzz
  • Foam Windshield
  • 3.5mm Dual Mono Output Cable (7.9")
  • Limited 2-Year Warranty
  • Vello - CB-510 Dual Shoe Bracket with Silicon Rubber Grip
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode VideoMic GO Lightweight On-Camera Microphone

  Operating Principle	Line Gradient
  Diaphragm	0.50" / 12.70 mm
  Polar Pattern	Supercardioid
  Frequency Range	100 Hz to 16 kHz
  Equivalent Noise Level	34 dB A-Weighted
  Maximum SPL	120 dB SPL
  THD	1%
  Sensitivity	-35 dB at 1 kHz

  Output Connectors	1 x 1/8" (3.5 mm) TRS
  Length	6.57" / 167 mm
  Diameter	2.87" / 73 mm
  Weight	2.58 oz / 73 g

  Box Dimensions (LxWxH)	9.3 x 4.9 x 2.8"

• Vello CB-510 Dual Shoe Bracket with Silicon Rubber Grip

  Dimensions

  4.5" wide (11.4 cm) 5" in height (12.7 cm) The thumbscrew slot begins 0.5" into the width and reaches 3" down (1.3 cm / 7.6 cm)

  Box Dimensions (LxWxH)	8.5 x 6.2 x 0.2"
