User Manual for Rode VideoMic GO Lightweight On-Camera Microphone Click to enlarge the picture
Contents of the user manual for the Rode VideoMic GO Lightweight On-Camera Microphone
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
 |
User manual for the Rode VideoMic GO Lightweight On-Camera Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|

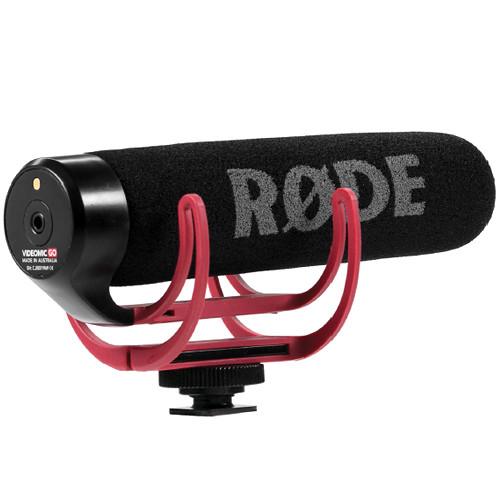

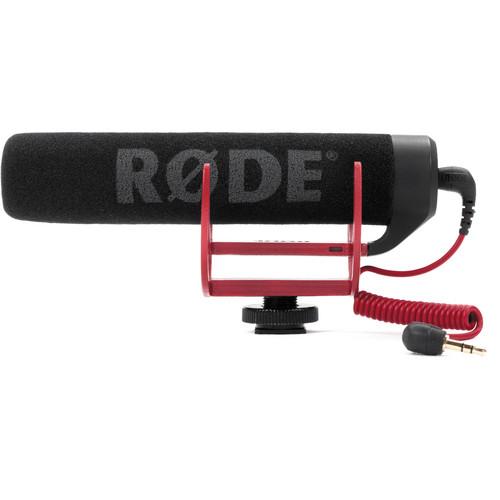

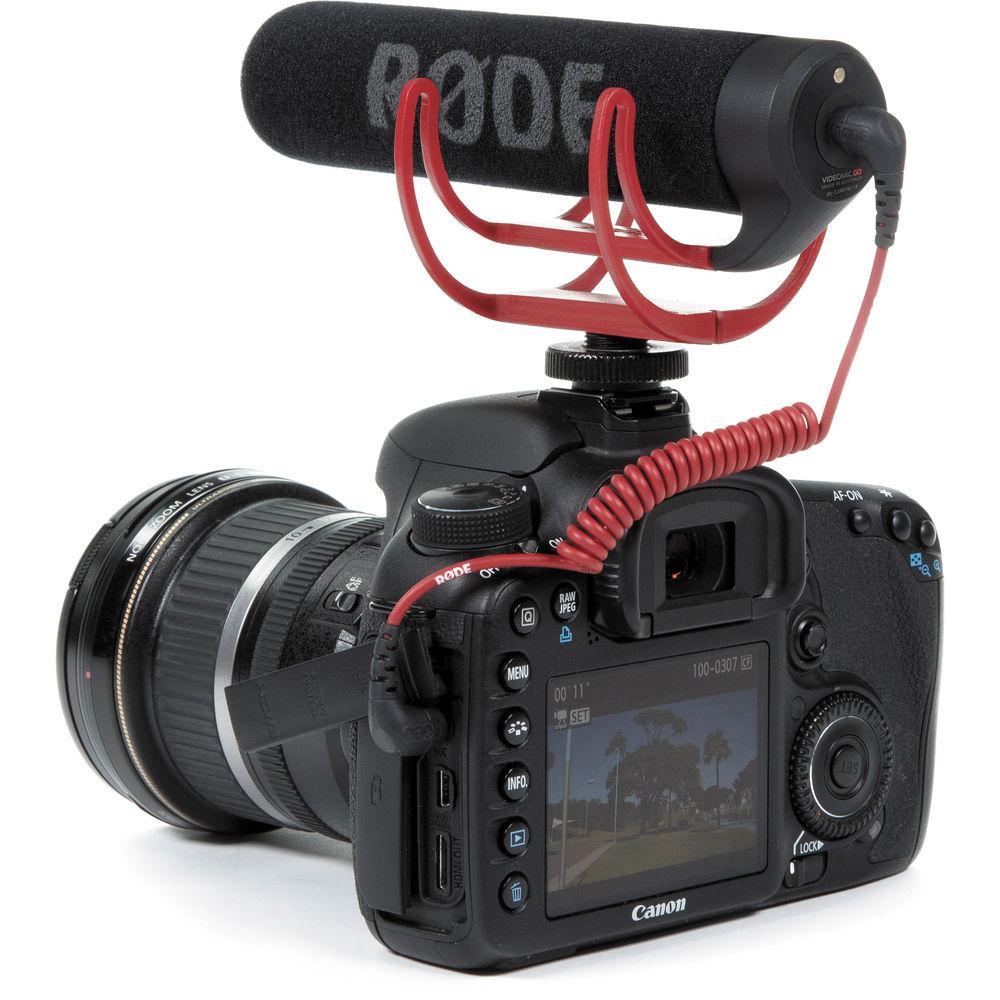

Product description The VideoMic GO Lightweight On-Camera Microphone from Rode is a lightweight microphone which adds high-quality audio recording to your small camcorder and HDSLR camera. At only 2.6 ounces, the microphone keeps your camera setup lightweight, making it ideal for handheld shooting. It features an integrated Rycote Lyre shock mount for isolation from bumps and vibration, and offers battery-free operation, using instead the plug-in power from your camera's 3.5mm microphone input. Please note that the microphone will not work with cameras that don't supply plug-in power to their 3.5mm audio input jack.

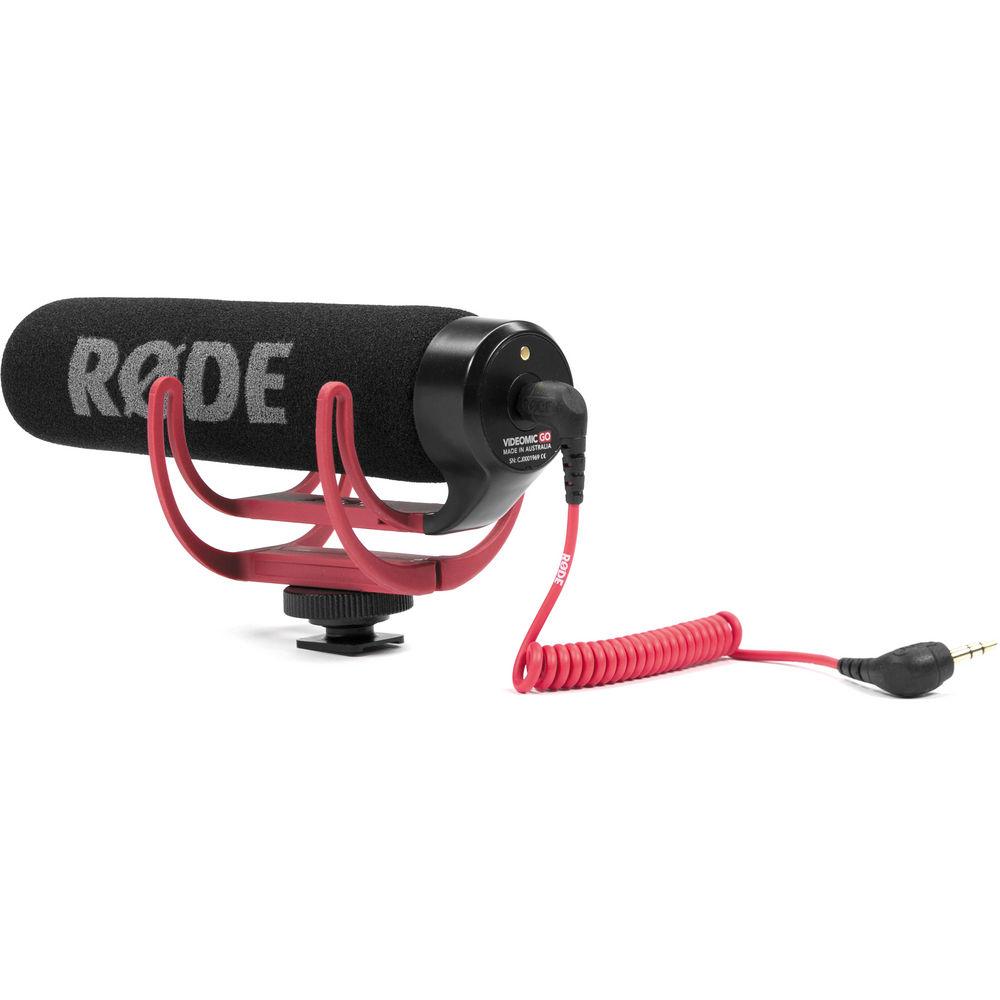

The VideoMic GO is a directional microphone. It utilizes a supercardioid polar pattern to attenuate sounds from the sides, resulting in a signal that sounds closer to the camera, even when shooting in noisy environments or at moderate distances. The integrated shoe mount provides a 3/8" thread for additional mounting options. A foam windshield and 7.9" dual mono 3.5mm coiled output cable is included. - Lightweight Design
- At only 2.6 ounces, the VideoMic GO is ideal for run-and-gun HDSLR recording without the additional weight of larger on-camera microphone options.

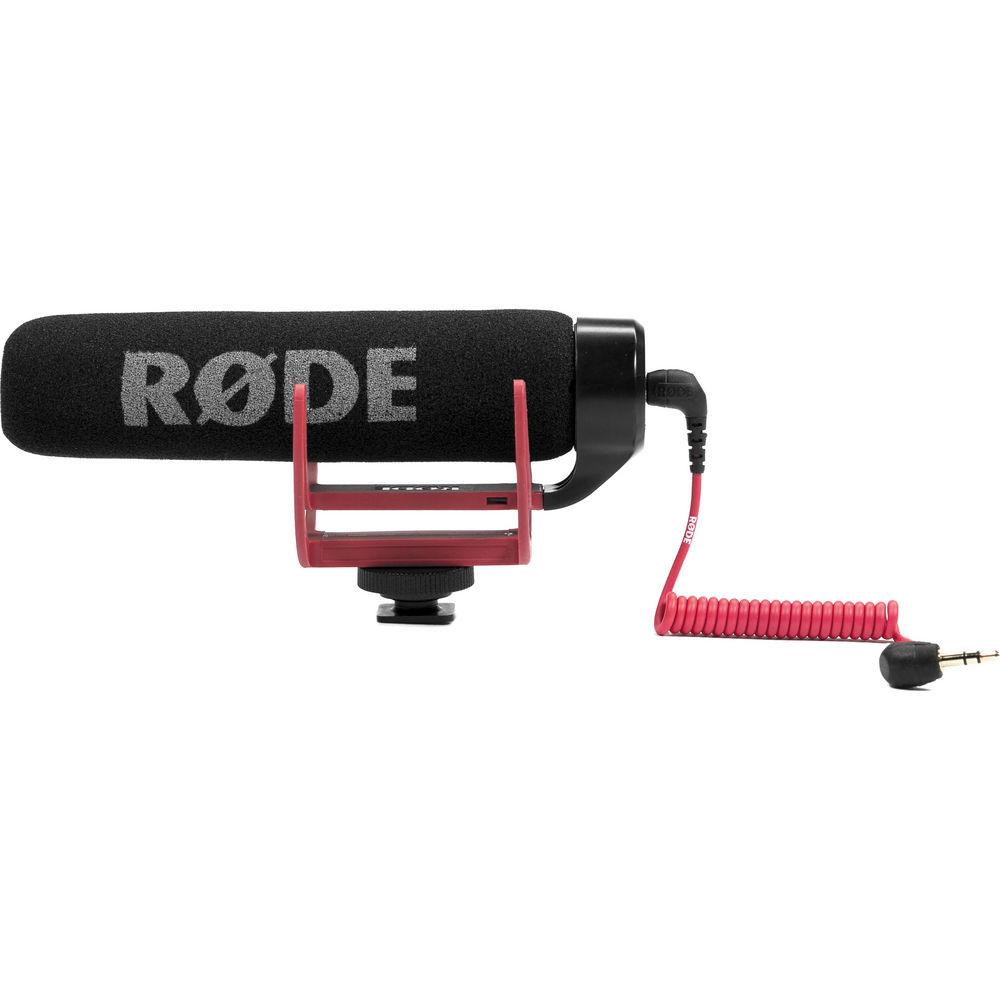

- Integrated Rycote Lyre Shock Mount
- Constructed from a single piece of hard-wearing thermoplastic, the Lyre provides superior acoustic suspension to traditional elastic solutions, and won't wear out, sag, snap, or require any rethreading to maintain its effectiveness.
- No Battery Needed
- The VideoMic Go does not require batteries for operation, but instead uses the plug-in power supplied via your camera's 3.5mm microphone input. Simply plug in, and you're ready to record.
- Additional Features
-
- Reinforced ABS construction
- Foam windshield
- Integrated shoe mount with 3/8" thread

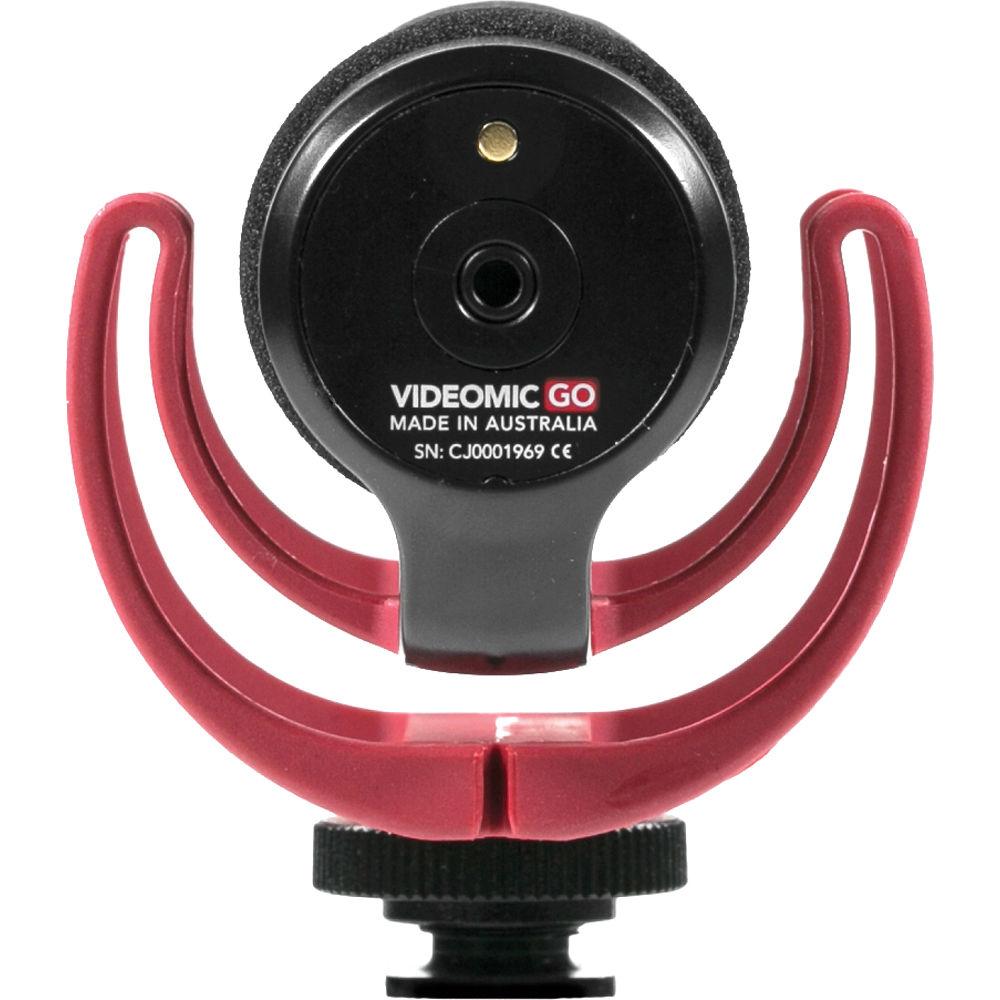

- 3.5mm TRS mini-jack audio output connection
UPC: 698813003396 In the Box Rode VideoMic GO Lightweight On-Camera Microphone Foam Windshield 3.5mm Dual Mono Output Cable (7.9") Limited 2-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode VideoMic GO Lightweight On-Camera Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode VideoMic GO Specs | | | Operating Principle | Line Gradient | | Diaphragm | 0.50" / 12.70 mm | | Polar Pattern | Supercardioid | | Frequency Range | 100 Hz to 16 kHz | | Equivalent Noise Level | 34 dB A-Weighted | | Maximum SPL | 120 dB SPL | | THD | 1% | | Sensitivity | -35 dB at 1 kHz | | | | Output Connectors | 1 x 1/8" (3.5 mm) TRS | | Length | 6.57" / 167 mm | | Diameter | 2.87" / 73 mm | | Weight | 2.58 oz / 73 g | | | | Package Weight | 0.425 lb | | Box Dimensions (LxWxH) | 9.3 x 4.9 x 2.8" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
