User manual

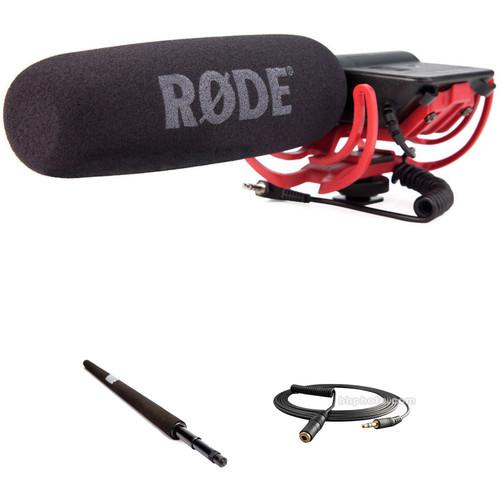

Rode VideoMic & Micro Boompole Kit

User Manual for Rode VideoMic & Micro Boompole Kit

• Product category: Shotgun Microphones Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Shotgun Microphones

Product description

• Rode VideoMic with Rycote Lyre Suspension System The VideoMic with Rycote Lyre Suspension System from Rode is a shotgun microphone that can easily be mounted on a DSLR camera. It features a Rycote suspension system that attaches to the camera's shoe. The VideoMic is lightweight, and when mounted on a camera it does not appear in the frame. The VideoMic can also mount to Rode's boompoles for elevated audio capture. Its supercardioid polar pattern attenuates sounds from the sides. The result is a signal that sounds closer to the camera, even when shooting in noisy environments or at moderate distances.

  The included Rycote Lyre is a non-elasticated suspension structure composed of a hard-wearing thermoplastic. It is more effective at acoustically decoupling microphones from unwanted vibrations, handling and cable-borne noise than elasticated suspensions. The lyre remains effective at a wide range of temperatures and is virtually indestructible. It will never wear out, sag, snap or require any rethreading to maintain its effectiveness.

  An attached, coiled cable terminates to a 1/8" (3.5mm) mini output connection. The VideoMic features a condenser element that utilizes a standard 9V battery (sold separately). The microphone will run for approximately 100 hours on a single battery.
  Barrel-Canceling Pickup
  • The Rode Video Mic functions as a true line+gradient microphone with a supercardioid pattern in the front and a barrel that cancels side audio. The result is maximum pickup of the source in highly ambient and noisy environments.
  Selectable 10 or 20 dB Pad
  • When capturing audio in loud environments, the VideoMic offers built-in attenuation. The selectable 10 or 20 dB pad lessens the microphone's sensitivity, allowing it to handle higher SPL levels without sacrificing clarity.
  High-Pass Filter Switch
  • A high-pass filter switch eliminates room ambiance and noise below 80 Hz. This results in improved intelligibility while recording around machinery, wind or close proximities.
  Internal Power
  • The condenser element is powered with a standard 9V battery for up to 100 hours (approximately).
  UPC: 698813002900
• Rode Micro Boompole 3-Section Telescopic Boompole The Micro Boompole from Rode is a convenient and portable three-piece boompole. Lightweight and precision balanced, the anodized aluminum pole features intuitive twist locks for smooth extension.
  • Three-section boompole
  • Precision balanced anodized aluminum construction
  • Intuitive lock/release system
  • Ergonomic grip handle
  UPC: 698813001972
• Rode Stereo Mini Male to Stereo Mini Female Cable - 10' This Rode Mini Phone VideoMic Cable is a 10' long extension cable that can be used to position the VideoMic up to 10' away from the video camera. For the most of its length this cable is straight, but also features a short coiled section on the side of the mic connection. UPC: 698813000494

• VideoMic with Rycote Lyre Suspension System szzywcvy
• Rycote Suspension System
• Windscreen
• Limited 1-Year Warranty

• Micro Boompole 3-Section Telescopic Boompole

• Stereo Mini Male to Stereo Mini Female VideoMic Cable - 10'

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode VideoMic with Rycote Lyre Suspension System

  Operating Principle	Line Gradient
  Transducer	Condenser
  Diaphragm	0.50" / 12.70 mm
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 20 kHz
  Equivalent Noise Level	20 dB A-Weighted
  Maximum SPL	134 dB SPL
  Pad	-10 dB -20 dB
  THD	1%
  Impedance	200 Ohms
  Sensitivity	-38 dB at 1 kHz
  Low-Cut Filter	@ 80 Hz

  Output Connectors	1 x 1/8" (3.5 mm) TRS
  Battery Type	1 x 9 V
  Length	2.56" / 65 mm
  Diameter	4.02" / 102 mm
  Weight	6.21 oz / 176 g

  Box Dimensions (LxWxH)	11.7 x 5.3 x 3.4"

• Rode Micro Boompole 3-Section Telescopic Boompole

  Material	Anodized aluminum
  Sections	3
  Minimum Length	2.67' (84.4 cm)
  Maximum Length	6.75' (206 cm)
  Maximum Diameter	1.3" (3.3 cm)
  Weight	12.7 oz (396 g)

  Box Dimensions (LxWxH)	40.6 x 7.0 x 2.0"

• Rode Stereo Mini Male to Stereo Mini Female Cable - 10'

  Cable Diameter	0.157" / 4 mm
  Conductor Type	PCOCC-A
  Insulator	Perfluoroalkoxy (PFA)
  Connector Plating	Nickel
  Sheath Material	TPE
  Number of Conductors	2.0
  Temperature Rating	176°F / 80°C
  Weight	1.52 oz / 43.1 g

  Box Dimensions (LxWxH)	6.9 x 4.0 x 0.5"
