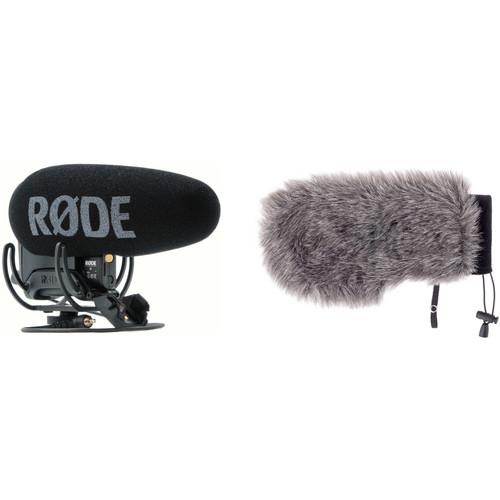

User Manual for Rode VideoMic Pro Plus On-Camera Shotgun Microphone and Windbuster Kit Click to enlarge the picture
Contents of the user manual for the Rode VideoMic Pro Plus On-Camera Shotgun
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
|
User manual for the Rode VideoMic Pro Plus On-Camera Shotgun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode VideoMic Pro Plus On-Camera Shotgun Microphone and Windbuster Kit from includes the Rode on-camera shotgun microphone, a micro-USB cable, a 3.5mm TRS cable, and an Auray WSW-VMP-R Windbuster for the VideoMic Pro microphone. It can be used to capture audio for camcorders, DSLRs, and portable recorders as a source of primary and reference audio. The Rode VideoMic Pro Plus is a supercardioid condenser shotgun microphone with an integrated Rycote Lyre shockmount, a built-in rechargeable battery, an improved response over its predecessor (20 Hz to 20 kHz), and improved RF-immunity as well. It features 3.5mm stereo mini-jack termination, outputs a dual-mono signal, and provides a TRS cable to make the connection for your camera. Also, the Auray WSW-VMP-R Windbuster provides dual-layered wind protection and reduces unwanted broadband wind noise and vocal pops. It is custom-made for the VideoMic Pro and is designed to be used over its existing foam windscreen. The simulated fur outer layer works in tandem with the acoustic cloth inner lining to protect the microphone element from air burst without muffling the sound. It is effective in light to moderate breeze conditions (4-17 mph), and you can generally expect a 30 to 40 dB reduction in wind noise. - Rode VideoMic Pro Plus On-Camera Shotgun Microphone
- Rode VideoMic Pro Plus On-Camera Shotgun Microphone
- R
|
Upload User Manual
Have you got an user manual for the Rode VideoMic Pro Plus On-Camera Shotgun Microphone and Windbuster Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode VideoMic Pro Plus On-Camera Shotgun Microphone
| Acoustic Principle | Line gradient | | Directional Pattern | Supercardioid | | Frequency Range | 20 Hz to approximately 20 kHz | | High-Pass Filter | Selectable at 75 Hz, 150 Hz | | Sensitivity | -33.6 dB re 1 V/Pa (21.2 mV at 94 dB SPL) ±2 dB at 1 kHz | | Output Impedance | 200 Ohms | | Equivalent Noise | 14.2 dBA SPL | | Maximum Output | 7.72 dBu (at 1 kHz, 1% THD into 1 kOhm) | | Dynamic Range | 118.8 dB | | Maximum SPL | 133 dB SPL | | Signal to Noise Ratio | 79.8 dB | | Power Options | LB-1 RØDE custom lithium-ion rechargeable battery (~12 mA current draw)
2 x AA batteries (~17 mA current draw), or via micro-USB port | | Battery Life | LB-1 Battery Life: Over 100 hours | | Battery Charger | Micro-USB cable (supplied) | | Output Connection | Dual mono unbalanced on stereo 1/8" / 3.5 mm jack | | Dimensions | 6.7 x 4.4 x 2.6" / 170.0 x 111.0 x 66.0 mm | | Weight | 4.3 oz / 122 g | | | | Box Dimensions (LxWxH) | 8.5 x 5.1 x 3.1" | - Auray WSW-VMP-R Windbuster for Rode VideoMic Pro with Rycote Lyre Shockmount
| | | Box Dimensions (LxWxH) | 8.2 x 4.0 x 1.0" |
