User Manual for Rode VideoMic Pro with Rycote Lyre Shockmount Click to enlarge the picture
Contents of the user manual for the Rode VideoMic Pro with Rycote Lyre
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
 |
User manual for the Rode VideoMic Pro with Rycote Lyre contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description Moving from Stills to Video: Audio, Audio, Audio Read More yqyzdfrw - Introducing the new VideoMic Pro with Rycote Onboard

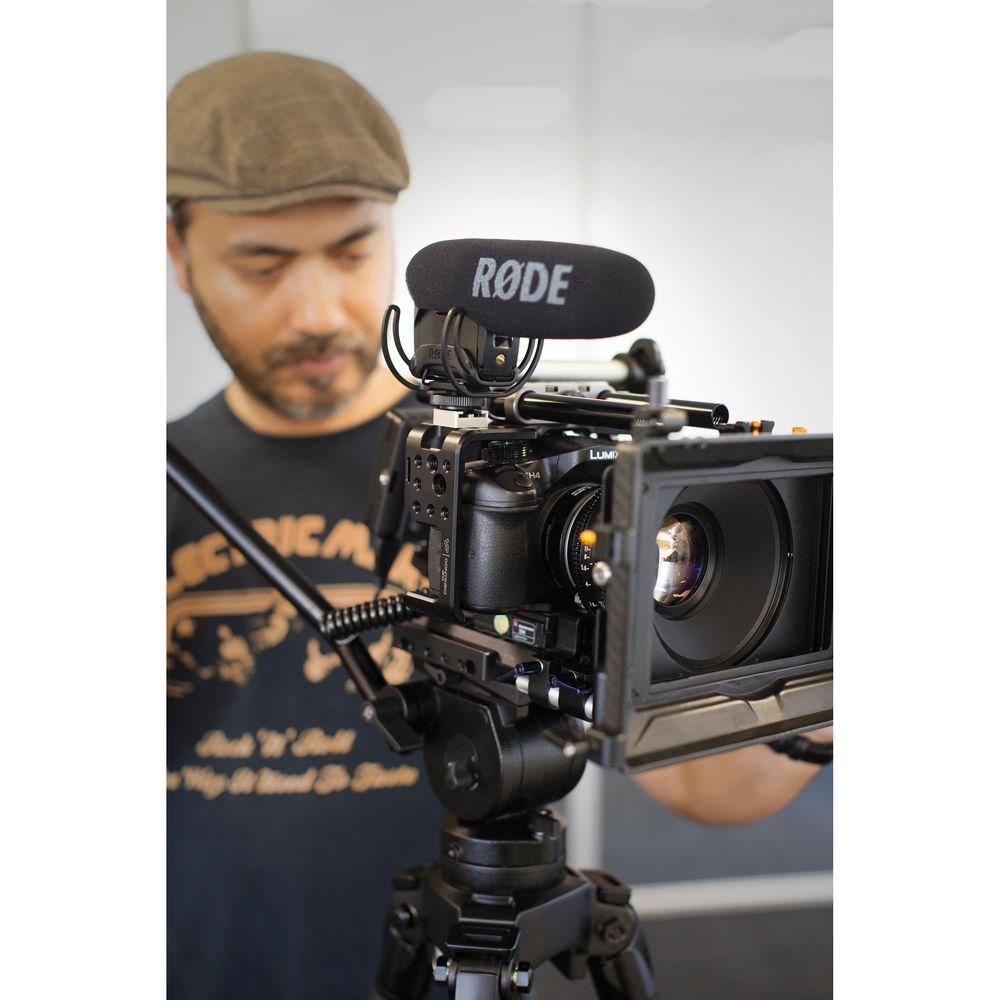

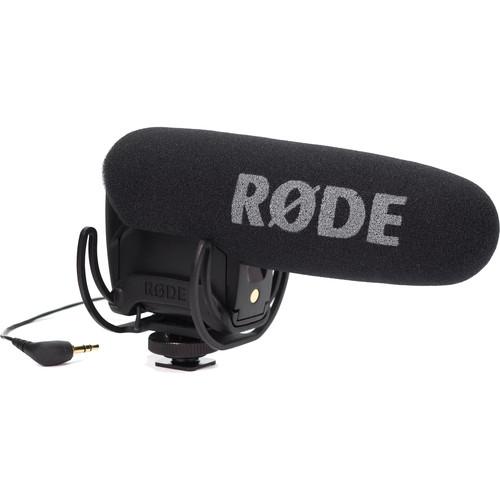

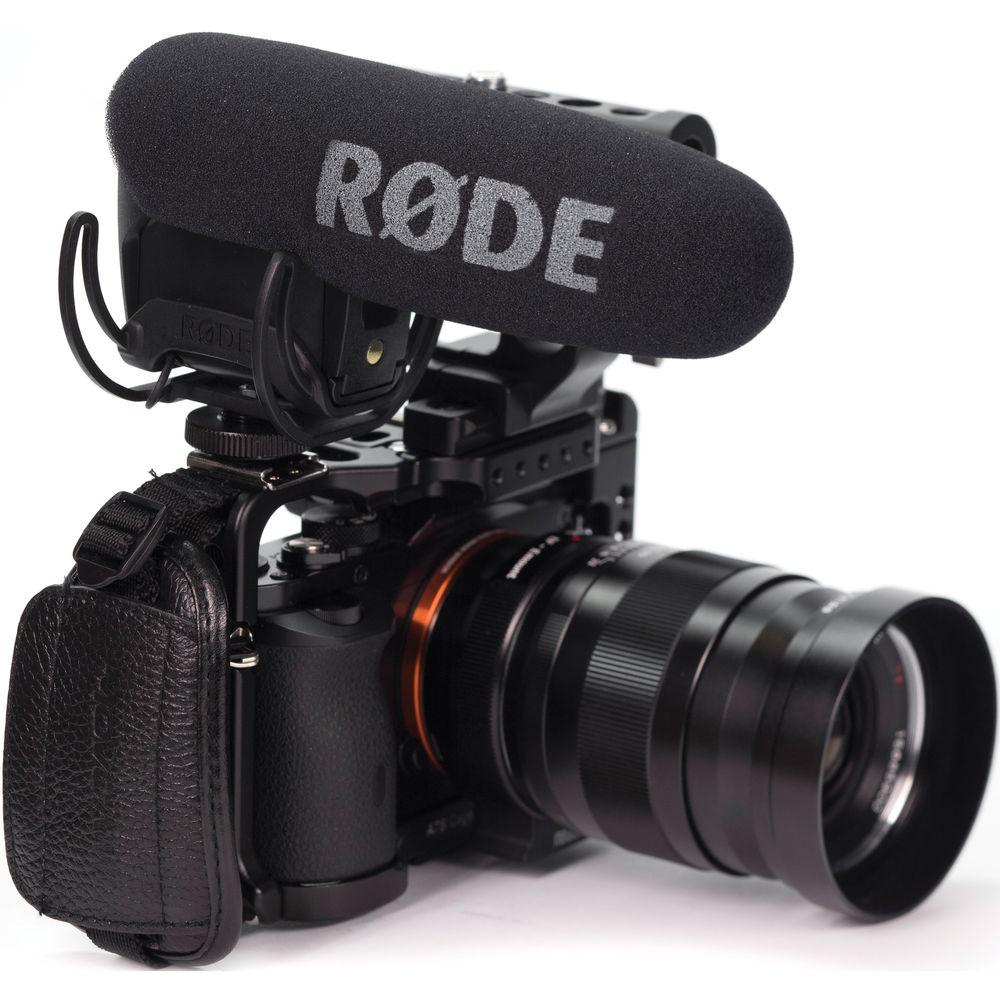

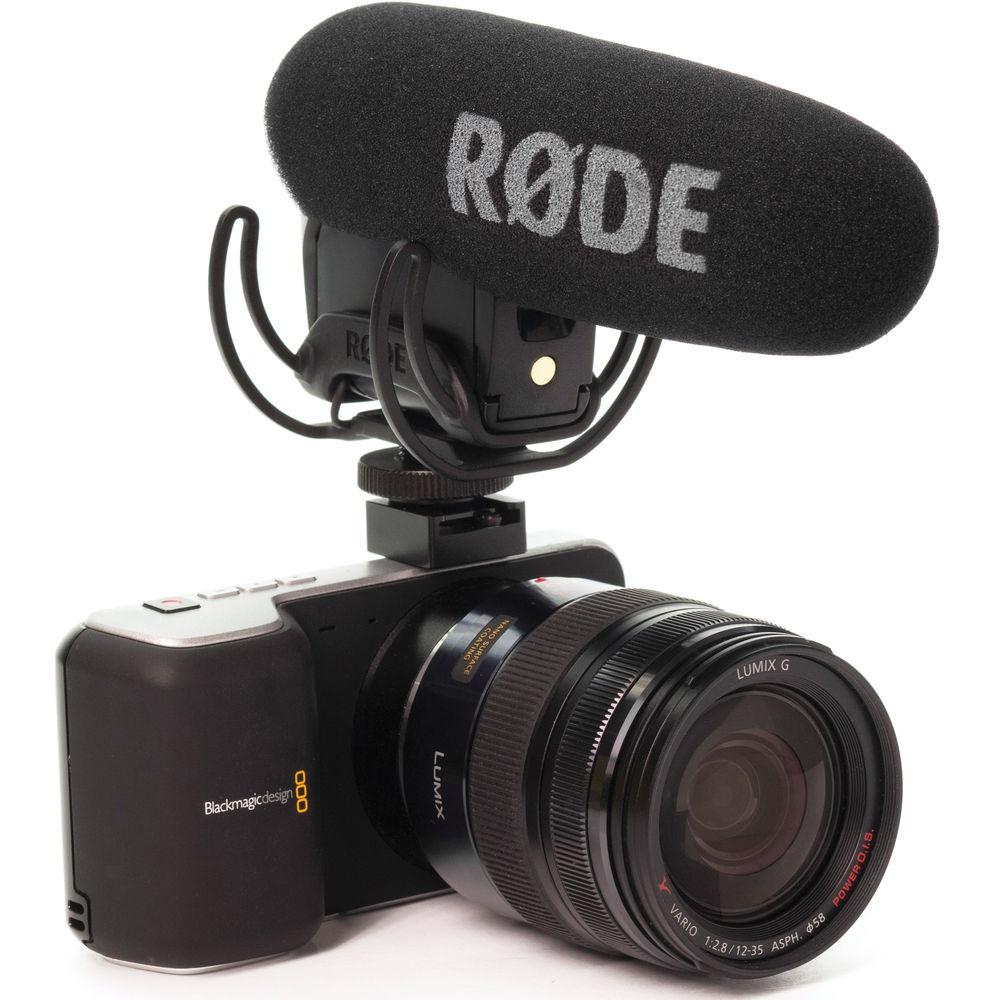

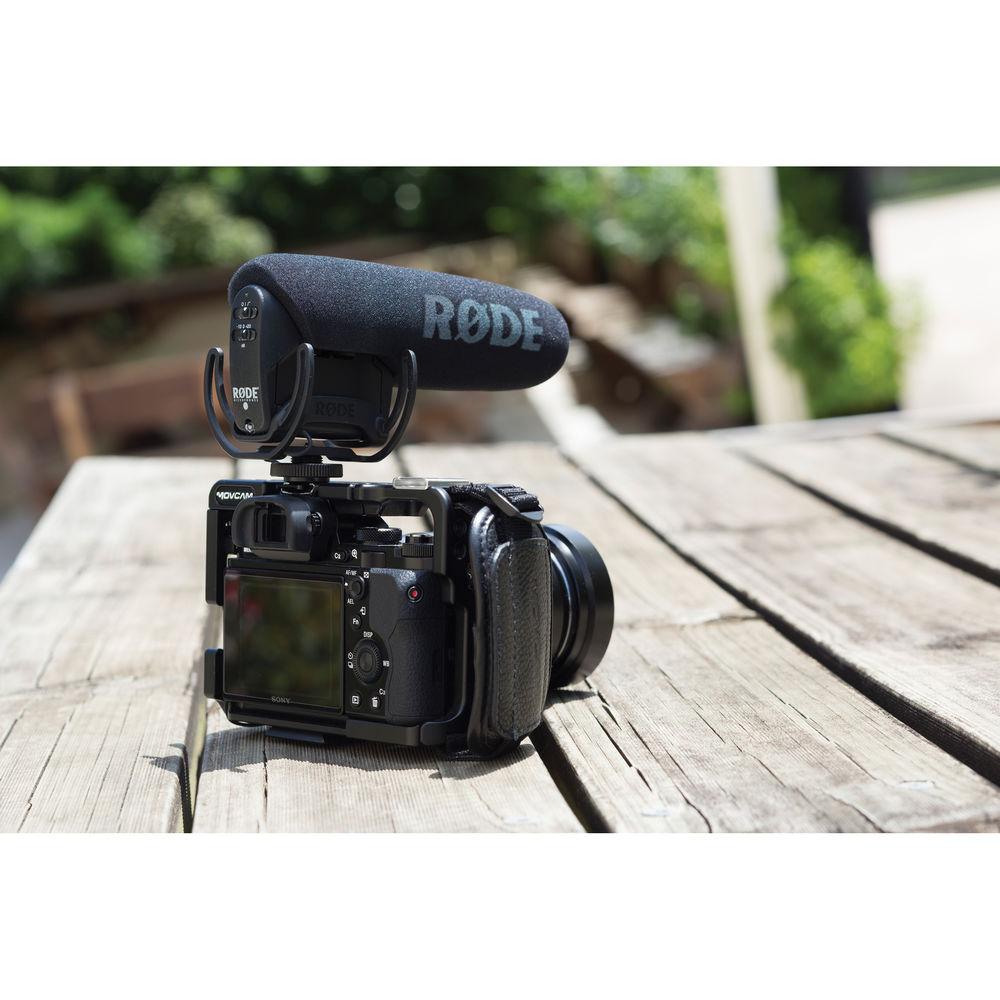

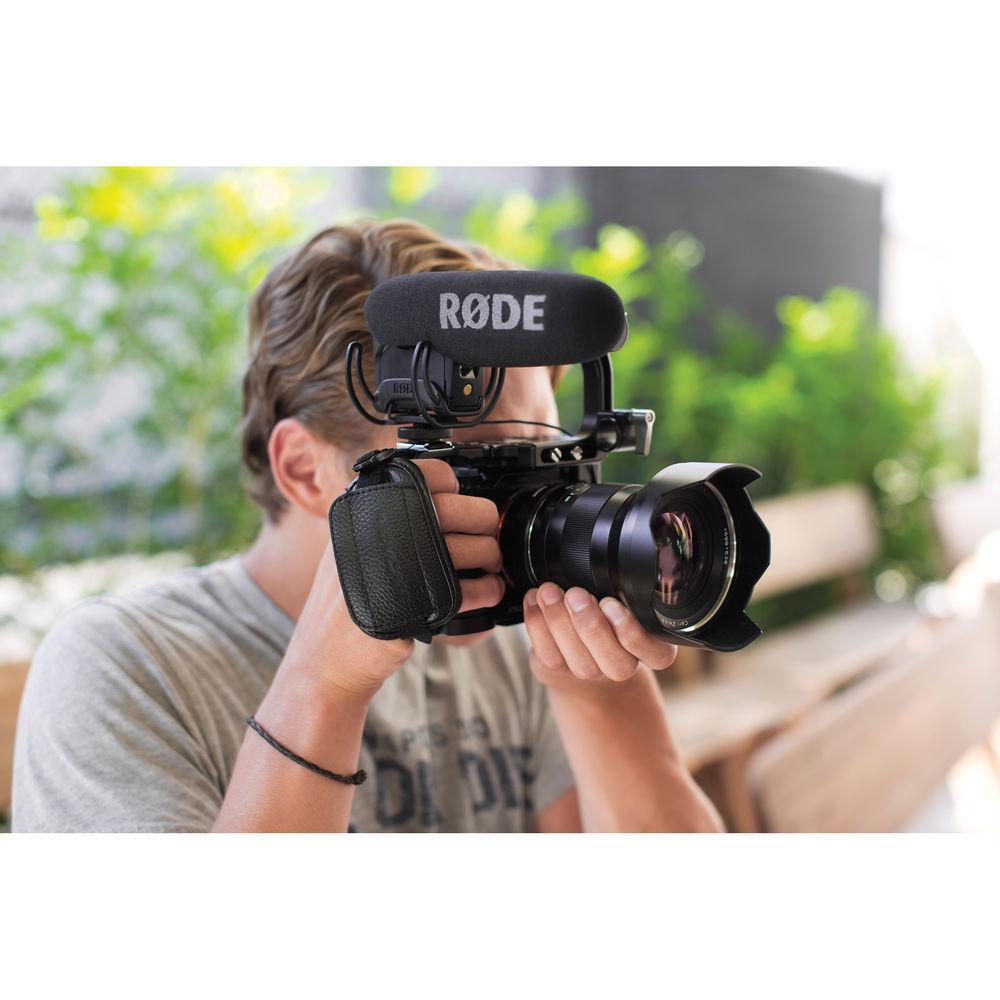

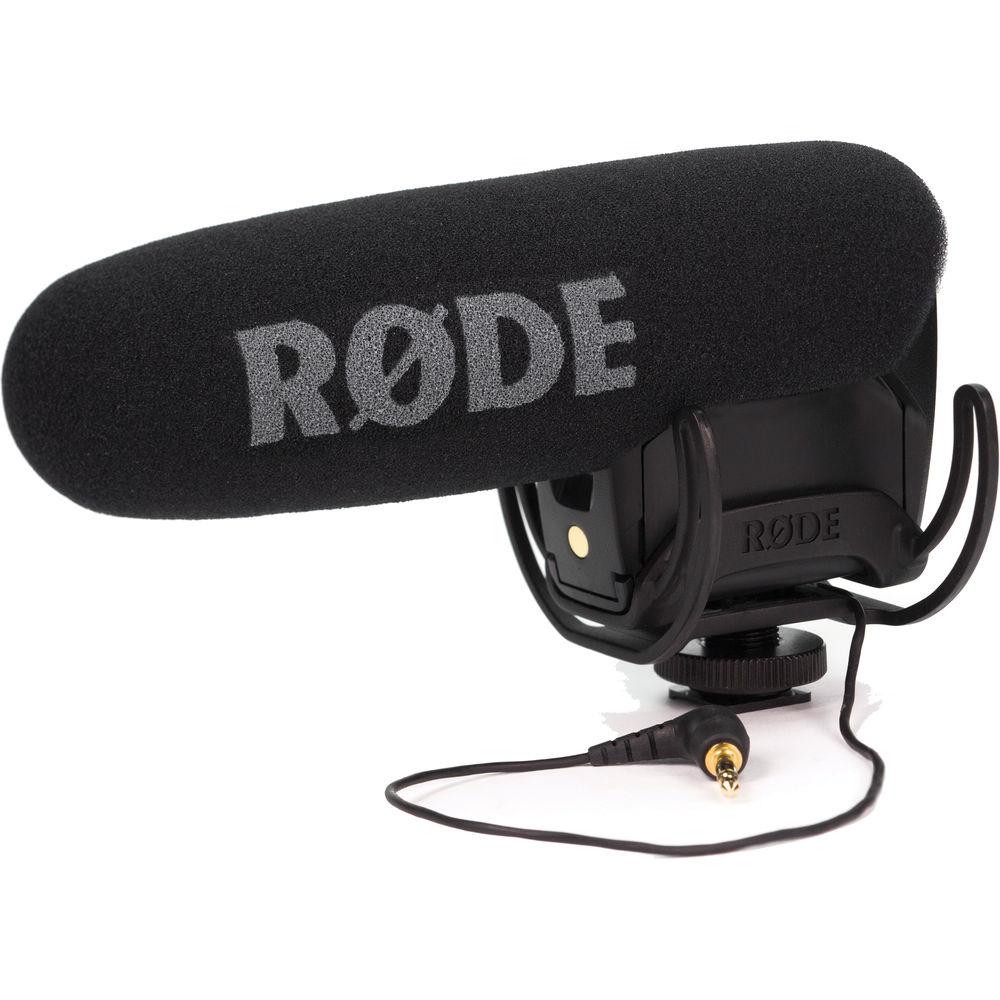

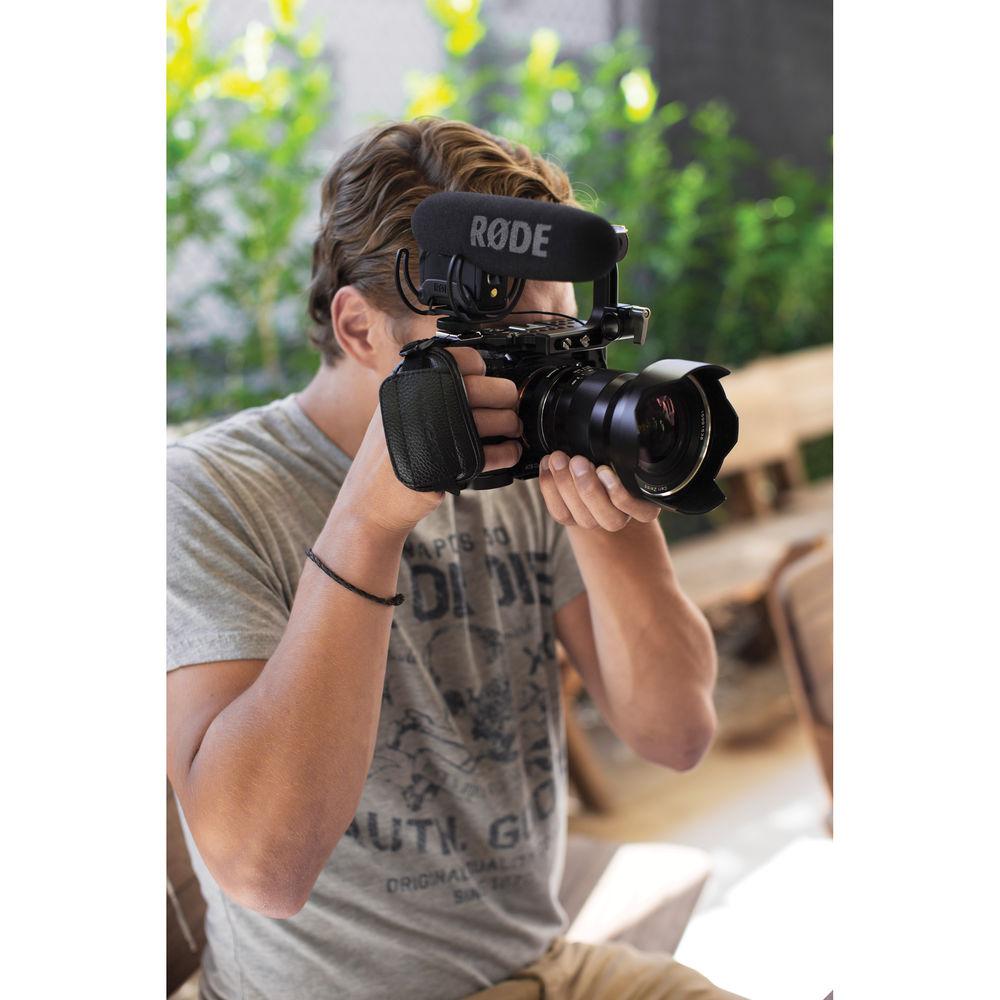

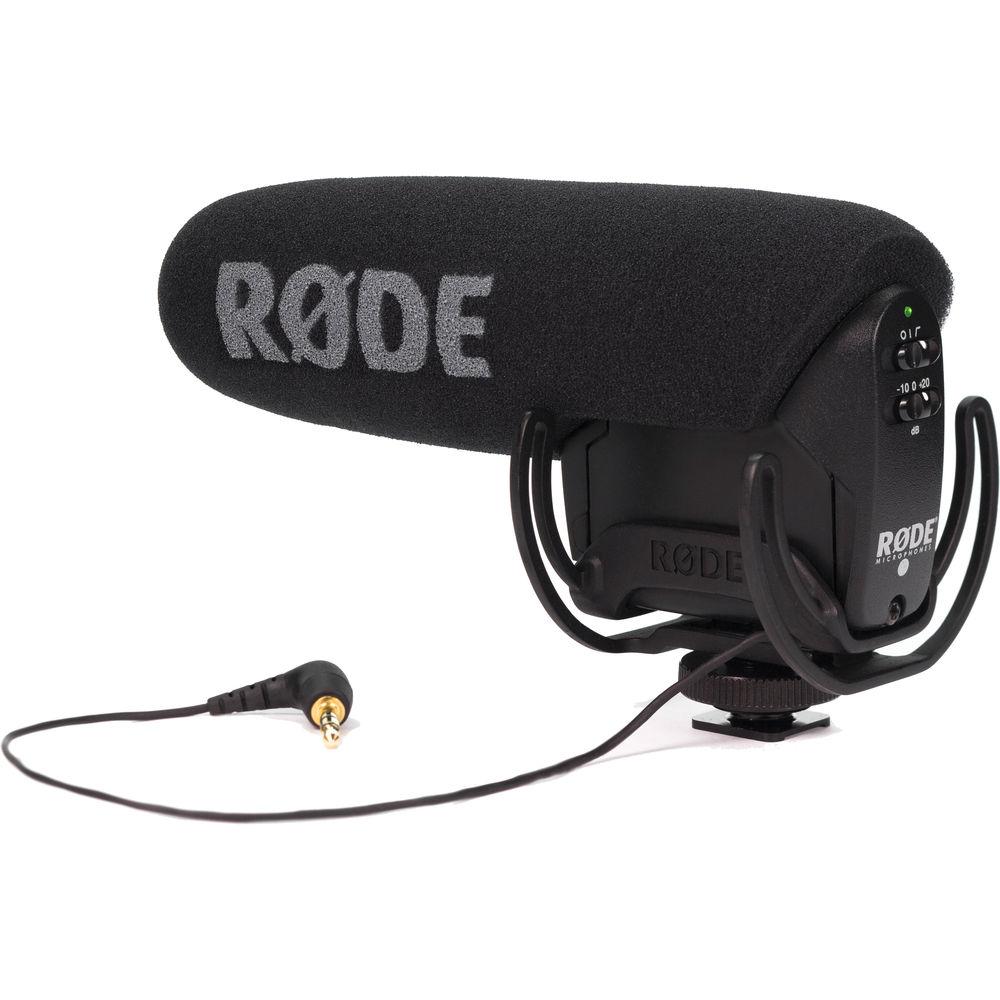

The VideoMic Pro with Rycote Lyre Shockmount from Rode is a supercardioid condenser shotgun microphone that terminates in a 1/8" stereo mini-jack (dual mono), includes an integrated shockmount, and an integrated foam windscreen. It can be used to capture audio for camcorders, DSLR, and portable recorders as a source of primary and reference audio. The VideoMic Pro has been upgraded from earlier models with a 1/2" condenser capsule that provides broadcast-quality audio. Its 1/8" stereo mini-jack connector (outputting the mono signal to both left and right channels) delivers low self-noise of just 14 dB. A supercardioid polar pattern ensures that surrounding audio is minimized, and your recording is focused on the subject in front of the camera. In addition, the Rycote Lyre-based shockmount is built from a single piece of hard-wearing thermoplastic. It separates the VideoMic Pro capsule and electronics from its mount, providing isolation from external physical factors that may cause unwanted rumble and vibrations in the microphone. This suspension will never wear out, sag or snap. Easily accessible on the rear face of the microphone are the power, the filter, the level controls and a selectable high-pass filter at 80 Hz. The filter will prevent low-end noise such as air conditioners and traffic from being recorded. Furthermore, the -10 dB (or pad) is suitable when recording loud sound sources such as live music, motorsports, or interviews, where the subject is very close to the camera. There is a +20 dB level boost designed for use with DSLR cameras, so the user can reduce the camera's preamp level, effectively reducing the amount of noise generated by the camera's audio circuitry. The Rode VideoMic Pro uses a standard sized shoe-mount for on-camera use and features a 3/8" thread in the base of the mount for easy boom-pole mounting. The VideoMic Pro is battery powered and provides over 70-hours recording from a single 9V battery. - 9V battery powered with over 70 hours use (alkaline)
- Camera shoe mount with 3/8" thread for easy boom-pole mounting
- Compact form factor is only 6.7" length
- Limited 10-year warranty with online registration
UPC: 698813004195 In the Box Rode VideoMic Pro with Rycote Lyre Shockmount Limited 10-Year Warranty with Online Registration R
|
Upload User Manual
Have you got an user manual for the Rode VideoMic Pro with Rycote Lyre Shockmount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRode VideoMic Pro Specs | Acoustic Principle | Line Gradient Condenser | | Directional Pattern | Supercardioid | | Frequency Response | 40 Hz - 20 kHz (selectable HPF @80 Hz) | | Sensitivity | -32 dB re 1 V/Pa (20 mV @ 94 dB SPL) ± 2 dB @ 1 kHz | | Output Impedance | 200 Ohms | | Equivalent Noise | 14 dB | | Maximum Output | +6.9 dBu (@ 1% THD into 1 kOhms) | | Dynamic Range | 120 dB (as per IEC 651) | | Maximum SPL | 134 dB (@ 1 kHz, 1% THD into 1 kOhms load) | | Signal-to-Noise Ratio | 80 dB | | Battery Type | 1 x 9 V alkaline battery (current 7.8 mA) | | Level Control | Three-position (-10 dB, 0, +20 dB) | | High Pass Filter | Two-step (flat, 80 Hz) | | Output Connectors | 1 x 1/8" (3.5 mm) stereo mini-jack (dual mono) | | Low Frequency Roll-Off | 80 Hz High Pass Filter | | Dimensions (HxWxL) | 2.95 x 3.93 x 6.69" (75 x 100 x 170 mm) | | Weight | 3 oz (85g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 8.425 x 5.118 x 2.992" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
