User manual
Rode VideoMic Pro with Rycote Lyre

User Manual for Rode VideoMic Pro with Rycote Lyre Shockmount & Windbuster Windshield Kit

• Product category: Shotgun Microphones Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Shotgun Microphones

Product description

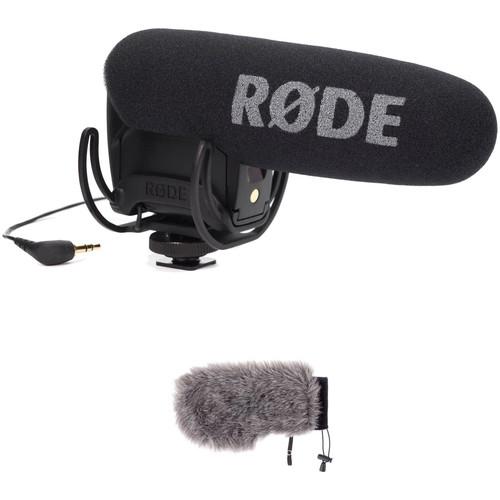

• Rode VideoMic Pro with Rycote Lyre Shockmount
  • Introducing the new VideoMic Pro with Rycote Onboard
  The VideoMic Pro with Rycote Lyre Shockmount from Rode is a supercardioid condenser shotgun microphone that terminates in a 1/8" stereo mini-jack (dual mono), includes an integrated shockmount, and an integrated foam windscreen. It can be used to capture audio for camcorders, DSLR, and portable recorders as a source of primary and reference audio. The VideoMic Pro has been upgraded from earlier models with a 1/2" condenser capsule that provides broadcast-quality audio. Its 1/8" stereo mini-jack connector (outputting the mono signal to both left and right channels) delivers low self-noise of just 14 dB. A supercardioid polar pattern ensures that surrounding audio is minimized, and your recording is focused on the subject in front of the camera. In addition, the Rycote Lyre-based shockmount is built from a single piece of hard-wearing thermoplastic. It separates the VideoMic Pro capsule and electronics from its mount, providing isolation from external physical factors that may cause unwanted rumble and vibrations in the microphone. This suspension will never wear out, sag or snap. Easily accessible on the rear face of the microphone are the power, the filter, the level controls and a selectable high-pass filter at 80 Hz. The filter will prevent low-end noise such as air conditioners and traffic from being recorded. Furthermore, the -10 dB (or pad) is suitable when recording loud sound sources such as live music, motorsports, or interviews, where the subject is very close to the camera. There is a +20 dB level boost designed for use with DSLR cameras, so the user can reduce the camera's preamp level, effectively reducing the amount of noise generated by the camera's audio circuitry. The Rode VideoMic Pro uses a standard sized shoe-mount for on-camera use and features a 3/8" thread in the base of the mount for easy boom-pole mounting. The VideoMic Pro is battery powered and provides over 70-hours recording from a single 9V battery.
  • 9V battery powered with over 70 hours use (alkaline)
  • Camera shoe mount with 3/8" thread for easy boom-pole mounting
  • Compact form factor is only 6.7" length
  • Limited 10-year warranty with online registration
  UPC: 698813004195
• Auray WSW-VMP-R Windbuster for Rode VideoMic Pro with Rycote Lyre Shockmount
  • Introducing the new VideoMic Pro with Rycote Onboard
  The Auray WSW Series Custom Windbusters provide dual-layered wind protection, substantially reducing unwanted broadband wind noise and vocal pops with minimal high frequency loss. The WSW-VMP-R Windbuster has been custom-made for the VideoMic Pro with the Rycote Lyre Shockmount and the VideoMic Pro Plus and is designed to be used over its existing foam windscreen. The simulated fur outer layer works in tandem with the acoustic cloth inner lining to protect the microphone element from air bursts without muffling the sound. The velvet back cover with locking drawstring offers protection to the microphone, as well as easy access to the controls.When used on the VideoMic Pro, the Windbuster is effective in minimizing wind noise and plosive sounds. It is most effective in light to moderate breeze conditions (4-17 mph), and users can generally expect a 30 dB to 40 dB reduction in wind noise with modest dampening of high frequencies. For most applications, the modest high frequency dampening is a worthwhile exchange for the substantial wind noise reduction. In addition to dual-layered wind protection, the WSW-VMP-R helps prevent moisture and dirt from damaging your microphone.
  Fits:
  • • Rode VideoMic Pro with Lyre Shockmount
    • Rode VideoMic Pro Plus
  UPC: 847628595279

• VideoMic Pro with Rycote Lyre Shockmount tsebwbwrazrvbzzurwsrrsfbvs
• Limited 10-Year Warranty with Online Registration

• Auray - WSW-VMP-R Windbuster for Rode VideoMic Pro with Rycote Lyre Shockmount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode VideoMic Pro with Rycote Lyre Shockmount

  Acoustic Principle	Line Gradient Condenser
  Directional Pattern	Supercardioid
  Frequency Response	40 Hz - 20 kHz (selectable HPF @80 Hz)
  Sensitivity	-32 dB re 1 V/Pa (20 mV @ 94 dB SPL) ± 2 dB @ 1 kHz
  Output Impedance	200 Ohms
  Equivalent Noise	14 dB
  Maximum Output	+6.9 dBu (@ 1% THD into 1 kOhms)
  Dynamic Range	120 dB (as per IEC 651)
  Maximum SPL	134 dB (@ 1 kHz, 1% THD into 1 kOhms load)
  Signal-to-Noise Ratio	80 dB
  Battery Type	1 x 9 V alkaline battery (current 7.8 mA)
  Level Control	Three-position (-10 dB, 0, +20 dB)
  High Pass Filter	Two-step (flat, 80 Hz)
  Output Connectors	1 x 1/8" (3.5 mm) stereo mini-jack (dual mono)
  Low Frequency Roll-Off	80 Hz High Pass Filter
  Dimensions (HxWxL)	2.95 x 3.93 x 6.69" (75 x 100 x 170 mm)
  Weight	3 oz (85g)

  Box Dimensions (LxWxH)	8.425 x 5.118 x 2.992"

• Auray WSW-VMP-R Windbuster for Rode VideoMic Pro with Rycote Lyre Shockmount

  Material

  Foam

  Box Dimensions (LxWxH)	8.2 x 4.0 x 1.0"
