User manual

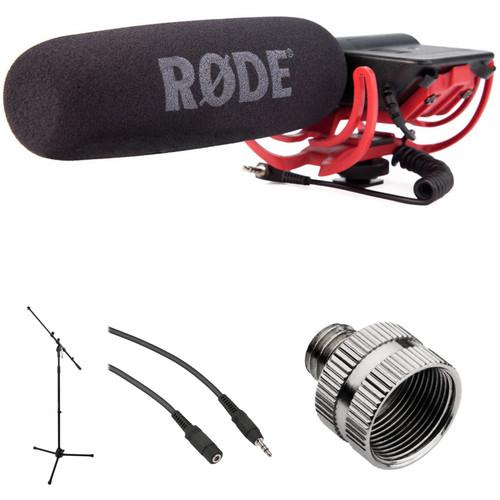

Rode VideoMic Studio Boom Kit

User Manual for Rode VideoMic Studio Boom Kit

• Product category: Shotgun Microphones Rode
• Brand: Rode
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rode Shotgun Microphones

Product description

• Rode VideoMic with Rycote Lyre Suspension System The VideoMic with Rycote Lyre Suspension System from Rode is a shotgun microphone that can easily be mounted on a DSLR camera. It features a Rycote suspension system that attaches to the camera's shoe. The VideoMic is lightweight, and when mounted on a camera it does not appear in the frame. The VideoMic can also mount to Rode's boompoles for elevated audio capture. Its supercardioid polar pattern attenuates sounds from the sides. The result is a signal that sounds closer to the camera, even when shooting in noisy environments or at moderate distances.

  The included Rycote Lyre is a non-elasticated suspension structure composed of a hard-wearing thermoplastic. It is more effective at acoustically decoupling microphones from unwanted vibrations, handling and cable-borne noise than elasticated suspensions. The lyre remains effective at a wide range of temperatures and is virtually indestructible. It will never wear out, sag, snap or require any rethreading to maintain its effectiveness.

  An attached, coiled cable terminates to a 1/8" (3.5mm) mini output connection. The VideoMic features a condenser element that utilizes a standard 9V battery (sold separately). The microphone will run for approximately 100 hours on a single battery.
  Barrel-Canceling Pickup
  • The Rode Video Mic functions as a true line+gradient microphone with a supercardioid pattern in the front and a barrel that cancels side audio. The result is maximum pickup of the source in highly ambient and noisy environments.
  Selectable 10 or 20 dB Pad
  • When capturing audio in loud environments, the VideoMic offers built-in attenuation. The selectable 10 or 20 dB pad lessens the microphone's sensitivity, allowing it to handle higher SPL levels without sacrificing clarity.
  High-Pass Filter Switch
  • A high-pass filter switch eliminates room ambiance and noise below 80 Hz. This results in improved intelligibility while recording around machinery, wind or close proximities.
  Internal Power
  • The condenser element is powered with a standard 9V battery for up to 100 hours (approximately).
  UPC: 698813002900
• Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
• Pearstone Stereo Mini Male to Stereo Mini Female Extension Cable (Black) - 25' The 25' black Stereo Mini Male to Stereo Mini Female Extension Cable from Pearstone is a general purpose extension cable with a mini (3.5mm) male plug at one end and a female jack at the other end. It allows you to extend the distance between your smartphone, tablet, laptop or other audio device, and your headphones or speakers. UPC: 847628562165
• Auray AD-5838-B 5/8"-27 Female to 3/8"-16 Male Mic Stand Adapter Designed to add extra versatility and connectivity to any mic stand, the AD-5838-B from Auray is an adapter which converts a 5/8"-27 female mount to a 3/8"-16 male post. As such, it's compatible with a wide array of mic clips, shockmounts, or any other applicable accessory sporting a 3/8"-16 post.The adapter features a sturdy knurled edge, which aids in loosening and tightening the adapter as needed. Using this adapter will allow your 5/8"-27 mic-stand stud to interface with shockmounts usually intended for use with boom poles, as well as European mic clips and other gear outfitted with 3/8"-16 mounts.
  5/8"-27 to 3/8"-16 Adapter
  • This adapter lets you mount accessories such as shockmounts and mic clips, usually sporting 3/8"-16 mounts, to a standard 5/8"-27 mic-stand stud.
  Adds Connection Possibilities to Mic Stands
  • The adapter lets you use shockmounts usually designed for boom-pole operation on a mic stand. It's also compatible with European mic clips, as well as shockmounts with 3/8"-16 threaded receivers.
  UPC: 847628002487

• VideoMic with Rycote Lyre Suspension System xwtceqffwwctas
• Rycote Suspension System
• Windscreen
• Limited 1-Year Warranty

• Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom

• Pearstone - Stereo Mini Male to Stereo Mini Female Extension Cable (Black) - 25'

• Auray - AD-5838-B 5/8"-27 Female to 3/8"-16 Male Mic Stand Adapter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rode VideoMic with Rycote Lyre Suspension System

  Operating Principle	Line Gradient
  Transducer	Condenser
  Diaphragm	0.50" / 12.70 mm
  Polar Pattern	Supercardioid
  Frequency Range	40 Hz to 20 kHz
  Equivalent Noise Level	20 dB A-Weighted
  Maximum SPL	134 dB SPL
  Pad	-10 dB -20 dB
  THD	1%
  Impedance	200 Ohms
  Sensitivity	-38 dB at 1 kHz
  Low-Cut Filter	@ 80 Hz

  Output Connectors	1 x 1/8" (3.5 mm) TRS
  Battery Type	1 x 9 V
  Length	2.56" / 65 mm
  Diameter	4.02" / 102 mm
  Weight	6.21 oz / 176 g

  Box Dimensions (LxWxH)	11.7 x 5.3 x 3.4"

• Auray MS-5230T Tripod Microphone Stand with Telescoping Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	19.3 to 33.9" / 49 to 86 cm

  Material	Steel
  Weight	4.6 lb / 2.1 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Pearstone Stereo Mini Male to Stereo Mini Female Extension Cable (Black) - 25'

  Cable Length	25' / 7.62 m
  Connector Types	TRS Mini (3.5 mm) M - TRS Mini (3.5 mm) F
  Jacket Color	Black
  Cable Diameter	0.157" / 4 mm
  Conductor Type	PCOCC-A
  Insulator	Perfluoroalkoxy (PFA)
  Connector Plating	Nickel
  Sheath Material	TPE
  Number of Conductors	2.0
  Temperature Rating	176°F / 80°C
  Weight	1.6 oz / 45.4 g

  Box Dimensions (LxWxH)	5.25 x 5.25 x 0.8"

• Auray AD-5838-B 5/8"-27 Female to 3/8"-16 Male Mic Stand Adapter

  Thread	5/8"-27 female 3/8"-16 male
  Weight	0.4 oz / 11.3 g

  Box Dimensions (LxWxH)	3.0 x 2.0 x 1.0"
