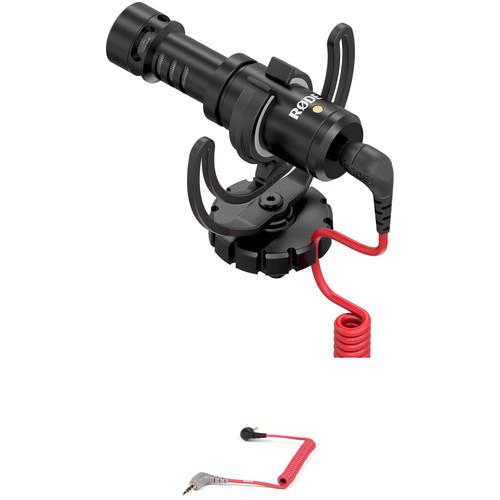

User Manual for Rode VideoMicro Compact On-Camera Microphone and Cable Kit Click to enlarge the picture
Contents of the user manual for the Rode VideoMicro Compact On-Camera Microphone and
- Product category: Shotgun Microphones Rode
- Brand: Rode
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rode Shotgun Microphones
|
User manual for the Rode VideoMicro Compact On-Camera Microphone and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rode product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rode user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rode product will considerably shorten its lifespan!
|
Product description The Rode VideoMicro Compact On-Camera Microphone and Cable Kit from includes the Rode VideoMicro on-camera microphone, a 3.5mm TRS patch cable, a WS9 windshield, a Lyre shoemount, and an SC7 3.5mm TRS to TRRS patch cable. The lightweight microphone kit can be used when paired with a video camera for applications such as weddings, interviews, and more. The VideoMicro microphone focuses on the audio in front of the camera. The body is made from aluminum, giving it a high-level of RF rejection, and is finished in a ceramic anti-glare black coating. It is powered by camera plug-in power (min. 3V) so no battery is required. The SC7 3.5mm TRS to TRRS patch cable allows you to connect the output from Rode's VideoMicro to a TRRS device, such as an iPhone or iPad. The cable features color coded, gold-plated connectors, with gray indicating the TRRS, in addition to shielded construction. - Rode VideoMicro Compact On-Camera Microphone
- Rode VideoMicro Microphone, Boompole, and Kit: Quick Look
The VideoMicro from RODE is a compact on-camera microphone that features a cardioid condenser mic capsule for capturing audio recordings. The lightweight microphone can be used when paired with a video camera for applications such as weddings, interviews, and more. The VideoMicro reduces distracting peripheral sound and focuses on the audio in front of the camera. The microphone body is made from aluminum, giving it a high level of RF rejection, and is finished in a ceramic anti-glare black coating. The mic is powered by camera plug-in power (min. 3V) so no battery is required. In addition, the VideoMicro includes a Lyre shoe-mount that minimizes unwanted vibrations, handling, and cable-borne noises, and a WS9 synthetic furry windshield with a foam inner cell, designed for use in outdoor situations where wind and environmental noise can inhibit recordings. A 1/8" TRS patch cable is also included. UPC: 698813004362 - Rode SC7 3.5mm TRS to TRRS Patch Cable
- Rode VideoMicro Microphone, Boompole, and Kit: Quick Look
The SC7 3.5mm TRS to TRRS Patch Cable from Rode is designed to allow you to connect the output from Rode's VideoMic GO and Wireless GO to a TRRS device, such as an iPhone or iPad. It features color coded, gold-plated connectors, with gray indicating the TRRS, in addition to shielded construction. UPC: 698813003938 In the Box - VideoMicro Compact On-Camera Microphone yvxdfwewztwwvuvbdcaber
- SC2 1/8" (3.5 mm) TRS Patch Cable
- WS9 Deluxe Windshield
- Lyre Shoe-Mount
- Limited 1-Year Warranty (Extends to 2 Years with Registration)
- SC7 3.5mm TRS to TRRS Patch Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rode VideoMicro Compact On-Camera Microphone and Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rode VideoMicro Compact On-Camera Microphone
| | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.50" / 12.70 mm | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 100 Hz to 20 kHz | | Equivalent Noise Level | Cardioid: 20 dB A-Weighted | | Maximum SPL | Cardioid: 140 dB SPL Peak | | THD | > 1% | | Sensitivity | Cardioid: -33.0 dB at 1 kHz | | | | Output Connectors | 1 x 1/8" (3.5 mm) TRS | | Length | 3.15" / 80 mm | | Diameter | 0.83" / 21 mm | | Weight | 1.48 oz / 42 g | | | | Box Dimensions (LxWxH) | 7.1 x 5.0 x 2.6" | - Rode SC7 3.5mm TRS to TRRS Patch Cable
| Connector 1 | 1/8" (3.5 mm) Male TRS, gold-plated | | Connector 2 | 1/8" (3.5 mm) Male TRRS, gold-plated | | Dimensions (H x W x D) | 1.2 x 0.4 x 6.7" (30 x 10 x 170 mm) | | Weight | 0.7 oz (20 g) | | | | Box Dimensions (LxWxH) | 3.1 x 2.8 x 1.2" |
