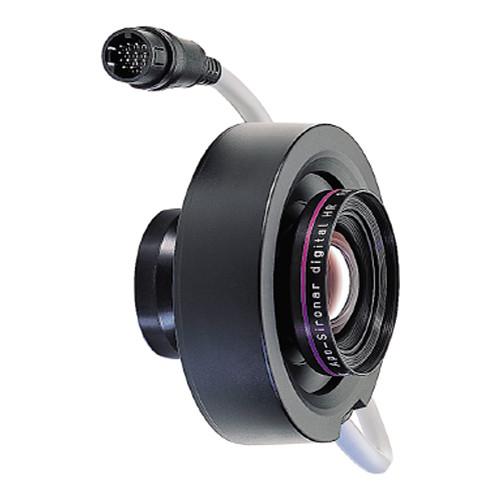

User Manual for Rodenstock 100mm f 4 Apo-Sironar digital HR Lens Click to enlarge the picture
Contents of the user manual for the Rodenstock 100mm f 4 Apo-Sironar digital
- Product category: Large Format Lenses Rodenstock
- Brand: Rodenstock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rodenstock Large Format Lenses
|
User manual for the Rodenstock 100mm f 4 Apo-Sironar digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rodenstock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rodenstock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rodenstock product will considerably shorten its lifespan!
|
Product description The Rodenstock 100mm f/4 Apo-Sironar digital HR Lens is a telephoto large format lens specifically designed for use with digital backs, which require a smaller image circle with extreme resolution, color correction, and maximum performance at a large aperture. This lens is recommended for use with backs having a maximum image area of 37 x 49mm. The included Rollei Electronic #0 Shutter delivers precision exposure control with speeds ranging from 1/500 - 30 sec, plus B, and allows f/stop adjustments in as little as 1/10 increments. Aperture and shutter speed are controlled via a Rollei Lens Control unit (purchased separately). In many cases, digital photography is superior to conventional photography if the desired end product is a printed image. To achieve this ideal, however, a much higher demand is made upon the image reproduction quality of the lens. This is because of a digital image chip's smaller area, which means finer details in a scene are squeezed into a smaller image recording area, as well as their sensitivity to color fringes. But Rodenstock's digitally-specific lenses such as this Apo-Sironar digital HR provide image quality which allows the maximum capacity of a digital back to be realized. The lens utilizes every technological possibility to get as close as possible to the absolute limits of diffraction-determined resolution, even accounting for the properties and thickness of a CCD's protective glass. With the Apo-Sironar Digital HR, you can use digital backs with a pixel pitch smaller than 10µ. This lens is recommended for use at apertures of f/5.6 - 8; you should primarily use your camera's movements to control the depth of field. Given its 100mm focal length (which allows plenty of space) and because it benefits from superior optical design without any needed concessions for an SLR camera's mirror box, this 100mm Sironar's commonly adapted for use with DSLR cameras as a specialist for portraiture and products. Its remarkable resolution can produce results impossible to achieve with an SLR system lens. - Rollei Electronic #0 Shutter
- For use with extremely high-resolution CCD sensors
- Produces extremely fine, uniform image circle
- Apo-Sironar digital HR lenses provide optimum performance with a superior sharpness for high resolution digital backs
- Apochromatic design to eliminate color fringing
- Ideal working aperture range of f/5.6 - 8
- Accepts 58mm threaded filters
- Push-on mount size of 60mm
- Rear barrel diameter of 42mm
In the Box Rodenstock 100mm f/4 Apo-Sironar digital HR Lens Rollei Electronic #0 Shutter 60mm Push-On Front Cap 42mm Push-On Rear Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rodenstock 100mm f 4 Apo-Sironar digital HR Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRodenstock R150126 Specs | Focal Length | 100 mm | | Aperture | f/4.0 - 45 | | FOV on Format Diagonal | 39° | | Optical Configuration | Groups: 6 Elements: 10 | | Flange Focal Distance | 99.4 mm | | Image Circle | 70 mm @ f/11 | | Shutter | Rollei Electronic #0 | | Shutter Speeds | 1 / 500 to 30 second B, T | | Slip-On Cap Size | Front: 60 mm | | Filter Thread | Front: 58 mm | | Overall Length | 2.89" (73.4 mm) | | Dimensions (D x L) | 2.36 x 2.89" / 59.94 x 73.41 mm |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
