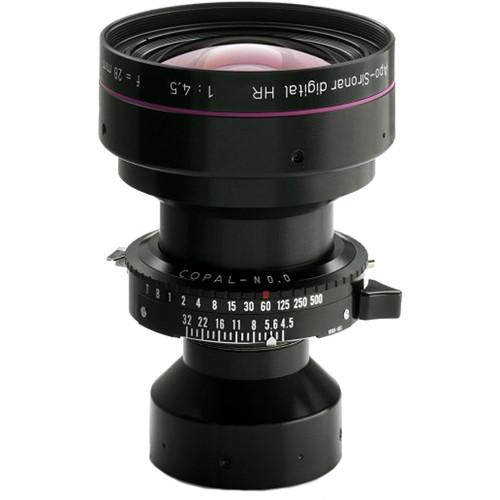

User Manual for Rodenstock 28mm f 4.5 HR Digaron-S Lens Click to enlarge the picture
Contents of the user manual for the Rodenstock 28mm f 4.5 HR Digaron-S
- Product category: Large Format Lenses Rodenstock
- Brand: Rodenstock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rodenstock Large Format Lenses
|
User manual for the Rodenstock 28mm f 4.5 HR Digaron-S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rodenstock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rodenstock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rodenstock product will considerably shorten its lifespan!
|
Product description The Rodenstock 28mm f/4.5 HR Digaron-S Lens is a wide angle large format lens specifically designed for use with digital backs, which require a smaller image circle with extreme resolution, color correction, and maximum performance at a large aperture. This lens is recommended for use with backs having a 33 x 44mm maximum image area, and upon such a back it would provide a view similar to that of a 22mm lens upon a 35mm format camera. This HR Digaron-S is delivered in a standard type Copal #0 shutter. In many cases, digital photography is superior to conventional photography if the desired end product is a printed image. To achieve this ideal, however, a much higher demand is made upon the image reproduction quality of the lens. This is because of a digital image chip's smaller area, which means finer details in a scene are squeezed into a smaller image recording area, as well as their sensitivity to color fringes. But Rodenstock's digitally-specific lenses such as this HR Digaron-S provide image quality which allows the maximum capacity of a digital back to be realized. The lens utilizes every technological possibility to get as close as possible to the absolute limits of diffraction- determined resolution, even accounting for the properties and thickness of a CCD's protective glass. With the HR Digaron-S, you can use digital backs with a pixel pitch as small as 5µ. - Extreme high resolution lens specifically for digital backs as large as 33x44mm
- Produces extremely fine, uniform 70mm image circle
- Wide angle view with 101° coverage
- Apochromatic design to eliminate color fringing
- Ideal working aperture range of f/5.6-8
- Accepts 72mm threaded filters
- Rear barrel diameter of 48mm
In the Box Rodenstock 28mm f/4.5 HR Digaron-S Lens Copal #0 Shutter 75mm Push-On Front Cap 48mm Push-On Rear Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rodenstock 28mm f 4.5 HR Digaron-S Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRodenstock 150123 Specs | Focal Length | 28 mm | | Aperture | f/4.5 - 22 | | Covering Power | 101° | | Image Circle | 70 mm @ f/11 | | Shutter | Copal #0 | | Shutter Speeds | 1 / 500 to 1 second B, T | | Filter Thread | Front: 72 mm | | Overall Length | 4.15" (105.5 mm) | | Dimensions (D x L) | 2.95 x 4.15" / 74.93 x 105.41 mm | | Weight | 1.83 lb / 830 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.4 x 5.3 x 5.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
