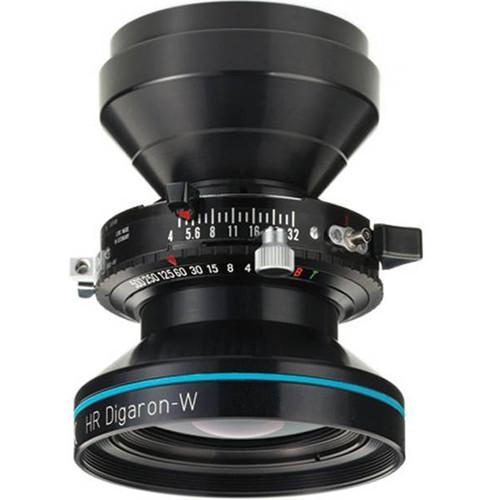

User Manual for Rodenstock 70mm f 5.6 HR Digaron-W Lens Click to enlarge the picture
Contents of the user manual for the Rodenstock 70mm f 5.6 HR Digaron-W
- Product category: Large Format Lenses Rodenstock
- Brand: Rodenstock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rodenstock Large Format Lenses
|
User manual for the Rodenstock 70mm f 5.6 HR Digaron-W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rodenstock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rodenstock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rodenstock product will considerably shorten its lifespan!
|
Product description The Rodenstock 70mm f/5.6 HR Digaron-W Lens is a wide angle lens specifically designed for use with digital backs, which require a smaller image circle with extreme resolution, color correction, and maximum performance at a large aperture. This lens is recommended for use with backs having a 40 x 54mm maximum image area, and providing a view similar to that of a 45mm lens on a 35mm format camera.The included Rollei Electronic #0 Shutter delivers precision exposure control with speeds ranging from 1/500 - 30 sec, plus B, and allows f/stop adjustments in as little as 1/10 increments. Aperture and shutter speed are controlled via a Rollei Lens Control unit (purchased separately).In many cases, digital photography is superior to conventional photography if the desired end product is a printed image. To achieve this ideal, however, a much higher demand is made upon the image reproduction quality of the lens. This is because of a digital image chip's smaller area, which means finer details in a scene are squeezed into a smaller image recording area, as well as their sensitivity to color fringes.But Rodenstock's digital-specific lenses such as this HR Digaron-W provide image quality which allows the maximum capacity of a digital back to be realized. The lens utilizes every technological possibility to get as close as possible to the absolute limits of diffraction- determined resolution, even accounting for the properties and thickness of a CCD's protective glass. With the HR Digaron-W, you can use digital backs with a pixel pitch as small as 5µ.Because this lens is designed for a view camera without an optical concession to clear a camera's mirror box (such as in an SLR camera's lens), this lens is commonly adapted to be used with DSLR cameras because of its remarkable resolution. - Extreme high resolution lens specifically for digital backs as large as 40 x 54mm
- Produces extremely fine, uniform 100mm image circle
- Appropriate for use with digital-specific large format systems and DSLR cameras as the image receiver
- Standard view with 70° coverage
- Apochromatic design to eliminate color fringing
- Ideal working aperture range of f/5.6 - 8
- Accepts 58mm threaded filters
- Rear barrel diameter of 48mm
In the Box Rodenstock 70mm f/5.6 HR Digaron-W Lens Rollei #0 Electronic Shutter 60mm Push-On Front Cap 48mm Push-On Rear Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rodenstock 70mm f 5.6 HR Digaron-W Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRodenstock R150135 Specs | Focal Length | 70 mm | | Aperture | f/5.6 - 22 | | Covering Power | 70° | | Flange Focal Distance | 72.7 mm | | Image Circle | 100 mm @ f/11 | | Shutter | Rollei Electronic #0 | | Shutter Speeds | 1 / 500 to 30 second B, T | | Filter Thread | Front: 58 mm | | Overall Length | 2.87" (72.8 mm) | | Dimensions (D x L) | 2.36 x 2.87" / 59.94 x 72.90 mm |
