User Manual for Rodenstock eShutter Control Box Click to enlarge the picture
Contents of the user manual for the Rodenstock eShutter Control Box
- Product category: Lens Shutters Rodenstock
- Brand: Rodenstock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rodenstock Lens Shutters
 |
User manual for the Rodenstock eShutter Control Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rodenstock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rodenstock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rodenstock product will considerably shorten its lifespan!
|

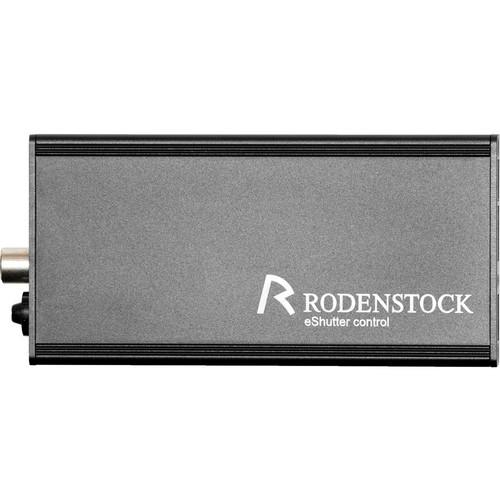

Product description The eShutter Control Box from Rodenstock is connected by a cord to the Box's "Shutter" port. Data transfer from the computer to the eShutter control is done via USB 2.0 technology, which also acts as a power supply for the shutter when necessary in certain situations, as well as a serial interface with adapter for a PC sync terminal and digital backs. You can even synchronize a camera flash via the X-Contact port to allow more creative control over lighting and exposure.
An external power supply (external power supply unit or battery) is recommended for faster exposure rates, including the maximum 1.5 frames per second. The shutter can be fully controlled from your computer, as well as an iPhone, iPod Touch or iPad via a Wi-Fi connection. The eShutter Control App is available free of charge from the Apple App Store. Note: An exposure sequence of one image per second can only be achieved by using an external power supply. The power supply must have an output between 5 and 24 volt. Power with a different output may damage the interface box and the eShutter, and voids all warranties and guarantees. - For Use with eShutter System
- Multiple interface connections, including:
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rodenstock eShutter Control Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRodenstock 1029-004-000-20 Specs | Shutter | 100,000 activations | | Shutter Speed | 1.5 fps | | Shutter Release | Macintosh, PC, iPhone, iPod Touch, or iPad | | Flash Synchronization | X Contact, Early Synch., Late Synch., and M Signal | | Power Supply | Main Power Supply: 5 - 24 V DC
Outdoors via USB Cable or external power supply | | LED Indicator | Green: the shutter is ready for action

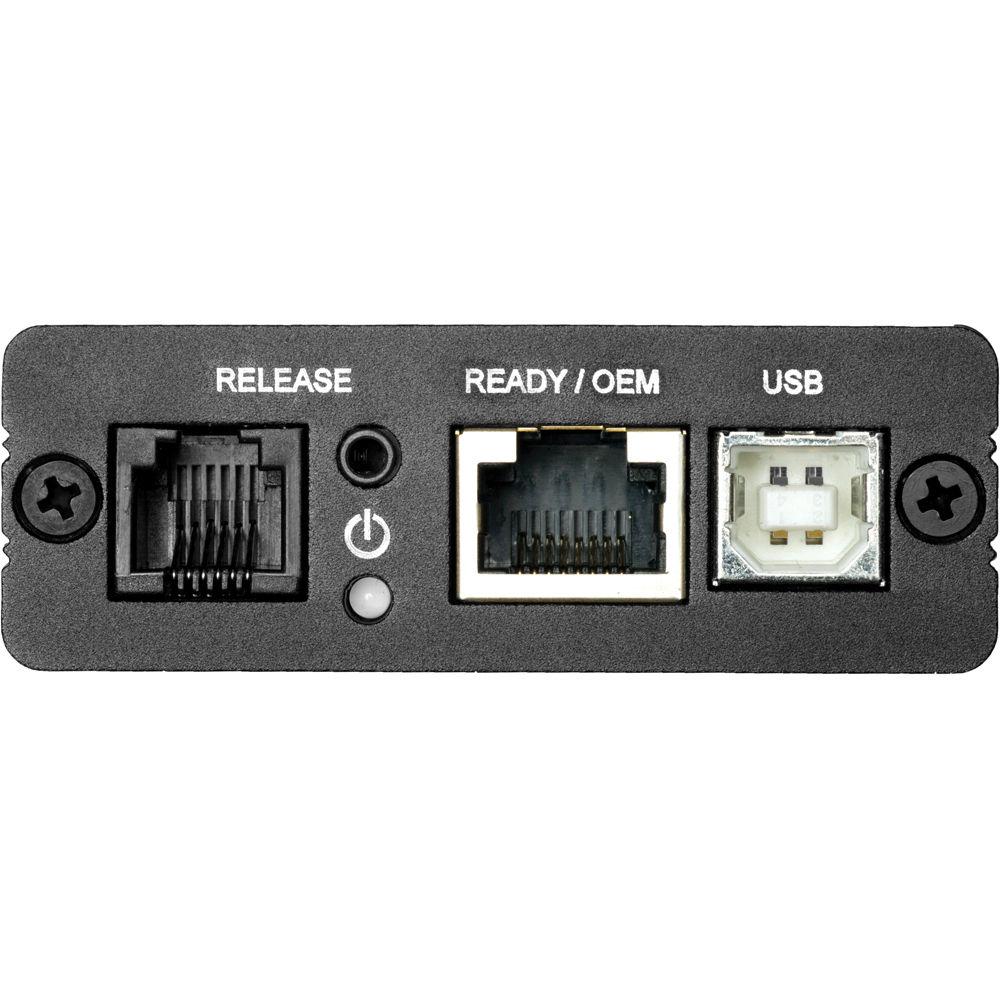

Red: not enough power for an exposure | | Interface Ports | USB 2.0
Ethernet (LAN) cable
2.5 mm jack for cable release, remote controlling or other tools
Serial interface for PC synch terminal (x-Adapter cable port)

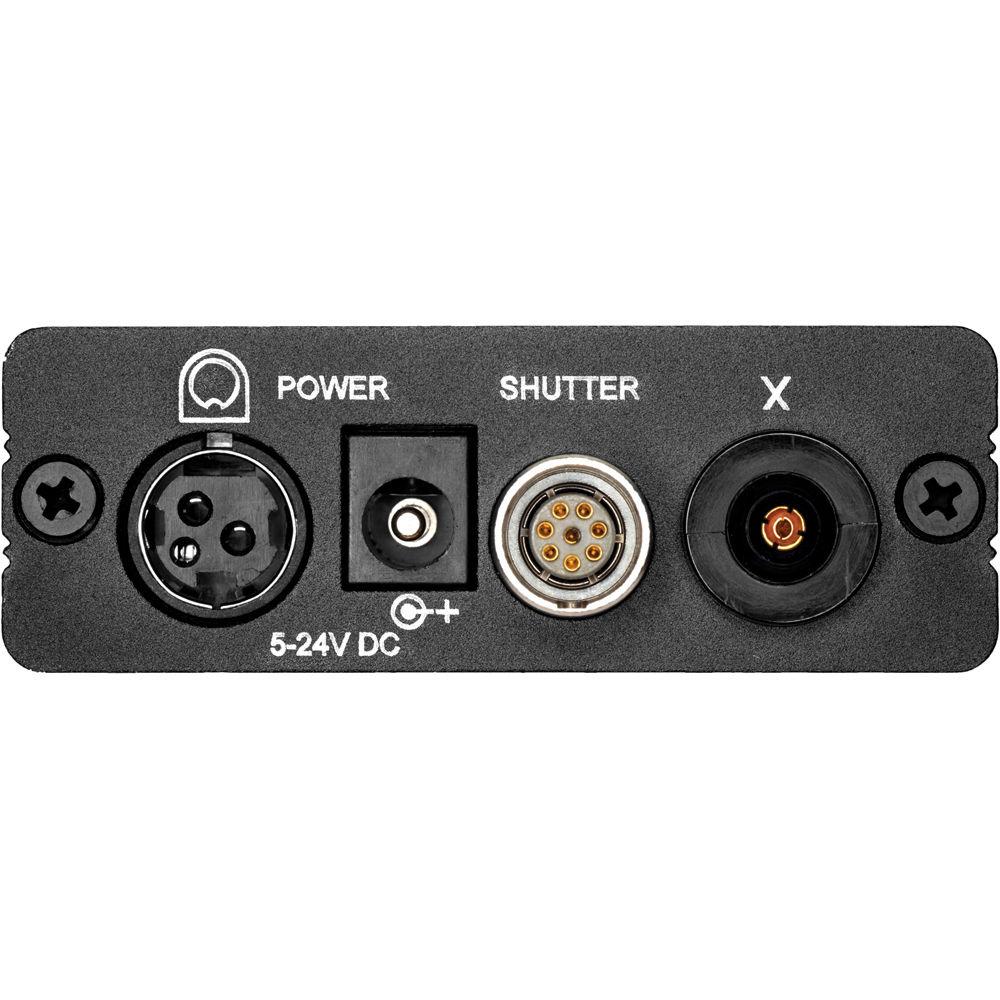

DIN plug for external power supply
5.5, 2.1 mm cavity plug for external power supply
eShutter lens connection plug
X-contact for flash synchronization | | Operating Temperature | 32 - 113° F (0 - 45° C) | | Dimensions and Weight | 2.7 x 1.0 x 0.6" (6.9 x 2.5 x 1.5 cm)
9.5 oz (270 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.3 x 6.6 x 4.8" |
