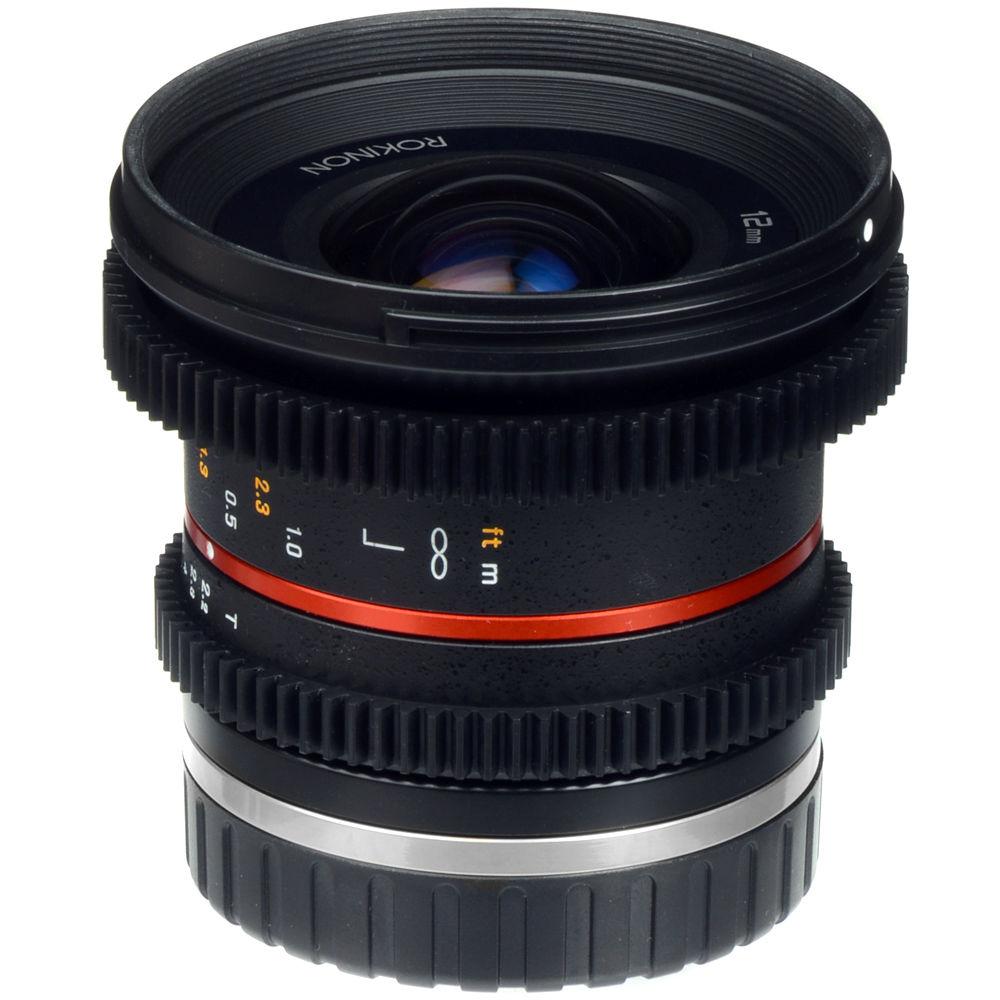

User Manual for Rokinon 12mm T2.2 Cine Lens for Sony E Mount Click to enlarge the picture
Contents of the user manual for the Rokinon 12mm T2.2 Cine Lens for
- Product category: Digital Cine Lenses Rokinon
- Brand: Rokinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rokinon Digital Cine Lenses
 |
User manual for the Rokinon 12mm T2.2 Cine Lens for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rokinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rokinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rokinon product will considerably shorten its lifespan!
|

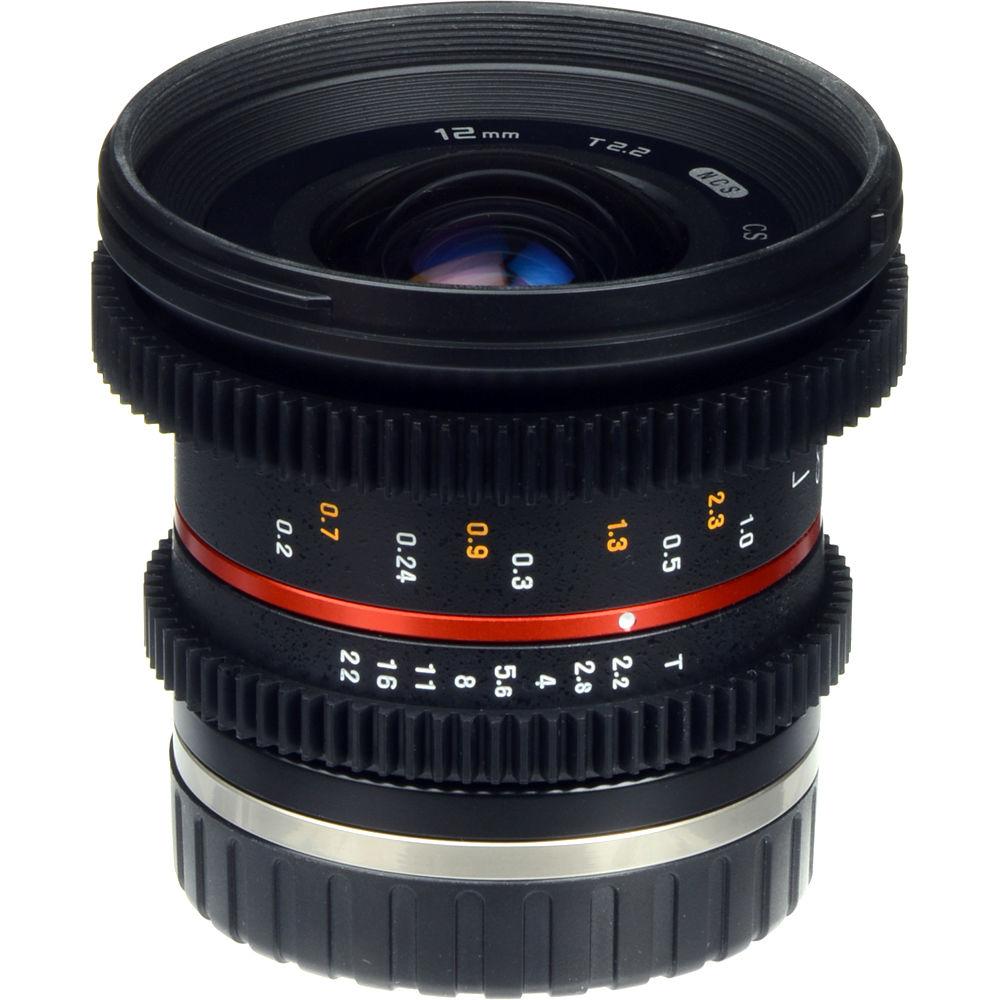

Product description Cinema Lens Care and Maintenance Read More txuzxyqdsyvq The Rokinon 12mm T2.2 Cine Lens for Sony E Mount is a wide-angle lens optimized for digital cinematography. The lens produces an image circle that will cover APS-C sized sensors or smaller. For use with a follow focus unit, the focus and aperture rings feature industry-standard 0.8 pitch gearing. The aperture ring is also de-clicked to allow for smooth iris pulls while shooting. Focus, aperture, and depth of field markings are on the side of the lens to aid focus pullers, who typically operates on the side of the camera.
With an angle of view of 98.9°, the lens is well-suited for shooting landscapes, architecture, and for use in tight interior locations. It's fast maximum aperture of T2.2 also makes the lens suitable for shooting low-light conditions. Three extra-low dispersion elements and two aspherical elements have been incorporated into the optical design to minimize chromatic aberrations and distortion in order to produce sharper images. Additionally, a Nano Coating System (NCS) has been applied to the lens elements in order to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and more contrast-rich imagery. A bayonet-mount lens hood and lens pouch come included with the lens. -
- 12mm lens with 98.9° angle-of-view
- Image Circle covers APS-C sized sensors
- Industry Standard 0.8 pitch gearing on focus and aperture rings
- De-clicked aperture for smooth iris pulls
- 12 elements in 10 groups, including two aspherical and a three ED elements
- Nano Coating System improves light transmission, minimizes flares and ghosting for higher contrast images
- Depth of Field markings on side of the lens
- A minimum focusing distance of 7.87"
- 67mm front filter thread

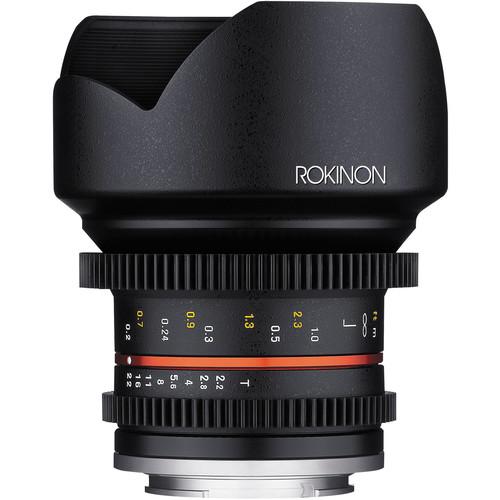

- Includes bayonet mount lens hood
UPC: 084438762365 In the Box Rokinon 12mm T2.2 Cine Lens for Sony E Mount Front Lens Cap Rear Lens Cap Lens Hood Lens Pouch Limited 1-Year Worldwide Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon 12mm T2.2 Cine Lens for Sony E Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRokinon 12mm T2.2 Cine Specs | Focal Length | 12mm | | Lens Mount | Sony E | | Format | Super35/APS-C | | Maximum T-Stop | T2.2 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 98.9° | | Minimum Focus Distance from Image Plane | 7.9" / 20 cm | | Optical Design | 12 Elements in 10 Groups | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 67 mm | | Dimensions (W x H) | 2.90 x 2.90" / 73.7 x 73.7 mm | | Length | 2.33" / 59.1 mm | | Weight | 8.8 oz / 250.0 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.1 x 5.4 x 4.3" |
