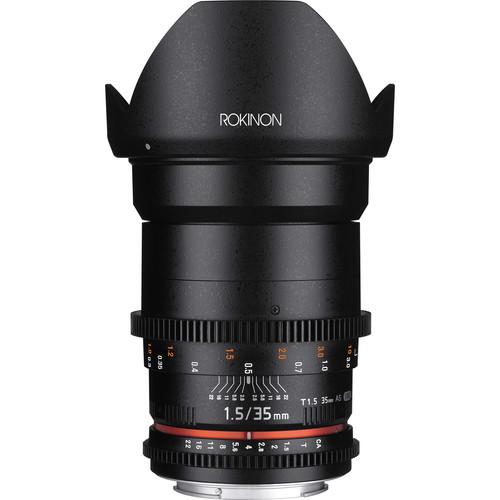

User Manual for Rokinon 35mm T1.5 Cine DS Lens for Micro Four Thirds Mount Click to enlarge the picture
Contents of the user manual for the Rokinon 35mm T1.5 Cine DS Lens
- Product category: Digital Cine Lenses Rokinon
- Brand: Rokinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rokinon Digital Cine Lenses
 |
User manual for the Rokinon 35mm T1.5 Cine DS Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rokinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rokinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rokinon product will considerably shorten its lifespan!
|

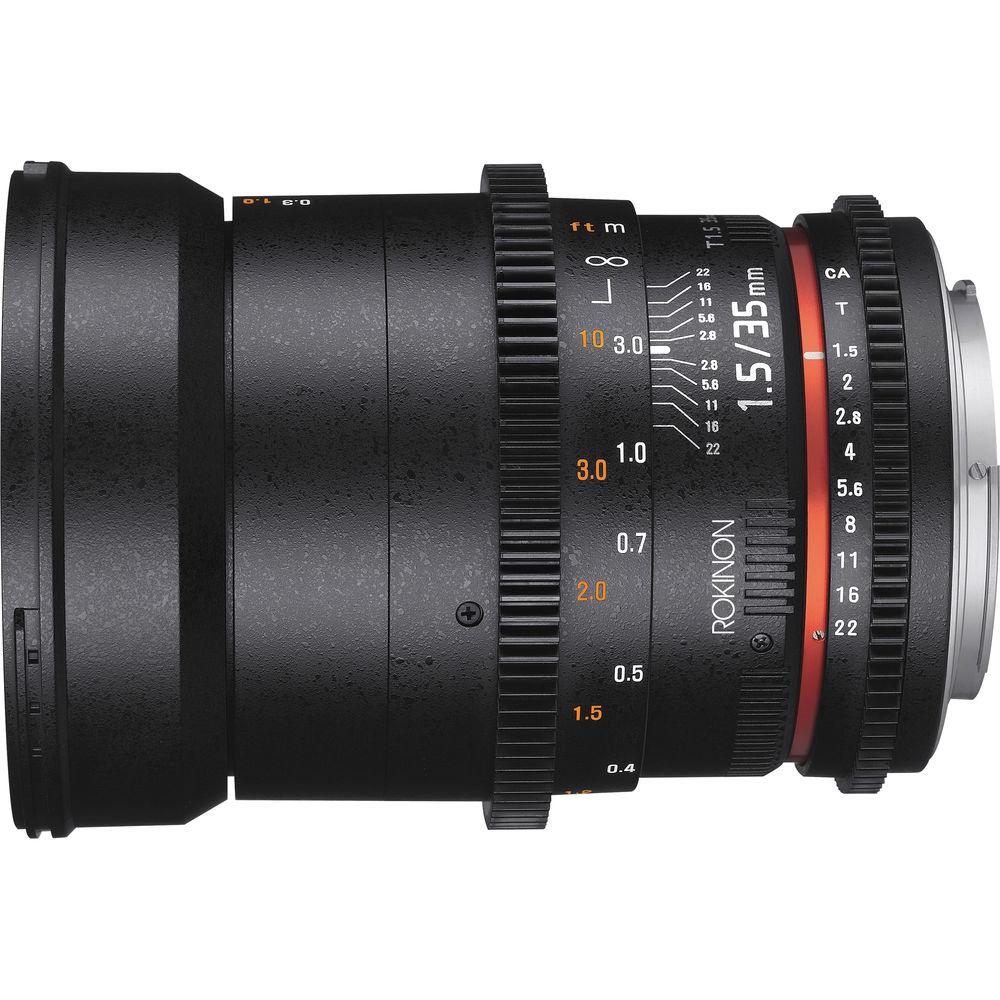

Product description Cinema Lens Care and Maintenance Read More Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 35mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Micro Four Thirds Mount and features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

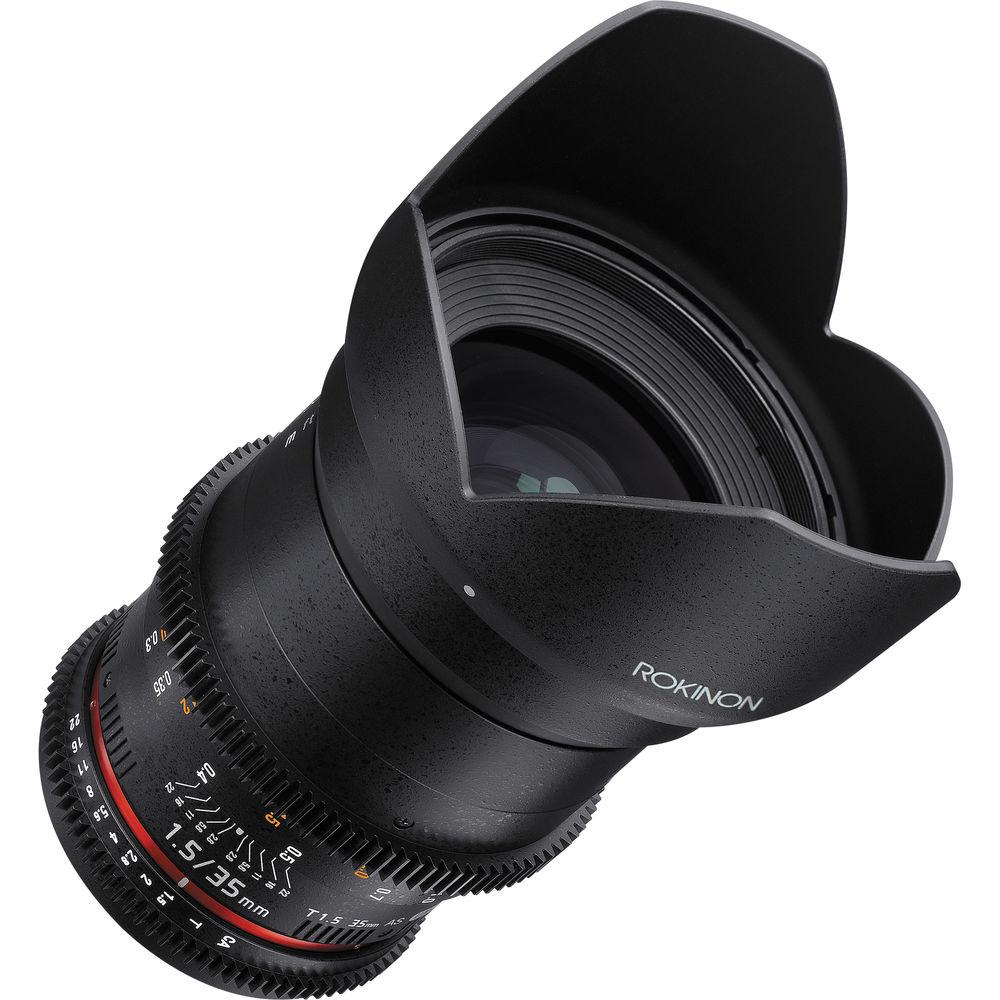

This 35mm lens produces a 33.4° angle-of-view when used on a camera with a four-thirds sized sensor and MFT mount. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 12" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.
Please note that some cameras may require that Shutter Lock be disengaged when using this lens. - Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
- Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- "Declicked" aperture ring for smooth iris pulls.
- A minimum focusing distance of 12" allows you to get up close to your subject.

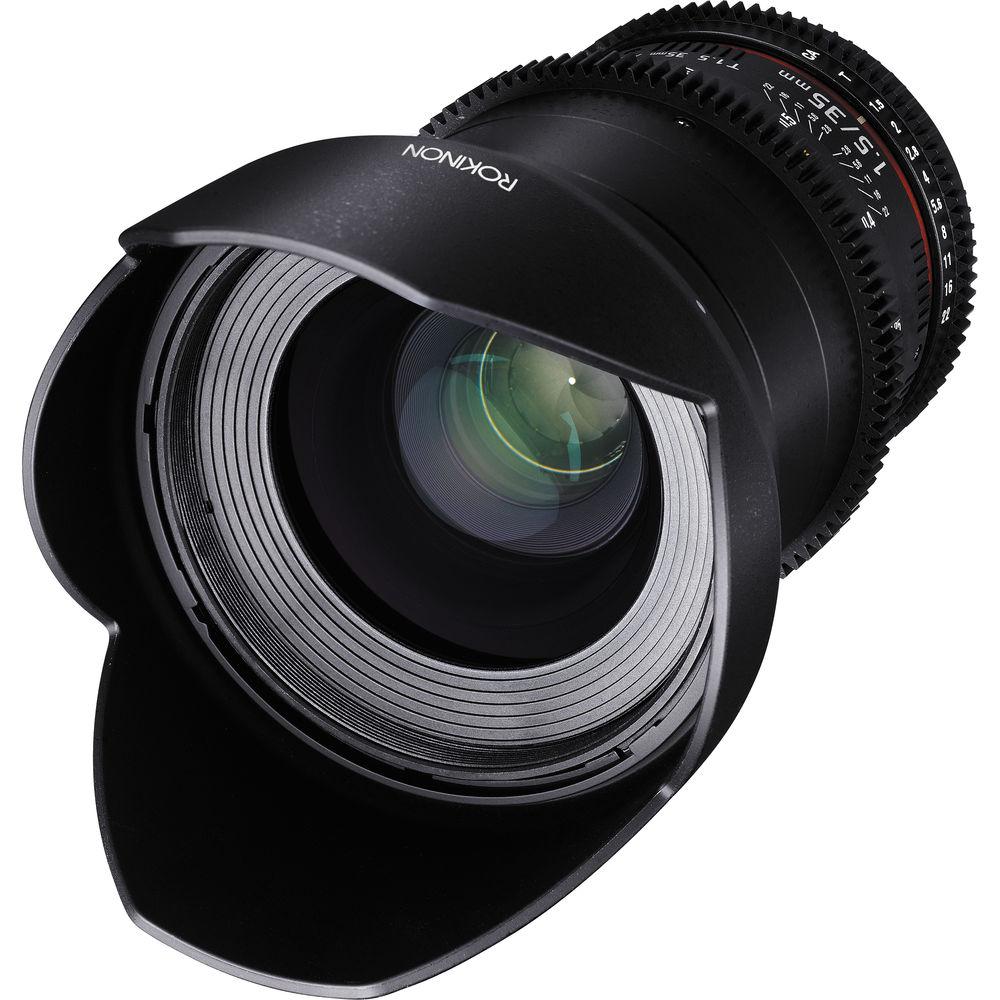

- A removable petal-type lens hood provides flare protection without a matte box.
- The lens opens up to T1.5, providing the capability for low light shooting or creating extremely shallow depth of field.
UPC: 084438763317 In the Box Rokinon 35mm T1.5 Cine DS Lens for Micro Four Thirds Mount Front and Rear Lens Caps Lens Pouch Limited 1-Year Worldwide Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon 35mm T1.5 Cine DS Lens for Micro Four Thirds Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRokinon 35mm T1.5 Cine DS Specs | Focal Length | 35mm | | Lens Mount | Micro Four Thirds | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 33.4° | | Minimum Focus Distance from Image Plane | 12" / 31 cm | | Optical Design | 12 Elements in 10 Groups | | Iris Blades | 8 | | Length | 5.36" / 136.3 mm | | Weight | 27.0 oz / 770.0 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 7.7 x 5.2 x 5.1" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
