User Manual for Rokinon 85mm T1.5 Cine Lens for Sony E Click to enlarge the picture
Contents of the user manual for the Rokinon 85mm T1.5 Cine Lens for
- Product category: Digital Cine Lenses Rokinon
- Brand: Rokinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rokinon Digital Cine Lenses
 |
User manual for the Rokinon 85mm T1.5 Cine Lens for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rokinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rokinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rokinon product will considerably shorten its lifespan!
|

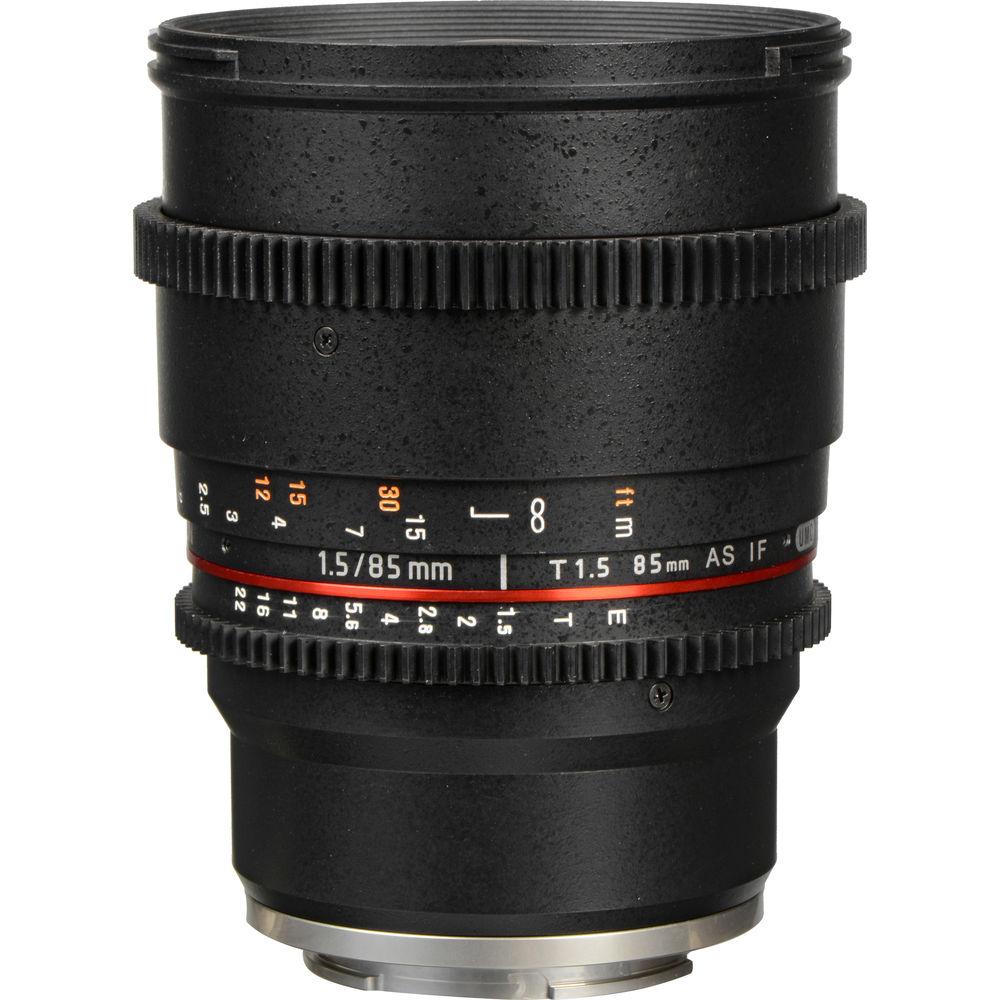

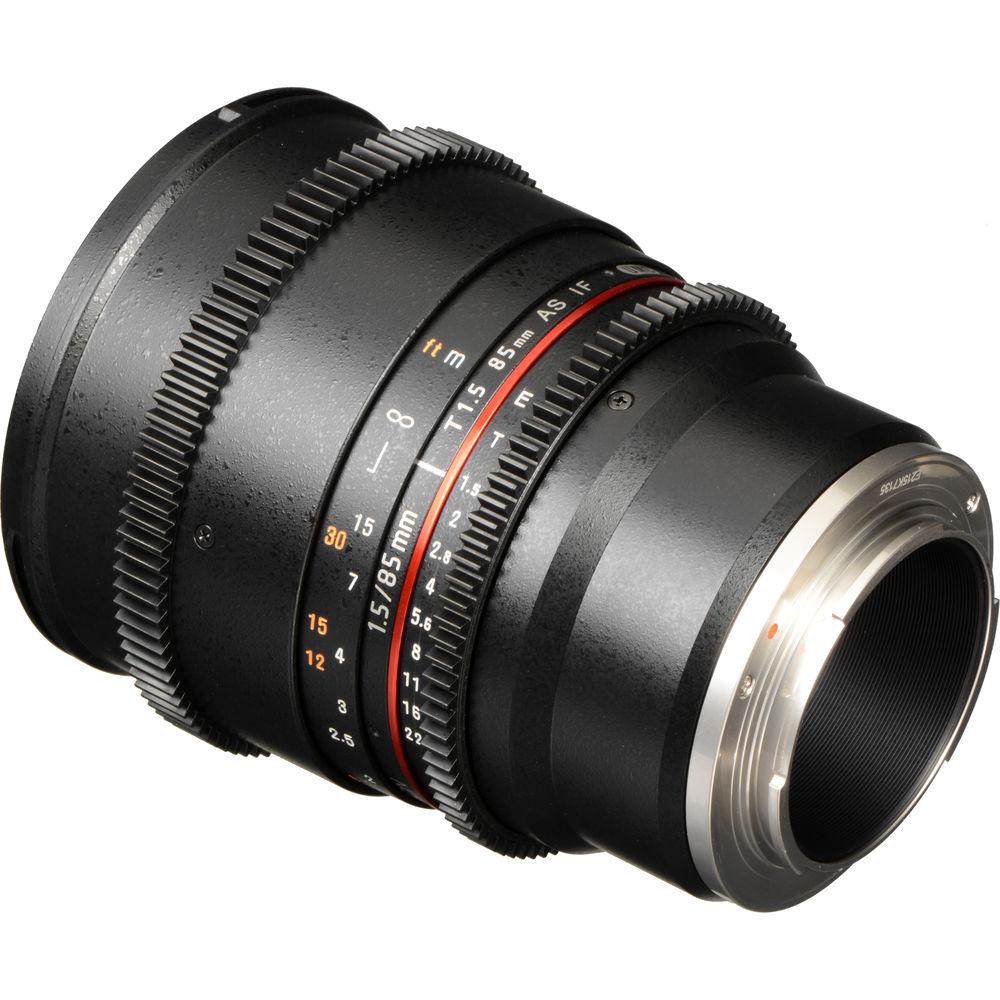

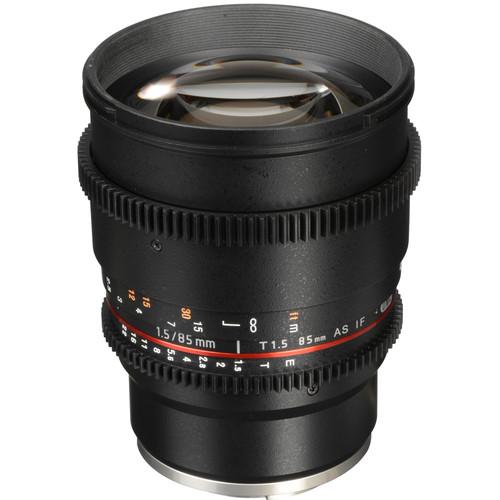

Product description Cinema Lens Care and Maintenance Read More The Rokinon 85mm T1.5 Cine Lens for Sony E produces a slightly telephoto angle-of-view on full-frame sensors. It features a very fast maximum aperture of T1.5 and an eight-blade iris for shallow depth of field with attractive bokeh. The focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been de-clicked, which facilitates smooth iris pulls.
The 85mm has a minimum focus distance of 3.6'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of nine elements in seven groups, including one aspherical element to reduce spherical aberrations. In addition, multi-coated elements help improve light transmission. - 85mm focal length for full-frame format
- Very fast T1.5 maximum aperture
- 8 blade iris for attractive bokeh
- Geared focus and aperture control rings
- De-clicked aperture control ring
- Minimum focus distance of 3.6'
- Internal focusing mitigates lens breathing
- Aspherical lens element limits spherical aberration
- Lens multi-coating improves transmission

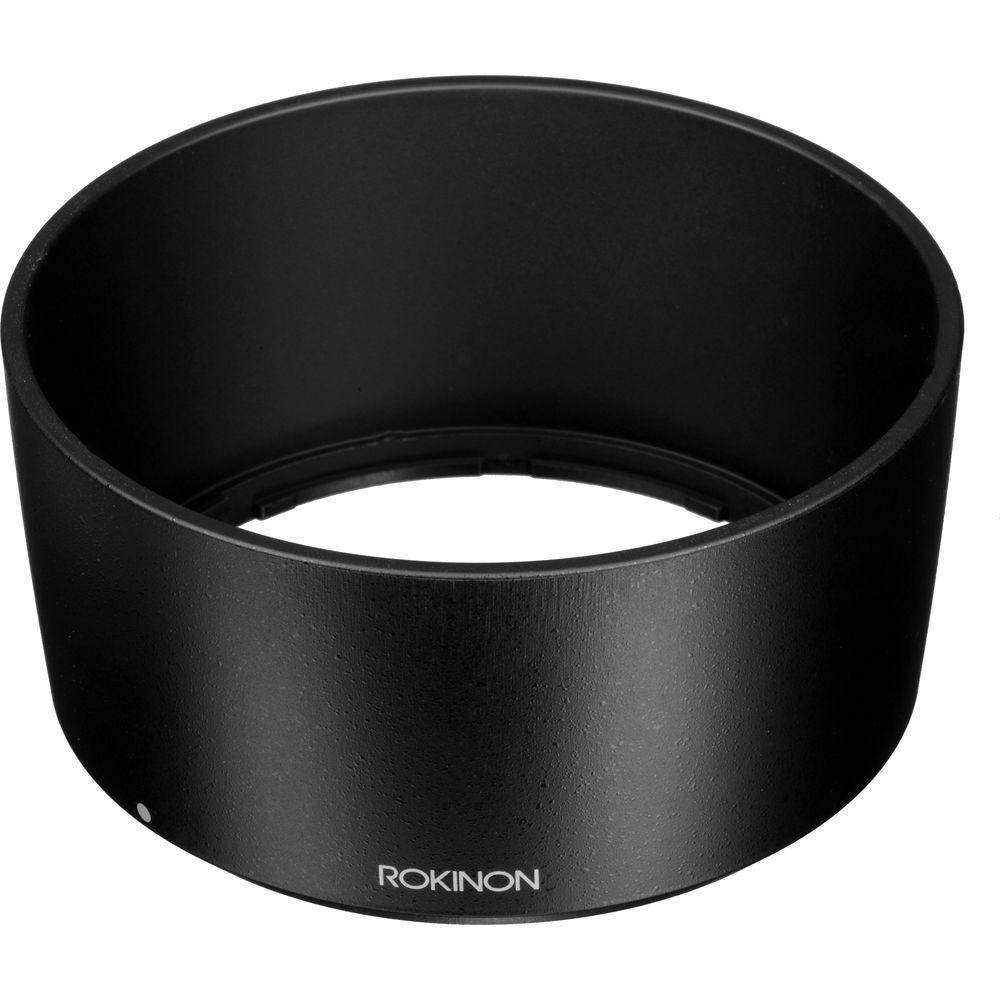

UPC: 084438760941 In the Box Rokinon 85mm T1.5 Cine Lens for Sony E Front Lens Cap Rear Lens Cap Detachable Lens Hood Soft Lens Pouch Limited 1-Year Worldwide Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon 85mm T1.5 Cine Lens for Sony E in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRokinon 85mm T1.5 Cine Specs | Focal Length | 85mm | | Lens Mount | Sony E | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 19.1°
Full Frame: 28.3° | | Minimum Focus Distance from Image Plane | 3.6' / 1 m | | Optical Design | 9 Elements in 7 Groups | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 72 mm | | Dimensions (W x H) | 3.07 x 3.07" / 78 x 78 mm | | Length | 3.96" / 10.07 cm | | Weight | 21.3 oz / 605.0 g | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 9.8 x 5.6 x 4.5" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
