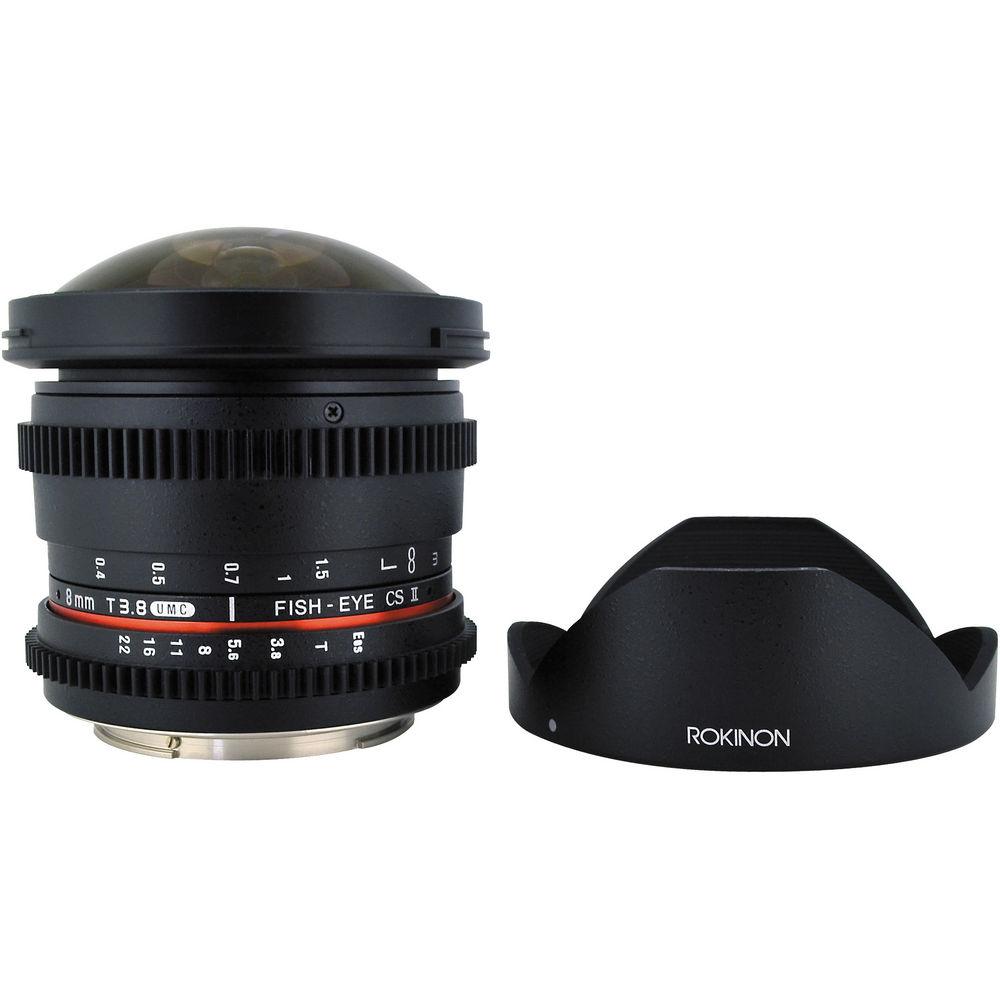

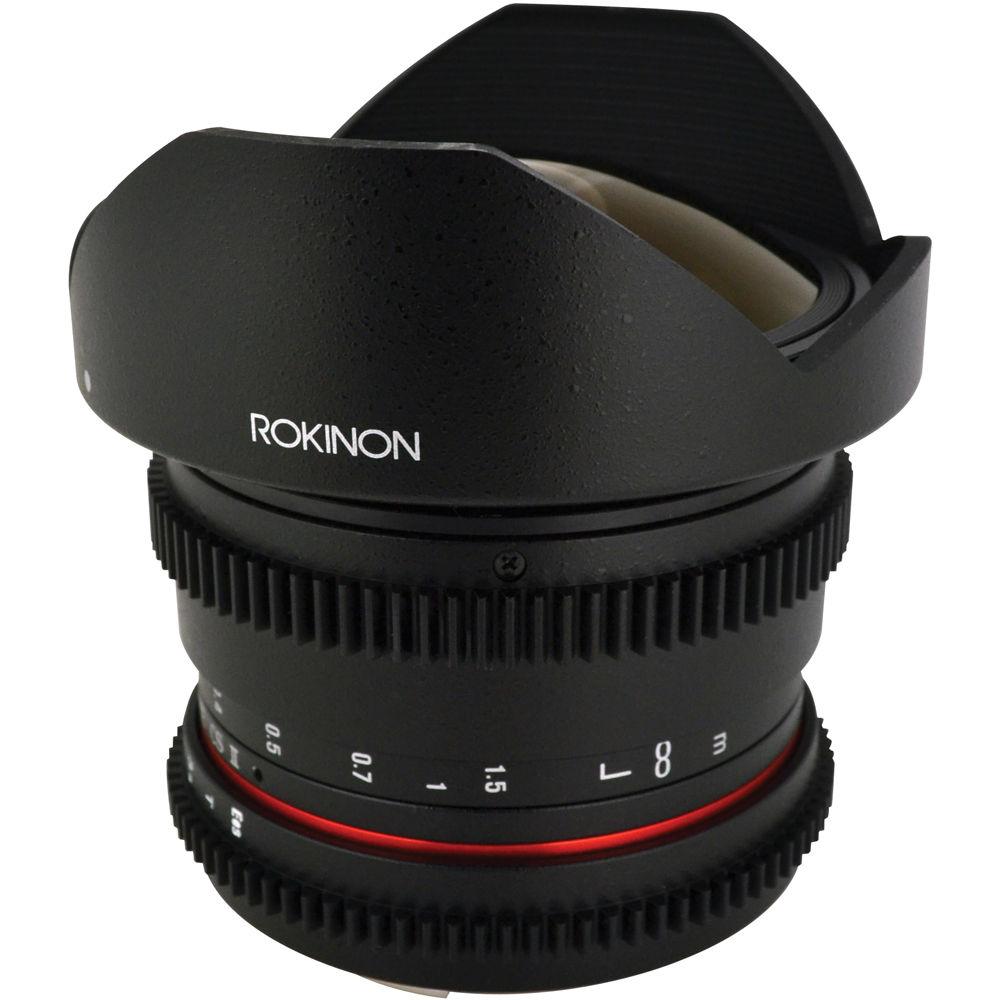

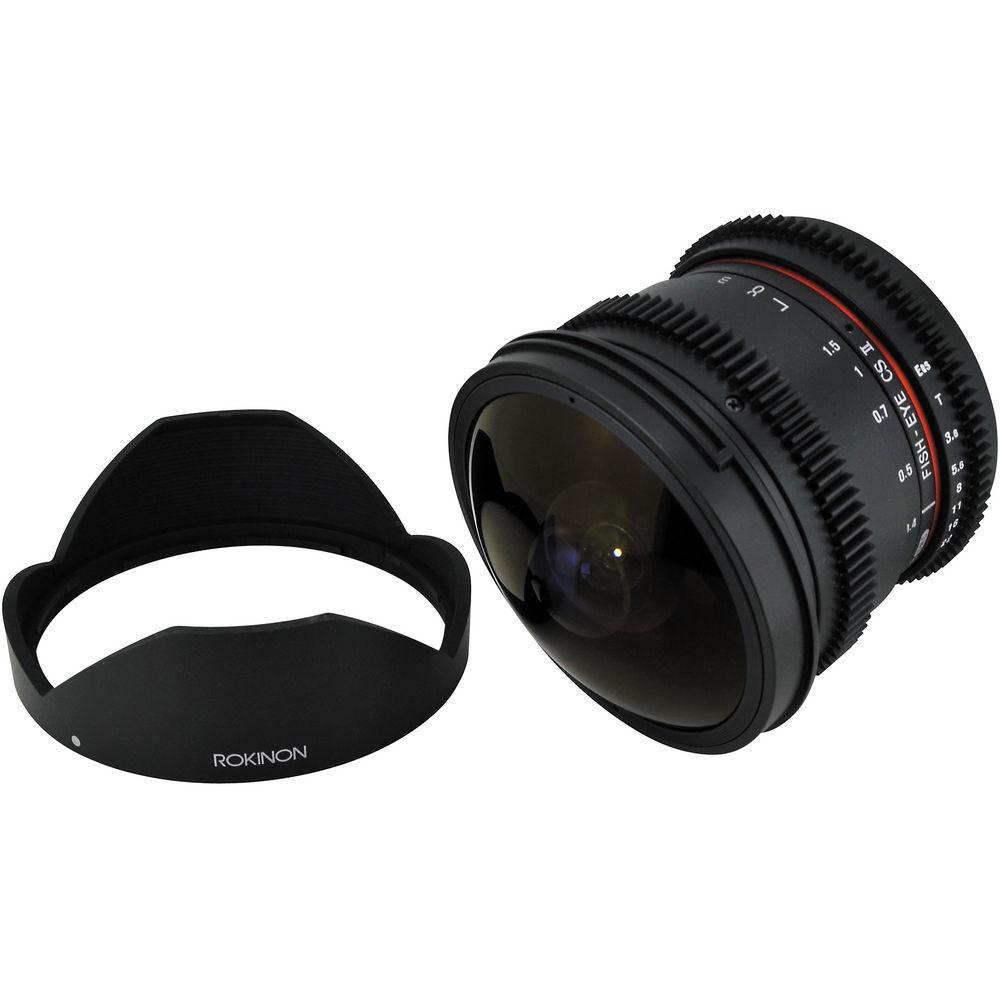

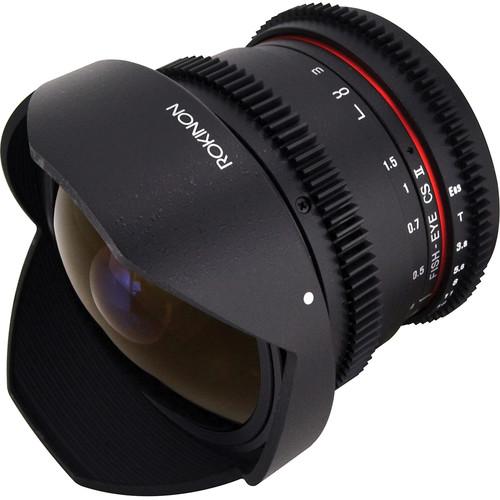

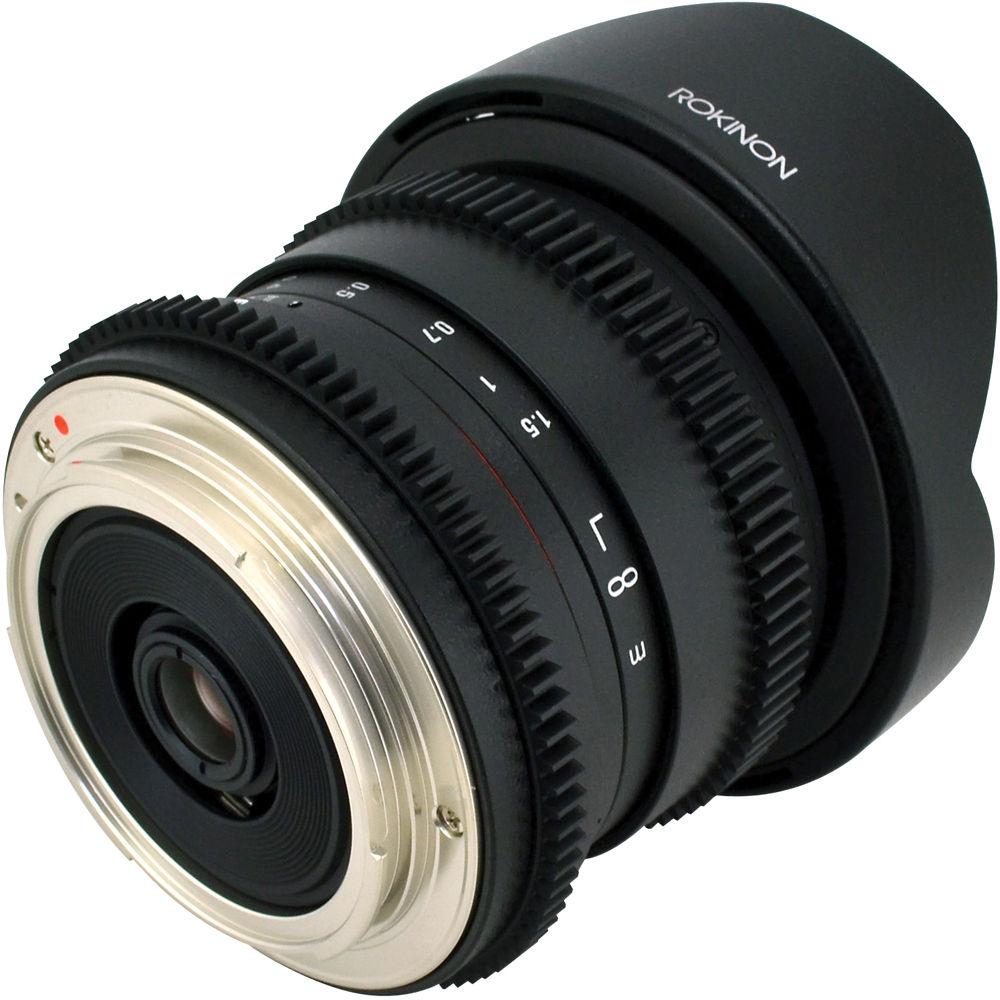

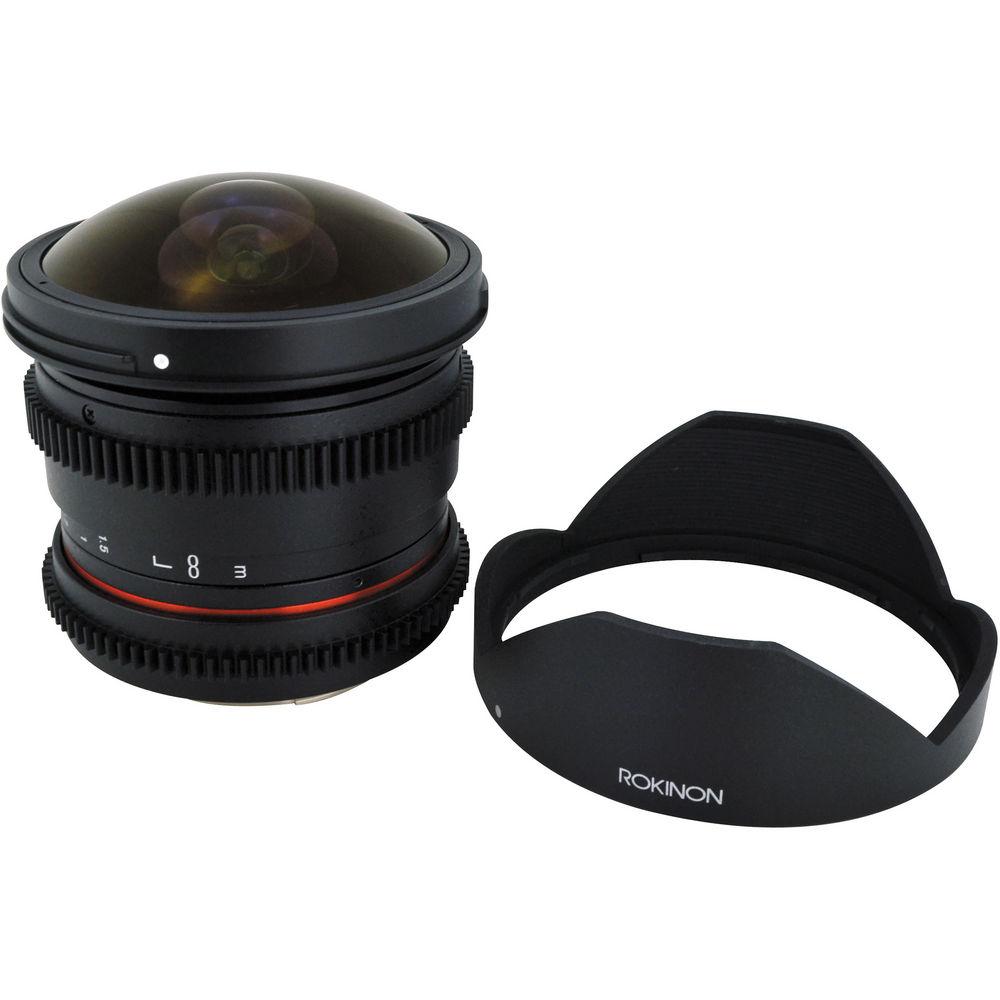

User Manual for Rokinon 8mm T3.8 Cine UMC Fisheye CS II Lens for Micro Four Thirds Mount Click to enlarge the picture
Contents of the user manual for the Rokinon 8mm T3.8 Cine UMC Fisheye
- Product category: Digital Cine Lenses Rokinon
- Brand: Rokinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rokinon Digital Cine Lenses
 |
User manual for the Rokinon 8mm T3.8 Cine UMC Fisheye contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rokinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rokinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rokinon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More zqxeffturdfdacutaaryzxxweytycaex The Micro Four Thirds mount Rokinon 8mm T3.8 Cine UMC Fisheye CS II Lens was developed primarily for film and video applications. The cine version of Rokinon's 8mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.
This lens is compatible with Micro Four Thirds-sized sensors and provides a 35mm-equivalent focal length of 16mm. Its 139.3° angle of view makes it well-suited to creative applications. The optical construction incorporates one hybrid aspherical element to reduce chromatic aberration and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images. - 139.3° fisheye lens is ideally suited for creative applications.
- One hybrid aspherical element reduces chromatic aberrations and distortions in order to produce sharper images.
- UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
- Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
- De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
- A removable petal-type lens hood is included to help minimize flare by deflecting stray light from entering the lens.
UPC: 084438762303 In the Box Rokinon 8mm T3.8 Cine UMC Fisheye CS II Lens for Micro Four Thirds Mount Front Lens Cap Rear Lens Cap Lens Hood Soft Lens Bag Limited 1-Year Worldwide Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon 8mm T3.8 Cine UMC Fisheye CS II Lens for Micro Four Thirds Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRokinon 8mm T3.8 Cine Fisheye II Specs | Focal Length | 8mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Maximum T-Stop | T3.8 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 139.3° | | Minimum Focus Distance from Image Plane | 11.8" / 30 cm | | Optical Design | 10 Elements in 7 Groups | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | None | | Dimensions (W x H) | 2.95 x 2.95" / 74.9 x 74.9 mm | | Length | 3.9" / 99.9 mm | | Weight | 15.9 oz / 450.0 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.8 x 6.8 x 4.7" |
