Rokinon Cine DS 6 Lens Kit

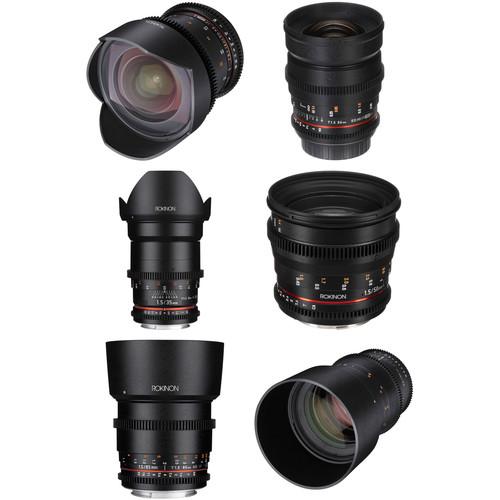

User Manual for Rokinon Cine DS 6 Lens Kit with Canon EF Mount

• Product category: Digital Cine Lenses Rokinon
• Brand: Rokinon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rokinon Digital Cine Lenses

Product description

• Rokinon 14mm T3.1 Cine DS Lens for Canon EF Mount
  • CineDS TrueView
  Overcoming the challenges in assembling a set of lenses over time the Rokinon 14mm T3.1 Cine DS Lens for Canon EF Mount covers full-frame sensors and features a multi-layer coating process for consistent color rendition from lens to lens. It features industry standard geared focus and iris rings that share a common position with other Rokinon Cine DS lenses. This 14mm lens produces a 115.7°, ultra-wide angle-of-view when used with a full-frame sensor. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, and the minimum focus distance is 11" from the lens.

  Please note that some cameras may require that Shutter Lock be disengaged when using this lens.
  • 14mm lens with approximately 115.7° angle-of-view on full-frame cameras.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are matched to a color standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "De-clicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 11" allows you to get up close to your subject.
  • A built-in petal-type lens hood provides flare protection without a matte box.
  UPC: 084438763171
• Rokinon 24mm T1.5 Cine DS Lens for Canon EF Mount
  • CineDS TrueView
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 24mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in a Canon EF Mount and features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 24mm lens produces a 84.1° FOV when used with full-frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

  Please note that some cameras may require that Shutter Lock be disengaged when using this lens.
  • 24mm lens with approximate angle of view of:
    Full-Frame: 84.1°
    APS-C: 57.6°
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • ED, extra-low dispersion glass, helps reduce chromatic aberration and can improve contrast and color saturation.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "De-clicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 9.8" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a matte box.
  UPC: 084438763225
• Rokinon 35mm T1.5 Cine DS Lens for Canon EF Mount
  • CineDS TrueView
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 35mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Canon EF Mount and features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 35mm lens produces a 63.1° angle-of-view when used with a full-frame sensor camera or a 35mm SLR. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 12" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

  Please note that some cameras may require that Shutter Lock be disengaged when using this lens.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "Declicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 12" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a matte box.
  • The lens opens up to T1.5, providing the capability for low light shooting or creating extremely shallow depth of field.
  UPC: 084438763270
• Rokinon 50mm T1.5 AS UMC Cine DS Lens for Canon EF Mount
  • CineDS TrueView
  The 50mm T1.5 AS UMC Cine DS Lens for Canon EF Mount from Rokinon is a fast manual focus prime lens. It provides a very fast maximum aperture of T1.5 for effective low light capture and shallow depth of field control and an 8 blade iris for attractive bokeh. Optimized for cinema and video applications, the focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been de-clicked, which enables smooth iris pulls. In addition, bright aperture and distance markings are printed on the lens barrel facing laterally to facilitate easier control by a focus puller.The 50mm has a minimum focus distance of 1.5'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 6 groups, including one aspherical element and one hybrid aspherical element to reduce aberrations. In addition, a lens multi-coating helps to improve light transmission reducing flare and ghosting. The filter thread diameter is 77mm.With this 50mm lens, Rokinon introduces the DS series of cinema lenses, unifying their cine lenses in more than just name. Each of the DS branded lenses will offer the same alignment of their geared focus and aperture rings so that follow focus and other rig accessories won't need re-adjustment when swapping lenses. Also, each DS lens is tested to be color matched with the other lenses in the series and provide the same color and contrast when shooting video. Lastly, the lenses are marked with focusing scales on each side of the barrel for easier adjustment from either side of the camera.
  • Standard length manual focus prime lens for EF mount cameras.
  • Functional as still photo lens but optimized for cinema and video shooting with geared aperture and focus rings, de-clicked aperture for smooth exposure transitions and laterally printed aperture and distance markings. The 50mm T1.5 is part of the DS series of cine lenses, sharing characteristics and features that unify the series and make it easier for users to swap out lenses when shooting video. Each DS lens provides aligned focus and aperture rings so that readjustment of the follow focus is not necessary when switching lenses. Also each lens has been tested to match color and contrast for a consistent look and less potential post-processing. Finally, all DS lenses print focus scales on each side of the lens barrel for ease of use from both sides of the camera.
  • Very fast T1.5 maximum aperture for effective low light capture and shallow depth of field.
  • Internal focusing system with 9 lens elements in 6 groups.
  • One aspherical and one hybrid aspherical lens element control aberrations and improve sharpness throughout the frame.
  • Lens multi-coating improves light transmission and reduces flare and ghosting.
  • Minimum focus distance of 1.5'
  • Filter thread diameter of 77mm
  UPC: 084438763324
• Rokinon 85mm T1.5 Cine DS Lens for Canon EF Mount
  • CineDS TrueView
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 85mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Canon EF Mount and it features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 85mm lens produces a 28.3° angle-of-view when used with a full-frame sensor camera or a 35mm SLR. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 3'6" from the lens. A removable lens hood provides flare protection when shooting without a matte box and the lens's threaded front accepts 72mm filter rings.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "Declicked" aperture ring for smooth iris pulls.
  • A removable lens hood provides flare protection without a matte box.
  • The lens opens up to T1.5, providing the capability for low light shooting or creating extremely shallow depth of field.
  UPC: 084438763379
• Rokinon 135mm T2.2 Cine DS Lens for Canon EF Mount
  • CineDS TrueView
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 135mm T2.2 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Canon EF Mount and it features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 135mm lens produces an 18.8° angle-of-view when used with a full-frame sensor camera. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 2.6' from the lens. A removable lens hood provides flare protection when shooting without a matte box and the lens's threaded front accepts 77mm filter rings.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "Declicked" aperture ring for smooth iris pulls.
  • A removable lens hood provides flare protection without a matte box.
  • The lens opens up to T2.2, providing the capability for low light shooting or creating extremely shallow depth of field.
  UPC: 084438764260

• 14mm T3.1 Cine DS Lens for Canon EF Mount uzxbewsvvbvqvtwvycxqyx
• Front and Rear Lens Caps
• Lens Pouch
• Limited 1-Year Worldwide Warranty

• 24mm T1.5 Cine DS Lens for Canon EF Mount

• 35mm T1.5 Cine DS Lens for Canon EF Mount

• 50mm T1.5 AS UMC Cine DS Lens for Canon EF Mount

• 85mm T1.5 Cine DS Lens for Canon EF Mount

• 135mm T2.2 Cine DS Lens for Canon EF Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rokinon 14mm T3.1 Cine DS Lens for Canon EF Mount

  Focal Length	14mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T3.1
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 89.9° Full Frame: 115.7°
  Minimum Focus Distance from Image Plane	11" / 28 cm
  Optical Design	14 Elements in 10 Groups
  Iris Blades	6
  Dimensions (W x H)	3.43 x 3.43" / 87.1 x 87.1 mm
  Length	3.78" / 96.1 mm
  Weight	21.9 oz / 620.0 g

  Box Dimensions (LxWxH)	7.1 x 5.2 x 5.1"

• Rokinon 24mm T1.5 Cine DS Lens for Canon EF Mount

  Focal Length	24mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 61.8° Full Frame: 84.1°
  Minimum Focus Distance from Image Plane	9.8" / 25 cm
  Optical Design	13 Elements in 12 Groups
  Iris Blades	8
  Dimensions (W x H)	3.27 x 3.27" / 83.1 x 83.1 mm
  Length	3.84" / 97.5 mm
  Weight	21.7 oz / 615.0 g

  Box Dimensions (LxWxH)	7.2 x 5.2 x 5.2"

• Rokinon 35mm T1.5 Cine DS Lens for Canon EF Mount

  Focal Length	35mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 40.8° Full Frame: 63.1°
  Minimum Focus Distance from Image Plane	12" / 31 cm
  Optical Design	12 Elements in 10 Groups
  Iris Blades	8
  Length	4.38" / 111.5 mm
  Weight	24.7 oz / 700.0 g

  Box Dimensions (LxWxH)	7.6 x 5.2 x 5.1"

• Rokinon 50mm T1.5 AS UMC Cine DS Lens for Canon EF Mount

  Focal Length	50mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Full Frame: 46.2°
  Minimum Focus Distance from Image Plane	1.5' / 0.45 m
  Optical Design	9 Elements in 6 Groups
  Iris Blades	8
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Filter Thread	77 mm
  Dimensions (W x H)	3.2 x 3.2" / 81.3 x 81.3 mm
  Length	2.9" / 74.7 mm
  Weight	20.3 oz / 575.0 g

  Box Dimensions (LxWxH)	6.2 x 5.2 x 5.1"

• Rokinon 85mm T1.5 Cine DS Lens for Canon EF Mount

  Focal Length	85mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 17.7° Full Frame: 28.3°
  Minimum Focus Distance from Image Plane	42" / 106.7 cm
  Optical Design	9 Elements in 7 Groups
  Iris Blades	8
  Length	2.94" / 74.7 mm
  Weight	20.5 oz / 580.0 g

  Box Dimensions (LxWxH)	6.3 x 5.2 x 5.2"

• Rokinon 135mm T2.2 Cine DS Lens for Canon EF Mount

  Focal Length	135mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T2.2
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 11.7° Full Frame: 18.8°
  Minimum Focus Distance from Image Plane	31" / 79 cm
  Optical Design	11 Elements in 7 Groups
  Iris Blades	9
  Dimensions (W x H)	4.8 x 4.8" / 121.9 x 121.9 mm
  Length	3.2" / 82 mm
  Weight	29.5 oz / 835.0 g

  Box Dimensions (LxWxH)	7.638 x 5.118 x 5.118"
