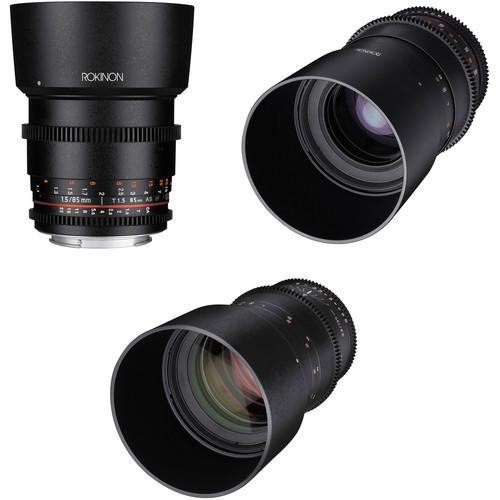

User Manual for Rokinon Cine DS 85, 100, 135mm Lens Kit Click to enlarge the picture
Contents of the user manual for the Rokinon Cine DS 85, 100, 135mm
- Product category: Digital Cine Lenses Rokinon
- Brand: Rokinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rokinon Digital Cine Lenses
|
User manual for the Rokinon Cine DS 85, 100, 135mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rokinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rokinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rokinon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More This Kit includes three Rokinon Cine DS lenses in an MFT mount, all offering the same focus and iris ring positions, which all other Cine DS lens share as well, so you'll be able to further build upon this kit. The kit features an 85mm T1.5 lens, 100mm T3.1 macro lens, and a 135mm T2.2 lens. All three are multi-layer coated, color matched, and have dual-side focus and T-stop scales and a de-clicked aperture ring. - Rokinon 85mm T1.5 Cine DS Lens for Micro Four Thirds Mount Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 85mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Micro Four Thirds Mount and it features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.
This 85mm lens produces a 14.4° angle-of-view when used with Micro Four Thirds sensor cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 3'6" from the lens. A removable lens hood provides flare protection when shooting without a matte box and the lens's threaded front accepts 72mm filter rings. - Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
- Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- "Declicked" aperture ring for smooth iris pulls.
- A removable lens hood provides flare protection without a matte box.
- The lens opens up to T1.5, providing the capability for low light shooting or creating extremely shallow depth of field.
UPC: 084438763416 - Rokinon 100mm T3.1 Macro Cine DS Lens for Micro Four Thirds Mount Utilizing a multi-layer coating process for consistent color rendition from lens to lens, the Rokinon 100mm T3.1 Macro Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Micro Four Thirds Mount, and it features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.
This 100mm lens produces a 12.6° angle-of-view when used with Micro Four Thirds sensor cameras. It can be used for macro videography, which means you can record an image that is the same size or bigger on the sensor as it is in real life. The 15 glass elements in 12 groups render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 1' from the lens. A removable lens hood provides flare protection when shooting without a matte box, and the lens's threaded front accepts 67mm filter rings. - Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
- Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series shares common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- Declicked aperture ring for smooth iris pulls.
- A removable lens hood provides flare protection without a matte box.
- The lens opens up to T3.1, creating extremely shallow depth of field.
UPC: 084438764451 - Rokinon 135mm T2.2 Cine DS Lens for Micro Four Thirds Mount Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 135mm T2.2 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Micro Four Thirds Mount and it features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.
This 135mm lens produces a 9.5° angle-of-view when used with Micro Four Thirds sensor cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 2.6' from the lens. A removable lens hood provides flare protection when shooting without a matte box and the lens's threaded front accepts 77mm filter rings. - Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
- Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- "Declicked" aperture ring for smooth iris pulls.
- A removable lens hood provides flare protection without a matte box.
- The lens opens up to T2.2, providing the capability for low light shooting or creating extremely shallow depth of field.
UPC: 084438764277 In the Box - 85mm T1.5 Cine DS Lens for Micro Four Thirds Mount ssazcbbvbycdqsrvt
- Front and Rear Lens Caps
- Removable Lens Hood
- Lens Pouch
- Limited 1-Year Warranty
- 100mm T3.1 Macro Cine DS Lens for Micro Four Thirds Mount
- 135mm T2.2 Cine DS Lens for Micro Four Thirds Mount
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon Cine DS 85, 100, 135mm Lens Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rokinon 85mm T1.5 Cine DS Lens for Micro Four Thirds Mount
| Focal Length | 85mm | | Lens Mount | Micro Four Thirds | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 14.4° | | Minimum Focus Distance from Image Plane | 42" / 106.7 cm | | Optical Design | 9 Elements in 7 Groups | | Iris Blades | 8 | | Length | 3.92" / 99.5 mm | | Weight | 21.0 oz / 595.0 g | | | | Box Dimensions (LxWxH) | 6.3 x 5.2 x 5.2" | - Rokinon 100mm T3.1 Macro Cine DS Lens for Micro Four Thirds Mount
| Focal Length | 100mm | | Lens Mount | Micro Four Thirds | | Format | Full Frame | | Maximum T-Stop | T3.1 | | Minimum T-Stop | T32 | | Diagonal Angle of View | MFT: 12.6° | | Minimum Focus Distance from Image Plane | 12" / 31 cm | | Optical Design | 15 Elements in 12 Groups | | Iris Blades | 9 | | Dimensions (W x H) | 3.2 x 3.2" / 81.3 x 81.3 mm | | Length | 5.82" / 147.9 mm | | Weight | 25.8 oz / 730.0 g | | | | Box Dimensions (LxWxH) | 7.7 x 5.2 x 5.1" | - Rokinon 135mm T2.2 Cine DS Lens for Micro Four Thirds Mount
| Focal Length | 135mm | | Lens Mount | Micro Four Thirds | | Format | Full Frame | | Maximum T-Stop | T2.2 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 9.5° | | Minimum Focus Distance from Image Plane | 31" / 79 cm | | Optical Design | 11 Elements in 7 Groups | | Iris Blades | 9 | | Dimensions (W x H) | 3.2 x 3.2" / 81.3 x 81.3 mm | | Length | 5.78" / 147 mm | | Weight | 29.6 oz / 840.0 g | | | | Box Dimensions (LxWxH) | 7.638 x 5.118 x 5.118" |
