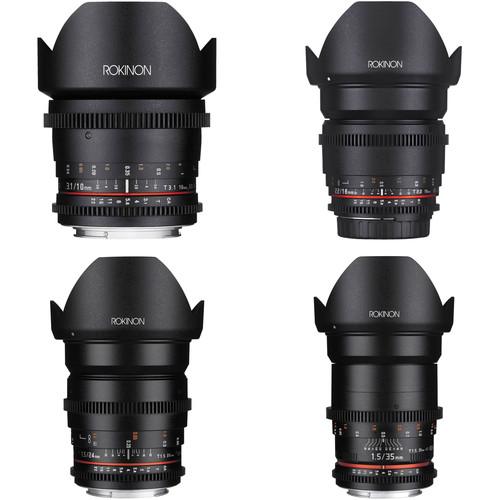

Rokinon Cine DS Wide-Angle Lens Kit

User Manual for Rokinon Cine DS Wide-Angle Lens Kit for APS-C

• Product category: Digital Cine Lenses Rokinon
• Brand: Rokinon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rokinon Digital Cine Lenses

Product description

• Rokinon 10mm T3.1 Cine DS Lens with MFT Mount for APS-C
  • CineDS TrueView
  Utilizing a nano coating process for consistent color rendition from lens to lens, the Rokinon 10mm T3.1 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in MFT mount, and it features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 10mm lens produces a 93.4° angle-of-view when used on cameras with Four Thirds-sized sensors. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 7.9" from the lens. A built-in petal shaped lens hood provides flare protection when shooting without a matte box.
  • Nano Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard, eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories, such as follow focus units or iris motors, don't have to be re-positioned.
  • The lens features an internal focus mechanism, so the front of the lens doesn't rotate when changing focus, allowing you to use filters and clip-on matte boxes without vignetting as you change (pull) focus.
  • The lens features a 6-bladed iris that provides round out of focus highlights and a natural looking Bokeh. The declicked aperture ring allows for smooth iris pulls.
  • A built-in lens hood provides flare protection without a matte box.
  UPC: 084438763799
• Rokinon 16mm T2.2 Cine DS Lens for Micro Four Thirds Mount for APS-C
  • CineDS TrueView
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens, the Rokinon 16mm T2.2 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Micro Four Thirds mount, and it features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 16mm lens produces a 67.6° angle-of-view when used with a camera with a Four Thirds sized sensor. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, and it features a minimum focus distance of 7.9"' from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, and the lens's threaded front accepts 77mm filter rings.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories, such as follow focus units or iris motors, don't have to be re-positioned.
  • The lens features an internal focus mechanism, so the front of the lens doesn't rotate when changing focus, allowing you to use filters and clip-on matte boxes without vignetting as you change (pull) focus.
  • The lens features an 8 bladed iris that provides round out of focus highlights and a natural looking Bokeh. The declicked aperture ring allows for smooth iris pulls.
  • A removable lens hood provides flare protection without a matte box.
  • The lens opens up to T2.2, providing the capability for low light shooting or creating shallow depth of field.
  UPC: 084438763843
• Rokinon 24mm T1.5 Cine DS Lens for Micro Four Thirds Mount
  • CineDS TrueView
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 24mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in a Micro Four Thirds Mount and features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 24mm lens produces a 47.6° FOV when used with micro four thirds cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

  Please note that some cameras may require that Shutter Lock be disengaged when using this lens.
  • 24mm lens with approximate angle of view of:
    MFT: 47.6°
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • ED, extra-low dispersion glass, helps reduce chromatic aberration and can improve contrast and color saturation.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "De-clicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 9.8" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a matte box.
  UPC: 084438763263
• Rokinon 35mm T1.5 Cine DS Lens for Micro Four Thirds Mount
  • CineDS TrueView
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 35mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Micro Four Thirds Mount and features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 35mm lens produces a 33.4° angle-of-view when used on a camera with a four-thirds sized sensor and MFT mount. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 12" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

  Please note that some cameras may require that Shutter Lock be disengaged when using this lens.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "Declicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 12" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a matte box.
  • The lens opens up to T1.5, providing the capability for low light shooting or creating extremely shallow depth of field.
  UPC: 084438763317

• 10mm T3.1 Cine DS Lens with MFT Mount for APS-C xrczwuxyufacrqzufdwazf
• Front Lens Cap
• Rear Lens Cap
• Lens Pouch
• Limited 1-Year Warranty

• 16mm T2.2 Cine DS Lens for Micro Four Thirds Mount for APS-C xrczwuxyufacrqzufdwazf

• 24mm T1.5 Cine DS Lens for Micro Four Thirds Mount xrczwuxyufacrqzufdwazf

• 35mm T1.5 Cine DS Lens for Micro Four Thirds Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rokinon 10mm T3.1 Cine DS Lens with MFT Mount for APS-C

  Focal Length	10mm
  Lens Mount	Micro Four Thirds
  Format	Super35/APS-C
  Maximum T-Stop	T3.1
  Minimum T-Stop	T22
  Diagonal Angle of View	MFT: 93.4°
  Minimum Focus Distance from Image Plane	9.45" / 24 cm
  Optical Design	14 Elements in 9 Groups
  Iris Blades	6
  Length	5.15" / 130.9 mm
  Weight	22.2 oz / 630.0 g

  Box Dimensions (LxWxH)	7.6 x 5.2 x 5.0"

• Rokinon 16mm T2.2 Cine DS Lens for Micro Four Thirds Mount for APS-C

  Focal Length	16mm
  Lens Mount	Micro Four Thirds
  Format	Super35/APS-C
  Maximum T-Stop	T2.2
  Minimum T-Stop	T22
  Diagonal Angle of View	MFT: 67.6°
  Minimum Focus Distance from Image Plane	7.9" / 20 cm
  Optical Design	13 Elements in 11 Groups
  Iris Blades	8
  Length	4.49" / 114.2 mm
  Weight	21.9 oz / 620.0 g

  Box Dimensions (LxWxH)	7.0 x 5.1 x 5.1"

• Rokinon 24mm T1.5 Cine DS Lens for Micro Four Thirds Mount

  Focal Length	24mm
  Lens Mount	Micro Four Thirds
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	MFT: 47.6°
  Minimum Focus Distance from Image Plane	9.8" / 25 cm
  Optical Design	13 Elements in 12 Groups
  Iris Blades	8
  Dimensions (W x H)	3.27 x 3.27" / 83.1 x 83.1 mm
  Length	4.82" / 122.3 mm
  Weight	22.4 oz / 635.0 g

  Box Dimensions (LxWxH)	7.0 x 5.3 x 5.2"

• Rokinon 35mm T1.5 Cine DS Lens for Micro Four Thirds Mount

  Focal Length	35mm
  Lens Mount	Micro Four Thirds
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	MFT: 33.4°
  Minimum Focus Distance from Image Plane	12" / 31 cm
  Optical Design	12 Elements in 10 Groups
  Iris Blades	8
  Length	5.36" / 136.3 mm
  Weight	27.0 oz / 770.0 g

  Box Dimensions (LxWxH)	7.7 x 5.2 x 5.1"
