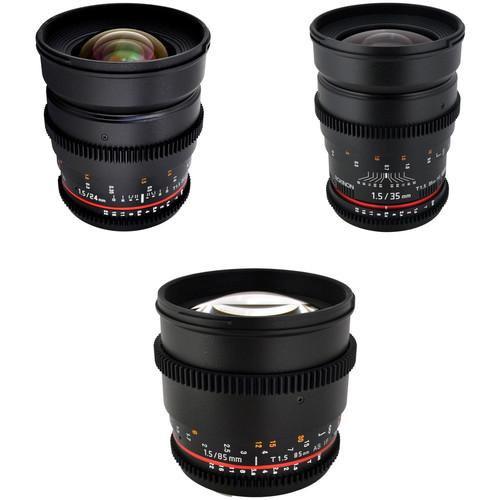

User Manual for Rokinon T1.5 Cine Lens Bundle for Canon EF-Mount

• Product category: Digital Cine Lenses Rokinon
• Brand: Rokinon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rokinon Digital Cine Lenses

Product description

• Rokinon 24mm T1.5 Cine ED AS IF UMC Lens for Canon EF Mount The Canon EF mount Rokinon 24mm T1.5 Cine ED AS IF UMC Lens was developed primarily for film and video applications. The cine version of Rokinon's 24mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

  This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 38.4mm. The optical construction incorporates four extra-low dispersion elements, as well as two aspherical elements, to reduce chromatic aberration and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.
  • Wide-angle prime lens is well-suited to use in a broad variety of shooting situations.
  • Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
  • Four extra-low dispersion elements and two aspherical elements reduce chromatic aberrations in order to produce greater sharpness and clarity.
  • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
  • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
  • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
  UPC: 084438760736
• Rokinon 35mm T1.5 Cine AS UMC Lens for Canon EF Mount The Canon EF mount Rokinon 35mm T1.5 Cine AS UMC Lens was developed primarily for film and video applications. The cine version of Rokinon's 35mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.

  This lens is compatible with full-frame sensors and can also be used on APS-C-sized sensors, where the 35mm-equivalent focal length will be 56mm. The optical construction incorporates two high refractive index elements and one aspherical element to reduce chromatic aberrations and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images.
  • Wide-angle prime lens is well-suited to use in a broad variety of shooting situations.
  • Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
  • Two high refractive index elements and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
  • UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
  • Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
  • De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
  UPC: 084438760613
• Rokinon 85mm T1.5 Cine Lens for Canon EF The Rokinon 85mm T1.5 Cine Lens for Canon EF produces a slightly telephoto angle-of-view on full-frame sensors. It features a very fast maximum aperture of T1.5 and an 8 blade iris, for shallow depth of field with attractive bokeh. The focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been "declicked", which facilitates smooth iris pulls.

  The 85mm has a minimum focus distance of 3.6'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 7 groups, including one aspherical element to reduce spherical aberrations. In addition, a multi-coated elements help improve light transmission.
  • 85mm focal length for full-frame format
  • Very fast T1.5 maximum aperture
  • 8 blade iris for attractive bokeh
  • Geared focus and aperture control rings
  • "Declicked" aperture control ring
  • Minimum focus distance of 3.6'
  • Internal focusing mitigates lens breathing
  • Aspheric lens element limits spherical aberration
  • Lens multi-coating improves transmission
  UPC: 084438760910

• 24mm T1.5 Cine ED AS IF UMC Lens for Canon EF Mount zqvftvyezzutzdfrrtzyfz
• Front Lens Cap
• Rear Lens Cap
• Lens Hood
• Soft Lens Bag
• Limited 1-Year Worldwide Warranty

• 35mm T1.5 Cine AS UMC Lens for Canon EF Mount

• 85mm T1.5 Cine Lens for Canon EF

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rokinon 24mm T1.5 Cine ED AS IF UMC Lens for Canon EF Mount

  Focal Length	24mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 61.8° Full Frame: 84.1°
  Minimum Focus Distance from Image Plane	9.8" / 25 cm
  Optical Design	13 Elements in 12 Groups
  Iris Blades	8
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Filter Thread	77 mm
  Dimensions (W x H)	3.27 x 3.27" / 83.1 x 83.1 mm
  Length	3.8" / 97 mm
  Weight	1.4 lb / 615.0 g

  Box Dimensions (LxWxH)	8.8 x 6.7 x 4.9"

• Rokinon 35mm T1.5 Cine AS UMC Lens for Canon EF Mount

  Focal Length	35mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 40.8° Full Frame: 63.1°
  Minimum Focus Distance from Image Plane	11.8" / 30 cm
  Optical Design	12 Elements in 10 Groups
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Filter Thread	77 mm
  Dimensions (W x H)	3.27 x 3.27" / 83.1 x 83.1 mm
  Length	4.4" / 111 mm
  Weight	1.5 lb / 700.0 g

  Box Dimensions (LxWxH)	8.7 x 6.7 x 5.0"

• Rokinon 85mm T1.5 Cine Lens for Canon EF

  Focal Length	85mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 19.1° Full Frame: 28.3°
  Minimum Focus Distance from Image Plane	3.6' / 1 m
  Optical Design	9 Elements in 7 Groups
  Iris Blades	8
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Filter Thread	72 mm
  Dimensions (W x H)	3.07 x 3.07" / 78 x 78 mm
  Length	2.84" / 7.22 cm
  Weight	20.5 oz / 580.0 g

  Box Dimensions (LxWxH)	9.8 x 5.6 x 4.5"
