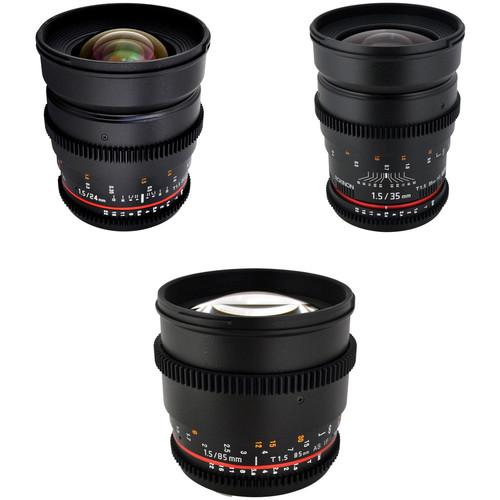

Product description Cinema Lens Care and Maintenance Read More This Rokinon T1.5 Cine Lens Kit for Micro Four Thirds Mount consists of three prime lenses optimized for digital cinema and video applications. Included is a 24mm, 35mm, and an 85mm lens, each featuring a fast T1.5 aperture and industry-standard 0.8 pitch gearing on the focus and aperture rings. The aperture rings are de-clicked for smooth aperture pulls, and aperture and focus scales are located on the side of the lenses, where it is easier for focus pullers to read them.
The lenses share a T-stop range of 1.5 to 22mm, and each lens features a Micro Four Thirds lens mount. Ultra Multi-Coating (UMC) on the lenses improves light transmission and adds resistance to ghosting and flares. Each lens includes a detachable lens hood.
- Rokinon 24mm T1.5 Cine ED AS IF UMC Lens for Micro Four Thirds Mount The Micro Four Thirds mount Rokinon 24mm T1.5 Cine ED AS IF UMC Lens was developed primarily for film and video applications. The cine version of Rokinon's 24mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.
This lens is designed for use on Micro Four Thirds sensors and provides a 35mm-equivalent focal length of 48mm.. The optical construction incorporates four extra-low dispersion elements, as well as two aspherical elements, to reduce chromatic aberration and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images. - Standard-length, 48mm equivalent prime lens provides a similar field of view to normal vision, making it well-suited to use in everyday situations.
- Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
- Four extra-low dispersion elements and two aspherical elements reduce chromatic aberrations in order to produce greater sharpness and clarity.
- UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
- Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
- De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
UPC: 084438762280 - Rokinon 35mm T1.5 Cine AS UMC Lens for Micro Four Thirds Mount The Micro Four Thirds mount Rokinon 35mm T1.5 Cine AS UMC Lens was developed primarily for film and video applications. The cine version of Rokinon's 35mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.
This lens is designed for use on Micro Four Thirds sensors and provides a 35mm-equivalent focal length of 70mm.. The optical construction incorporates two high refractive index elements and one aspherical element to reduce chromatic aberrations and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images. - Portrait-length, 70mm equivalent prime lens is ideal for portraiture and other situations that require a short telephoto perspective.
- Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
- Two high refractive index elements and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
- UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
- Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
- De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
UPC: 084438762273 - Rokinon 85mm T1.5 Cine AS IF UMC Lens for Micro Four Thirds The Micro Four Thirds mount Rokinon 85mm T1.5 Cine AS IF UMC Lens is a prime telephoto lens designed for Micro Four Thirds cameras. Providing a 35mm-equivalent focal length of 170mm, this lens is well-suited to distant subjects, close-ups, and portraiture. Its fast T1.5 maximum aperture is further beneficial to working in low-light conditions and for greater control over selective focus and shallow depth of field effects.
One aspherical element has been incorporated into the optical design to minimize chromatic aberrations in order to produce sharper images. A UMC coating has also been applied to the lens elements to reduce surface reflections and prevent lens flare and ghosting for improved light transmission and more contrast-rich imagery.
This lens' cine design incorporates geared aperture and focus rings for use with traditional follow focuses. Its inner-focusing mechanism also maintains the overall lens length when racking focus. Additionally, the aperture ring has been de-clicked for silent, smooth iris adjustment during recording. - Telephoto lens provides a 35mm-equivalent focal length of 170mm, making it ideally suited for distant subjects, portraiture, and selective focus applications.
- Fast T1.5 maximum aperture benefits working in low-light conditions as well as provides greater control over focus placement for shallow depth of field applications.
- One aspherical element reduces chromatic aberration in order to produce greater sharpness and clarity.
- UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
- Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
- De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
- Inner-focusing mechanism maintains the overall lens length during use.
UPC: 084438762112 In the Box - 24mm T1.5 Cine ED AS IF UMC Lens for Micro Four Thirds Mount
- Front Lens Cap
- Rear Lens Cap
- Lens Hood
- Soft Lens Bag
- Limited 1-Year Worldwide Warranty
- 35mm T1.5 Cine AS UMC Lens for Micro Four Thirds Mount
- 85mm T1.5 Cine AS IF UMC Lens for Micro Four Thirds
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon T1.5 Cine Lens Bundle for Micro Four Thirds Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rokinon 24mm T1.5 Cine ED AS IF UMC Lens for Micro Four Thirds Mount
| Focal Length | 24mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 47.6° | | Minimum Focus Distance from Image Plane | 9.8" / 25 cm | | Optical Design | 13 Elements in 12 Groups | | Iris Blades | 5 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Dimensions (W x H) | 3.27 x 3.27" / 83.1 x 83.1 mm | | Length | 4.8" / 122.3 mm | | Weight | 1.4 lb / 635.0 g | | | | Box Dimensions (LxWxH) | 8.8 x 6.7 x 4.9" | - Rokinon 35mm T1.5 Cine AS UMC Lens for Micro Four Thirds Mount
| Focal Length | 35mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 33.4° | | Minimum Focus Distance from Image Plane | 11.8" / 30 cm | | Optical Design | 12 Elements in 10 Groups | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Dimensions (W x H) | 3.27 x 3.27" / 83.1 x 83.1 mm | | Length | 5.4" / 136.3 mm | | Weight | 1.7 lb / 770.0 g | | | | Box Dimensions (LxWxH) | 8.8 x 6.7 x 4.9" | - Rokinon 85mm T1.5 Cine AS IF UMC Lens for Micro Four Thirds
| Focal Length | 85mm | | Lens Mount | Micro Four Thirds | | Format | MFT | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 14.5° | | Optical Design | 9 Elements in 7 Groups | | Filter Thread | 72 mm | | | | Box Dimensions (LxWxH) | 9.9 x 5.6 x 4.2" |
