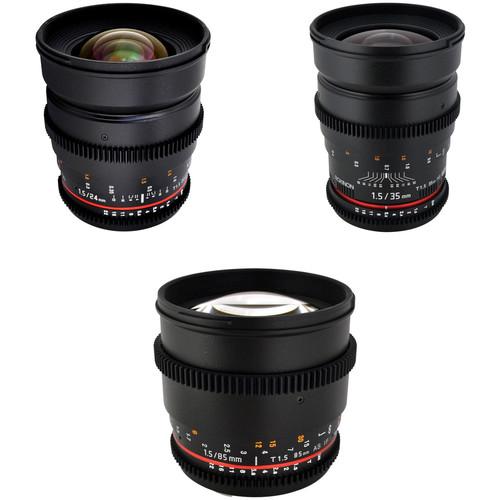

Product description Cinema Lens Care and Maintenance Read More This Rokinon T1.5 Cine Lens Kit for Nikon F Mount consists of three prime lenses optimized for digital cinema and video applications. Included is a 24mm, 35mm, and an 85mm lens, each featuring a fast T1.5 aperture and industry-standard 0.8 pitch gearing on the focus and aperture rings. The aperture rings are de-clicked for smooth aperture pulls, and aperture and focus scales are located on the side of the lenses, where it is easier for focus pullers to read them.
The lenses share a T-stop range of 1.5 to 22mm. The included lenses feature Nikon F lens mounts and cover full-frame sensors. Ultra Multi-Coating (UMC) on the lenses improves light transmission and adds resistance to ghosting and flares. Each lens includes a detachable lens hood.
- Rokinon 24mm T1.5 Cine ED AS IF UMC Lens for Nikon F Mount The Nikon F mount Rokinon 24mm T1.5 Cine ED AS IF UMC Lens was developed primarily for film and video applications. The cine version of Rokinon's 24mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.
This lens is compatible with FX (full-frame) sensors and can also be used on DX-sized sensors, where the 35mm-equivalent focal length will be 36mm. The optical construction incorporates four extra-low dispersion elements, as well as two aspherical elements, to reduce chromatic aberration and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images. - Wide-angle prime lens is well-suited to use in a broad variety of shooting situations.
- Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
- Four extra-low dispersion elements and two aspherical elements reduce chromatic aberrations in order to produce greater sharpness and clarity.
- UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
- Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
- De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
UPC: 084438760743 - Rokinon 35mm T1.5 Cine AS UMC Lens for Nikon F Mount The Nikon F mount Rokinon 35mm T1.5 Cine AS UMC Lens was developed primarily for film and video applications. The cine version of Rokinon's 35mm lens features industry-standard gearing for the focus and aperture ring, and the aperture ring has been de-clicked for smooth iris pulls. The aperture and focus scales have also been relocated to the side of the lens, where it is easier for focus pullers to read them.
This lens is compatible with FX (full-frame) sensors and can also be used on DX-sized sensors, where the 35mm-equivalent focal length will be 52.5mm. The optical construction incorporates two high refractive index elements and one aspherical element to reduce chromatic aberrations and distortion to produce sharper imagery. Additionally, a UMC coating has been applied to lens elements to minimize lens flare and ghosting for more contrast-rich images. - Wide-angle prime lens is well-suited to use in a broad variety of shooting situations.
- Fast T1.5 maximum aperture benefits working in low-light conditions and provides greater control over focus placement for shallow depth of field applications.
- Two high refractive index elements and one aspherical element reduce chromatic aberrations in order to produce greater sharpness and clarity.
- UMC coating improves light transmission and suppresses lens flare and ghosting for more contrast-rich, color-neutral images.
- Geared aperture and focus rings are compatible with standard follow focuses for greater control over adjustment.
- De-clicked aperture ring facilitates smooth, quiet exposure adjustments during recording.
UPC: 084438760620 - Rokinon 85mm T1.5 Cine Lens for Nikon F The Rokinon 85mm T1.5 Cine Lens for Nikon F produces a slightly telephoto angle-of-view on full-frame sensors. It features a very fast maximum aperture of T1.5 and an 8 blade iris, for shallow depth of field with attractive bokeh. The focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been "declicked", which facilitates smooth iris pulls.
The 85mm has a minimum focus distance of 3.6'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 7 groups, including one aspherical element to reduce spherical aberrations. In addition, a multi-coated elements help improve light transmission. - 85mm focal length for full-frame format
- Very fast T1.5 maximum aperture
- 8 blade iris for attractive bokeh
- Geared focus and aperture control rings
- "Declicked" aperture control ring
- Minimum focus distance of 3.6'
- Internal focusing mitigates lens breathing
- Aspheric lens element limits spherical aberration
- Lens multi-coating improves transmission
UPC: 084438760927 In the Box - 24mm T1.5 Cine ED AS IF UMC Lens for Nikon F Mount sczzcadydqwubwvqtcctvwtyfvyqzr
- Front Lens Cap
- Rear Lens Cap
- Lens Hood
- Soft Lens Bag
- Limited 1-Year Worldwide Warranty
- 35mm T1.5 Cine AS UMC Lens for Nikon F Mount
- 85mm T1.5 Cine Lens for Nikon F
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon T1.5 Cine Lens Bundle for Nikon F Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rokinon 24mm T1.5 Cine ED AS IF UMC Lens for Nikon F Mount
| Focal Length | 24mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 61.8°
Full Frame: 84.1° | | Minimum Focus Distance from Image Plane | 9.8" / 25 cm | | Optical Design | 13 Elements in 12 Groups | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Dimensions (W x H) | 3.27 x 3.27" / 83.1 x 83.1 mm | | Length | 3.7" / 95 mm | | Weight | 1.3 lb / 600.0 g | | | | Box Dimensions (LxWxH) | 8.8 x 6.7 x 4.8" | - Rokinon 35mm T1.5 Cine AS UMC Lens for Nikon F Mount
| Focal Length | 35mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 43.2°
Full Frame: 63.1° | | Minimum Focus Distance from Image Plane | 11.8" / 30 cm | | Optical Design | 12 Elements in 10 Groups | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 77 mm | | Dimensions (W x H) | 3.27 x 3.27" / 83.1 x 83.1 mm | | Length | 4.3" / 109 mm | | Weight | 1.5 lb / 685.0 g | | | | Box Dimensions (LxWxH) | 8.9 x 6.7 x 4.7" | - Rokinon 85mm T1.5 Cine Lens for Nikon F
| Focal Length | 85mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 19.1°
Full Frame: 28.3° | | Minimum Focus Distance from Image Plane | 3.6' / 1 m | | Optical Design | 9 Elements in 7 Groups | | Iris Blades | 8 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Filter Thread | 72 mm | | Dimensions (W x H) | 3.07 x 3.07" / 78 x 78 mm | | Length | 2.94" / 7.47 cm | | Weight | 19.8 oz / 560.0 g | | | | Box Dimensions (LxWxH) | 9.8 x 5.6 x 4.3" |
