Product description XEEN Lenses: What They are for and Why I Like Them Read More - A Look at Rokinon's Xeen Lenses: Filming Glass with Glass

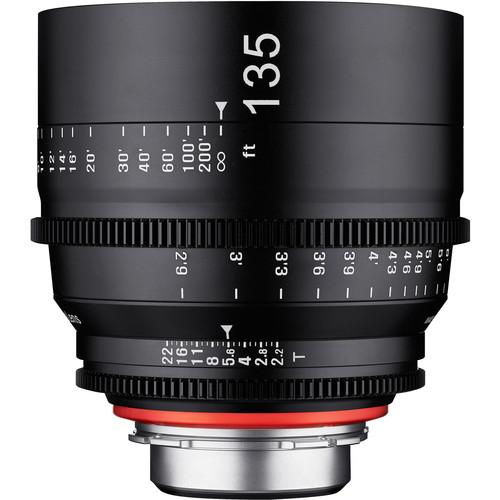

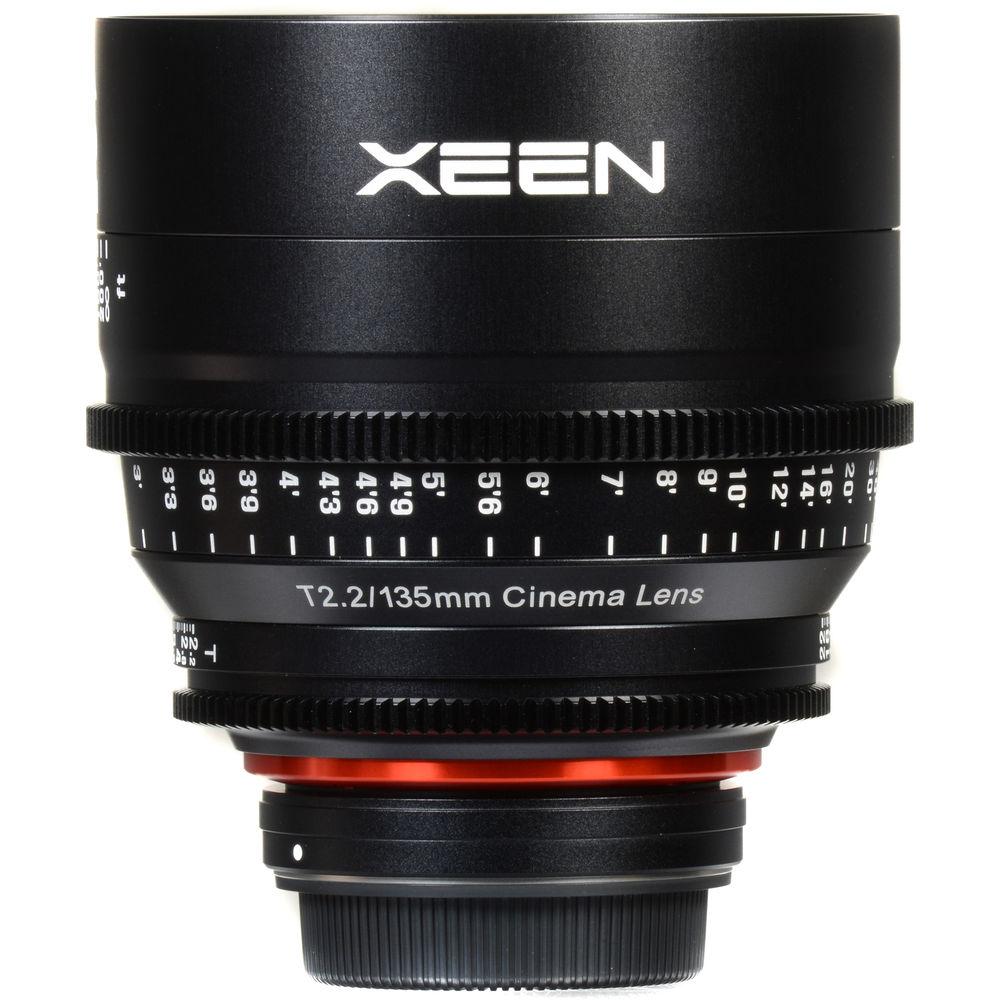

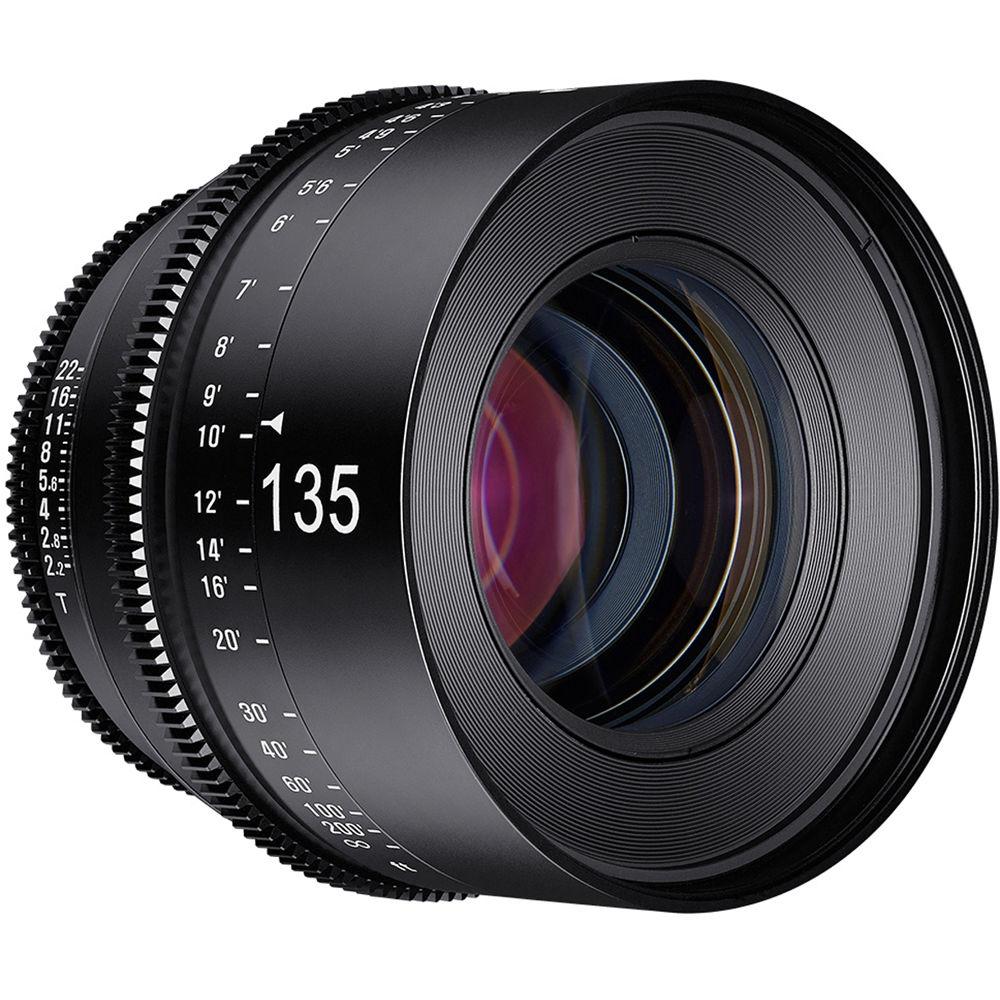

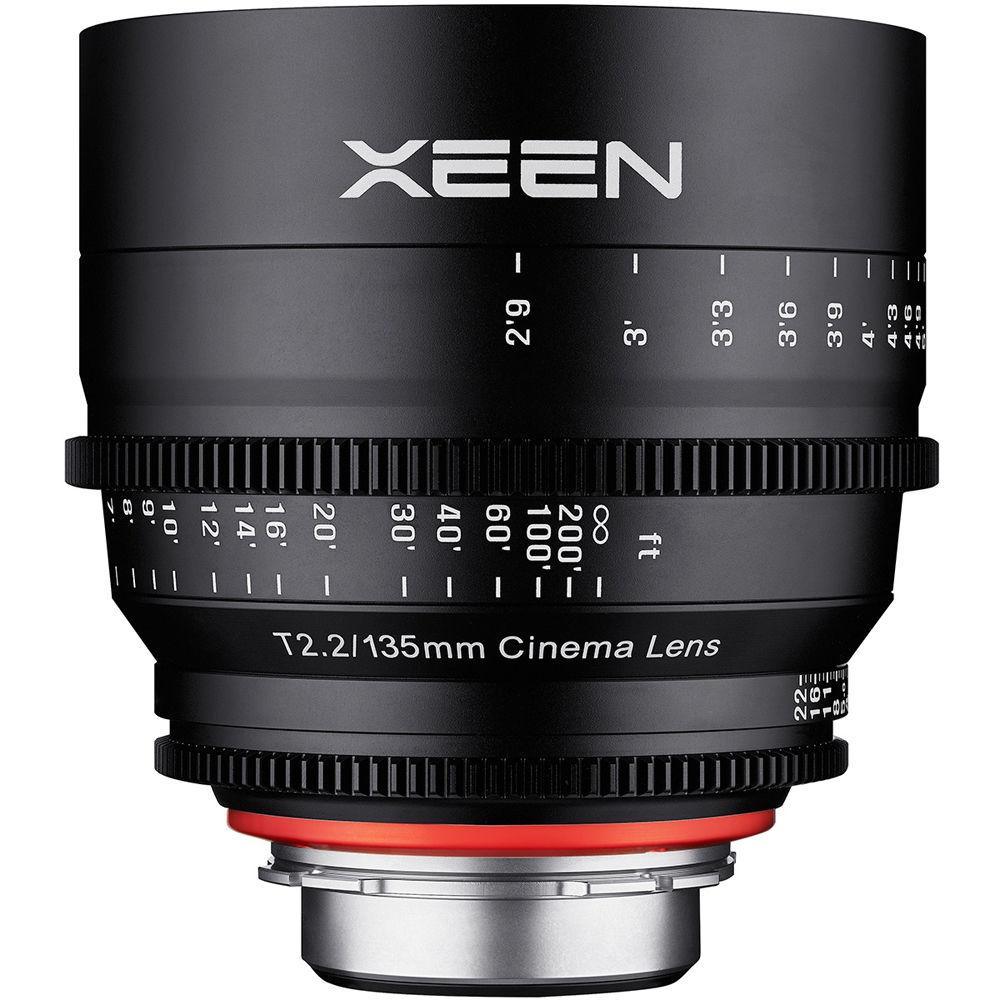

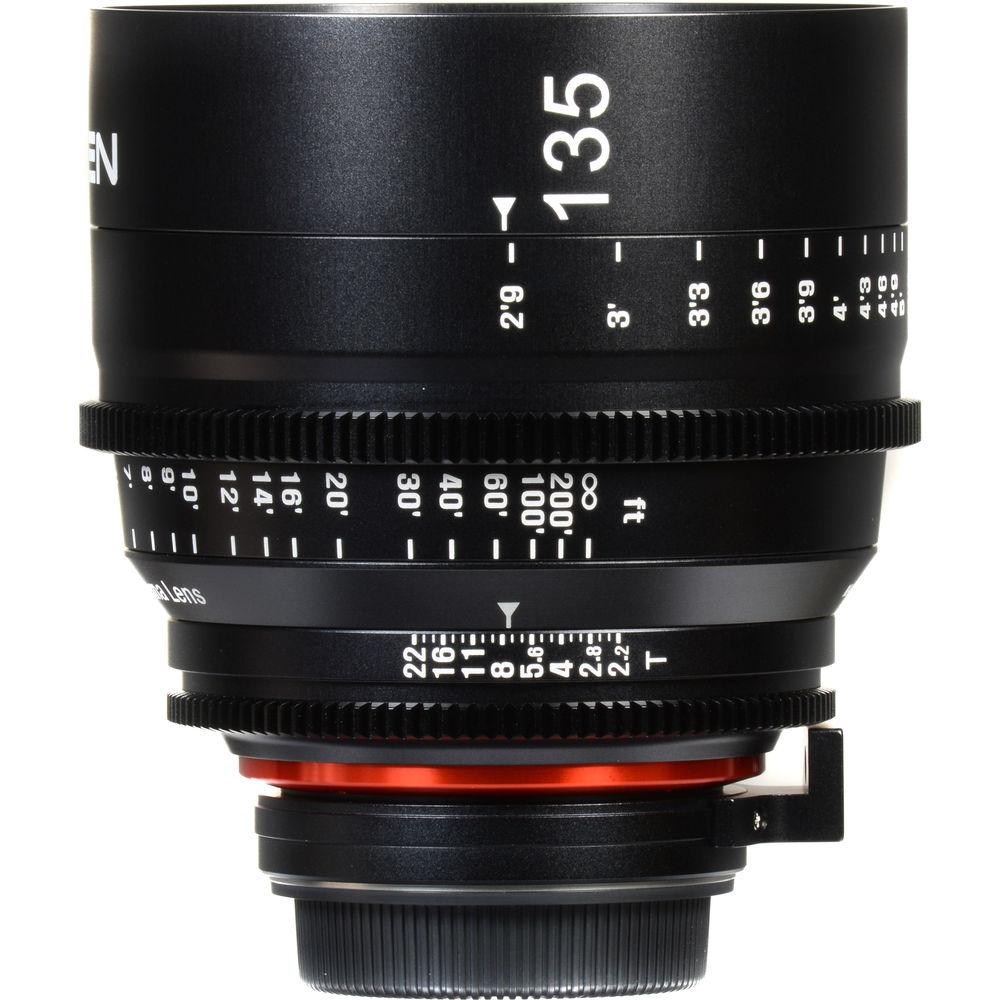

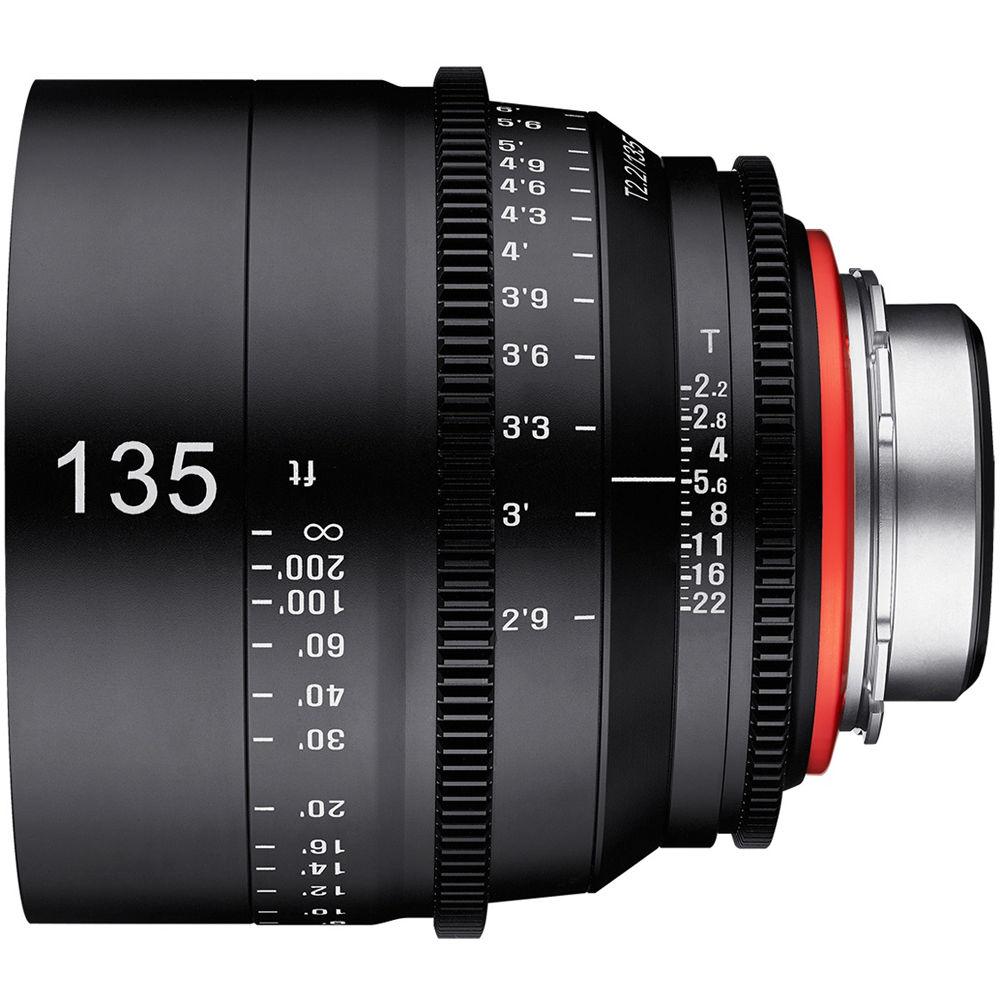

Rokinon's Xeen 135mm T2.2 Lens with Sony E-Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, minimizing breathing. Each lens in the Rokinon Xeen cinema lens set is multi-coated for good contrast, glare prevention, and color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 135mm focal length is often chosen for portraits and close-ups. The lens features dual-sided focus scales in feet, with dual-sided iris scales. The 11-bladed iris provides a round aperture for natural looking highlights and Bokeh.
The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision and consistent focus. - This is a 135mm lens that has an image circle that covers a full-frame sensor. It has the effect of bringing the background closer, and it is often used for close-ups and long shots, where you want a compressed feel and out of focus background.

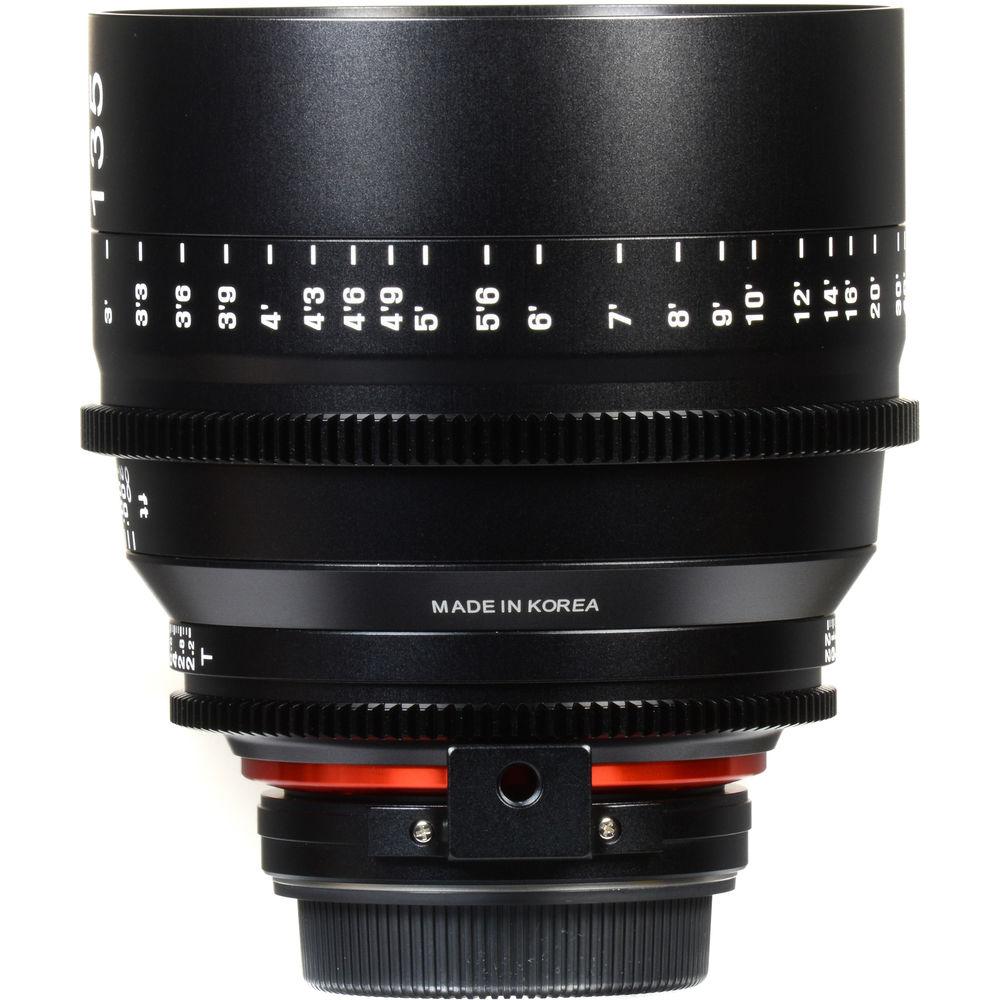

- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.

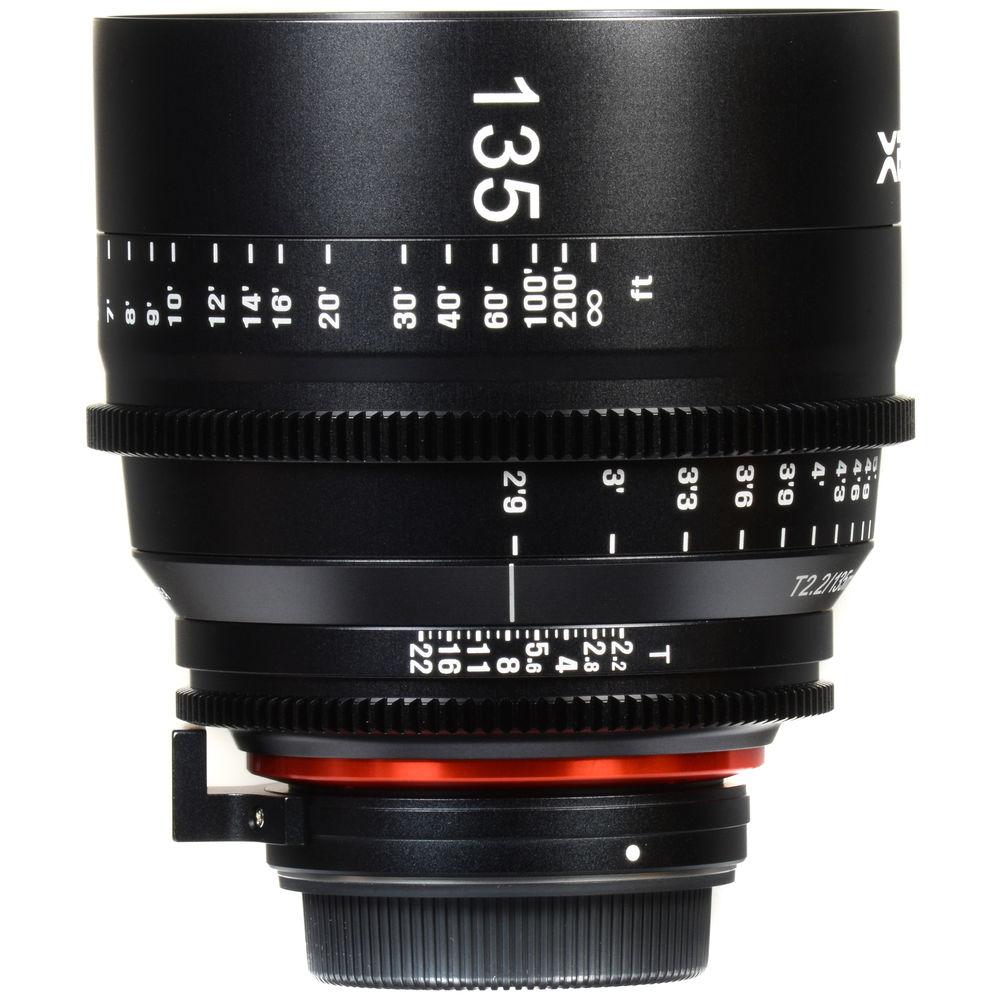

- Dual calibrated right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens.
- Each lens in the Xeen series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned. The lenses in the Xeen series also share focus and iris rotation, with focus having 200° of rotation and iris having 40° of rotation.

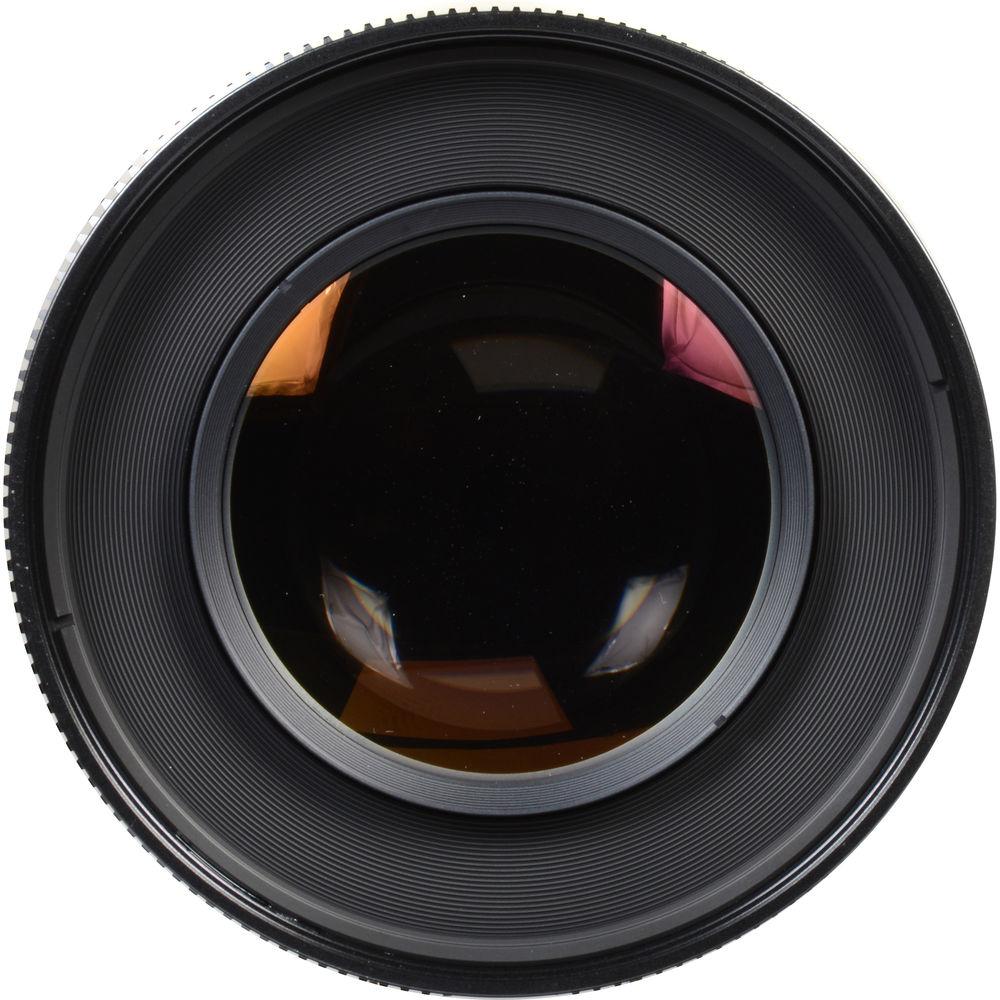

- The common 114mm front diameter between lenses in the series allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
- Clickless aperture ring for smooth iris pulls.
- A minimum focusing distance of 2.6' allows you to get up close to your subject.

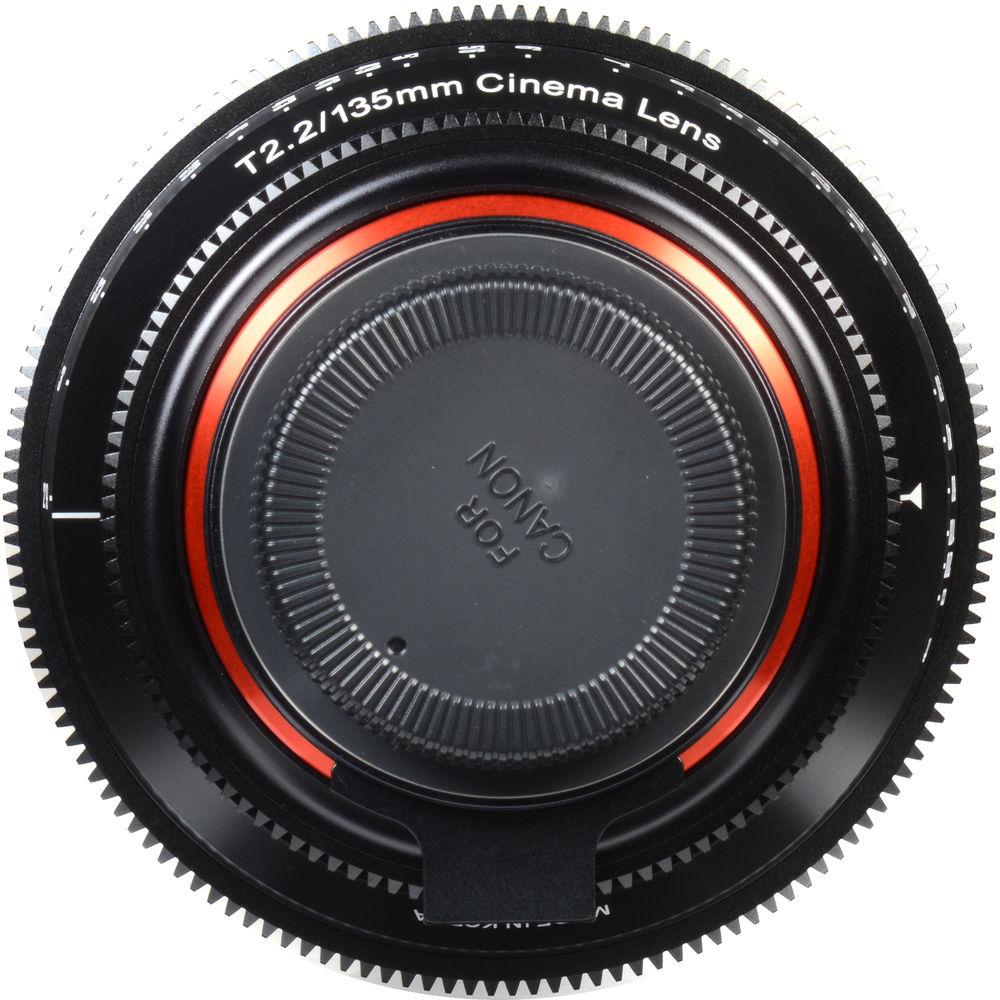

UPC: 084438765274 In the Box Rokinon Xeen 135mm T2.2 Lens with Sony E-Mount Front Lens Cap Rear Lens Cap Limited 3-Year Warranty Rokinon Releases a New Xeen Lens: the 135mm Steven Gladstone 08/22/2016 Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon Xeen 135mm T2.2 Lens with Sony E-Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRokinon Xeen 135mm T2.2 Specs | Focal Length | 135mm | | Lens Mount | Sony E | | Format | Full Frame | | Maximum T-Stop | T2.2 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 12.4°
Full Frame: 18.78° | | Minimum Focus Distance from Image Plane | 2.6' / 79.2 cm | | Iris Blades | 11 | | Front Diameter | 114 mm | | Filter Thread | None | | Tripod Mounting Thread | 1/4"-20 | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 4.8" / 121.7 mm | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 10.2 x 7.8 x 7.7" |
