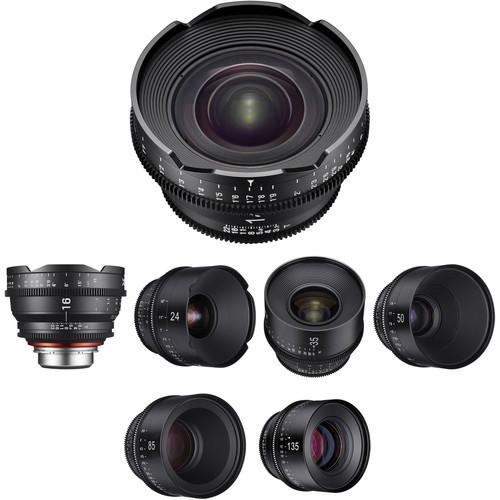

User Manual for Rokinon Xeen 14, 16, 24, 35, 50, 85, 135mm Cine 7 Lens Bundle Click to enlarge the picture
Contents of the user manual for the Rokinon Xeen 14, 16, 24, 35,
- Product category: Digital Cine Lenses Rokinon
- Brand: Rokinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rokinon Digital Cine Lenses
|
User manual for the Rokinon Xeen 14, 16, 24, 35, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rokinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rokinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rokinon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More This B&H Kit of seven Xeen Cinema Lenses includes the 14, 16, 24, 35, 50, 85, and 135mm lenses. This provides you with a full, color-matched set of lenses that cover full frame and are fitted with Nikon F mounts. The lenses feature an internal focus design, which means that the front of the lens doesn't rotate as you change focus, and the lens maintains a constant volume. Dual-sided focus marks make it easier on your camera assistant working on either side of the camera, and the 200° of focus barrel rotation provides ample real estate for precision marking.
Each lens incorporates built-in, cinema-style focus and iris gears that share common positions, making for fast lens changes. The 24, 35, 50, and 85mm lenses feature a maximum aperture of T1.5 and an 11-bladed iris. The 14mm features a maximum aperture of T3.1 and has a 9-bladed iris, while the 16mm features a T2.6 maximum aperture and an 11-bladed iris. The 135mm is still fast at T2.2 and incorporates an 11-bladed iris. As these are cinema lenses, the iris is designed to be clickless, allowing smooth aperture pulls. - Rokinon Xeen 14mm T3.1 Lens for Nikon F Mount
- A Look at Rokinon's Xeen Lenses: Filming Glass with Glass
Rokinon's Xeen 14mm T3.1 Lens for Nikon F Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, minimizing the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and color-match to a factory standard, allowing you to assemble a set over time with minimal color shift. This 14mm lens provides what is considered a very wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.
The lens features dual sided focus scales marked in feet, with dual-sided iris scales. The 9-bladed iris provides a rounded aperture for natural looking highlights and bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity. This gives you a high degree of precision when adjusting focus. - This 14mm lens has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides you with a very wide angle of view.
- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.
- Dual right and left side focus and t-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.
- Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
- The non-rotating front allows you to use optional clip-on matte boxes.
- Clickless aperture ring for smooth iris pulls.
- A minimum focusing distance of 11" allows you to get up close to your subject.
UPC: 084438765090 - Rokinon Xeen 16mm T2.6 Lens (Nikon F)
- A Look at Rokinon's Xeen Lenses: Filming Glass with Glass
Rokinon's Xeen16mm T2.6 Lens with Nikon F Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, this minimizes the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and color match to a factory standard, allowing you to assemble a set over time with minimal color shift. This 16mm lens provides what is considered a very wide angle of view on full-frame cameras, and a correspondingly tighter angle of view on smaller-format cameras.
The lens features dual sided focus scales marked in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision when adjusting focus. The lens mount can be shimmed, and additional mounts (available separately) may be used with the lens. Note: Interchangeable mounts may be attached by a qualified technician only - This is a 16mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides you with a very wide angle of view.
- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.
- Dual right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.
- Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- The common 114mm front diameter allows for quick lens changes since you don't have to swap out any donuts or adapters to use the same matte box.
- The non-rotating front allows you to use optional clip-on matte boxes.
- Click-less aperture ring for smooth iris pulls.
- A minimum focusing distance of 12" allows you to get up close to your subject.
UPC: 084438765519 - Rokinon Xeen 24mm T1.5 Lens for Nikon F Mount
- A Look at Rokinon's Xeen Lenses: Filming Glass with Glass
Rokinon's Xeen 24mm T1.5 Lens for Nikon F Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, this minimizes the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 24mm lens provides what is considered a wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.
The lens features dual sided focus scales marked in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision when adjusting focus. - This is a 24mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides you with a wide angle of view.
- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.
- Dual right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.
- Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
- The non-rotating front allows you to use optional clip-on matte boxes.
- "Clickless" aperture ring for smooth iris pulls.
- A minimum focusing distance of 10" allows you to get up close to your subject.
UPC: 084438764666 - Rokinon Xeen 35mm T1.5 Lens for Nikon F Mount
- A Look at Rokinon's Xeen Lenses: Filming Glass with Glass
Rokinon's Xeen 35mm T1.5 Lens for Nikon F Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, minimizing the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and color match to a factory standard, allowing you to assemble a set over time with minimal color shift. This 35mm lens provides what is considered a somewhat wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.
The lens features dual-sided focus scales marked in feet, with dual-sided iris scales. The 11-bladed iris provides a rounded aperture for natural looking highlights and bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity. This gives you a high degree of precision when adjusting focus. - This 35mm lens has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides you with what is considered a slightly wide angle of view.
- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.
- Dual right and left side focus and t-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.
- Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
- The non-rotating front allows you to use optional clip-on matte boxes.
- Clickless aperture ring for smooth iris pulls.
- A minimum focusing distance of 13" allows you to get up close to your subject.
UPC: 084438765144 - Rokinon Xeen 50mm T1.5 Lens for Nikon F Mount
- A Look at Rokinon's Xeen Lenses: Filming Glass with Glass
Rokinon's Xeen 50mm T1.5 Lens for Nikon F Mount is built specifically for use as a cinema lens, and is not a modified still lens. It features an internal focus design so that the lens does not change size while focusing, minimizing breathing. Each lens in the Rokinon Xeen cinema lens set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 50mm lens provides what is considered a normal angle of view on full-frame cameras, and a tighter angle of view on smaller formats. The lens features dual sided focus scales in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh.
The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision and consistent focus. - This is a 50mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides what is considered a normal angle of view, being neither telephoto or wide-angle.
- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.
- Dual calibrated right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount.
- Each lens in the Xeen series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
- "Clickless" aperture ring for smooth iris pulls.
- A minimum focusing distance of 18" allows you to get up close to your subject.
UPC: 084438764710 - Rokinon Xeen 85mm T1.5 Lens for Nikon F Mount
- A Look at Rokinon's Xeen Lenses: Filming Glass with Glass
Rokinon's Xeen 85mm T1.5 Lens for Nikon F Mount is built specifically for use as a cinema lens, and is not a modified still photo lens. It features an internal focus design so that the lens does not change size while focusing, minimizing breathing. Each lens in the Rokinon Xeen cinema lens set is multi-coated for good contrast, glare prevention, and color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 85mm focal length is often chosen for portraits and close-ups. The lens features dual-sided focus scales in feet, with dual-sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh.
The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision and consistent focus. - This is an 85mm lens that has an image circle that covers a full-frame sensor. It has the effect of bringing the background closer, and is often used for portraits and close-ups.
- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.
- Dual calibrated right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount.
- Each lens in the Xeen series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
- "Clickless" aperture ring for smooth iris pulls.
- A minimum focusing distance of 3' 9" allows you to get up close to your subject.
UPC: 084438764765 - Rokinon Xeen 135mm T2.2 Lens with Nikon F Mount
- A Look at Rokinon's Xeen Lenses: Filming Glass with Glass
Rokinon's Xeen 135mm T2.2 Lens with Nikon F Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, minimizing breathing. Each lens in the Rokinon Xeen cinema lens set is multi-coated for good contrast, glare prevention, and color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 135mm focal length is often chosen for portraits and close-ups. The lens features dual-sided focus scales in feet, with dual-sided iris scales. The 11-bladed iris provides a round aperture for natural looking highlights and Bokeh.
The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision and consistent focus. - This is a 135mm lens that has an image circle that covers a full-frame sensor. It has the effect of bringing the background closer, and it is often used for close-ups and long shots, where you want a compressed feel and out of focus background.
- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.
- Dual calibrated right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens.
- Each lens in the Xeen series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned. The lenses in the Xeen series also share focus and iris rotation, with focus having 200° of rotation and iris having 40° of rotation.
- The common 114mm front diameter between lenses in the series allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
- Clickless aperture ring for smooth iris pulls.
- A minimum focusing distance of 2.6' allows you to get up close to your subject.
UPC: 084438765267 In the Box - Xeen 14mm T3.1 Lens for Nikon F Mount rfsvtfffbqfebtbweaewya
- Front Lens Cap
- Rear Lens Cap
- Limited 3-Year Warranty
- Xeen 16mm T2.6 Lens (Nikon F)
- Xeen 24mm T1.5 Lens for Nikon F Mount
- Xeen 35mm T1.5 Lens for Nikon F Mount
- Xeen 50mm T1.5 Lens for Nikon F Mount
- Xeen 85mm T1.5 Lens for Nikon F Mount
- Xeen 135mm T2.2 Lens with Nikon F Mount
Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon Xeen 14, 16, 24, 35, 50, 85, 135mm Cine 7 Lens Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rokinon Xeen 14mm T3.1 Lens for Nikon F Mount
| Focal Length | 14mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T3.1 | | Diagonal Angle of View | Super35: 98.2°
Full Frame: 115.7° | | Minimum Focus Distance from Image Plane | 11.0" / 27.9 cm | | Iris Blades | 9 | | Focus Rotation | 200° | | Iris Rotation | 300° | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 3.4" / 85.8 mm | | Weight | 39.7 oz / 1.1 kg | | | | Box Dimensions (LxWxH) | 10.3 x 7.8 x 7.7" | - Rokinon Xeen 16mm T2.6 Lens (Nikon F)
| Focal Length | 16mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T2.6 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 66.86°
Full Frame: 106.91°
Super35: 87.43° | | Minimum Focus Distance from Image Plane | 11.8" / 30 cm | | Iris Blades | 11 | | Focus Rotation | 200° | | Iris Rotation | 32.5° | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 3.65" / 92.8 mm | | Weight | 2.5 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 10.3 x 7.7 x 7.7" | - Rokinon Xeen 24mm T1.5 Lens for Nikon F Mount
| Focal Length | 24mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 61.2°
Full Frame: 84.1° | | Minimum Focus Distance from Image Plane | 10" / 25 cm | | Optical Design | 13 Elements in 12 Groups | | Iris Blades | 11 | | Focus Rotation | 200° | | Iris Rotation | 40° | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 4.7" / 119.2 mm | | Weight | 40.0 oz / 1.1 kg | | | | Box Dimensions (LxWxH) | 10.472 x 7.716 x 7.716" | - Rokinon Xeen 35mm T1.5 Lens for Nikon F Mount
| Focal Length | 35mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Diagonal Angle of View | Super35: 46.9°
Full Frame: 63.1° | | Minimum Focus Distance from Image Plane | 13.0" / 33.0 cm | | Iris Blades | 11 | | Focus Rotation | 200° | | Iris Rotation | 300° | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 4.7" / 119.2 mm | | Weight | 46.6 oz / 1.3 kg | | | | Box Dimensions (LxWxH) | 10.4 x 7.8 x 7.6" | - Rokinon Xeen 50mm T1.5 Lens for Nikon F Mount
| Focal Length | 50mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 31.2°
Full Frame: 46.2° | | Minimum Focus Distance from Image Plane | 1.5' / 0.45 m | | Optical Design | 9 Elements in 6 Groups | | Iris Blades | 11 | | Tripod Mounting Thread | 1/4"-20 | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 4.7" / 119.2 mm | | Weight | 39.3 oz / 1.1 kg | | | | Box Dimensions (LxWxH) | 10.551 x 7.795 x 7.716" | - Rokinon Xeen 85mm T1.5 Lens for Nikon F Mount
| Focal Length | 85mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 19°
Full Frame: 28.4° | | Minimum Focus Distance from Image Plane | 3.6' / 1.1 m | | Optical Design | 9 Elements in 7 Groups | | Iris Blades | 11 | | Tripod Mounting Thread | 1/4"-20 | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 4.7" / 119.2 mm | | Weight | 42.3 oz / 1.2 kg | | | | Box Dimensions (LxWxH) | 10.315 x 7.716 x 7.638" | - Rokinon Xeen 135mm T2.2 Lens with Nikon F Mount
| Focal Length | 135mm | | Lens Mount | Nikon F | | Format | Full Frame | | Maximum T-Stop | T2.2 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 12.4°
Full Frame: 18.78° | | Minimum Focus Distance from Image Plane | 2.6' / 79.2 cm | | Iris Blades | 11 | | Front Diameter | 114 mm | | Filter Thread | None | | Tripod Mounting Thread | 1/4"-20 | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 4.8" / 121.7 mm | | | | Box Dimensions (LxWxH) | 10.2 x 7.8 x 7.6" |
