User Manual for Rokinon Xeen 14mm T3.1 Lens for Canon EF Mount Click to enlarge the picture
Contents of the user manual for the Rokinon Xeen 14mm T3.1 Lens for
- Product category: Digital Cine Lenses Rokinon
- Brand: Rokinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rokinon Digital Cine Lenses
 |
User manual for the Rokinon Xeen 14mm T3.1 Lens for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rokinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rokinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rokinon product will considerably shorten its lifespan!
|
Product description XEEN Lenses: What They are for and Why I Like Them Read More - A Look at Rokinon's Xeen Lenses: Filming Glass with Glass

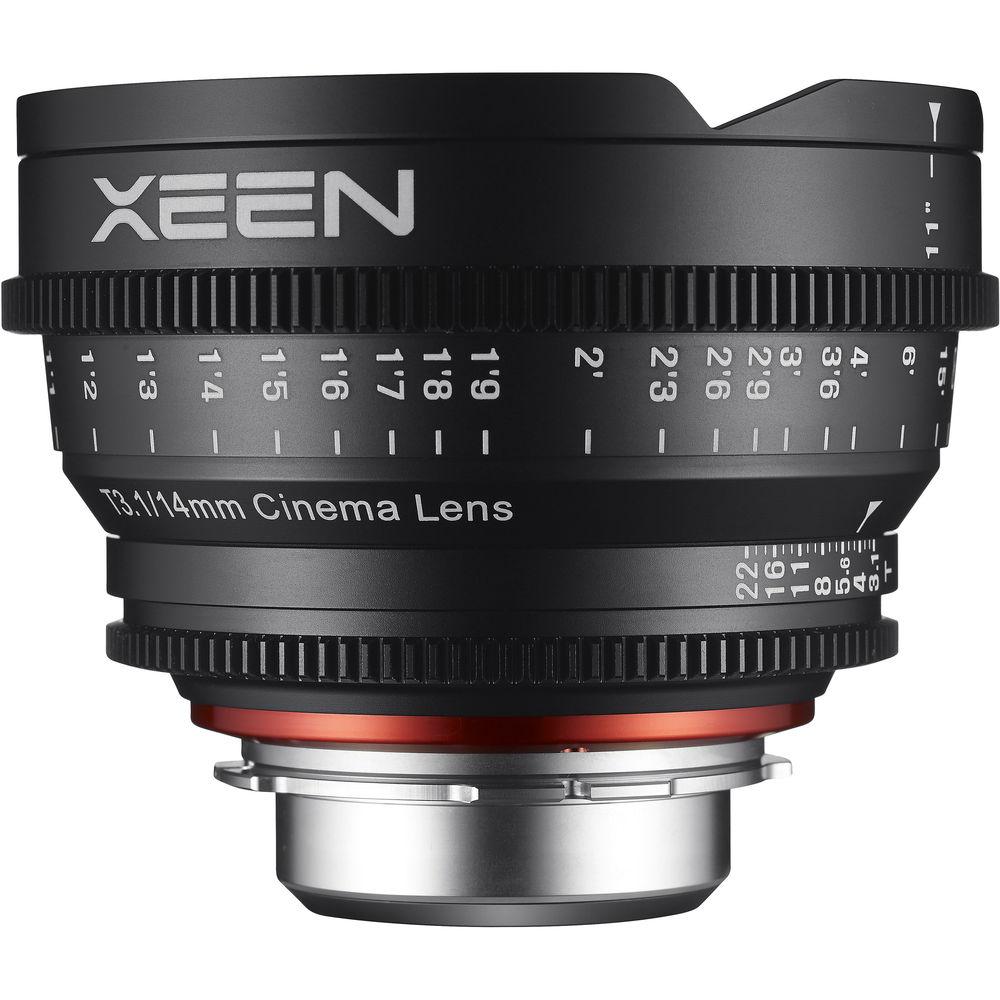

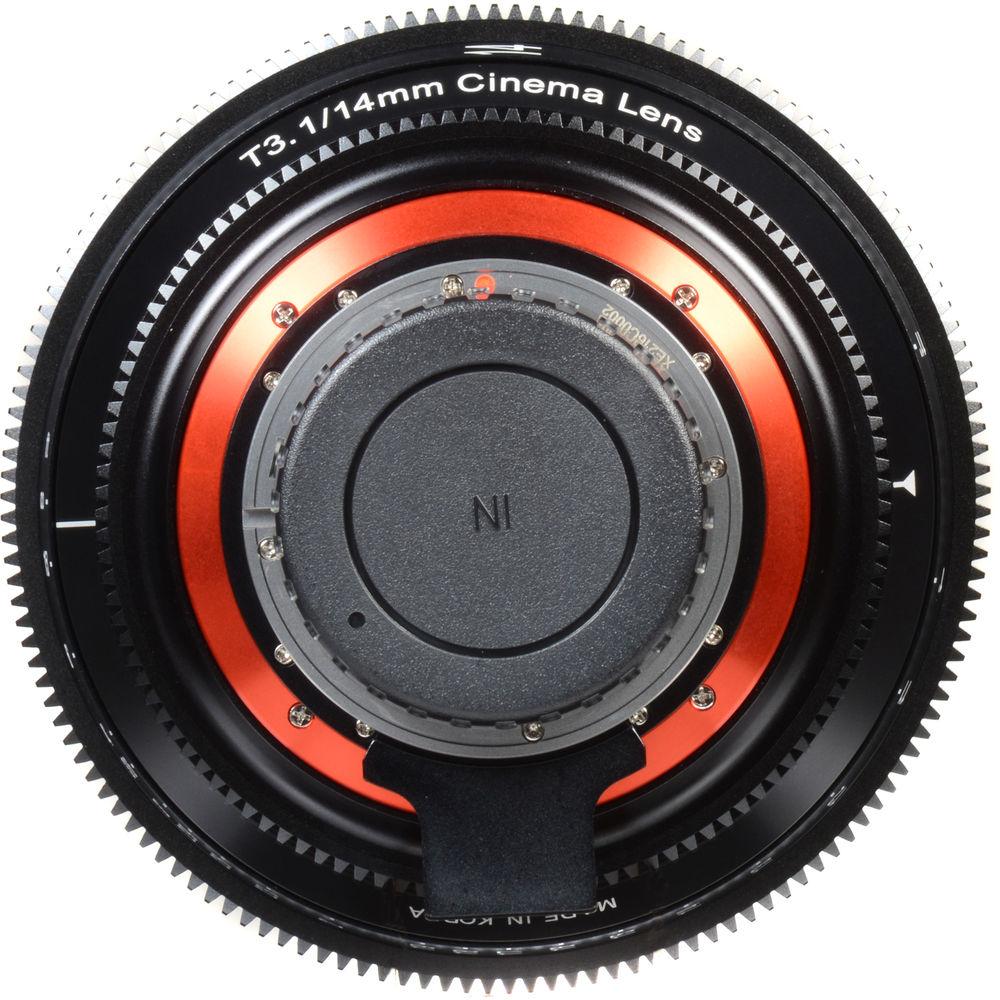

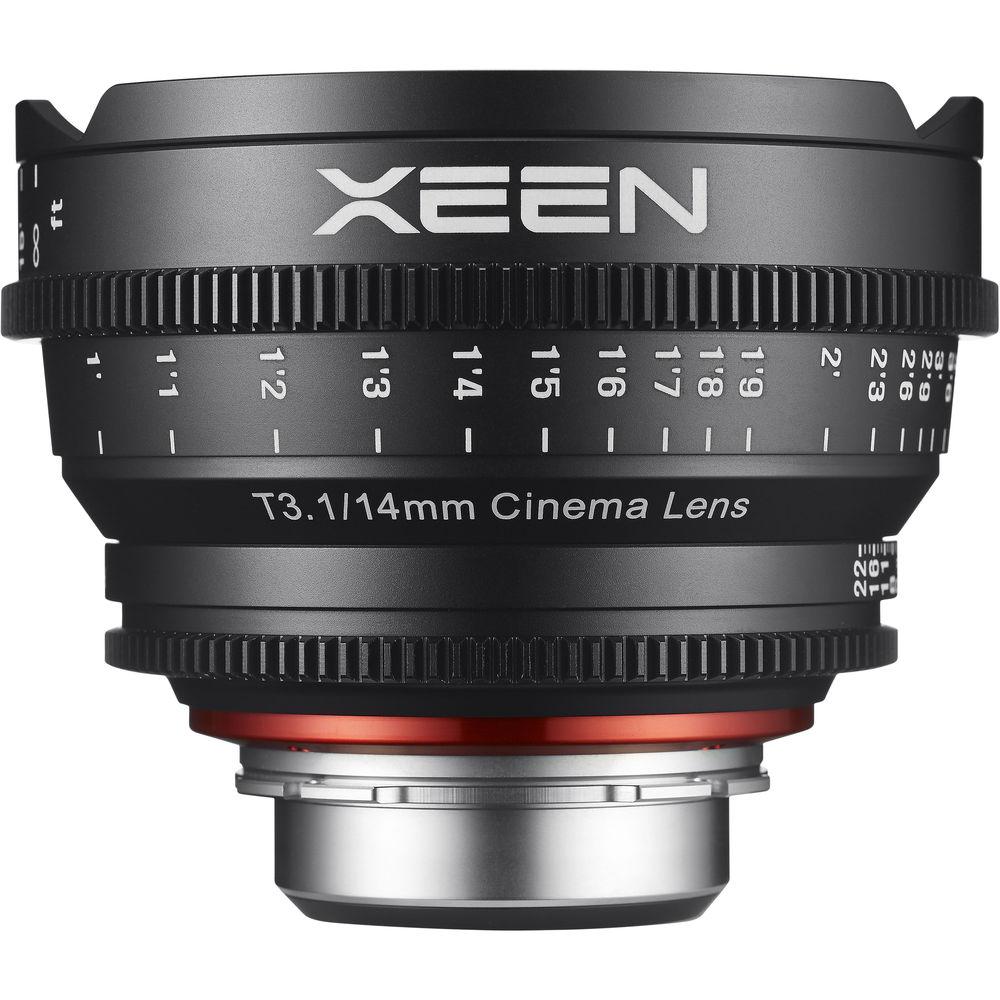

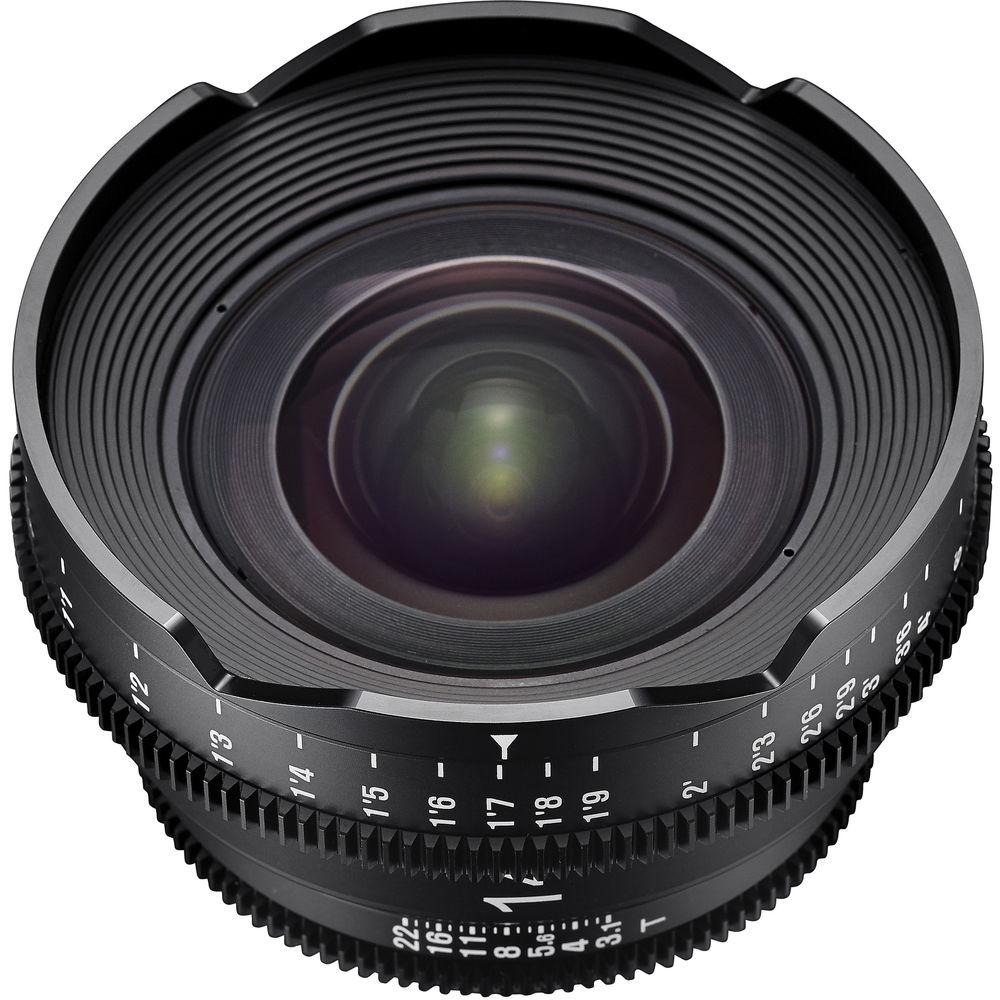

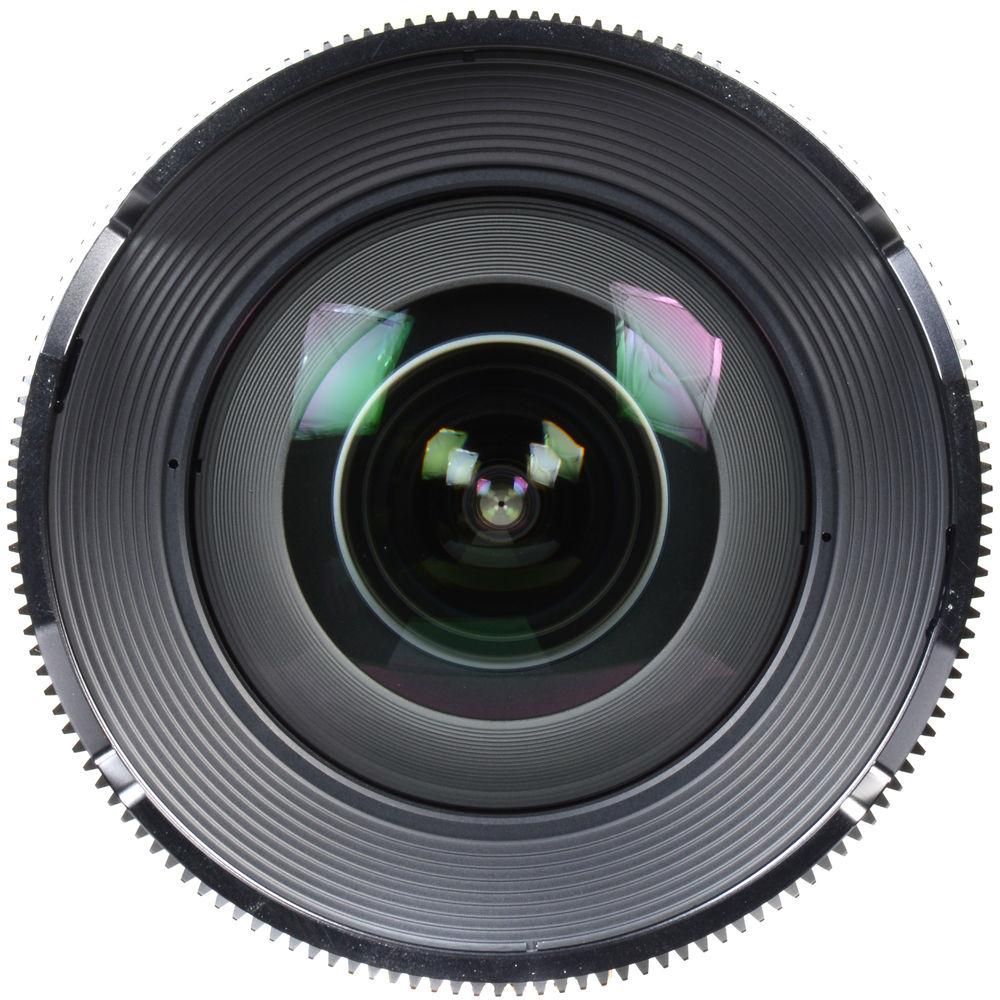

Rokinon's Xeen 14mm T3.1 Lens for Canon EF Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, minimizing the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and color-match to a factory standard, allowing you to assemble a set over time with minimal color shift. This 14mm lens provides what is considered a very wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

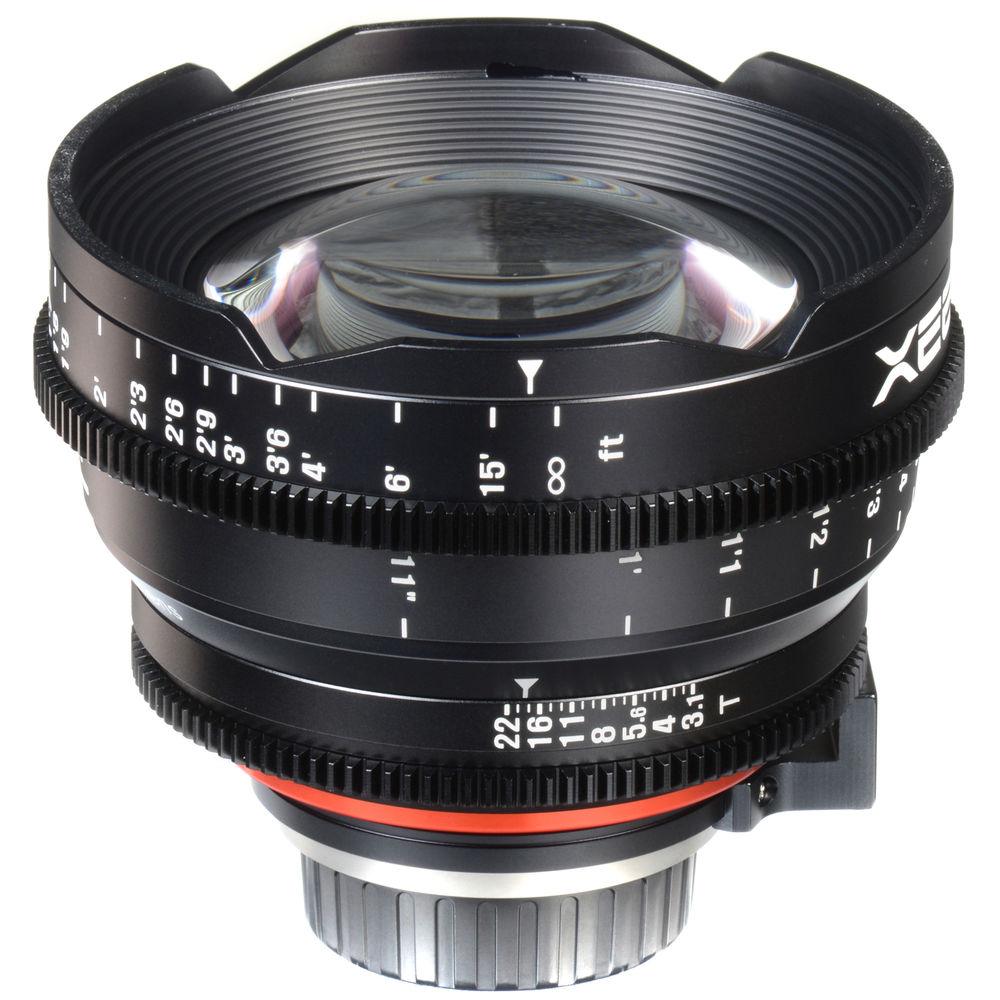

The lens features dual sided focus scales marked in feet, with dual-sided iris scales. The 9-bladed iris provides a rounded aperture for natural looking highlights and bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity. This gives you a high degree of precision when adjusting focus. - This 14mm lens has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides you with a very wide angle of view.

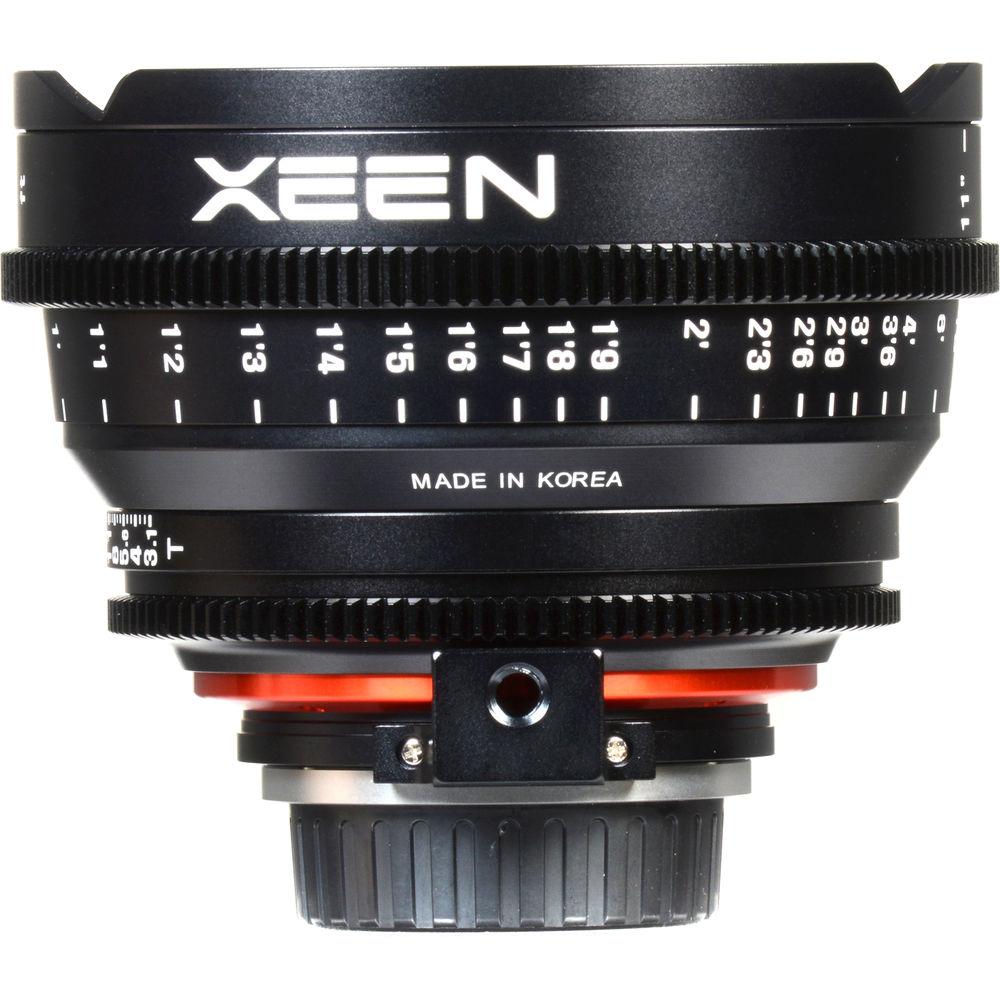

- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.

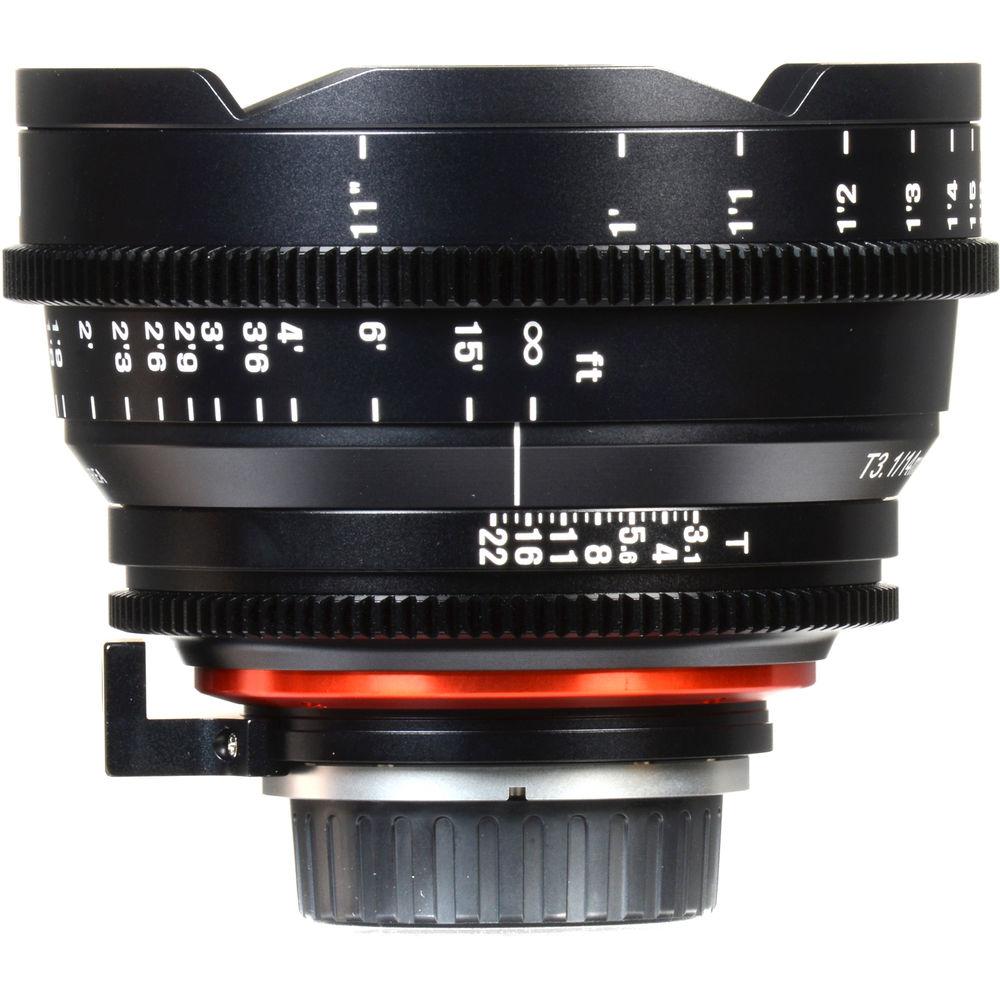

- Dual right and left side focus and t-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.
- Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
- The non-rotating front allows you to use optional clip-on matte boxes.
- Clickless aperture ring for smooth iris pulls.
- A minimum focusing distance of 11" allows you to get up close to your subject.
UPC: 084438765076 In the Box Rokinon Xeen 14mm T3.1 Lens for Canon EF Mount Front Lens Cap Rear Lens Cap Limited 3-Year Warranty Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 zdwtevybtrvztvfdfyfzdyvysarcwby Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon Xeen 14mm T3.1 Lens for Canon EF Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRokinon Xeen 14mm T3.1 Specs | Focal Length | 14mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T3.1 | | Diagonal Angle of View | Super35: 98.2°
Full Frame: 115.7° | | Minimum Focus Distance from Image Plane | 11.0" / 27.9 cm | | Iris Blades | 9 | | Focus Rotation | 200° | | Iris Rotation | 300° | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 3.5" / 88 mm | | Weight | 41.3 oz / 1.2 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 10.2 x 7.9 x 7.6" |
