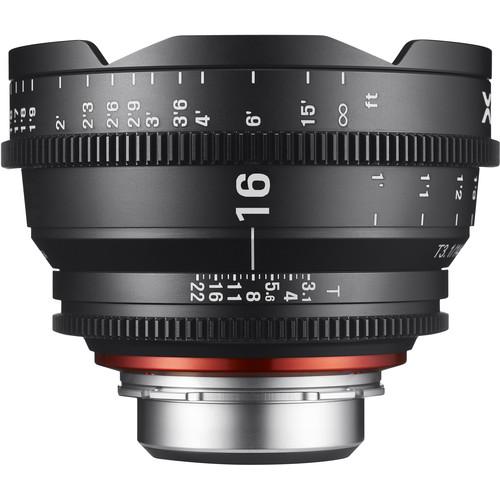

User Manual for Rokinon Xeen 16mm T2.6 Lens Click to enlarge the picture
Contents of the user manual for the Rokinon Xeen 16mm T2.6 Lens
- Product category: Digital Cine Lenses Rokinon
- Brand: Rokinon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rokinon Digital Cine Lenses
 |
User manual for the Rokinon Xeen 16mm T2.6 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rokinon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rokinon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rokinon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More - A Look at Rokinon's Xeen Lenses: Filming Glass with Glass

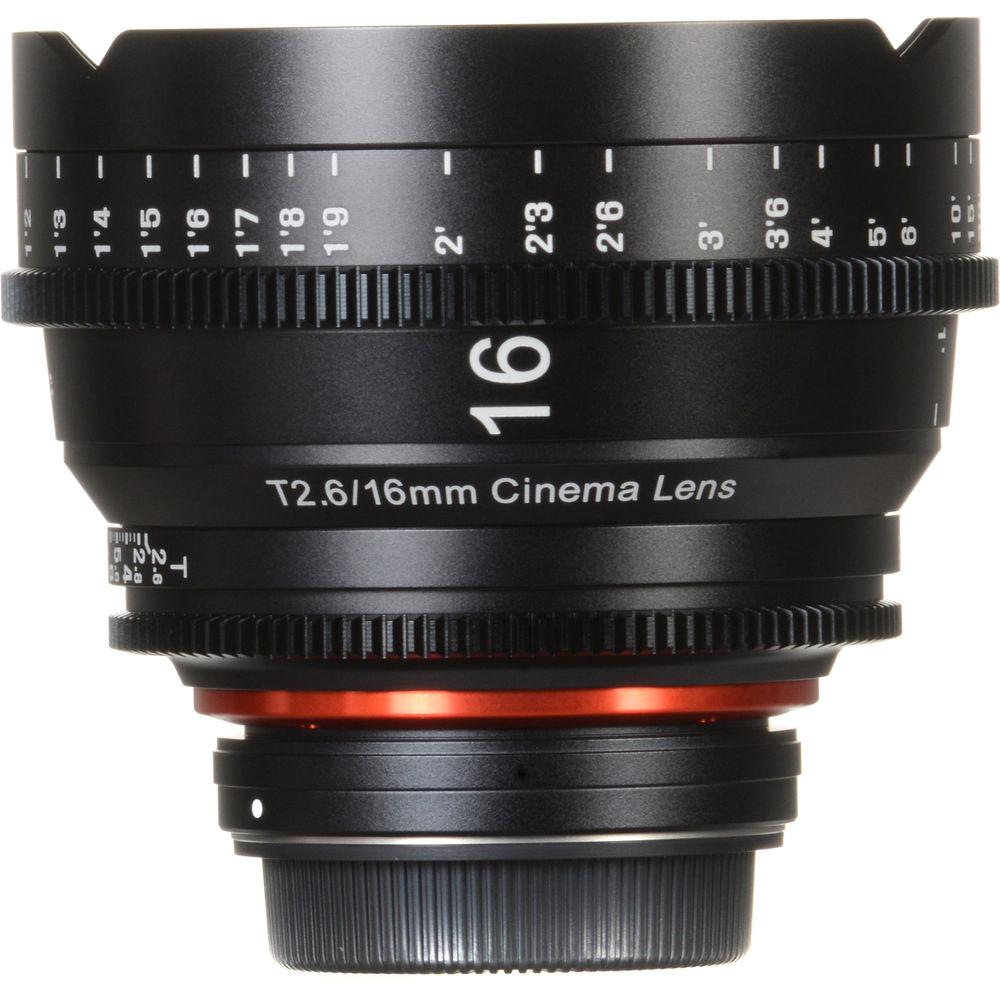

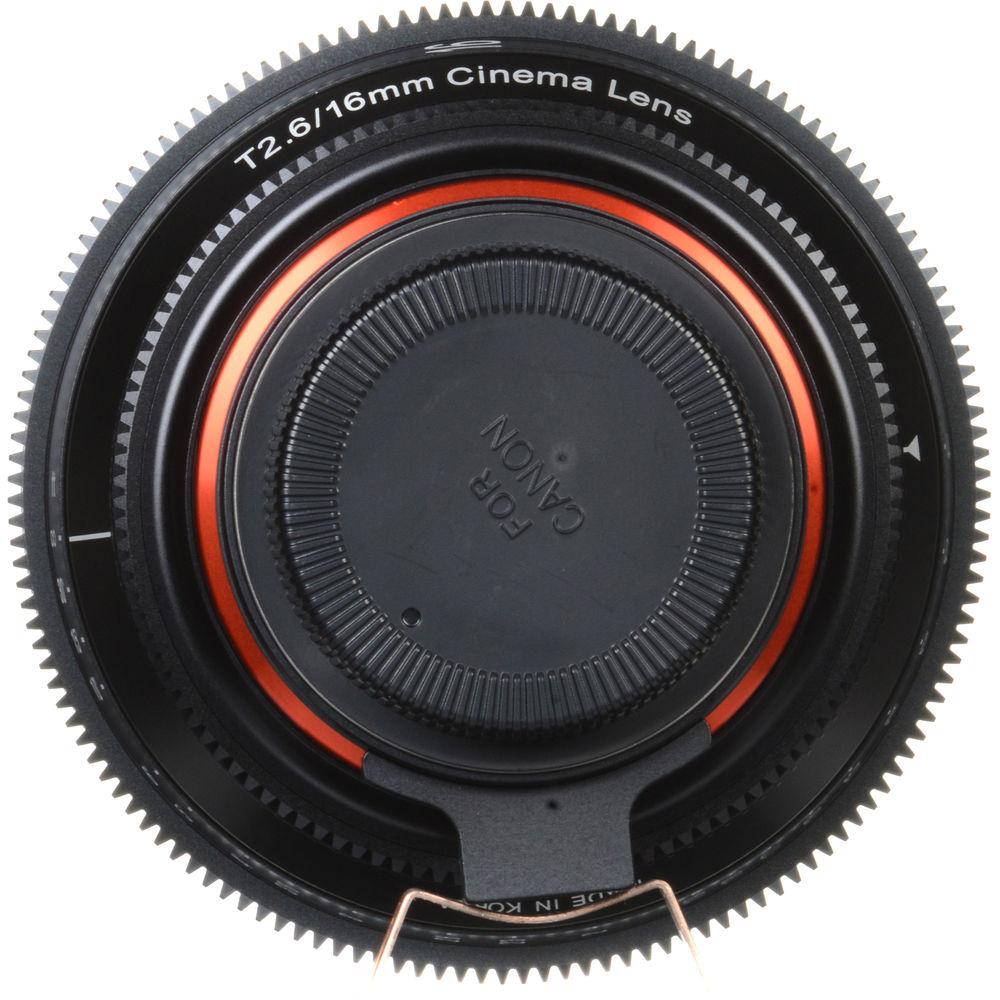

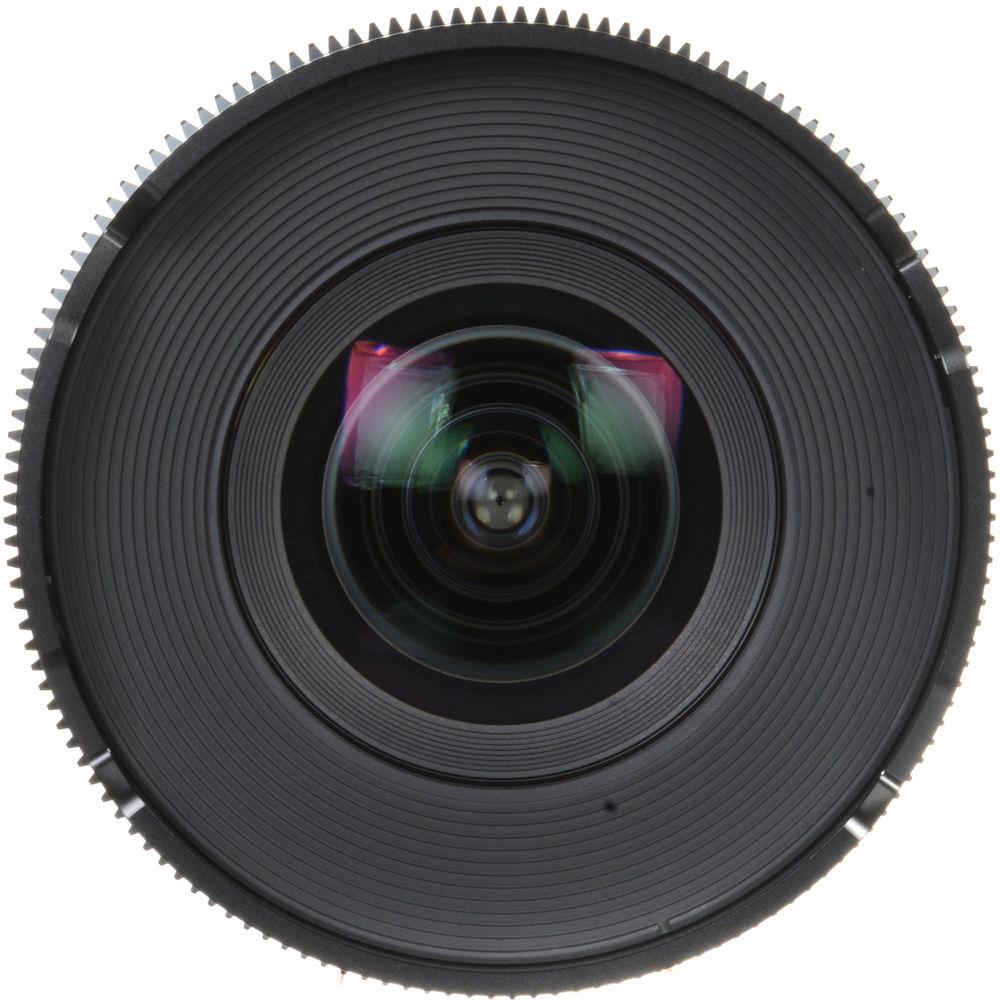

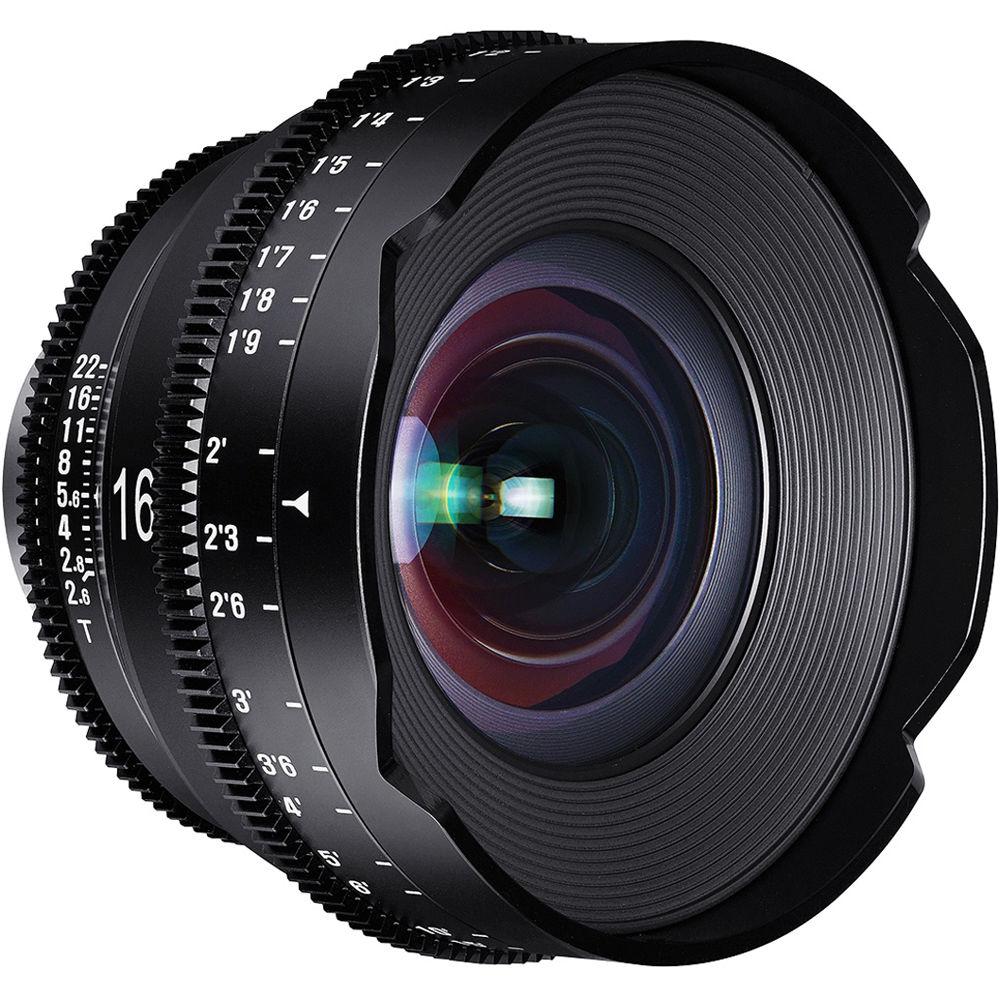

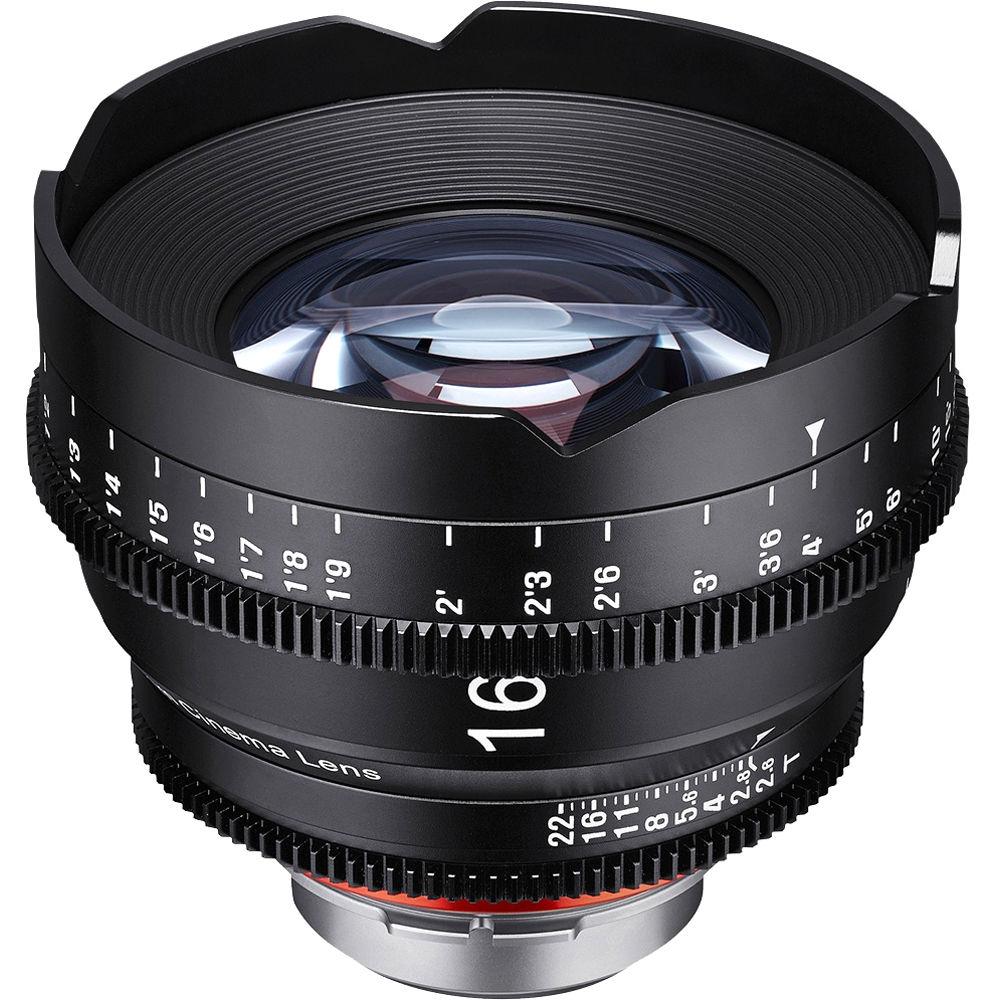

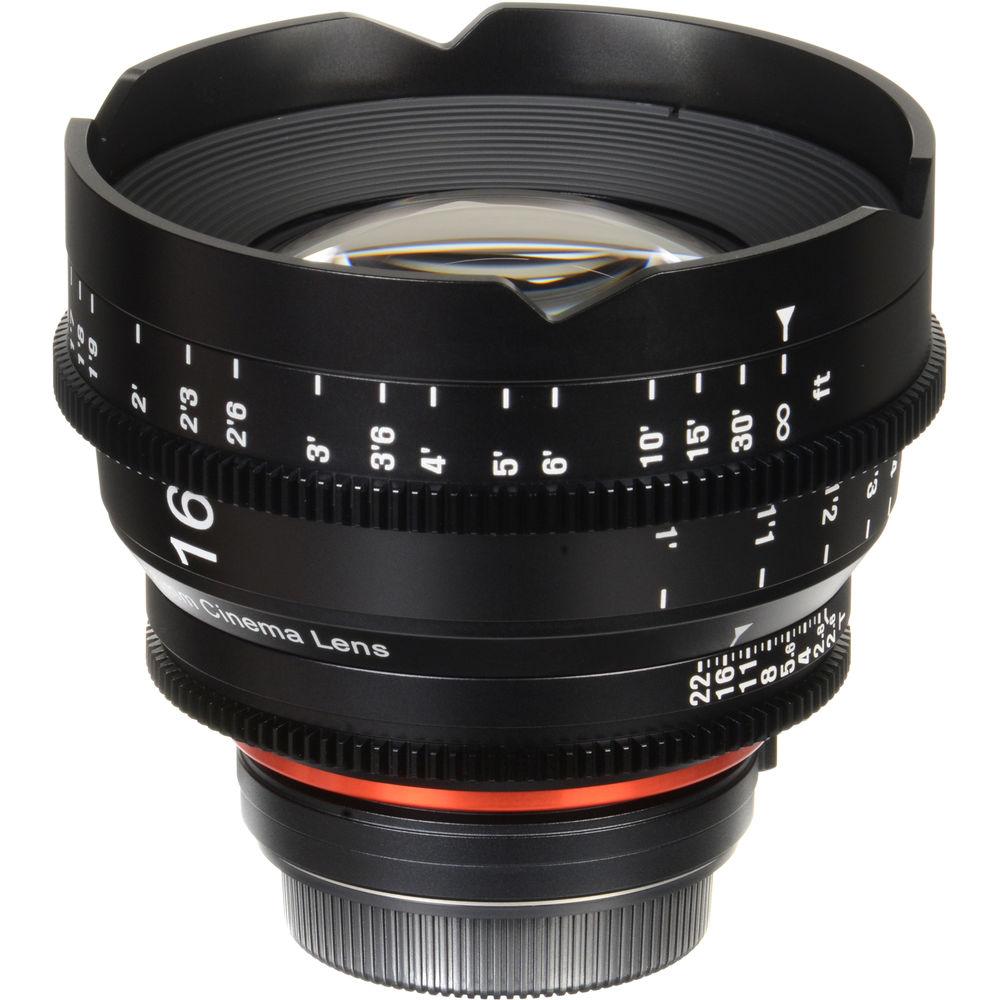

Rokinon's Xeen16mm T2.6 Lens with Canon EF Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, this minimizes the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and color match to a factory standard, allowing you to assemble a set over time with minimal color shift. This 16mm lens provides what is considered a very wide angle of view on full-frame cameras, and a correspondingly tighter angle of view on smaller-format cameras.
The lens features dual sided focus scales marked in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision when adjusting focus. The lens mount can be shimmed, and additional mounts (available separately) may be used with the lens. Note: Interchangeable mounts may be attached by a qualified technician only - This is a 16mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a full-frame sensor it provides you with a very wide angle of view.

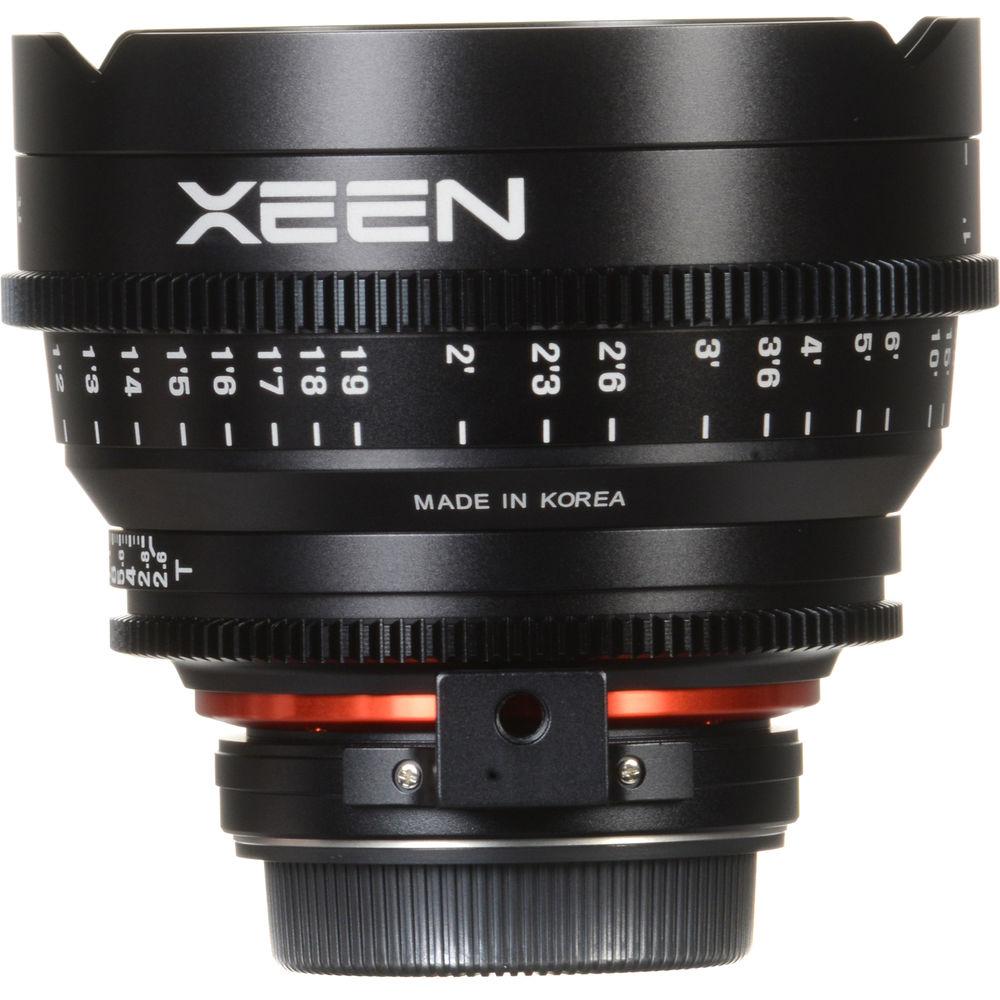

- The lens features metal construction to withstand the rigors of daily production, and comes with a support foot that can help take strain off your camera's lens port.

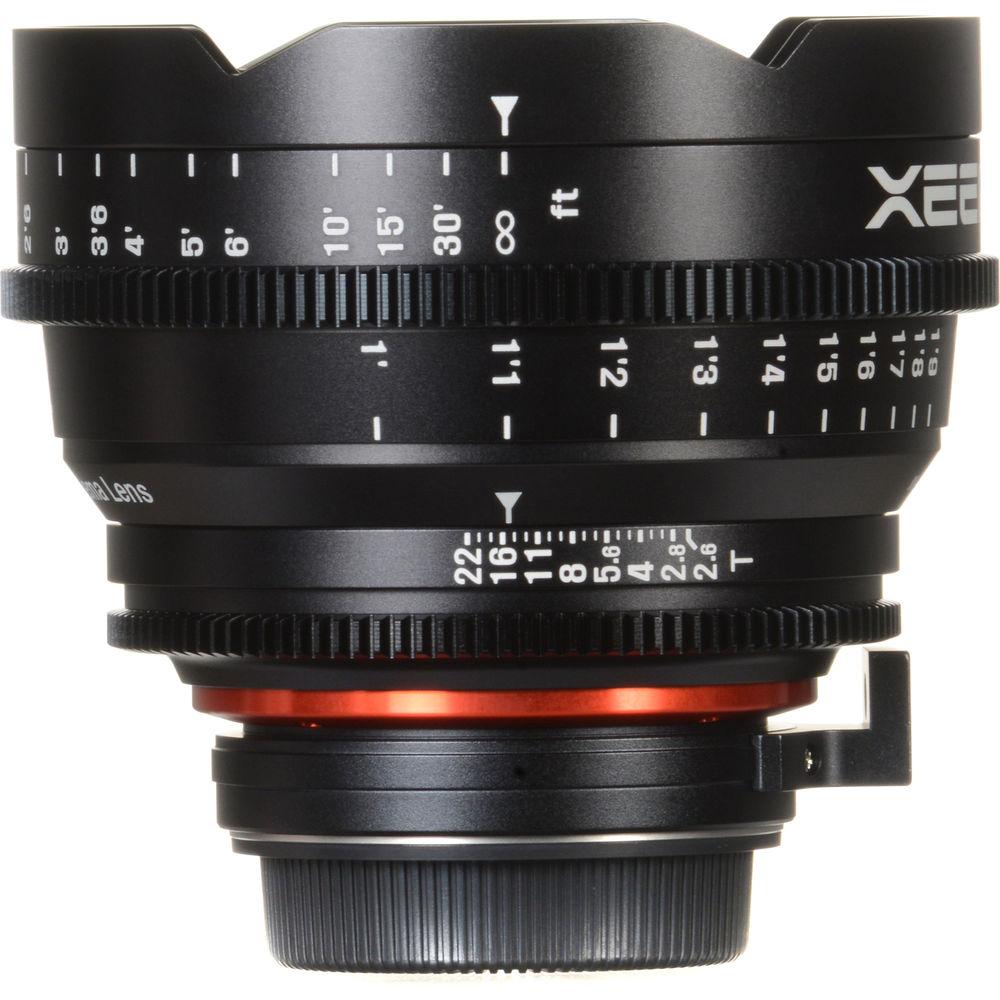

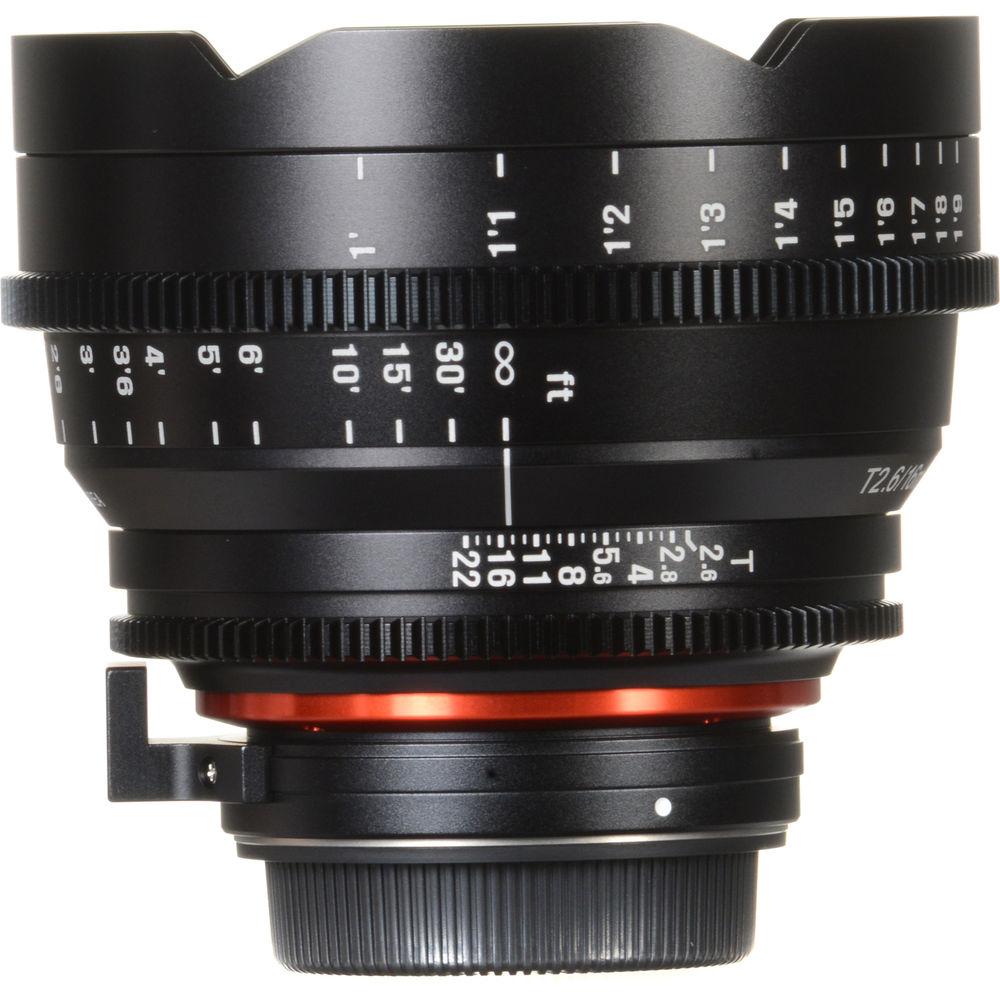

- Dual right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.
- Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- The common 114mm front diameter allows for quick lens changes since you don't have to swap out any donuts or adapters to use the same matte box.
- The non-rotating front allows you to use optional clip-on matte boxes.
- Click-less aperture ring for smooth iris pulls.
- A minimum focusing distance of 12" allows you to get up close to your subject.
UPC: 084438765496 In the Box Rokinon Xeen 16mm T2.6 Lens (Canon EF) Front Lens Cap Rear Lens Cap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rokinon Xeen 16mm T2.6 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRokinon Xeen 16mm T2.6 Specs | Focal Length | 16mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T2.6 | | Minimum T-Stop | T22 | | Diagonal Angle of View | MFT: 66.86°
Full Frame: 106.91°
Super35: 87.43° | | Minimum Focus Distance from Image Plane | 11.8" / 30 cm | | Iris Blades | 11 | | Focus Rotation | 200° | | Iris Rotation | 32.5° | | Dimensions (W x H) | 4.63 x 4.63" / 117.6 x 117.6 mm | | Length | 3.75" / 95.3 mm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 10.4 x 7.7 x 7.6" |
