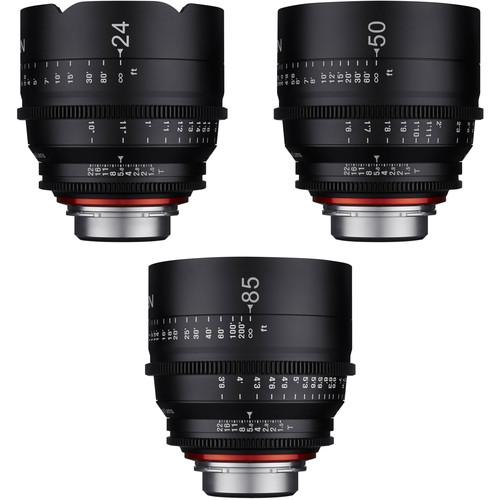

Rokinon Xeen 24, 50, 85mm T1.5

User Manual for Rokinon Xeen 24, 50, 85mm T1.5 Lenses for PL Mount

• Product category: Digital Cine Lenses Rokinon
• Brand: Rokinon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Rokinon Digital Cine Lenses

Product description

• Rokinon Xeen 24mm T1.5 Lens for PL Mount Rokinon's Xeen 24mm T1.5 Lens for PL Mount is built specifically for use as a cinema lens. It features an internal focus design so that the lens does not change size while focusing, this minimizes the appearance of breathing when changing focus. Each lens in the set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 24mm lens provides what is considered a wide angle of view on full-frame cameras, and a tighter angle of view on smaller formats.

  The lens features dual sided focus scales marked in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh. The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision when adjusting focus.
  • This is a 24mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a Super 35mm sensor it provides you with a tighter shot than if it was mounted on a camera with a full-frame sensor.
  • The lens features metal construction to withstand the rigors of daily production.
  • Dual right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount, or facing upside numerals.
  • Each lens in the XEEN series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
  • The non-rotating front allows you to use optional clip-on matte boxes.
  • "Clickless" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 10" allows you to get up close to your subject.
  UPC: 084438764680
• Rokinon Xeen 50mm T1.5 Lens for PL Mount Rokinon's Xeen 50mm T1.5 Lens for PL Mount is built specifically for use as a cinema lens, and is not a modified still lens. It features an internal focus design so that the lens does not change size while focusing, minimizing breathing. Each lens in the Rokinon Xeen cinema lens set is multi-coated for good contrast, glare prevention, and are color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 50mm lens provides what is considered a normal angle of view on full-frame cameras, and a tighter angle of view on smaller formats. The lens features dual sided focus scales in feet, with dual sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh.

  The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision and consistent focus.
  • This is a 50mm lens that has an image circle that covers a full-frame sensor. When mounted on a camera with a Super 35mm sensor it provides a tighter shot than a normal lens rendering faces with less distortion and providing a slightly compressed background.
  • The lens features metal construction to withstand the rigors of daily production.
  • Dual calibrated right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount.
  • Each lens in the Xeen series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
  • "Clickless" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 18" allows you to get up close to your subject.
  UPC: 084438764734
• Rokinon Xeen 85mm T1.5 Lens for PL Mount Rokinon's Xeen 85mm T1.5 Lens for PL Mount is built specifically for use as a cinema lens, and is not a modified still photo lens. It features an internal focus design so that the lens does not change size while focusing, minimizing breathing. Each lens in the Rokinon Xeen cinema lens set is multi-coated for good contrast, glare prevention, and color matched to a factory standard, allowing you to assemble a set over time with minimal color shift. This 85mm focal length is often chosen for portraits and close-ups. The lens features dual-sided focus scales in feet, with dual-sided iris scales. The 11-bladed iris provides a rounded aperture for a natural looking highlights and Bokeh.

  The lens is a manual focus and iris lens, and does not have auto focus or auto iris capability. It incorporates cinema-style focus and iris gears that share the same position across the lenses in the Xeen set. The common 114mm front diameter allows for quick lens changes when using a matte box and focus accessories. The focus ring rotates 200° from close focus to infinity; this gives you a high degree of precision and consistent focus.
  • This is an 85mm lens that has an image circle that covers a full-frame sensor. It has the effect of bringing the background closer, and is often used for portraits and close-ups. When used on a camera with a Super 35mm sensor as opposed to a full-frame sensor the lens becomes more suited for tight close-ups.
  • The lens features metal construction to withstand the rigors of daily production.
  • Dual calibrated right and left side focus and T-stop scales allow your focus puller to work from either side of the lens, without having to flip the lens in the mount.
  • Each lens in the Xeen series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • The common 114mm front diameter allows for quick lens changes as you don't have to swap out anti-reflection donuts or adapters to use the same matte box.
  • "Clickless" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 3' 9" allows you to get up close to your subject.
  UPC: 084438764789

• Xeen 24mm T1.5 Lens for PL Mount uryffceu
• Front and Rear Lens Caps
• Limited 3-Year Warranty

• Xeen 50mm T1.5 Lens for PL Mount

• Xeen 85mm T1.5 Lens for PL Mount uryffceu

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rokinon Xeen 24mm T1.5 Lens for PL Mount

  Focal Length	24mm
  Lens Mount	ARRI PL
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 61.2° Full Frame: 84.1°
  Minimum Focus Distance from Image Plane	10" / 25 cm
  Optical Design	13 Elements in 12 Groups
  Iris Blades	11
  Focus Rotation	200°
  Iris Rotation	40°
  Dimensions (W x H)	4.63 x 4.63" / 117.6 x 117.6 mm
  Length	4.5" / 113.7 mm
  Weight	41.6 oz / 1.2 kg

  Box Dimensions (LxWxH)	9.0 x 6.95 x 6.95"

• Rokinon Xeen 50mm T1.5 Lens for PL Mount

  Focal Length	50mm
  Lens Mount	ARRI PL
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 31.2°
  Minimum Focus Distance from Image Plane	1.5' / 0.45 m
  Optical Design	9 Elements in 6 Groups
  Iris Blades	11
  Tripod Mounting Thread	1/4"-20
  Dimensions (W x H)	4.63 x 4.63" / 117.6 x 117.6 mm
  Length	4.5" / 113.7 mm
  Weight	40.9 oz / 1.2 kg

  Box Dimensions (LxWxH)	10.3 x 7.8 x 7.7"

• Rokinon Xeen 85mm T1.5 Lens for PL Mount

  Focal Length	85mm
  Lens Mount	ARRI PL
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 19° Full Frame: 28.4°
  Minimum Focus Distance from Image Plane	3.6' / 1.1 m
  Optical Design	9 Elements in 7 Groups
  Iris Blades	11
  Tripod Mounting Thread	1/4"-20
  Dimensions (W x H)	4.63 x 4.63" / 117.6 x 117.6 mm
  Length	4.5" / 113.7 mm
  Weight	43.9 oz / 1.2 kg

  Box Dimensions (LxWxH)	9.0 x 7.0 x 6.9"
