User Manual for Roland A-49 - MIDI Keyboard Controller Click to enlarge the picture
Contents of the user manual for the Roland A-49 - MIDI Keyboard Controller
- Product category: Keyboard Controllers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Keyboard Controllers
 |
User manual for the Roland A-49 - MIDI Keyboard Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

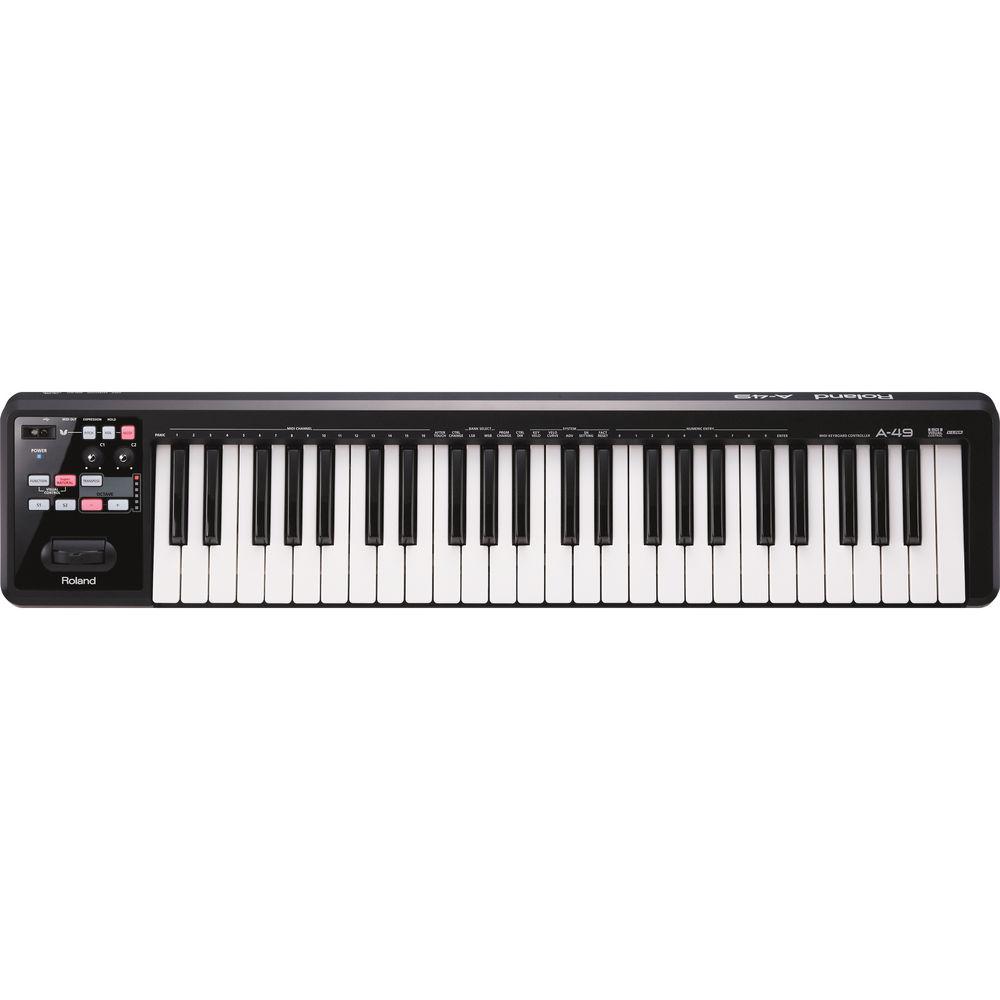

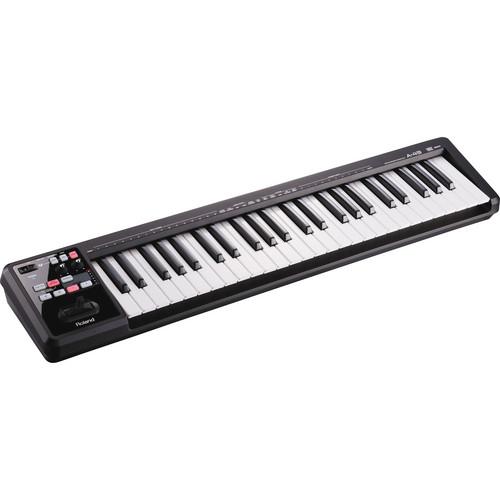

Product description The black A-49 from Roland is a slim-line USB/MIDI controller featuring 49 full-size keys. It is easy-to-use while retaining a professional-quality feel. The keys have a rounded shape for executing more comfortable glissandi, while exhibiting low mechanical noise and eliminating vertical shake. Strong yet lightweight, along with low demand USB bus powering makes the controller the perfect choice for mobile use.

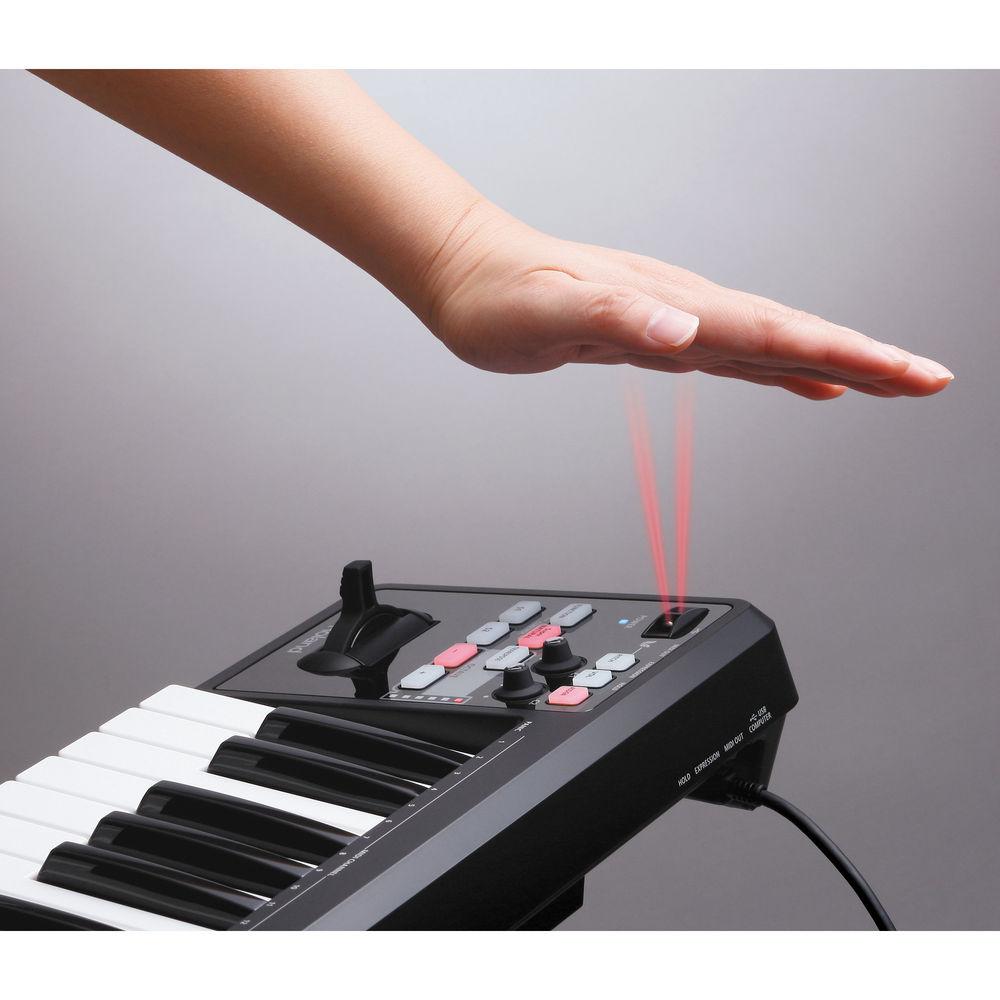

Aside from the obligatory modulation/pitch wheel and octave and transpose buttons, the controller features the company's D-BEAM that responds to the performer's hand gestures for creating unusual modulation possibilities. The keyboard can assign all its controllers automatically for full utilization of an external SuperNATURAL sound module such as the INTEGRA-7, or be used as a second keyboard for controlling synthesizers with onboard SuperNATURAL sounds, such as the JUPITER-80 and JUPITER-50.

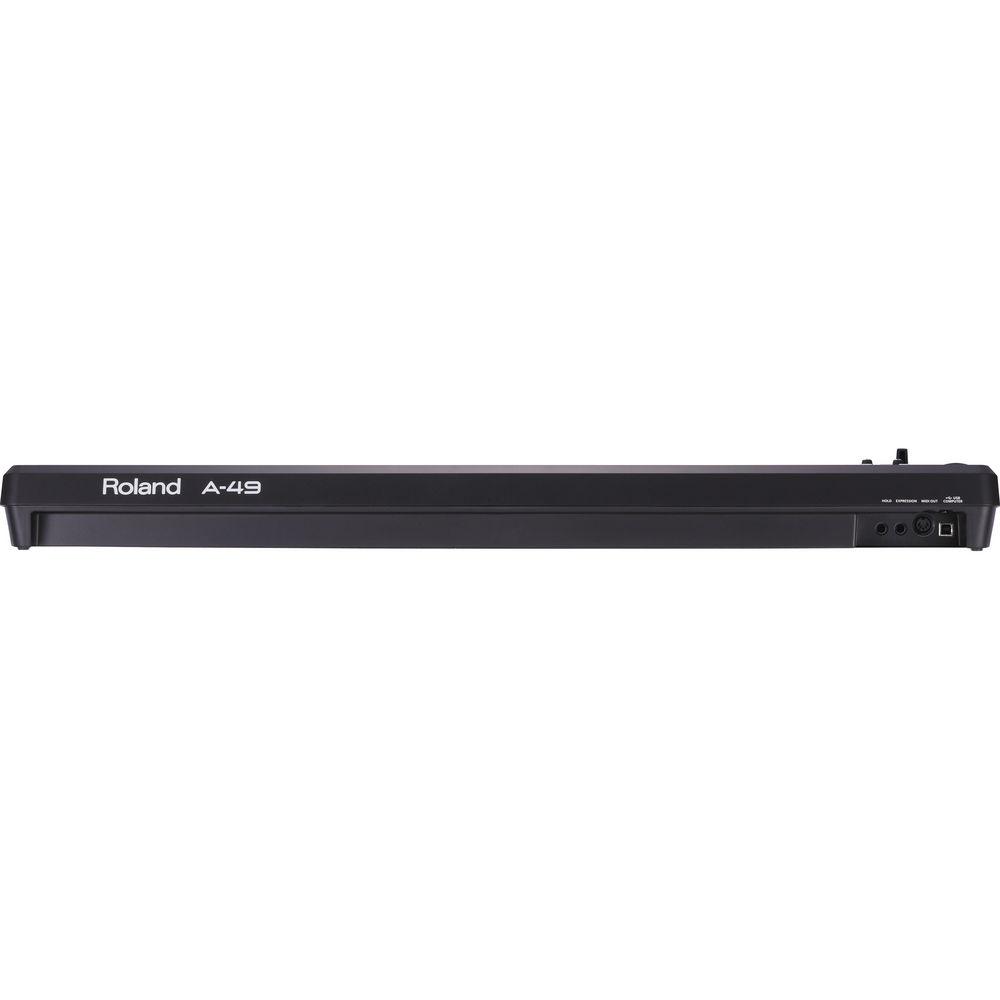

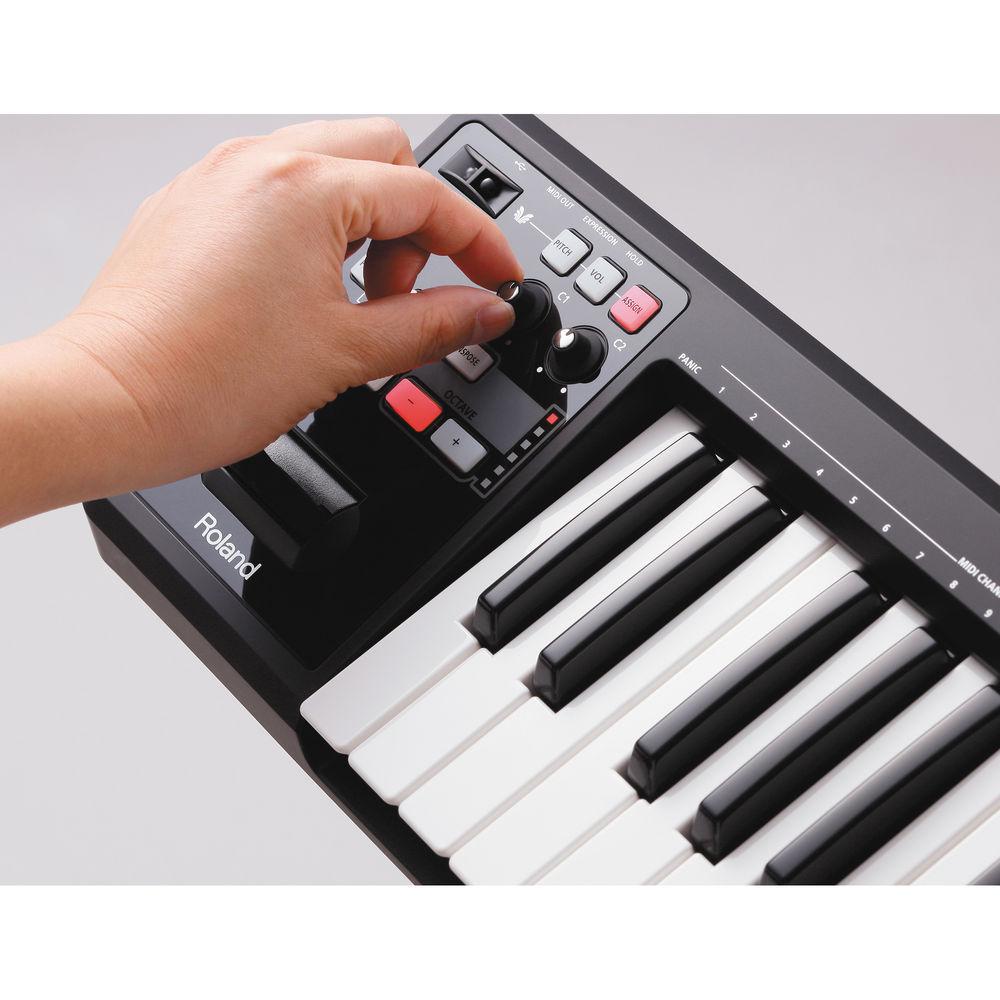

The recessed rear panel keeps the connectors tucked away without impeding the placement of a computer monitor. The two knobs, two switches, and the D-BEAM controller are all easily accessible and arranged to allow for fast and fluid workflow. Octave buttons offer immediate control of the key scale, and a transpose button adjusts the scale in semitone steps. LED indicators provide visual feedback of the octave/transpose settings.
Other settings can be accessed via the Function button, which allows the keys to perform additional tasks printed above the keyboard. Using an optional Apple iPad Camera Connection Kit allows the keyboard to provide pro-playability while retaining mobility when working with iPad apps. - 49 full-size keys with velocity sensitivity
- Two knobs, two switches, and D-BEAM controller
- USB bus powered, no AC adapter required
- Bundled with Cakewalk SONAR LE software
UPC: 761294502105 In the Box Roland A-49 - MIDI Keyboard Controller (Black) USB Cable A-49 CD-ROM SONAR LE DVD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland A-49 - MIDI Keyboard Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland A-49 Specs | Keyboard | 49 keys with velocity | | Interface | USB | | Controllers | 1 x Pitch Bend/Modulation Lever
2 x Buttons S1, S2, assignable
2 x Buttons Octave +/-
1 x Button Transpose
1 x Button Function
1 x Button SuperNATURAL
1 x D-BEAM Controller
2 x Knobs C1, C2, assignable
1 x Foot Pedal Hold (pedal optional)

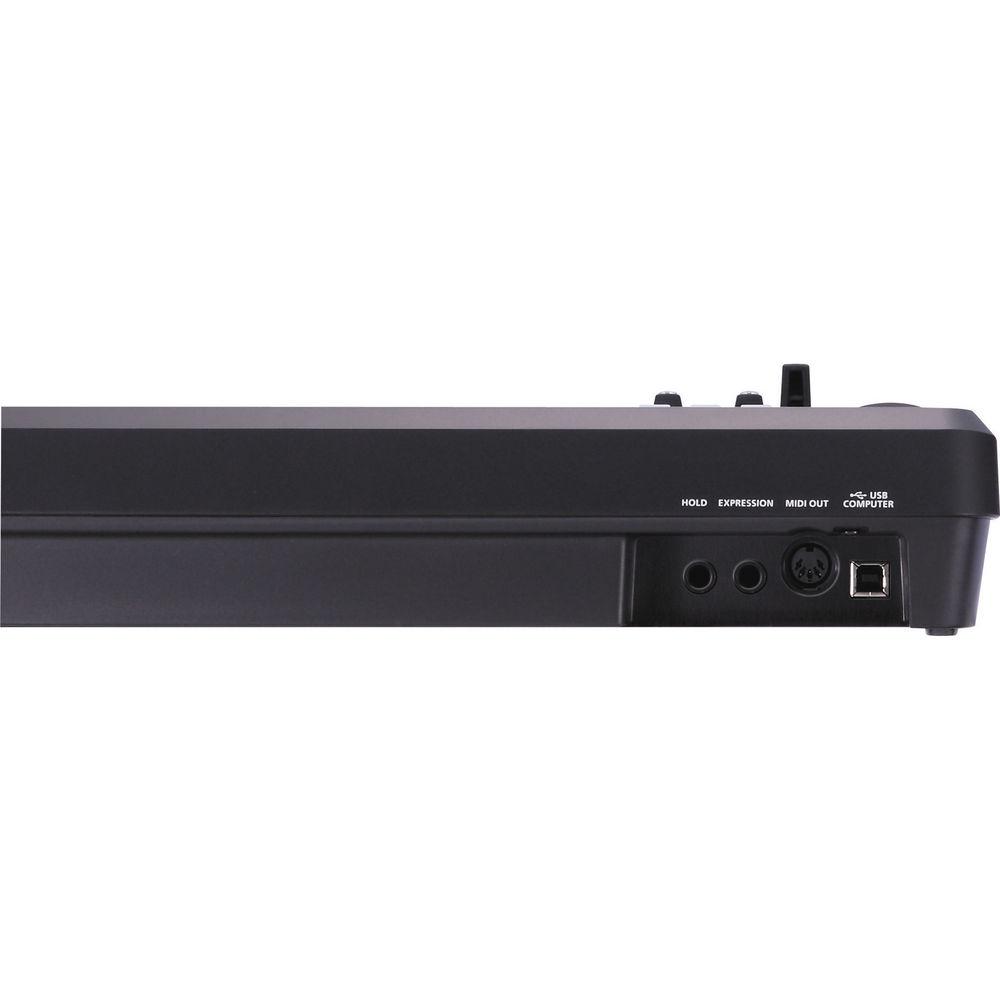

1 x Foot Pedal Expression (pedal optional) | | Connectors | 1 x 5-pin MIDI Out
1 x USB Type B Computer
1 x 1/4" TS Hold Pedal
1 x 1/4" TRS Expression Pedal | | Display | 1 x LED Power Indicator
6 x LED Octave Indicators | | Power | USB bus (98 mA current draw) | | Dimensions (WxDxH) | 32.9 x 7.2 x 3.3" (836 x 182 x 84 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 34.8 x 9.0 x 5.1" |
