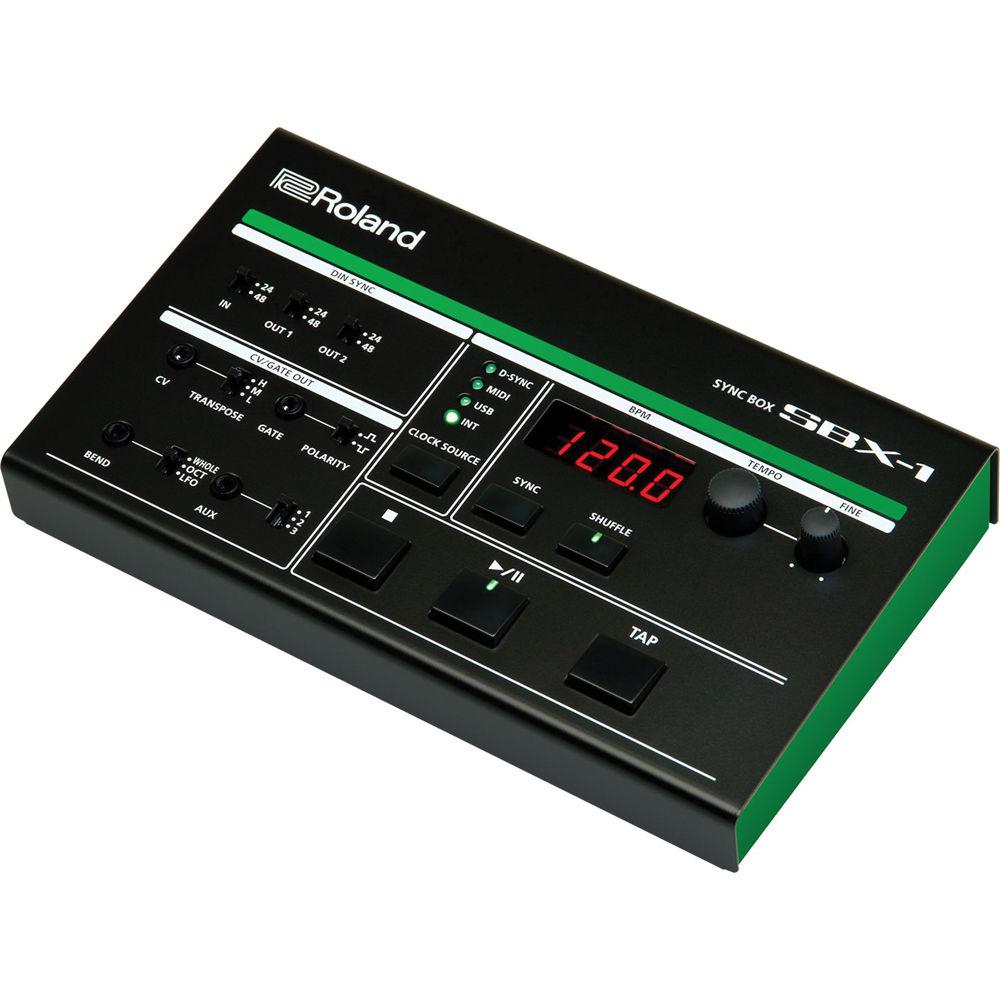

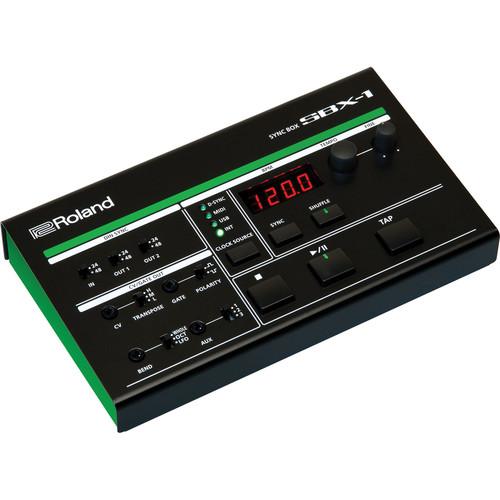

User Manual for Roland AIRA SBX-1 - Sync Box Click to enlarge the picture
Contents of the user manual for the Roland AIRA SBX-1 - Sync Box
- Product category: Expansion Options Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Expansion Options
 |
User manual for the Roland AIRA SBX-1 - Sync Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description In the early days of synthesis various protocols were introduced by manufacturers for syncing their instruments and effects together. But these were often incompatible with items from other manufacturers. The AIRA SBX-1 from Roland is the perfect solution for these situations, a sync box that allows computers and electronic instruments to communicate and synchronize with each other across formats.
The unit supports an array of both analog and digital devices through DIN Sync, MIDI and USB, and any of these can be the master clock source. Or it can be designated as the master sync, controlling multiple external devices using its accurate internal clock. Hands-on control over timing and groove, and support for CV/Gate makes the AIRA SBX-1 a great addition to a hybrid music studio. - Simultaneous conversion between MIDI, DIN Sync, and USB/MIDI
- Control external devices with SBX-1 as the master sync source
- Shuffle adds swing to patterns generated on devices without swing, such as TR-808 and TB-303

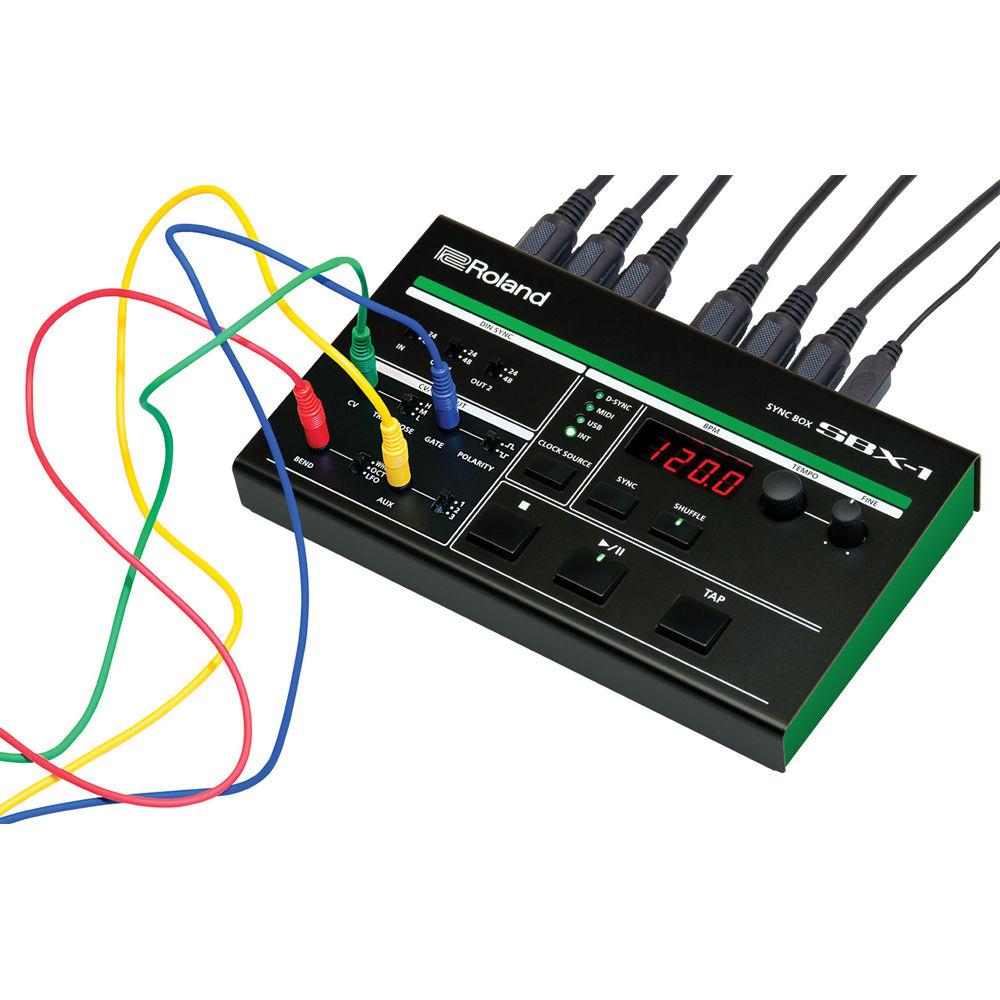

- CV/Gate jacks introduce creative possibilities
- Sync button corrects timing errors with a single press
- Output up to three channels of triggers or LFOs with different characteristics
- DIN Sync supports both Sync24 and Sync48 compatible with a variety of rhythm machines
- Works great with the TR-8 through optimized auxiliary jack
- Runs on USB bus power or with AC adapter
UPC: 761294506356 In the Box Roland AIRA SBX-1 - Sync Box External Power Supply One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland AIRA SBX-1 - Sync Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

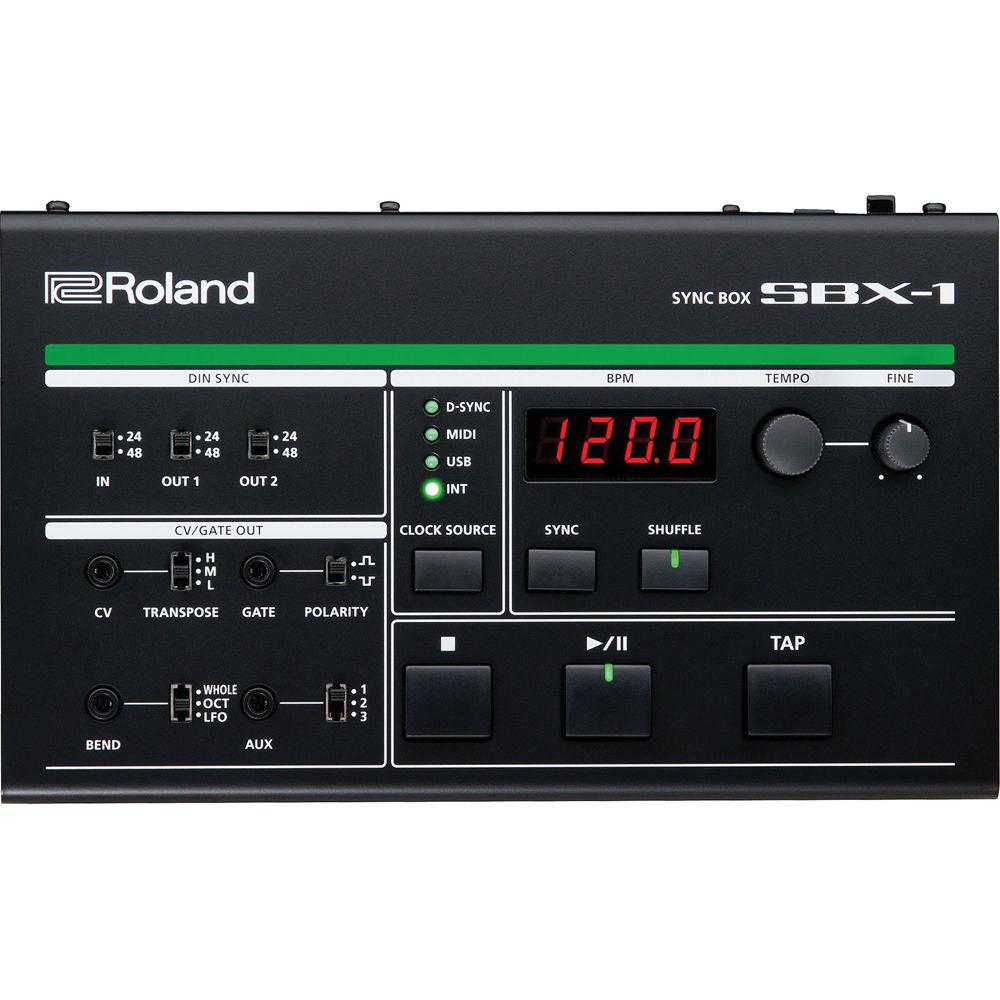

Technical parametersRoland SBX-1 Specs | Switch | DIN Sync In (24/48)
DIN Sync Out1 (24/48)
DIN Sync Out2 (24/48)
Transpose (H/M/L)
Polarity (+/-)
Bend (Whole/Octave/LFO)
Aux (1/2/3)
Power | | Buttons | Clock Source (D-Sync/MIDI/USB/Internal)
Sync
Shuffle
Stop
Play/Pause
Tap | | Knobs | Tempo
Fine | | Indicators | D-Sync
MIDI
USB

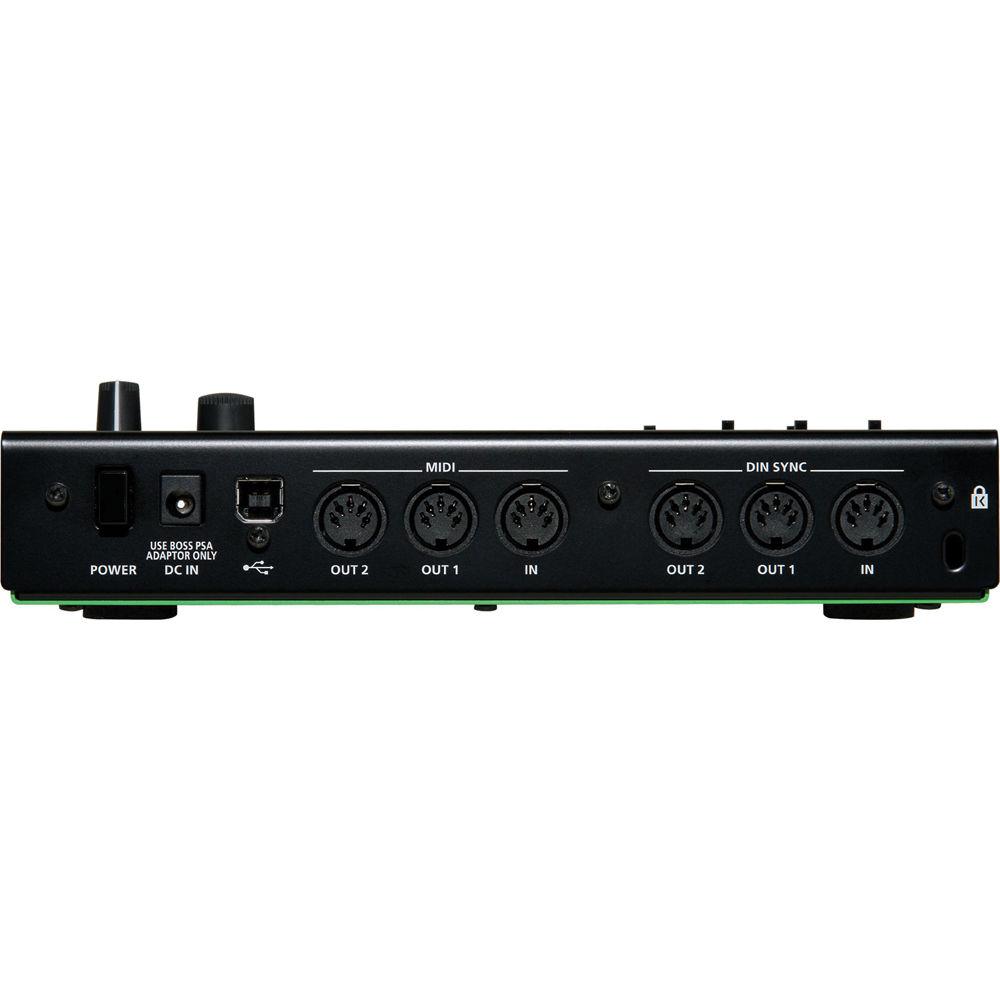

Internal | | Display | 7 segment, 4 character LED | | Connectors | 3 x 5-pin DIN DIN Sync In, Out 1, Out 2
3 x 5-pin DIN MIDI In, Out 1, Out 2
1 x 1/8" TS CV
1 x 1/8" TS Gate
1 x 1/8" TS Bend
1 x 1/8" TS Auxiliary
1 x USB Type B
1 x DC In | | Power Requirements | AC adapter or supplied from the computer via USB | | Current Draw | 150 mA (when using an AC adapter)
200 mA (when using USB bus power) | | Dimensions (WxDxH) | 8.7 x 5.4 x 2.1" (220 x 135 x 52 mm) | | Weight | 1.8 lb (790 g) | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 16.4 x 8.0 x 4.6" |
