Product description - Choosing Your First Hardware Synthesizer for Under $1000

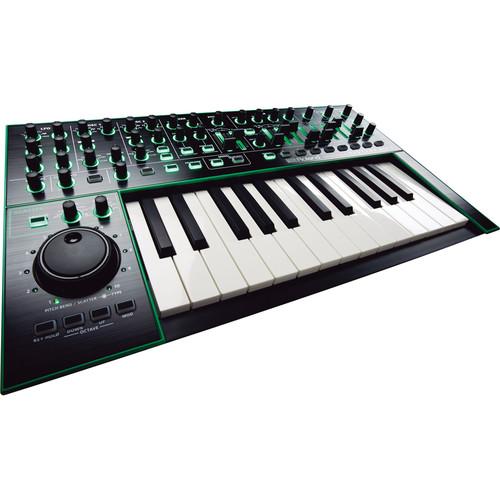

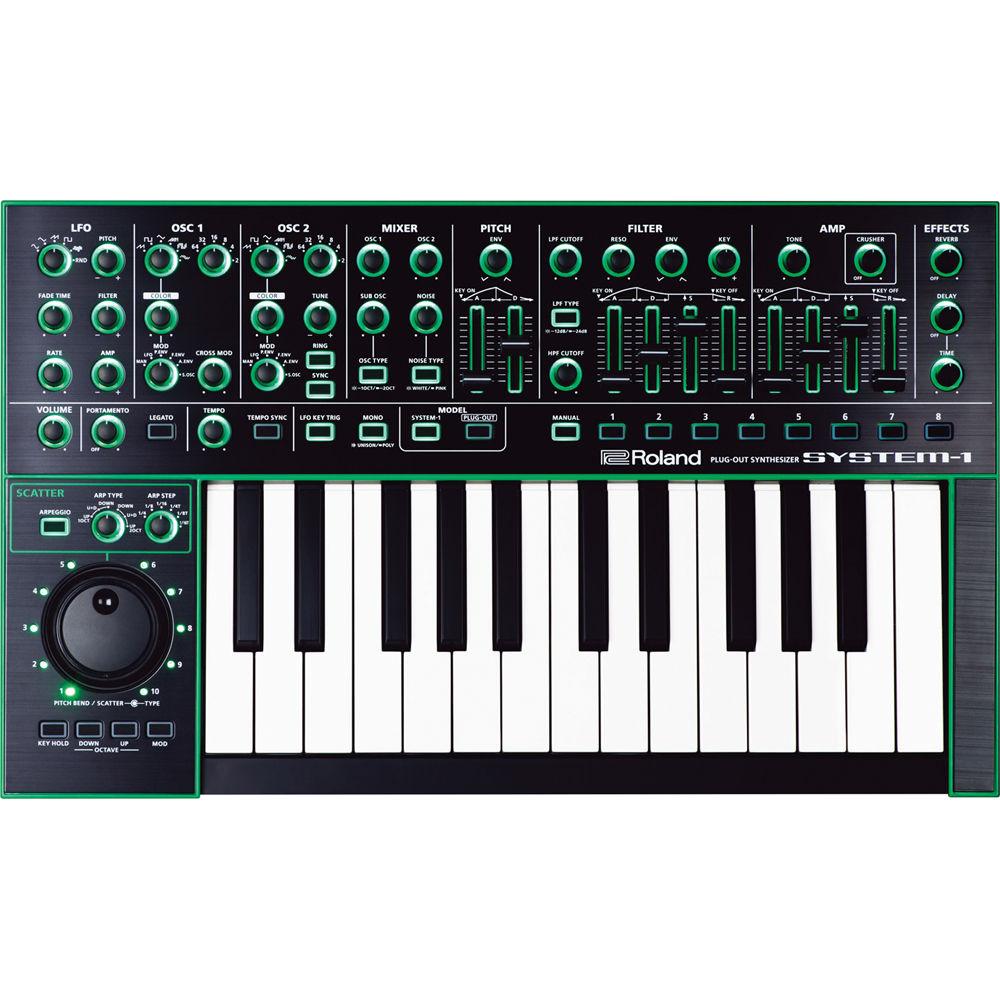

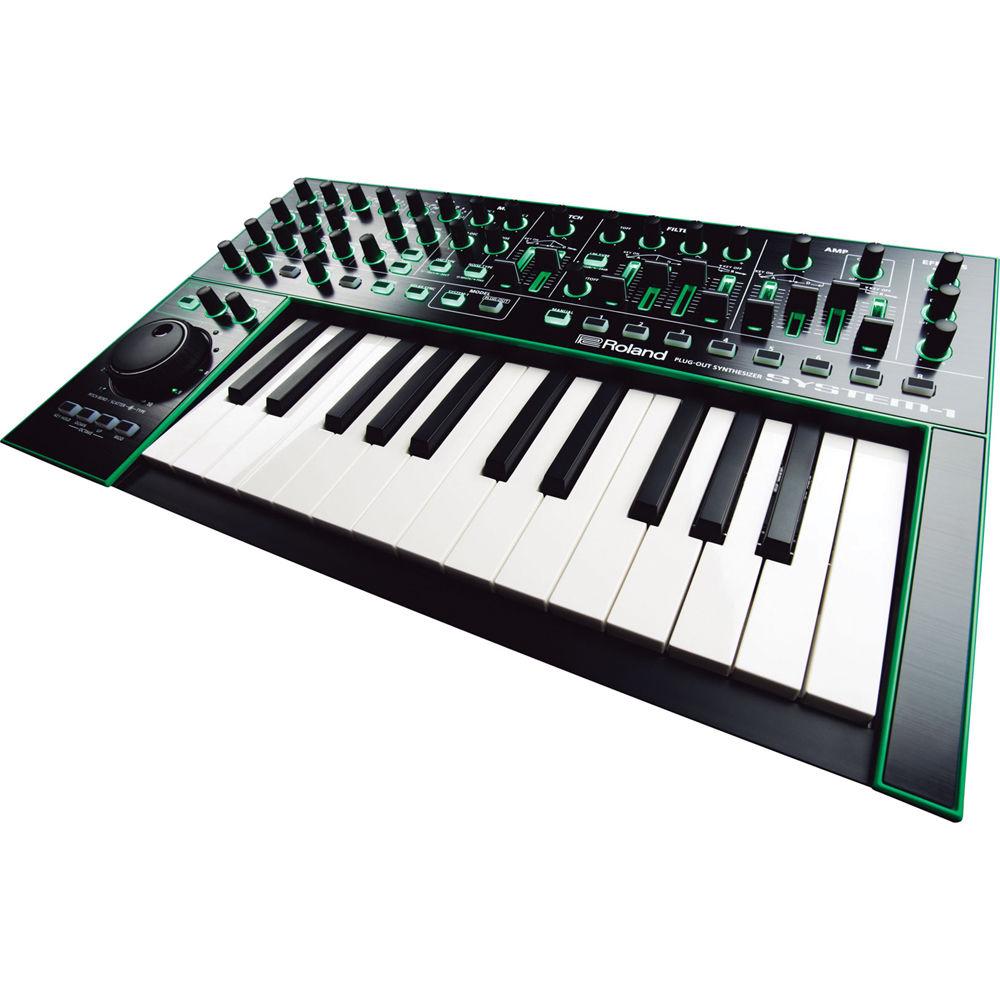

The AIRA SYSTEM-1 from Roland owes its pedigree to the spirit of the 1970s when the company introduced the SYSTEM 100, SYSTEM 100M, and the SYSTEM 700 modular and semi-modular synthesizers. Sporting a twenty-five key keyboard, four oscillators per voice, and seventy-three physical controls, the synthesizer is flexible and full of Roland synthesis tonal character.
A standout feature is the ability of the instrument to control and even host software recreations of classic Roland synthesizers with no computer required. Switching between the internal sounds and those of the hosted plug-in is possible, providing an intuitive and fully automatic one-to-one control interface. - Seventy-three performance-ready physical controls
- Four oscillators for fat synthesizer tones
- Oscillator colors create continuous waveform changes from simple to complex
- All parameters can be controlled with physical knobs and sliders with LED indicators
- Advanced arpeggiator with scatter function
- Scatter jog dial offers ten different phrase variations with dynamic, real-time control over ten stages of depth
- -12 and -24 dB filter types with independent high-pass filters
- Tone knob for easy tonal balancing
- Crusher knob for adding a modern edge
- Integrated delay and reverb effects
- Tempo syncing for LFO and delay
- Control and host software recreations of classic Roland synthesizers
- Thin keyboard with twenty-five, normal-sized keys
UPC: 761294504819 In the Box Roland AIRA SYSTEM-1 - PLUG-OUT Synthesizer External Power Supply One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland AIRA SYSTEM-1 - PLUG-OUT Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland SYSTEM-1 Specs | Keyboard | 25 keys (without velocity) | | Sound Generator | Maximum Polyphony
4 voices (SYSTEM-1 Mode)
User Memory
8
Structure Elements (SYSTEM-1 Mode)
Oscillator Section
Waveform: Saw, square, triangle, saw2, square2, triangle2
Knobs: Color, modulation source, octave, tune
Envelope: Attack time, decay time, envelope depth
Modulation: Cross modulator, ring modulator, oscillator sync
Sub Oscillator: -1 octave/-2 octave
Noise: White noise/pink noise
Key Mode: Mono/unison/poly
Filter Section
Type: LPF (-12dB/-24dB), HPF
Knobs: LPF cutoff, resonance, HPF cutoff, key follow
Envelope: Attack time, decay time, sustain level, release time, envelope depth
Amplifier Section
Envelope: Attack time, decay time, sustain level, release time
LFO Section
Waveform: Sine, triangle, saw, square, sample and hold, random
Knobs: Fade time, rate, pitch, filter, amp
Controller: LFO key trigger, tempo sync
Mixer Section
Level: Oscillator 1, oscillator 2, sub oscillator, noise
Effecter Section
Tone, crusher, reverb, delay, delay time
Structure Elements (PLUG-OUT Mode)
Dependent on PLUG-OUT software | | Arpeggiator | Type: 6
Step: 6 | | Scatter | Type: 10
Depth: 10 | | Controllers | Volume knob
Tempo knob
Portamento knob
Legato button
Pitch Bend/Scatter jog dial
Scatter Type dial
Key Hold button
Octave Up/Down buttons
Mod button

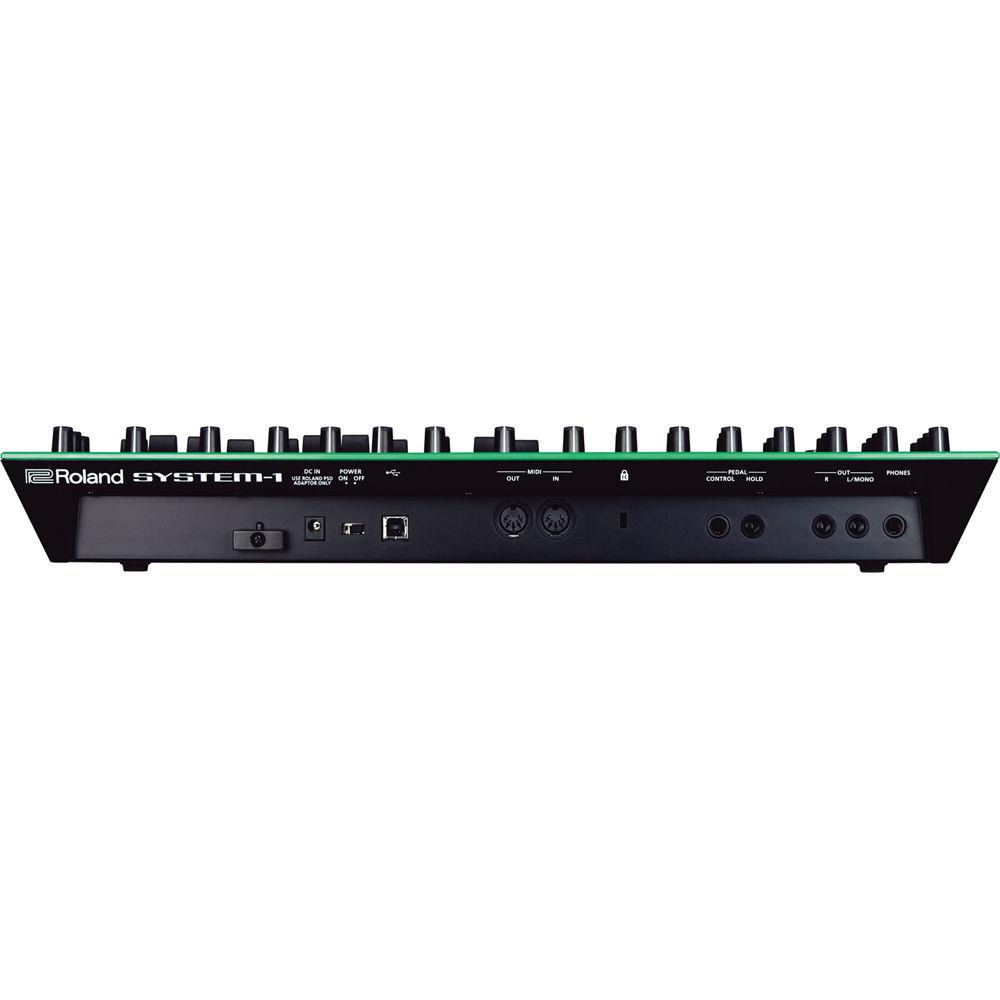

Power switch (rear) | | Connectors | 2 x 1/4" TS L/R Out
1 x 1/4" TRS Headphone
1 x 1/4" TS Sustain Pedal In (pedal not included)
1 x 1/4" TRS Control Pedal In (pedal not included)
2 x 5-pin DIN MIDI In/Out
1 x USB Type B
1 x DC In | | Power Requirements | AC adapter
850 mA current draw | | Dimensions (WxDxH) | 18.6 x 11.2 x 2.8" (472 x 283 x 70 mm) | | Weight | 5.3 lb (2.4 kg) | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 15.4 x 10.2 x 2.25" |
