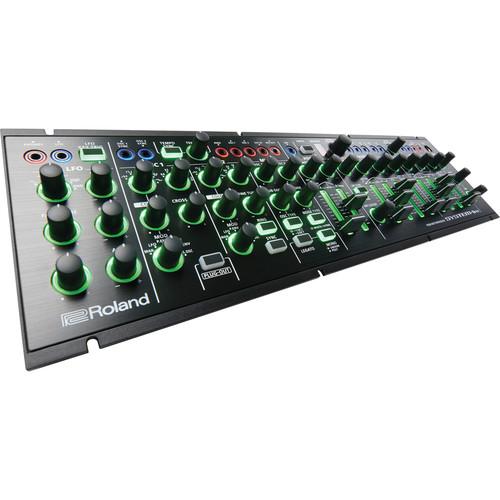

User Manual for Roland Aira SYSTEM-1m Semi-Modular PLUG-OUT Synthesizer Click to enlarge the picture
Contents of the user manual for the Roland Aira SYSTEM-1m Semi-Modular PLUG-OUT Synthesizer
- Product category: Synthesizer Modules Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Synthesizer Modules
 |
User manual for the Roland Aira SYSTEM-1m Semi-Modular PLUG-OUT Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

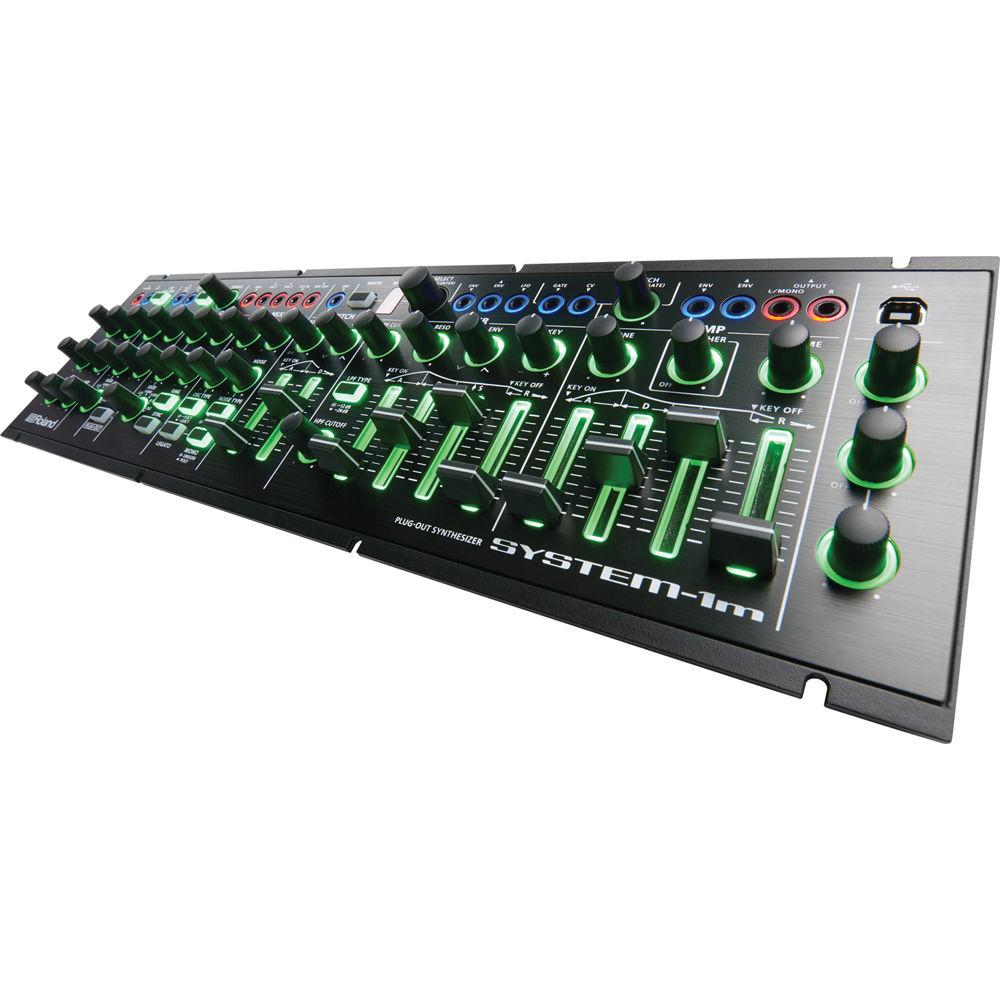

Product description Incorporating a flexible design that allows it to used as a rackmounted, tabletop, or Eurorack synth, the Aira SYSTEM-1m Semi-Modular PLUG-OUT Synthesizer from Roland can function as a standalone instrument, provide CV/Gate signals for other synths and effects, and employs Roland's PLUG-OUT technology that allow you to use it to control DAW-based software synths or install classic synth emulations directly into it.
The synth features 2 oscillators, with 6 waveforms each. A sync-able LFO allows you to create time-based wobbles and other effects, while further sound-shaping control is provided via the pitch, filter, amp, and EFX sections. Eurorack screws, along with a Eurorack power cable are included, along with a standard AC power cable, rackmount adapters, and 3 patch cables. - Modular for the Masses
- Modular synthesizers can make unique and interesting sounds, but they can demand a real investment of both time and money to create a fully functional instrument. The SYSTEM-1m is designed to take the guesswork out of getting into modular, offering a variety of sounds and the freedom to experiment right out of the box. The fully self-contained module can be placed in a rack or on a table and can be powered by a standard AC adaptor. And it can be played from any standard MIDI keyboard or receive MIDI messages from your DAW - just like you'd expect
With fully-lit, color coded patch points, you can experiment with reconfiguring its architecture and easily connect to a wide world of available synthesizer modules. In addition to functioning as a rackmount or tabletop unit, the SYSTEM-1m can be mounted in a standard Eurorack case and can be powered via integrated case power with the included adapter cable. Its versatile synth architecture integrates with existing modular setups - or it can be the heart of a burgeoning modular synthesizer rig - PLUG-OUT Capable
- The SYSTEM-1m is based on Roland's more than 40 years of experience in designing synthesizers. It's capable of a wide range of synth tones, from glistening arps to thunderous basses. But Roland is also known for their lineage of iconic vintage instruments. These include a long list of classic synths renowned for their identifiable character and genre-defining tone. And this is why they developed PLUG-OUT technology
PLUG-OUT synthesizers use Roland's Analog Circuit Behavior technology to replicate some of their most revered classics. They work like regular VST or AU compatible plug-ins in a DAW, with the SYSTEM-1m's array of high-resolution knobs and sliders creating a one-to-one control surface that works seamlessly. But you can also load PLUG-OUT synths directly into the SYSTEM-1m and switch between the internal synthesizer architecture and one of a growing number of PLUG-OUT Roland classics, like the SH-101, SH-2 and PROMARS - with no computer required - Range of Sounds
- While it provides plenty of synthesis power on its own, interconnecting the SYSTEM-1m with other modular gear creates a vast range of sonic possibilities. Its impressive oscillator section, sweet filters and snappy envelopes are sure to be welcome in any modular setup, no matter how big or small. But it's the SYSTEM-1m's combination of CV/Gate modularity, PLUG-OUT, and DAW integration that takes things further
For example, load the SH-101 PLUG-OUT into the SYSTEM-1m and you essentially have a hardware SH-101 with modular capabilities - something that has never existed before. You can process external sources through the SH-101's filters, or load the SH-2 PLUG-OUT and use its oscillator section to drive any number of available Eurorack filters and envelopes - 19 color-coded CV/Gate and audio connections with LED lighting
- 84 HP Eurorack, tabletop and 19" rack compatible using AC adaptor or Eurorack power
- Versatile oscillators with six waveforms, Crossmod, Ring Mod, Sync and Color control
- All parameters controlled with high-resolution knobs and sliders with LED indicators
- External input for processing external signals through filter, amp and FX section
- -12 dB and -24 dB filter types with independent high-pass filters
- Integrated tone, crusher, reverb and delay effects
- Tempo syncing for LFO and delay
- 24-bit/96 kHz audio and MIDI interface
- AIRA Link for easy connection to MX-1 Mix Performer
- Includes rackmount adapter and braided patch cables
UPC: 761294506981 In the Box Roland Aira SYSTEM-1m Semi-Modular PLUG-OUT Synthesizer AC Adapter Rackmount Adapters Eurorack Installation Screws Eurorack Power Cable 3 x Patch Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland Aira SYSTEM-1m Semi-Modular PLUG-OUT Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

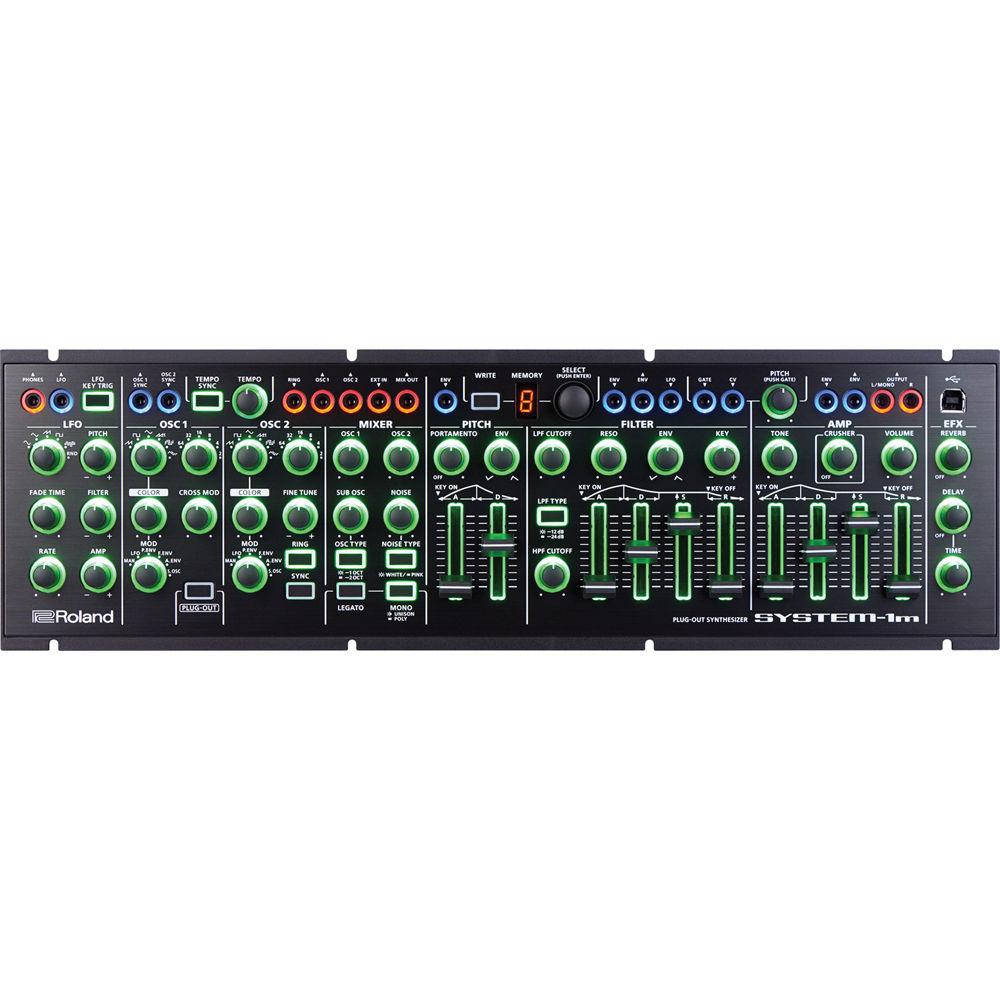

Technical parametersRoland SYSTEM-1M Specs | Polyphony | Maximum: 4 voices (SYSTEM-1m Mode) | | User Memory | 8 | | Structure Elements, SYSTEM-1m Mode | Oscillator Section:
Waveform: Saw, Square, Triangle, Saw 2, Square 2, Triangle 2
Knobs: Color, Modulation Source (Manual, LFO, P. Envelope, F. Envelope, A. Envelope, Sub Osc), Octave, Tune
Envelope: Attack Time, Decay Time, Envelope Depth
Modulation: Cross Modulator, Ring Modulator, Oscillator Sync
Sub Oscillator: -1 octave/-2 octave
Noise: White Noise/Pink Noise
Filter Section
Type: LPF (-12 dB/-24 dB), HPF
Knobs: LPF Cutoff, Resonance, HPF Cutoff, Key Follow
Envelope: Attack Time, Decay Time, Sustain Level, Release Time, Envelope Depth
Amplifier Section
Tone
Envelope: Attack Time, Decay Time, Sustain Level, Release Time
LFO Section
LFO Waveform: Sine, Triangle, Saw, Square, Sample & Hold, Random
Knobs: Fade Time, Rate, Pitch, Filter, Amp
Controller: LFO Key Trigger
Mixer Section
Level: OSC 1, OSC 2, Sub OSC, Noise
Effecter Section:
Effect: Crusher, Reverb, Delay, Delay Time | | Structure Elements, PLUG-OUT Mode | Dependent on PLUG-OUT software | | Controls | Volume knob
Tempo knob
Tempo Sync button
Legato button
Mono/Unison/Poly button
Pitch knob
Select knob
Write button
Memory display

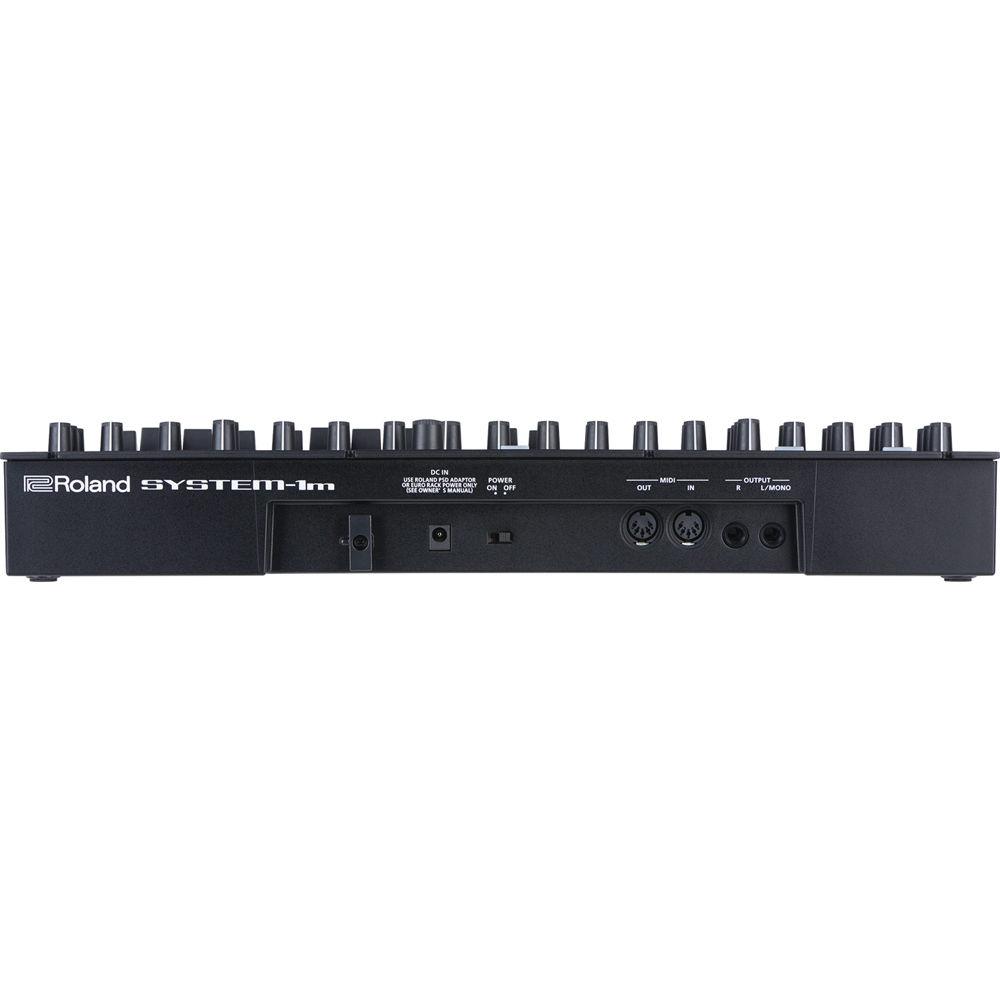

Power Switch (Rear) | | Connectors | Phones Jack: Stereo miniature phone type
Output (L/Mono, R) jacks: 1/4-inch phone type (Rear)
Output (L/Mono, R) jacks: Miniature phone type (Front)
LFO Out, OSC 1 SYNC Out, OSC 2 SYNC In, RING In, OSC 1 Out, OSC 2 Out, EXT In, MIX Out, PITCH ENV In, FILTER ENV In, FILTER ENV Out, FILTER LFO In, GATE In, CV In, AMP ENV In, AMP ENV Out jacks: Miniature phone type

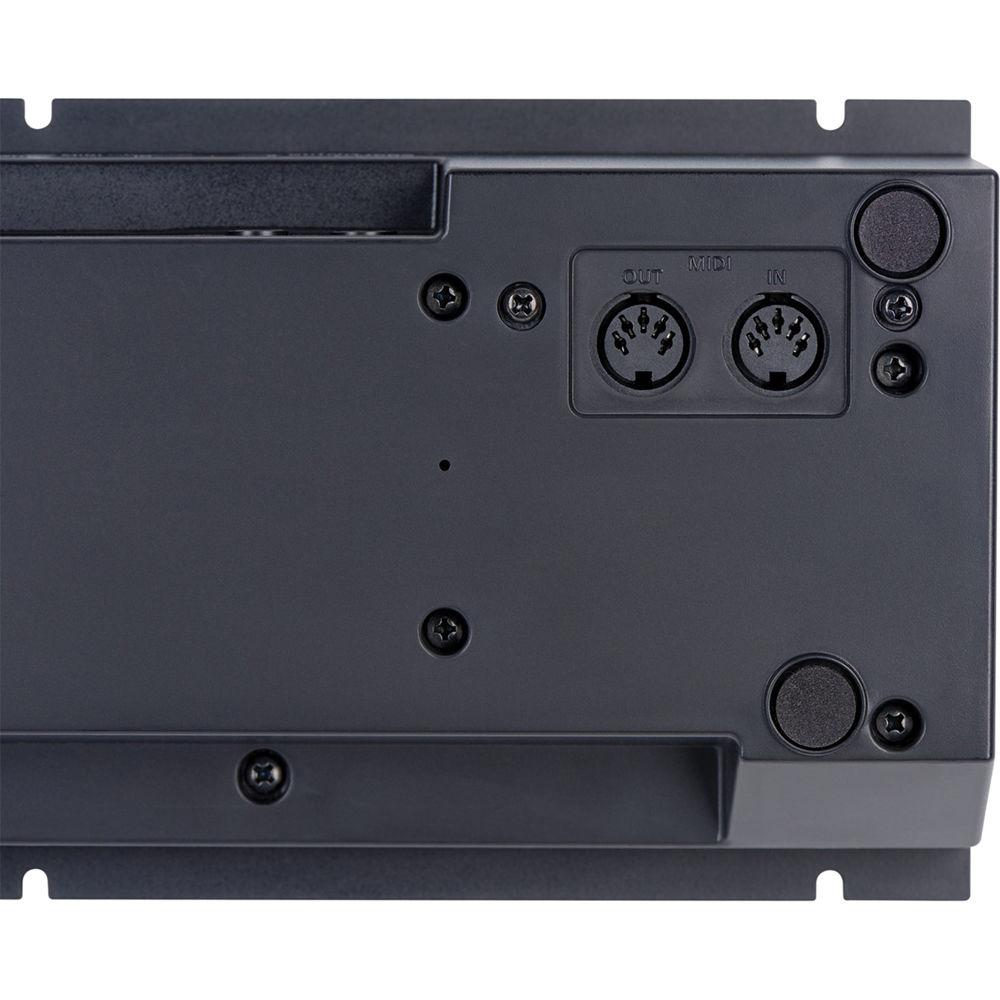

MIDI (In, Out) connectors (Rear and Bottom)
USB port: USB type B (Audio/MIDI)
DC In jack | | Power Supply | AC adapter or Eurorack power | | Current Draw | 1,300 mA (AC adapter)
700 mA (Eurorack power) | | Horizontal Pitch | 84 | | Dimensions (W x D x H) | 16.8 x 5.1 x 2.8" (427 x 129 x 70 mm) | | Weight | 2.8 lb (1.25 kg) | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 20.0 x 10.1 x 4.7" |
