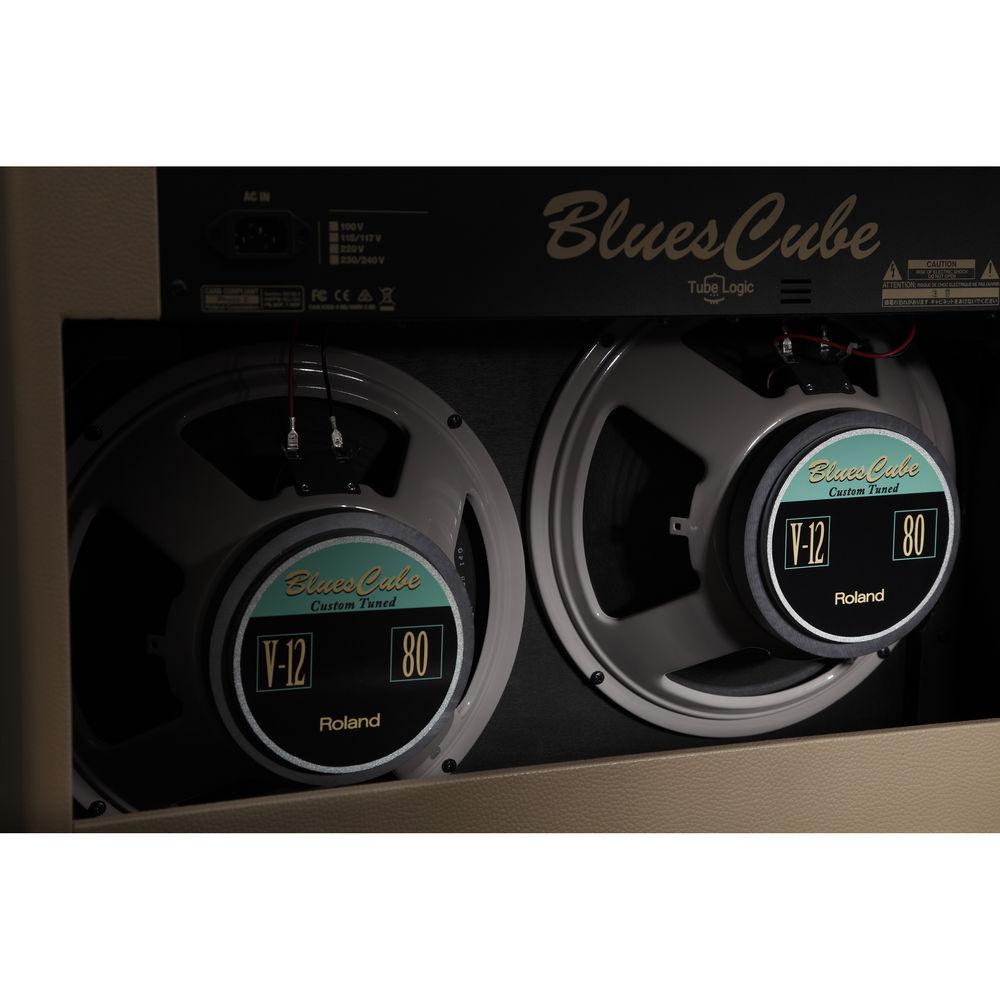

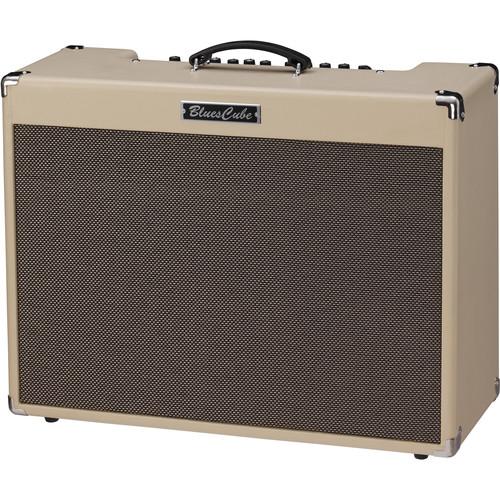

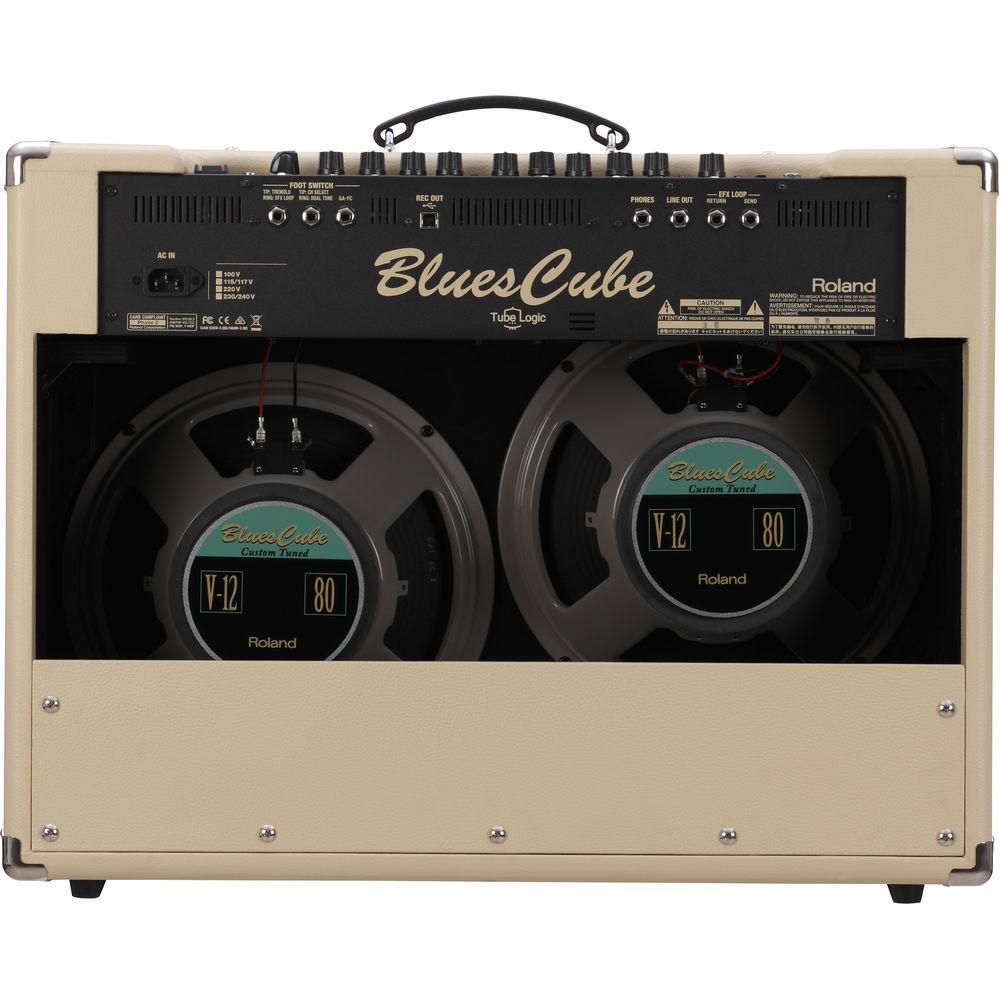

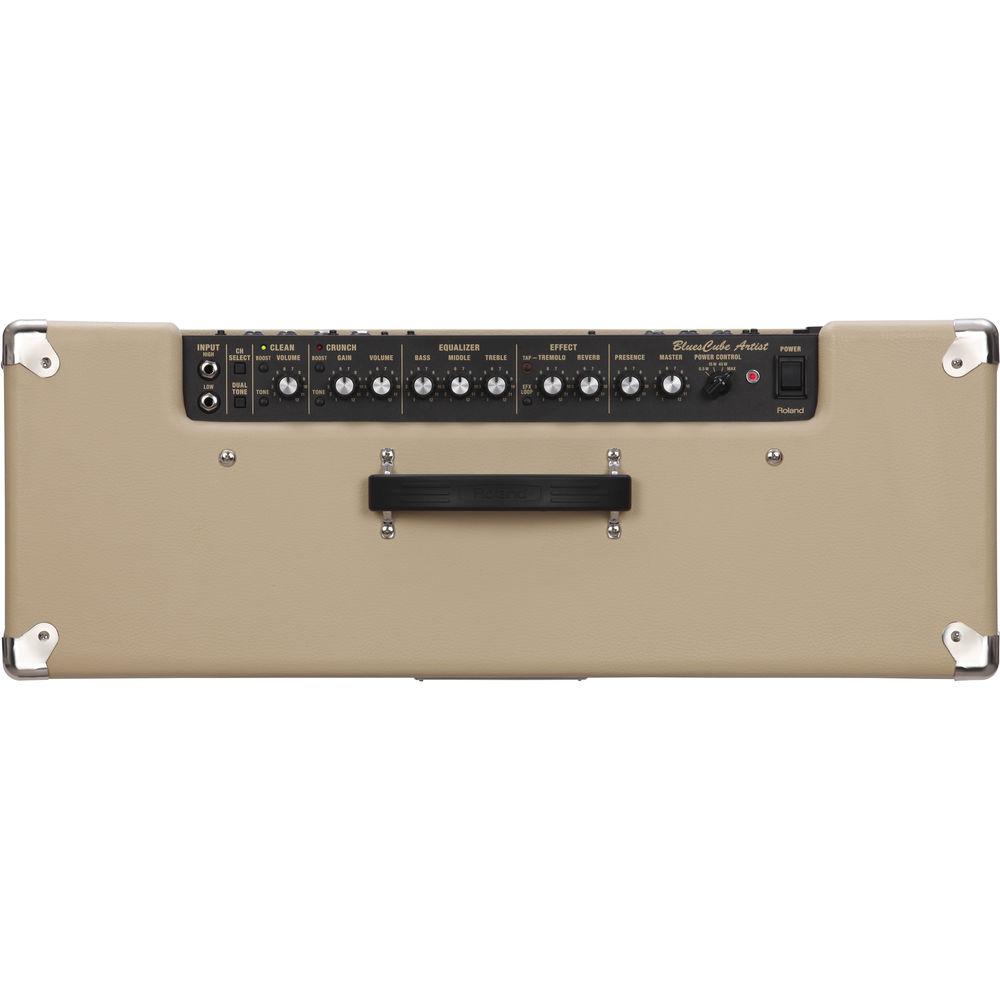

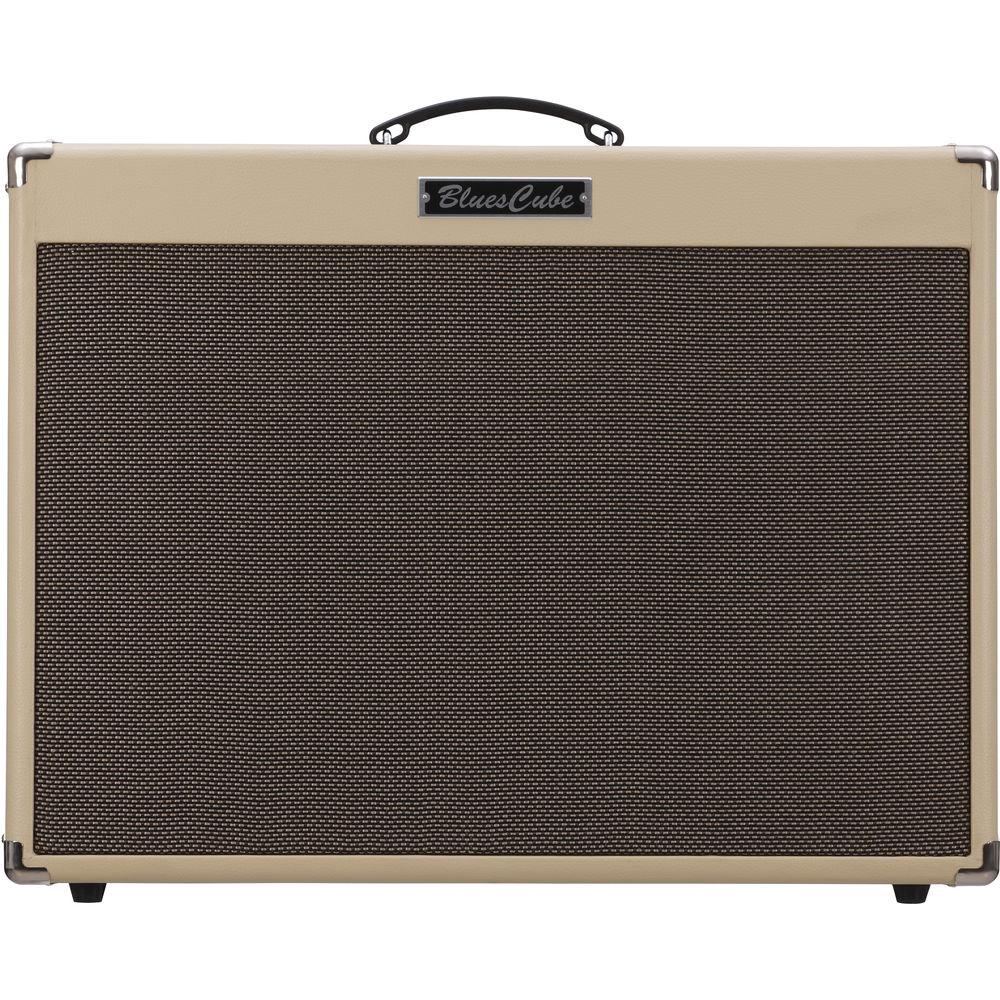

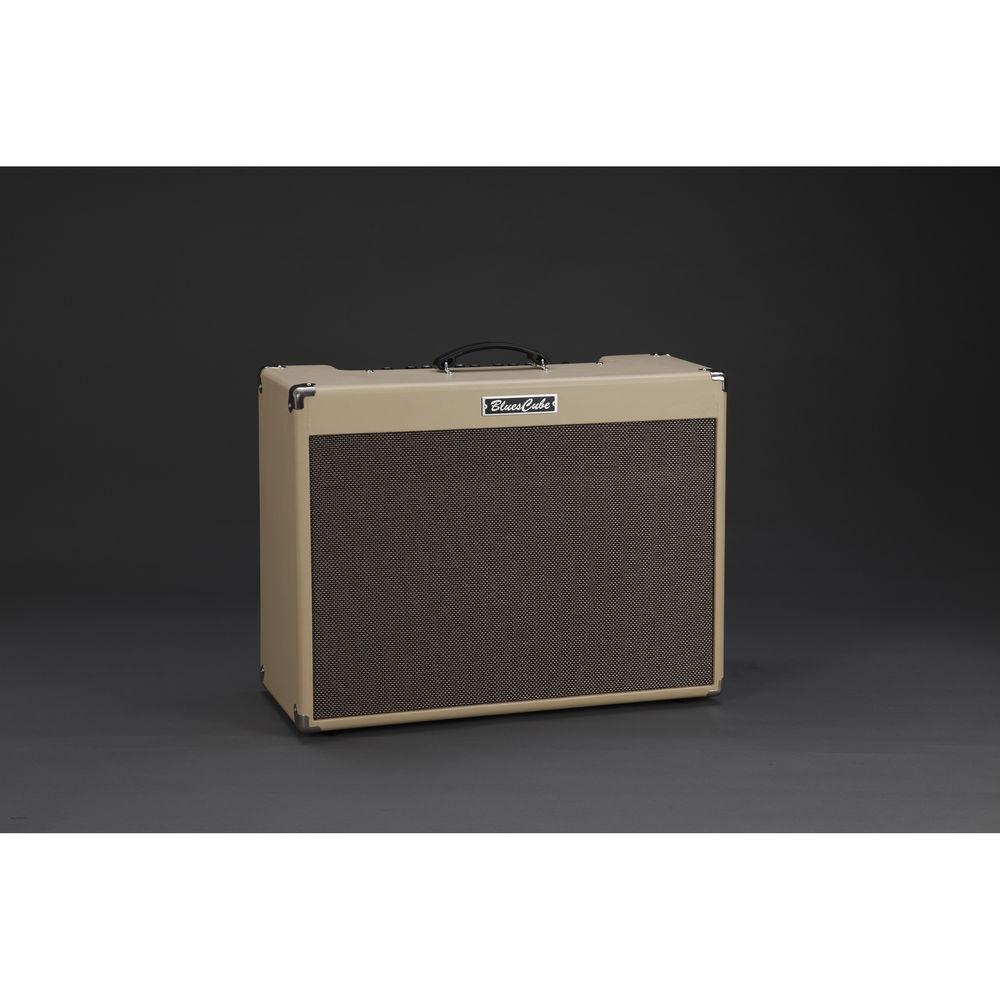

Product description Having updated and redefined their proprietary Tube Logic modeling technology, this Roland Blues Cube Artist is an 85W, 2x12 combo amplifier intended for use with electric guitars. It aims to instill the familiar tone and feel of traditional tube amps, but without the weight or maintenance involved. Featuring two channels and two 12" speakers, this amplifier is suitable for clubs and other smaller venues. Its extra five watts, compared to its 1x12 sibling, should provide you with enough headroom to cut through the mix when necessary.The top panel displays the amp's control section, on which you'll find parameters for both clean and crunch channels, as well as reverb, tremolo, master volume, presence, and equalization knobs. Next to the master rotary is the power control knob, which allows you to reduce the output of the amp without changing the timbre, effectively giving you full amp tone at lower levels. Thus, whether playing clean or decisively dirty, you do not have to compromise on tonal versatility simply because your neighbors might complain about the noise.The combo amp offers a poplar cabinet and open-backed design revealing the two custom-tuned 12" Blues Cube speakers housed within. In addition to a direct line output, other modern flourishes include a stereo headphone output, connection jacks for an integrated effects loop, and a USB recording output for direct-to-DAW situations. - Tube Logic
- Tweaked heavily since its first iterations in the '90s, Roland's Tube Logic seeks to emulate the sound of tube amps as well as their inner workings to generate a more faithful tone.
- Boost and Tone
- For each channel, augmenting the volume controls are two switches labeled boost and tone. Boost adds some more tube crunch to your existing tone, whilst tone accentuates the treble frequencies for greater high-end delineation. Both of these switches can be operated hands-free with the separately available footswitch.
- Variable Power Control
- Most tube amplifiers are thought to have a volume sweet spot—a locale in which the power tubes are cranked just enough to provide pleasurable distortion. If that volume setting is deviated from, tone can be compromised. In many instances, that sweet spot is often too loud in volume for most live or recording situations. While Tube Logic does give you total dynamic control over your sound, once you find your sweet spot, you can use the variable power control knob to reduce the output to 45, 15, or even 0.5 watts, in order to take down the volume and match it to your current playing situation without affecting your chosen tone.
- Tube Tone without Hassle
- Roland's Tube Logic can alleviate some of the common maintenance issues common to traditional tube amplifiers.
- Key Features at a Glance
-
- 85W guitar amplifier with authentic tube tone and touch response
- Tube Logic design delivers the interactive tonal behaviors of vintage tube amps, including preamp and output tube distortion characteristics, power supply compression, and more
- Independent Clean and Crunch channels, plus Dual Tone mode for blending channels
- Master volume, three-band EQ, and Presence control, as well as Boost and Tone switches on each channel
- 4-way Power Control (0.5 W, 15 W, 45 W, Max) allows for cranked-amp tones at any level
- Onboard reverb and tremolo effects with vintage sound, in addition to an effects loop for external processing
- Classic open-back design with two custom 12” speakers and poplar cabinet
- Efficient, lightweight design provides portability without sacrificing tone
- USB output for direct recording to computers
- Optional GA-FC Foot Controller for Channel Select, Dual Tone, and Tremolo, and EFX Loop
UPC: 761294507728 In the Box Roland Blues Cube Artist 85W 2x12 Combo Amplifier Power Cord Limited 3-Year Warranty on Parts Limited 2-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland Blues Cube Artist 85W 2x12 Combo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland BC-ART212 Specs | | | Amplifier Type | Modeling | | Output Power | 85 W RMS | | Channels | 2 | | Effects Loop | Yes, Series | | Built-In Effects | Digital Reverb, Distortion/Overdrive, Tremolo | | Master Volume | Yes | | Inputs | 1 x 1/4" Hi Instrument
1 x 1/4" Low Instrument
1 x 1/4" Mono Effects Return
3 x 1/4" Stereo Footswitch | | Outputs | 1 x 1/4" Stereo Headphone
1 x 1/4" Mono Line Level
1 x 1/4" Mono Effects Send
1 x USB Stereo Interface | | Tone Section | Channel 1: Bass, Channel Volume, Mid, Presence, Tone, Treble
Channel 2: Bass, Channel Volume, Gain, Mid, Presence, Tone, Treble | | | | Configuration | 2 x 12" Speaker(s) | | Cabinet Type | Straight Open Mono | | Power Rating | 85 W RMS | | Construction Material | Poplar | | Covering | Tolex | | | | Dimensions (WxHxD) | 26.7 x 21.5 x 10.7" / 677.0 x 545.0 x 271.0 mm Combo | | Weight | 46.30 lb / 21 kg Combo |
