User Manual for Roland Blues Cube Stage Guitar Amplifier Click to enlarge the picture
Contents of the user manual for the Roland Blues Cube Stage Guitar Amplifier
- Product category: Guitar Amplifiers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Guitar Amplifiers
 |
User manual for the Roland Blues Cube Stage Guitar Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

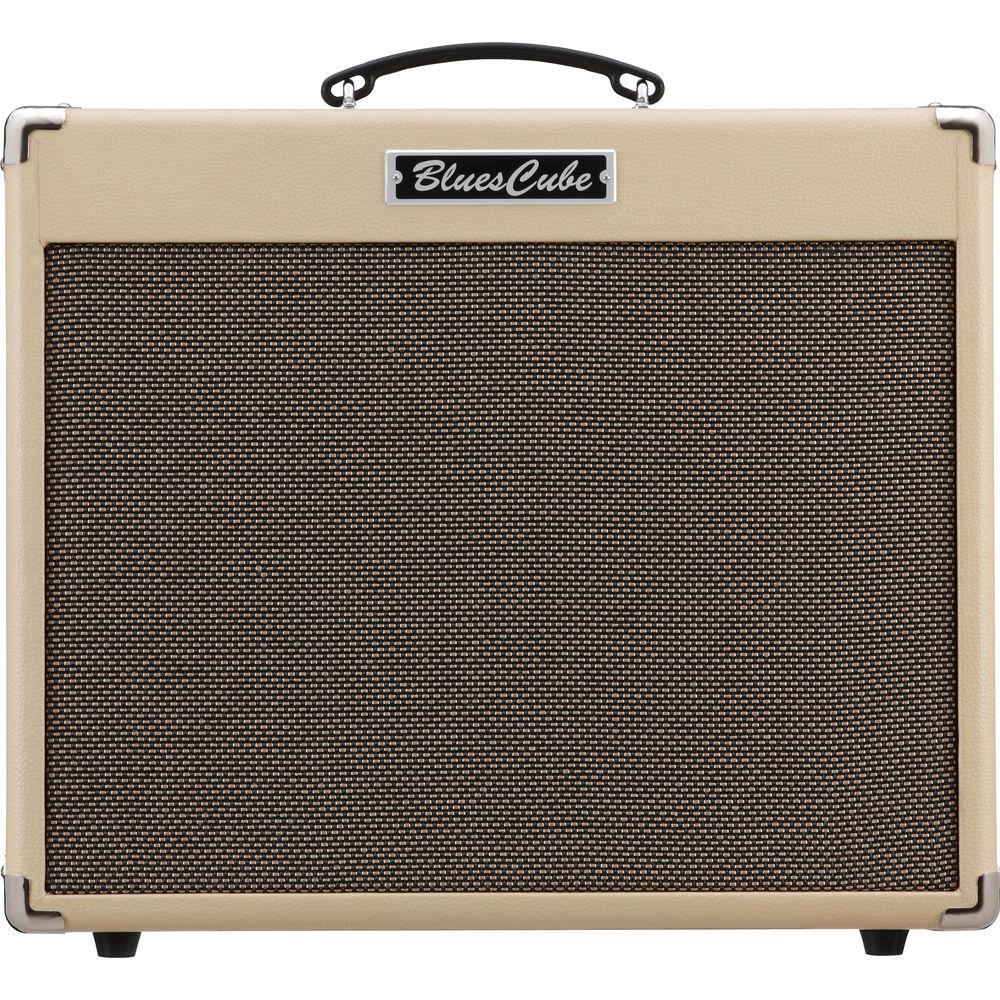

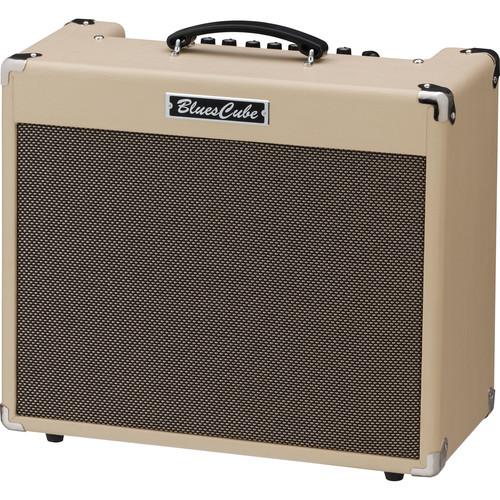

Product description The Blues Cube Stage Guitar Amplifier from Roland is equipped with 60W of power, and a 12" speaker with Tube Logic design. The open-back cabinet features poplar plywood construction, which offers acoustically vibrant tone for solo or group performances.
The Blues Cube Stage has two independent channels: one voiced for cleaner tones, and the other for crunch. Each channel has its own Boost and Tone switches to shape the character. The Clean channel's single volume control dials in natural tube fullness and bite as the volume is cranked, while the Crunch channel's variable gain control provides a range of grit flavors from mild to aggressive. With the press of a switch, the Dual Tone mode lets you blend both channels together for a wide variety of tones. Like a vintage tube amp, the Blues Cube works well with stompboxes, allowing you to shape your personal sound by hitting the amp's front end with your favorite gain pedals.

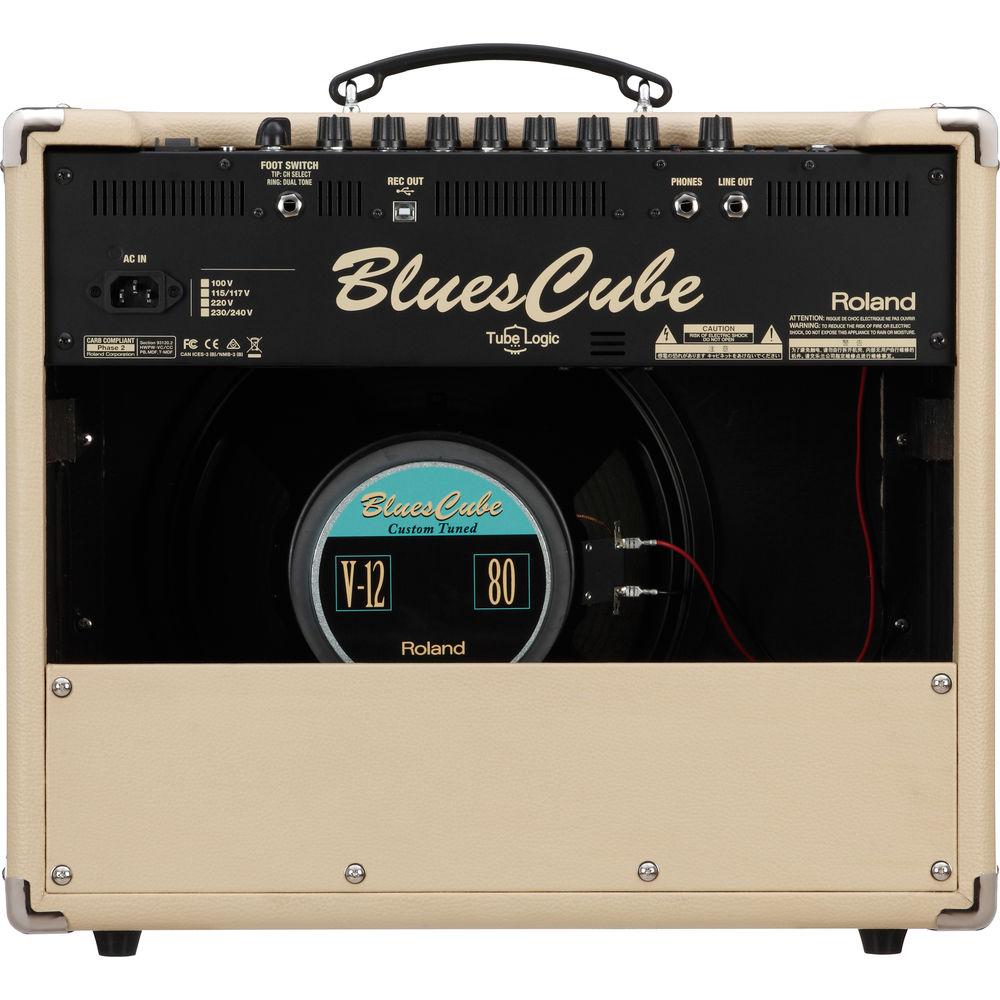

Furthermore, the Blues Cube Stage features onboard reverb, and the rear panel is equipped with a footswitch jack for remote switching of channel selection and Dual Tone mode. In addition, the amp's USB jack which allows you to capture the Blues Cube's tones directly into your computer recording applications. - 60W combo guitar amplifier with authentic tube tone and touch response
- Comprehensive Tube Logic design delivers the interactive tonal behaviors of fine-tuned vintage tube amps, including preamp and output tube distortion characteristics, and power supply compression
- Independent Clean and Crunch channels, plus Dual Tone mode for blending channels to expand tonal possibilities
- Master volume and three-band EQ, plus Boost and Tone switches on each channel
- Four-way Power Control (0.5 W, 15 W, 45 W, Max) allows for cranked-amp tones at any volume

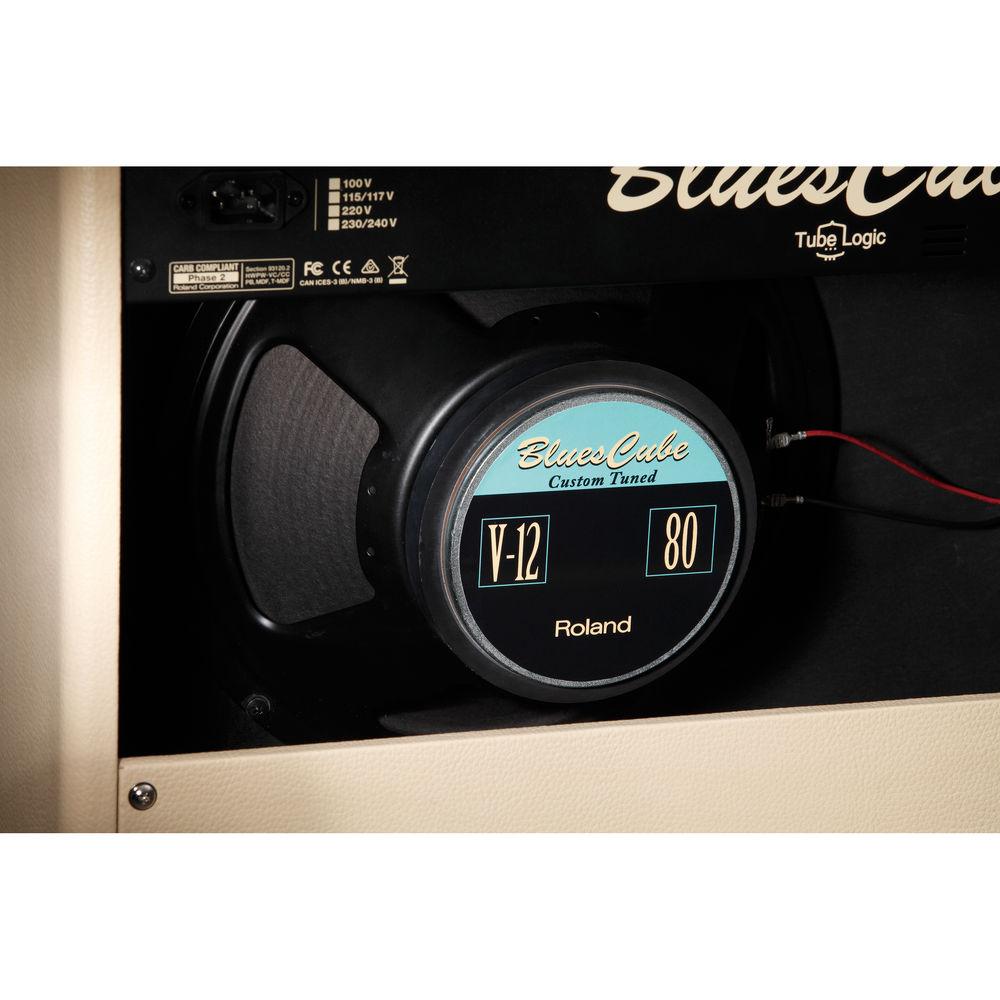

- Classic open-back design with custom 12" speaker and poplar cabinet for enhanced presence on stage
- Efficient, lightweight design provides for easy portability
- USB output for direct recording to a computer
- Channel selection and Dual Tone can be controlled with optional footswitches (sold separately)
In the Box Roland Blues Cube Stage Guitar Amplifier (60W, 1x12) Power Cord Limited 3-Year Warranty for Parts Limited 2-Year Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland Blues Cube Stage Guitar Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

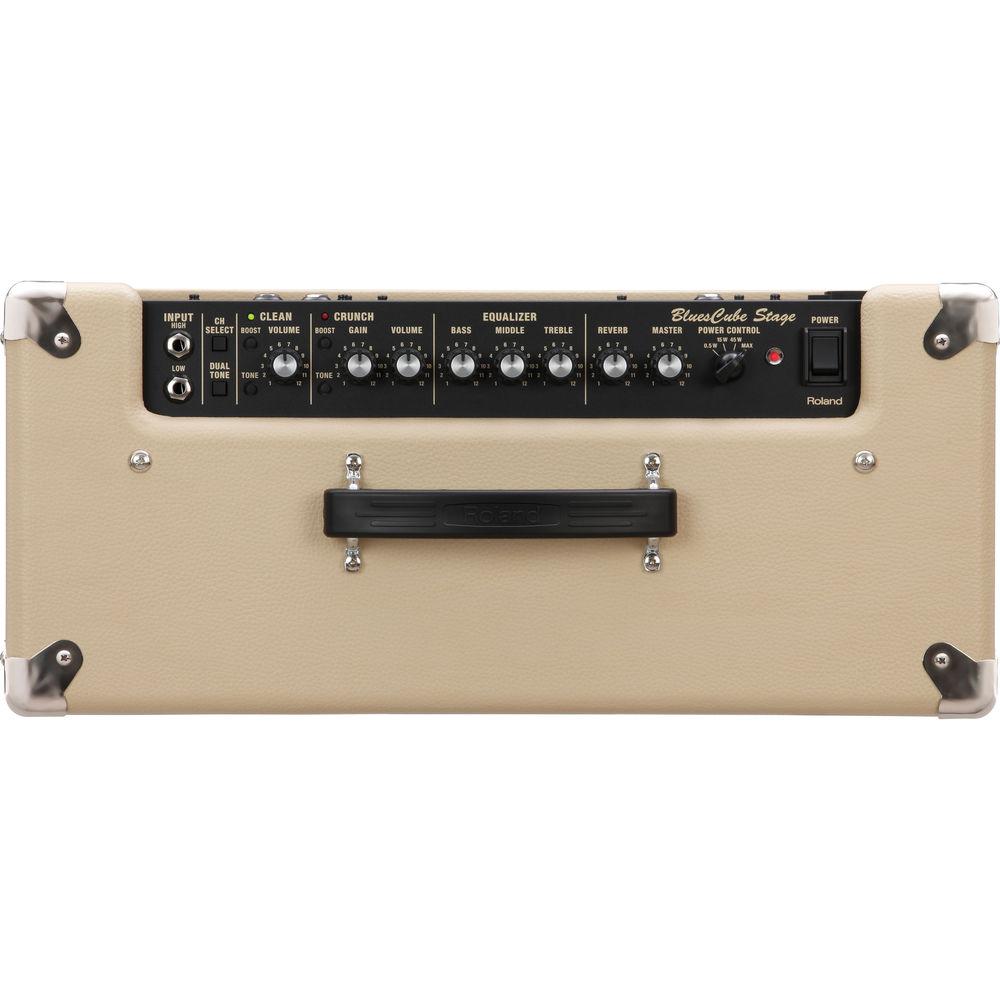

Technical parametersRoland BC-STAGE Specs | Rated Power Output | 60 W | | Nominal Input Level | Input High: -10 dBu (1 MOhm)
Input Low: 0 dBu | | Speaker | 1 x 12" (30 cm) | | Controls | Power switch
Dual Tone switch
Channel Select switch
Clean Channel:
Boost button
Tone button
Volume knob
Crunch Channel:
Boost button
Tone button
Gain knob
Volume knob
Equalizer:
Bass knob
Middle knob
Treble knob
Effect:
Reverb knob
Master knob
Power Control switch | | Indicators | Clean Channel:
Boost
Tone
Crunch Channel:
Boost
Tone

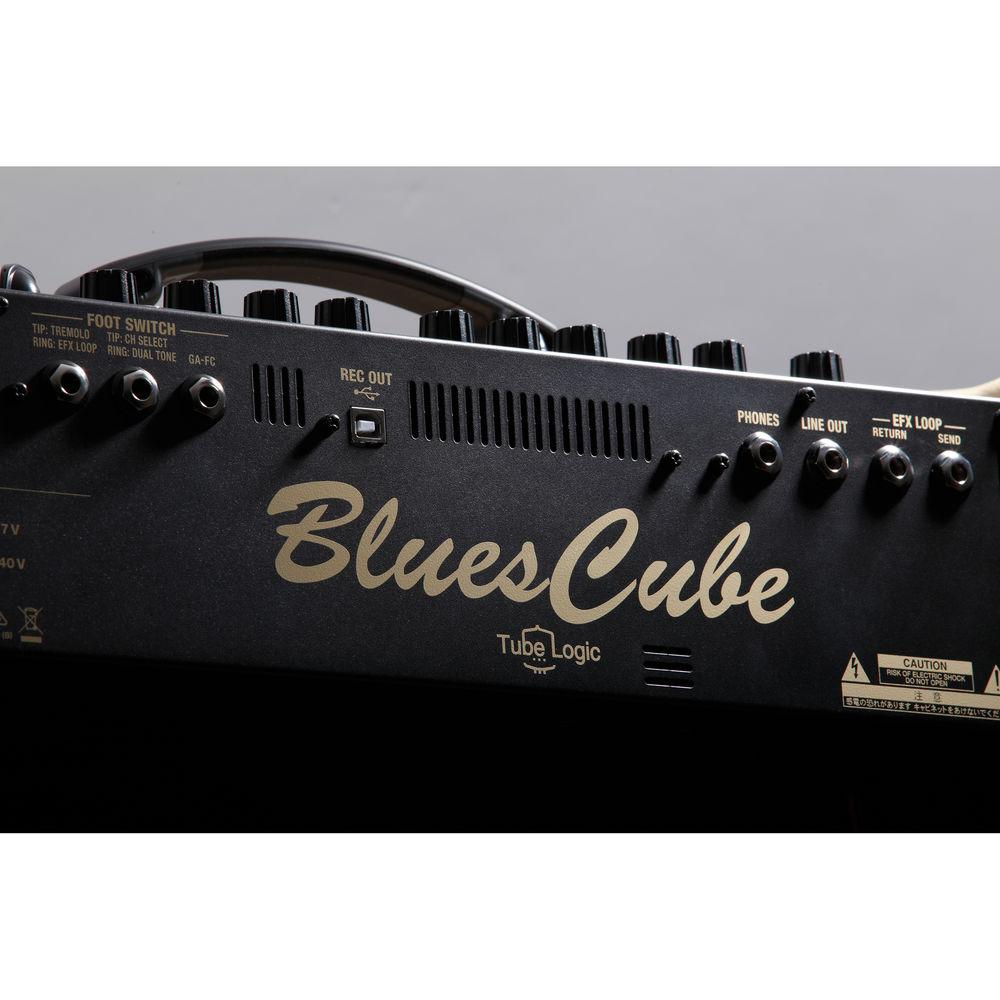

Power | | Connectors | 1 x 1/4" phone jack, High Input
1 x 1/4" phone jack, Low Input
1 x 1/4" phone jack, Line Out
1 x 1/4" stereo phone jack, Phones
1 x 1/4" TRS phone jack, Foot SW (TIP: CH SELECT, RING: DUAL TONE)
1 x USB type B, Record Out
1 x AC Power Input | | Power Consumption | 58 W | | Dimensions (W x D x H) | 20.2 x 9.6 x 18.3" (51.3 x 24.4 x 46.5 cm) | | Weight | 30.9 lb (14 kg) |
