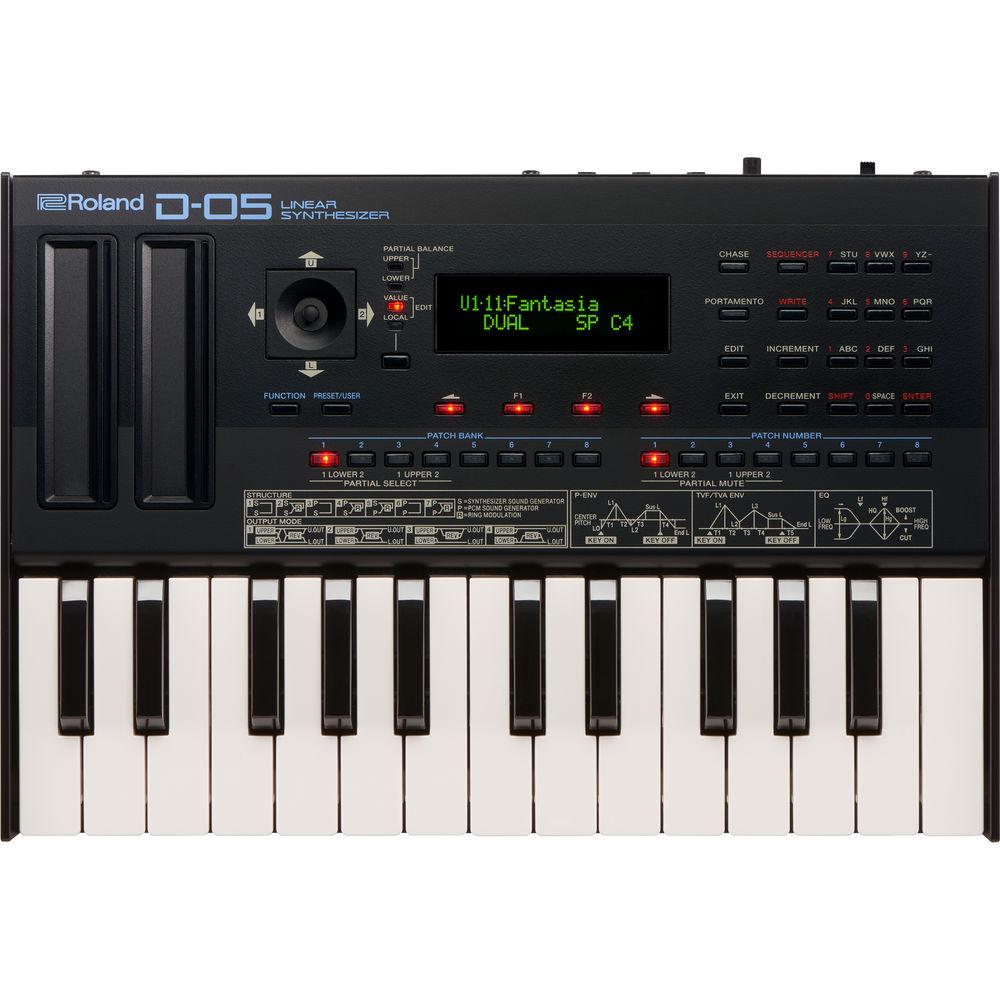

User Manual for Roland Boutique D-05 Linear Synthesizer Module Click to enlarge the picture
Contents of the user manual for the Roland Boutique D-05 Linear Synthesizer Module
- Product category: Synthesizer Modules Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Synthesizer Modules
 |
User manual for the Roland Boutique D-05 Linear Synthesizer Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

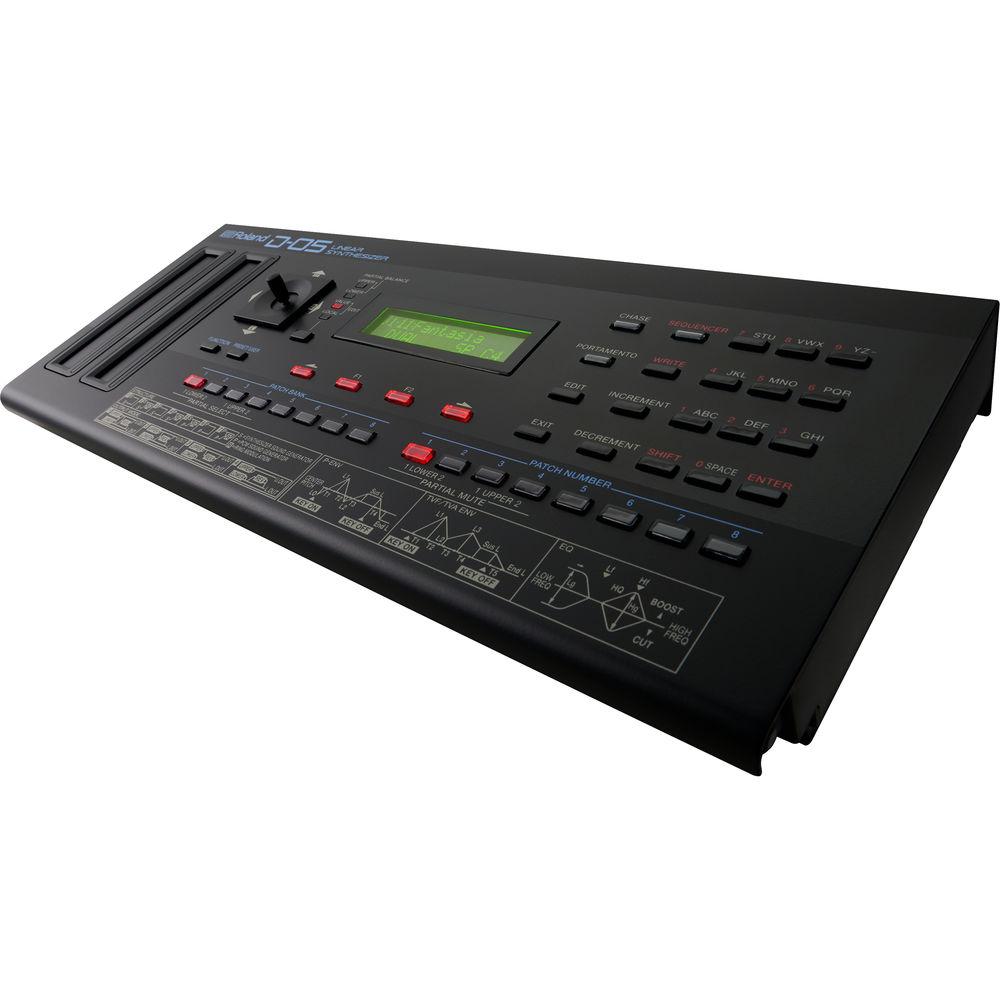

Product description The Roland Boutique D-05 Linear Synthesizer Module continues the legacy of the D-50, an instrument that was highly popular in the late '80s and early '90s. The timeless sounds of the D-50 can be heard on countless albums spanning multiple genres such as pop, house, R&B, and drum 'n bass, as well as in sound design for film and television. The D-50 features the linear arithmetic sound engine, where sounds are constructed using 32 partials, which are organized into tones (two partials per tone), and then patches (up to two tones per patch). LA Synthesis also uses structures, which determine whether the various partials are playing PCM sounds or synthesizer waveforms. Basic sound shaping is inspired by familiar analog subtractive synthesizer parameters, with elements such as Time Variant Amplifier (TVA), Time Variant Filter (TVF with resonance), LFO, pitch envelope, and more. It was highly programmable, especially when used with the optional PG-1000 controller that added one-to-one controls for instant sonic sculpting.
The 16-voice D-05 utilizes digital circuit behavior (DCB) to recreate the original sound of the D-50, combined with the exact PCM attack and loop samples as the original D-50, precisely recreating every tonal nuance in detail. Programming is authentic as well, with the inclusion of the direct access controls and the all-important joystick, which allows for smooth morphing between the upper and lower tones. The instrument has some updated features, such as the 64-step polyphonic sequencer and arpeggiator. Sequences and tempo data are stored within a patch and can easily be recalled. The D-05 features 1/8" stereo inputs and outputs, as well as full sized 5-pin DIN MIDI connectors (In/Out). The unit offers USB MIDI/audio and can be powered via USB or by the included four "AA" batteries. -
- Precision sonic recreation of the D-50 from the makers of the original
- Digital Circuit Behavior (DCB) faithfully captures every detail
- Authentic user interface including joystick control
- All the original presets plus fresh new sounds
- Compatible with original D-50 patches
- 64-step, polyphonic onboard sequencer and arpeggiator
- Rugged construction with metal front panel
- Highly portable for mobile music-making
- Battery operated (4 x AA) or USB powered
- Built-in powered mini-speaker for instant enjoyment
- Compatible with optional Roland Boutique accessories
UPC: 761294511473 In the Box Roland Boutique D-05 Linear Synthesizer Module 4 x Alkaline Batteries (AA, LR6) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland Boutique D-05 Linear Synthesizer Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland D-05 Specs | Polyphony | 16 voices | | Patch Memory | Preset Patch: 6 x 64
User Patch: 8 x 64

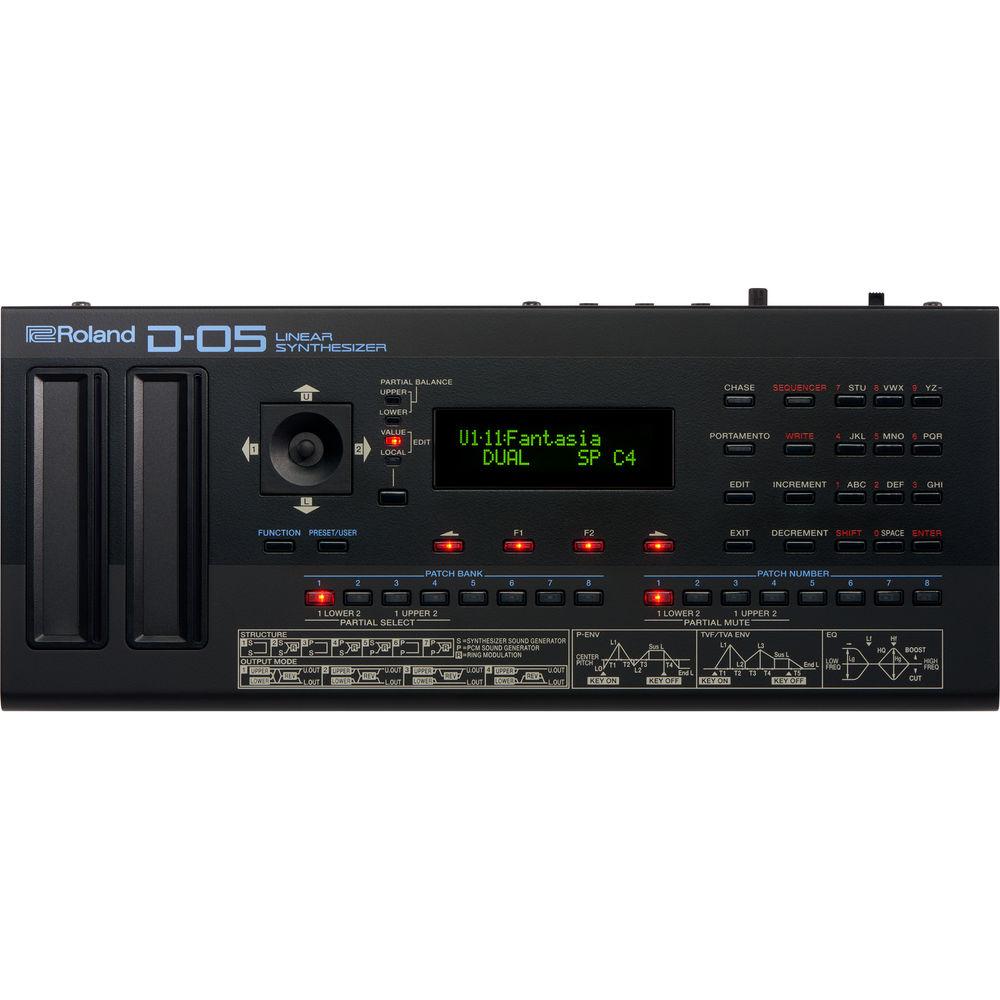

Pattern: 64 | | Controllers | VOLUME knob
Ribbon controllers C1, C2
Joystick
FUNCTION button
PRESET/USER button
PARTIAL BALANCE/EDIT select button
UPPER/LOWER/VALUE/LOCAL indicator
Left cursor/F1/F2/right cursor button and indicator
CHASE button and indicator
PORTAMENTO button and indicator
EDIT button
EXIT button
SEQUENCER button and indicator
WRITE button
INCREMENT button
DECREMENT button
Numerical keys (0-9, SHIFT, ENTER)
PATCH BANK buttons and indicators (1-8)
PATCH NUMBER buttons and indicators (1-8)
Power switch | | Step Sequencer | 64 steps | | Arpeggio | Type: 1 oct (Up, U+D, Down), 2 oct (Down, U+D, Up)

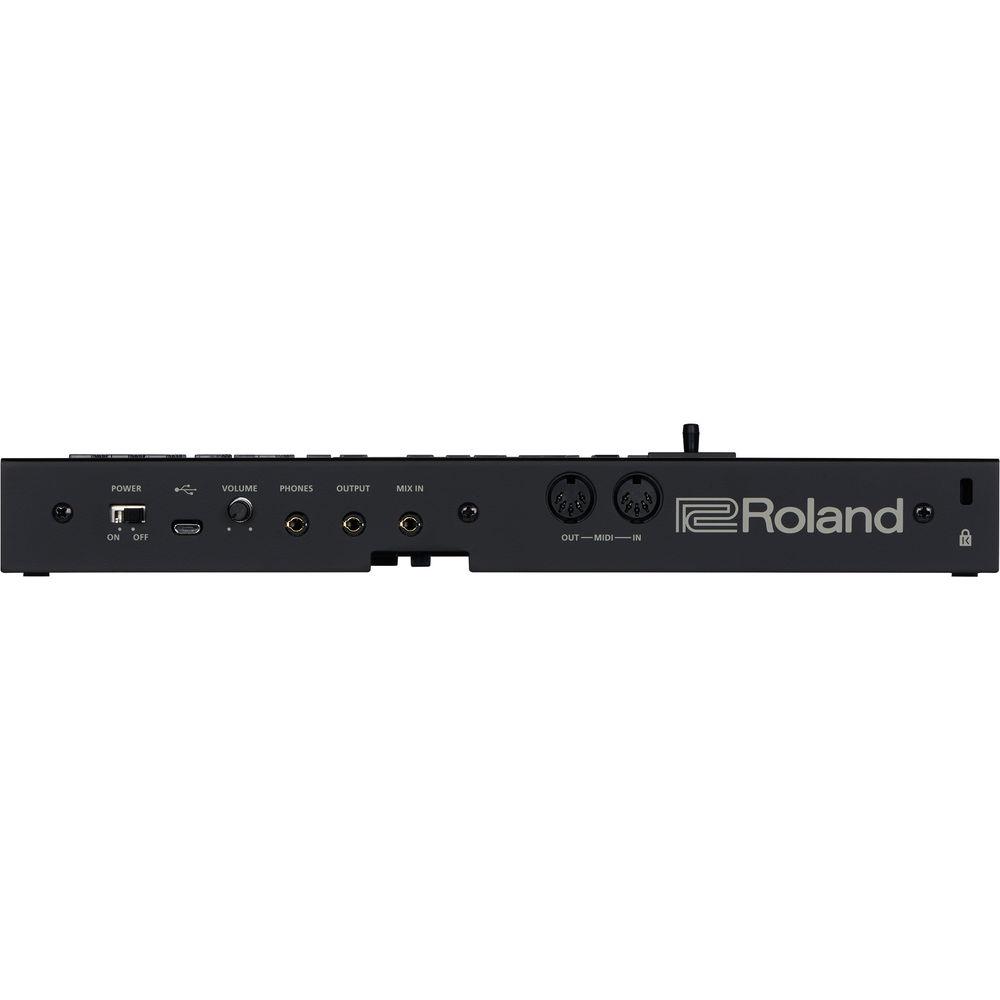

Step: 1/4, 1/8, 1/16, 1/4T, 1/8T, 1/16T | | Display | 16 characters 2-line LCD | | Connectors | Phones: Stereo 1/8" / 3.5 mm
Output: Stereo 1/8" / 3.5 mm
Mix Input: Stereo 1/8" / 3.5 mm
MIDI: In, out connectors
USB Port: Micro-B type (audio, MIDI) | | Power Supply | 4 x rechargeable NiMH batteries (AA, HR6)
4 x alkaline batteries (AA, LR6)
USB bus power | | Current Draw | 500 mA (USB bus power) | | Expected Battery Life | Rechargeable NiMH Batteries: Approximately 5 hours
This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use | | Options | Keyboard Unit: K-25m

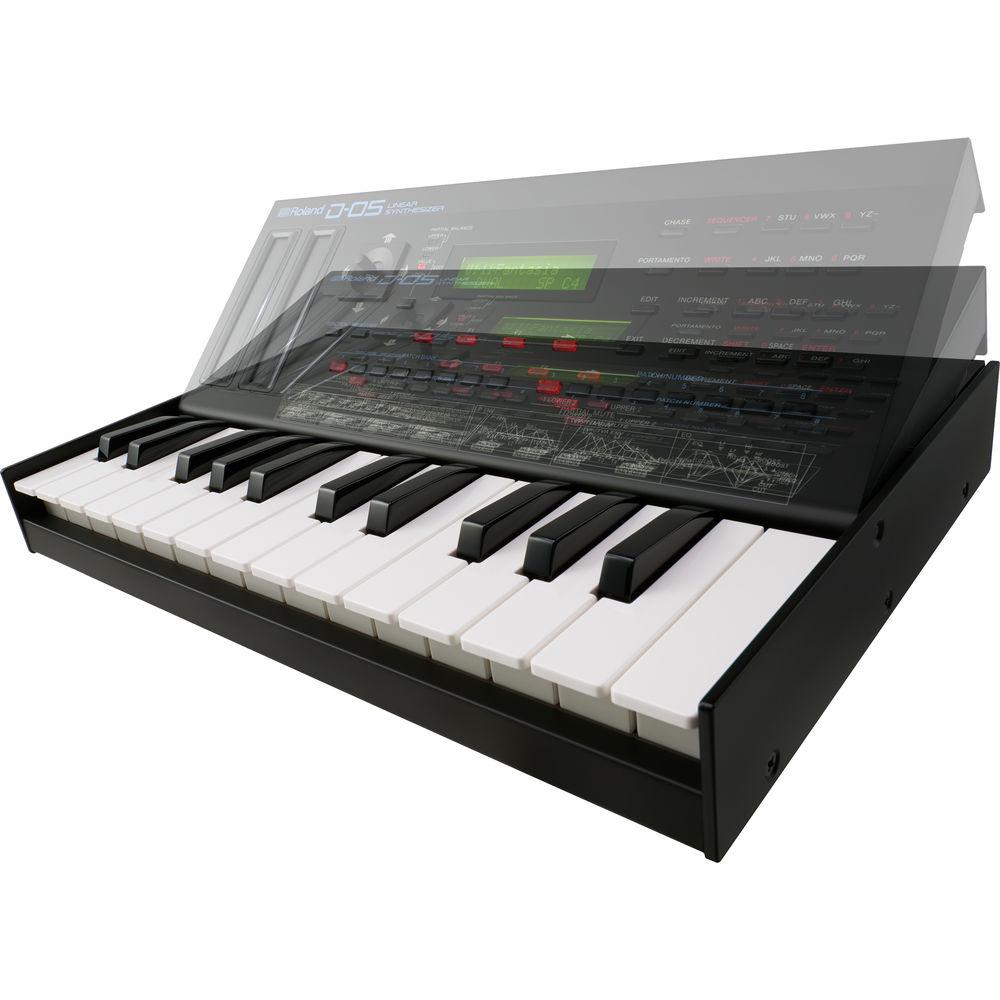

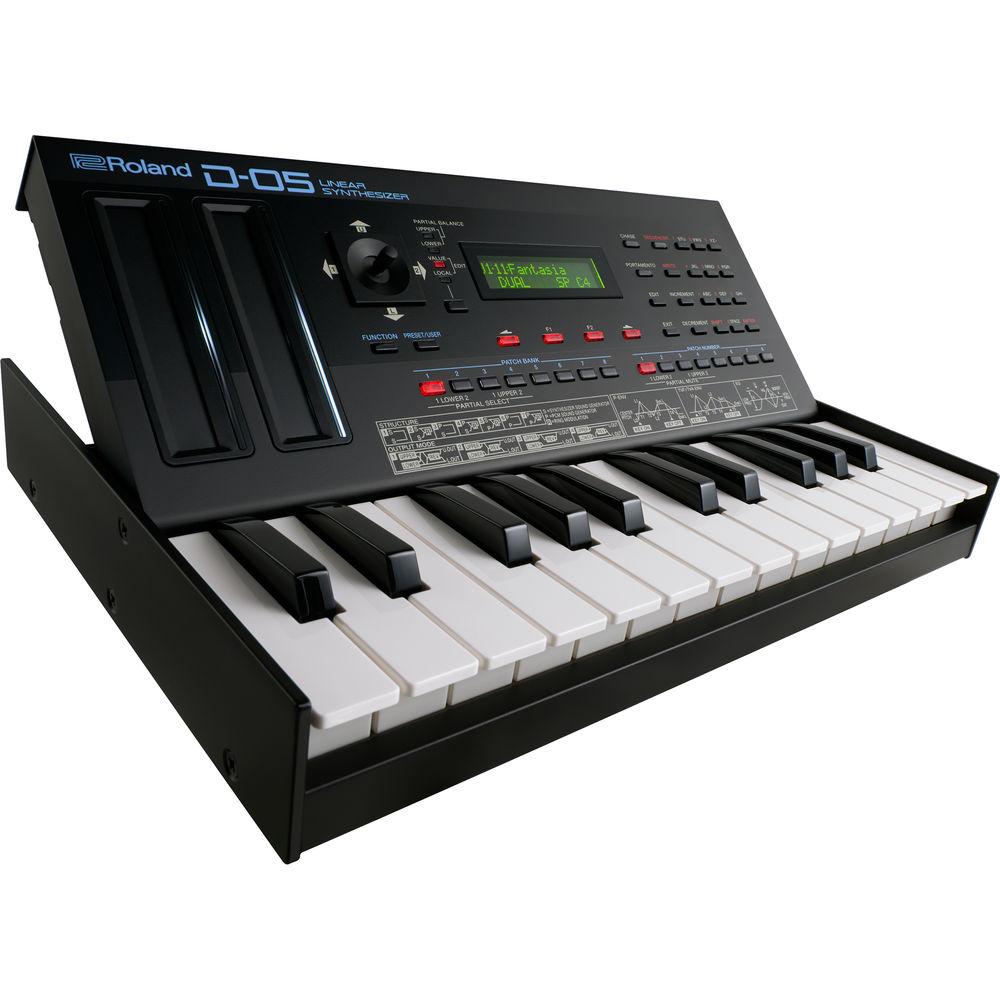

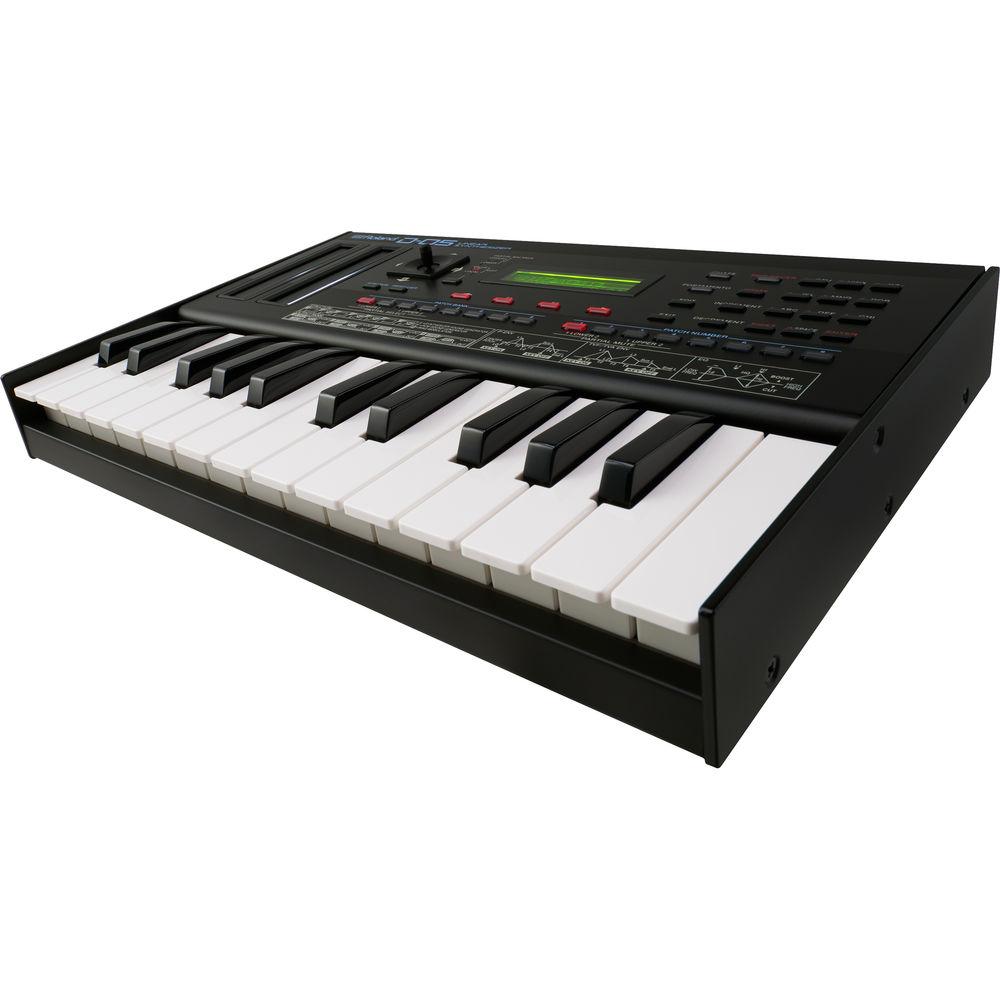

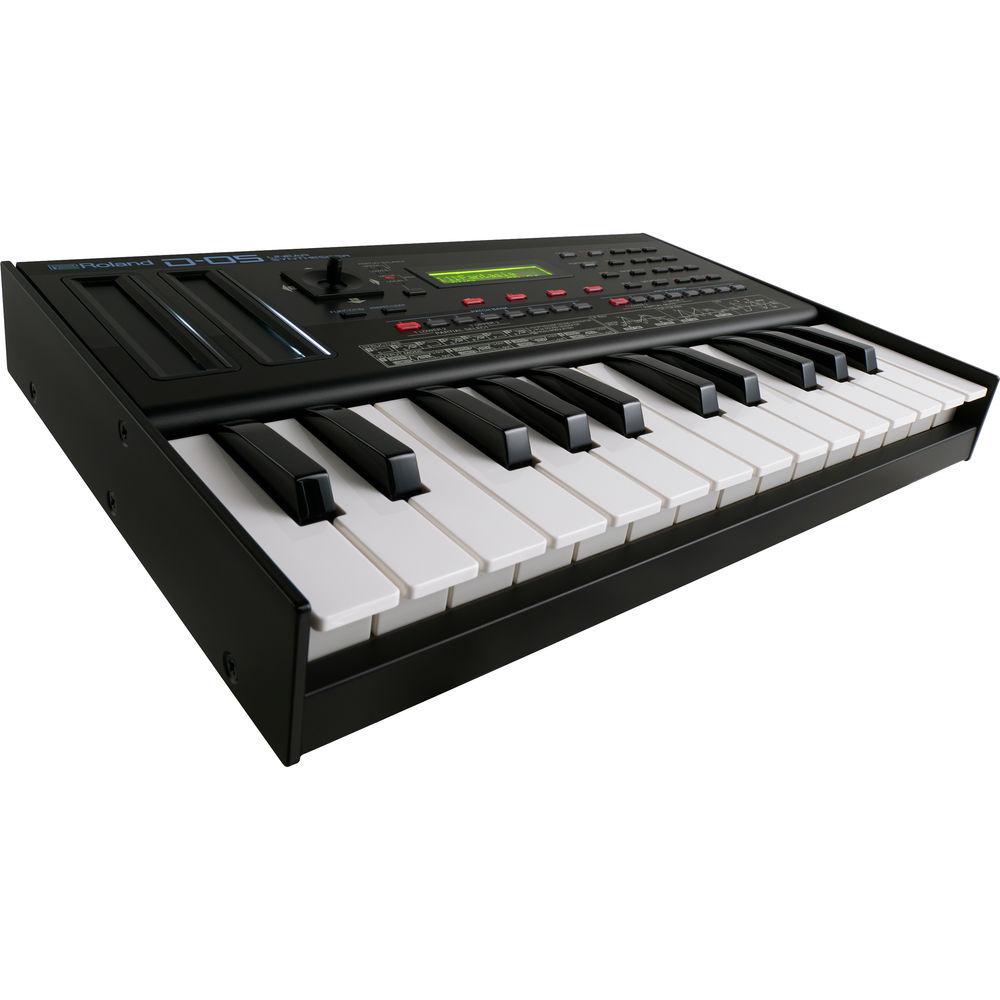

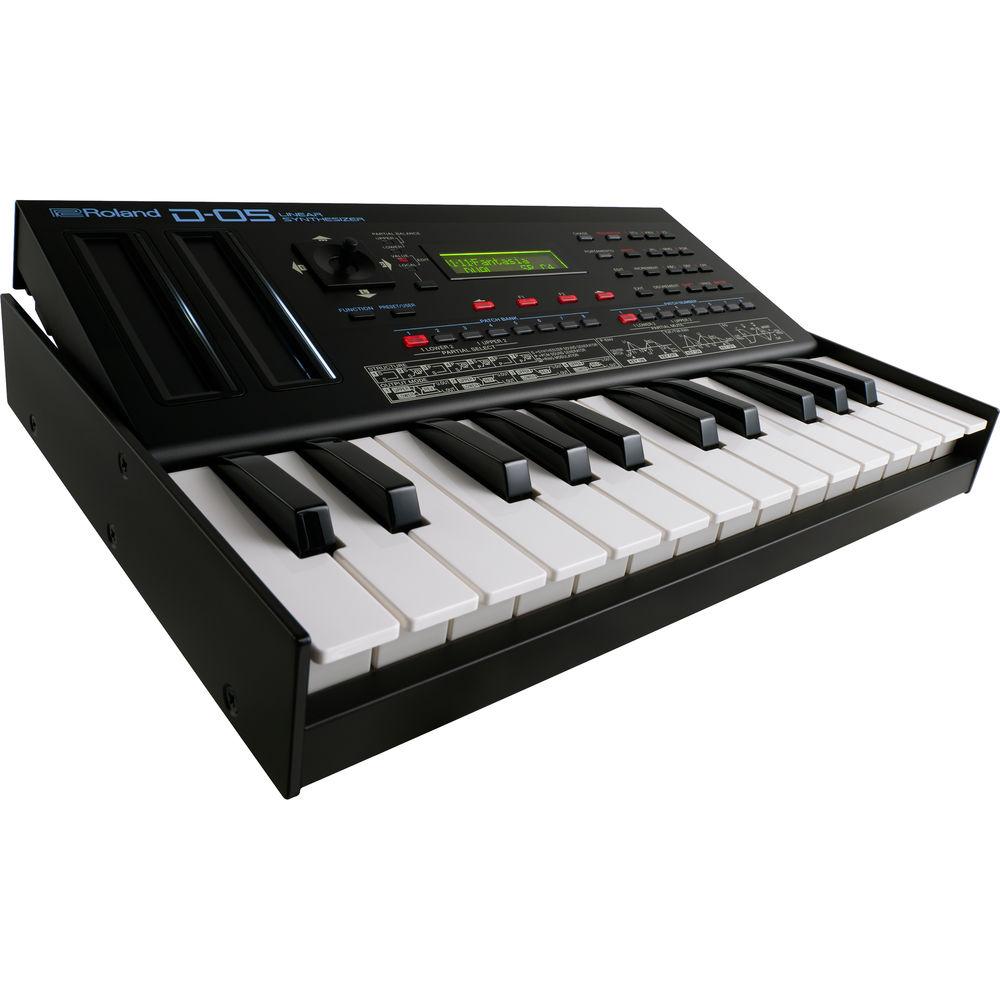

Boutique Dock: DK-01 | | Dimensions | 11.8 x 5.0 x 1.8" / 300.0 x 128.0 x 46.0 mm | | Weight | 2.0 lb / 0.9 kg (with batteries) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 13.9 x 7.1 x 3.1" |
