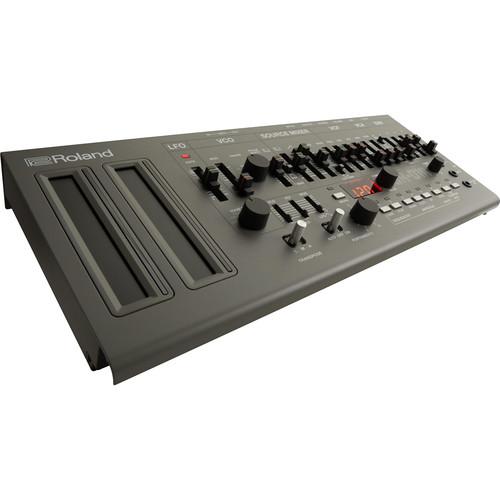

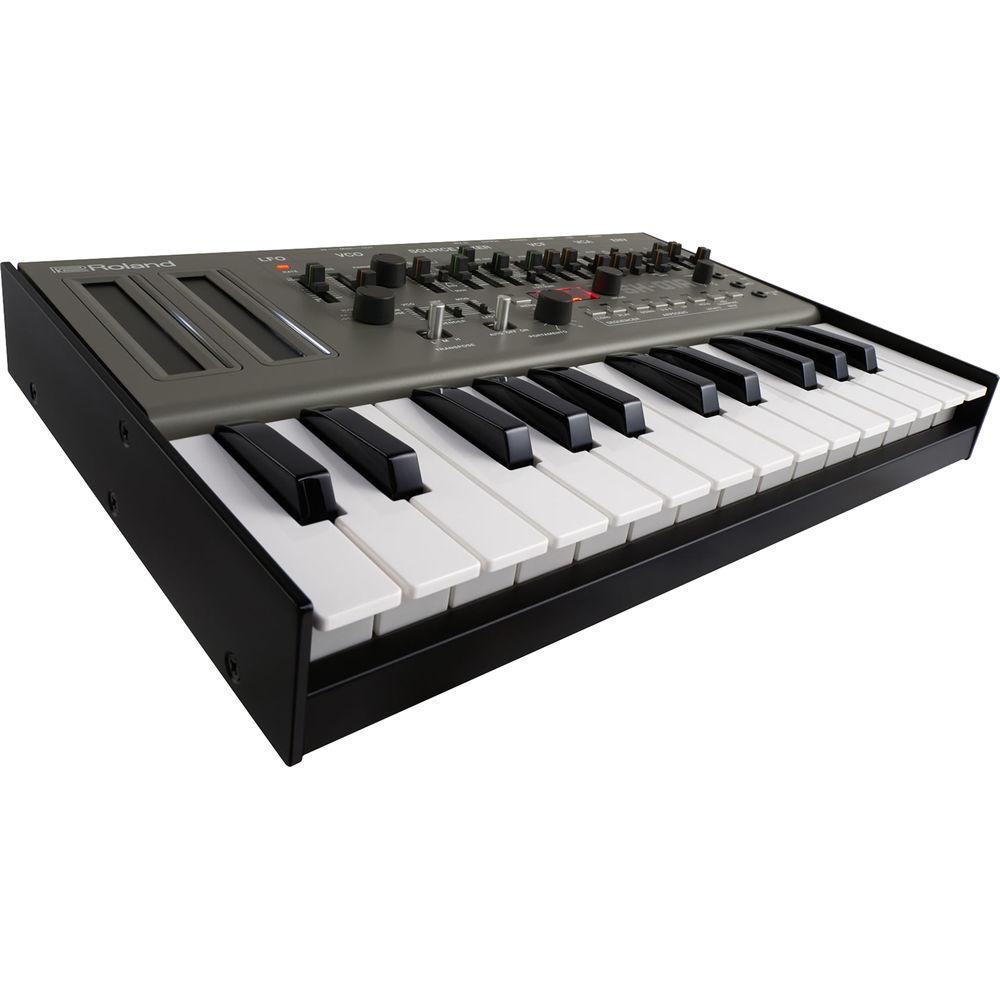

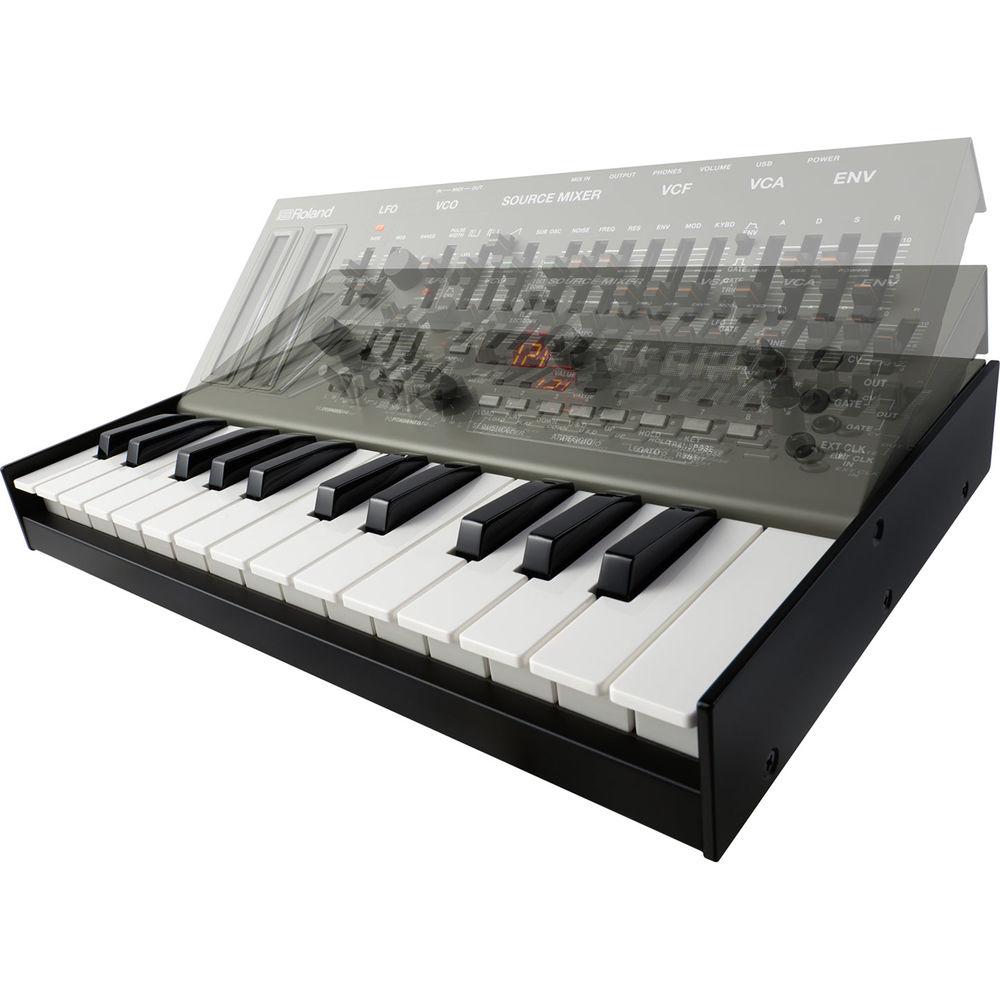

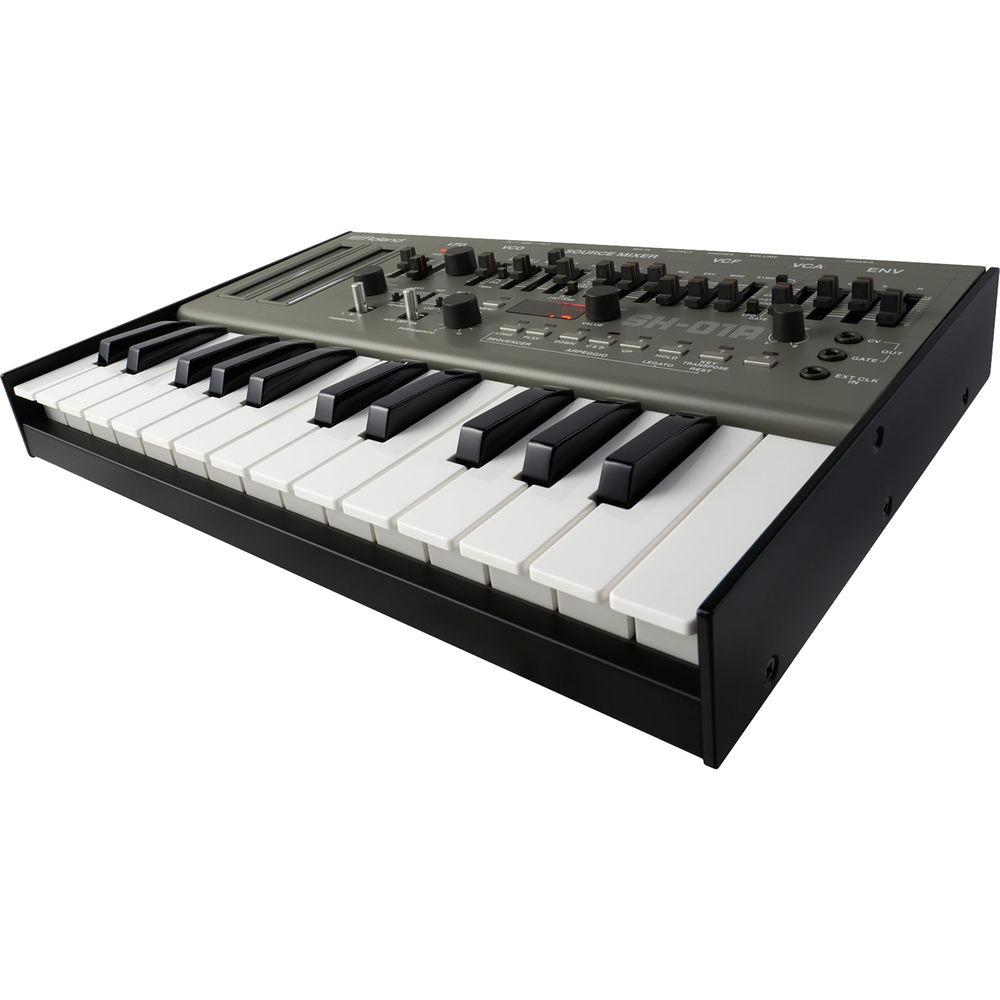

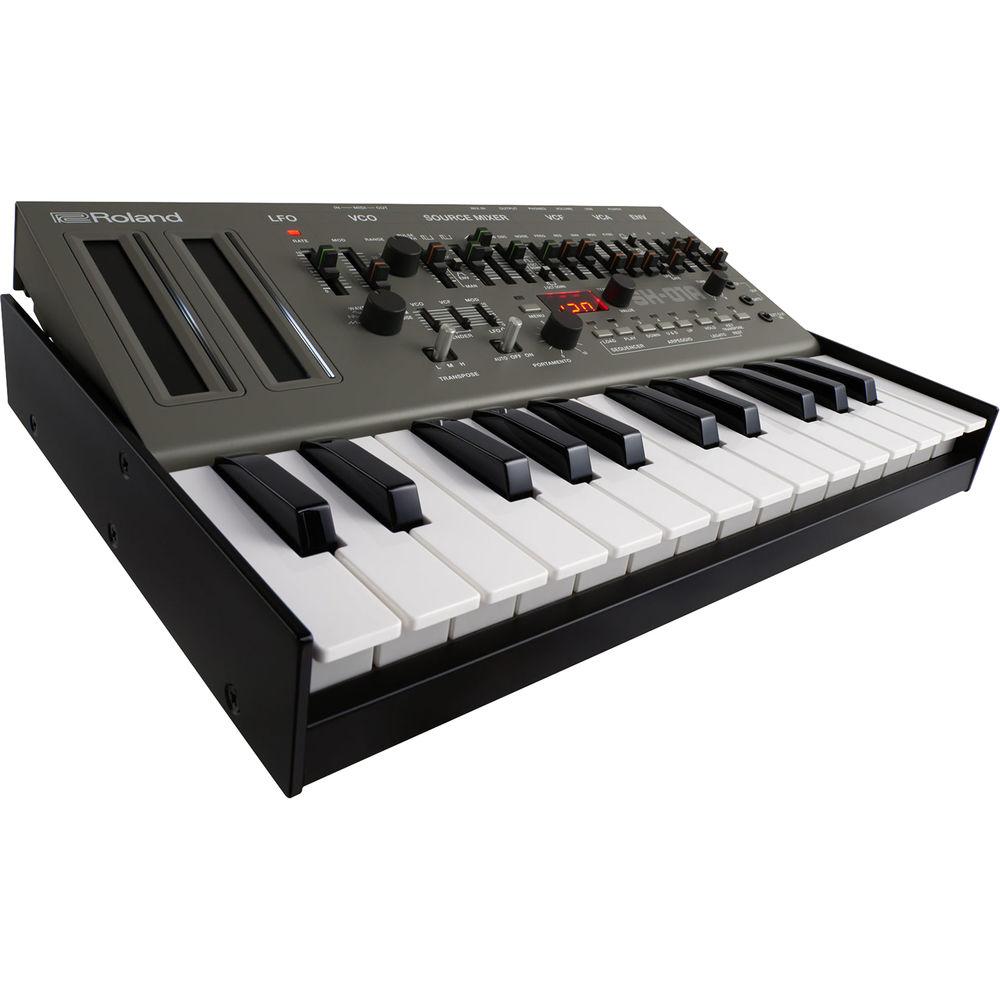

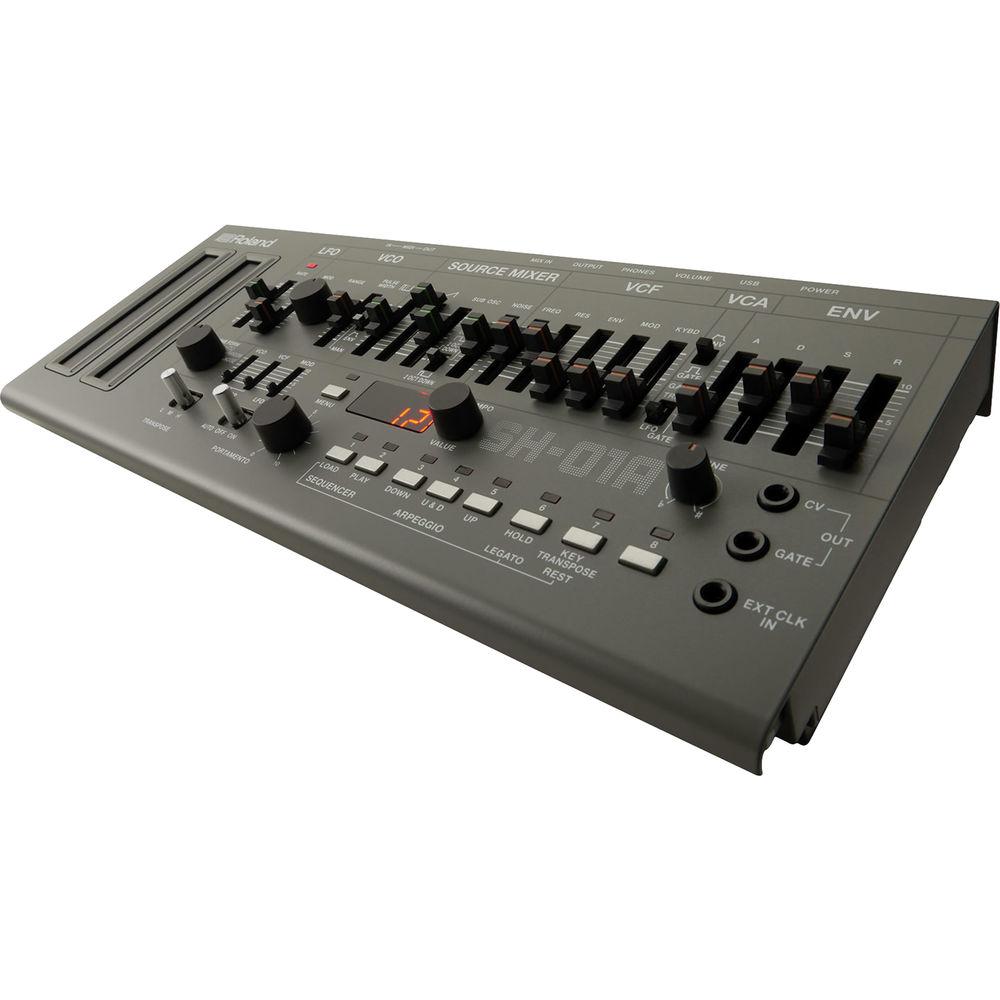

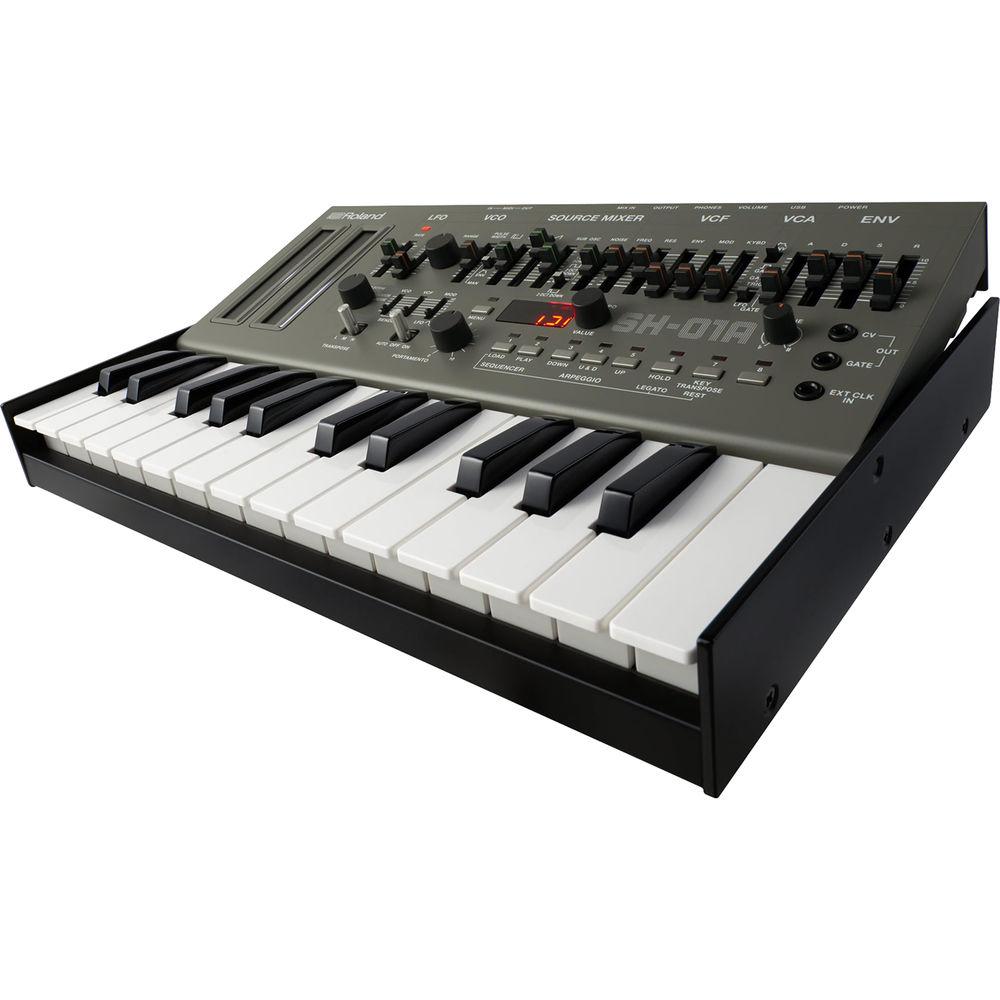

Product description Rolands Latest Boutique Synth: SH-01A Synthesizer Read More The Roland Boutique SH-01A Synthesizer Module is a 4-voice, analog-modeling synthesizer based on the classic SH-101. Part of the Roland Boutique series, the SH-01A can be used with the optional K-25m keyboard unit or the DK-01 dock for a self-contained, go-anywhere synth experience. With an array of over 20 knobs and sliders from the original SH-101's front panel, the 4-voice SH-01A is highly programmable and encourages sonic experimentation. Highly portable, it features a built-in speaker, battery operation on four AAs, as well as USB bus power. Using Analog Circuit Behavior (ACB) technology the SH-01A aims to faithfully reproduce the original SH-101 sound, and adds a few new twists including selectable advanced LFO with new waveforms and an extended range, as well as expanded modes such as unison, chord, and four-voice polyphonic.
The SH-01A includes 64 writable patches and provides an easy performance arpeggiator with three playback modes, note hold, and a three-way transpose switch. The instrument also features an on-board, 100-step sequencer that lets you quickly try out new ideas such as bass lines and melodies, which can be saved within the 64 patches. Additionally, the device offers CV/Gate output for controlling modular or vintage gear, plus multiple sync options including internal and external MIDI, MIDI via USB, LFO clock, and trigger input. The Roland Boutique SH-01A ships with four AA batteries. - Features at a Glance:
-
- Sounds of the classic SH-101 synthesizer via ACB tech, including bass, lead, noise, and sound effects
- New Unison, Chord, and four-voice Polyphonic modes expand on the original’s iconic sound palette
- Built-in sequencer with 64 patterns available to save and recall
- Easy performance arpeggiator with three playback modes, note hold, and three-way transpose switch
- CV/Gate output for controlling modular or vintage gear
- Multiple sync options including internal and external MIDI, MIDI via USB, LFO clock, and trigger input
- 64 writeable preset patches for increased performance capabilities
- Selectable advanced LFO with new waveforms and extended range of clock rate
- Sends and receives MIDI control change messages via traditional MIDI jacks or USB
- High-quality construction with metal front panel
- Highly portable for mobile music making
- Battery-operated (4 x AA) or USB powered
- Compatible with the K-25m Keyboard Unit and other optional Roland Boutique accessories
- Available in limited-edition red and blue colors like the original SH-101
UPC: 761294511459 In the Box Roland Boutique SH-01A Synthesizer Module 4 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland Boutique SH-01A Synthesizer Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

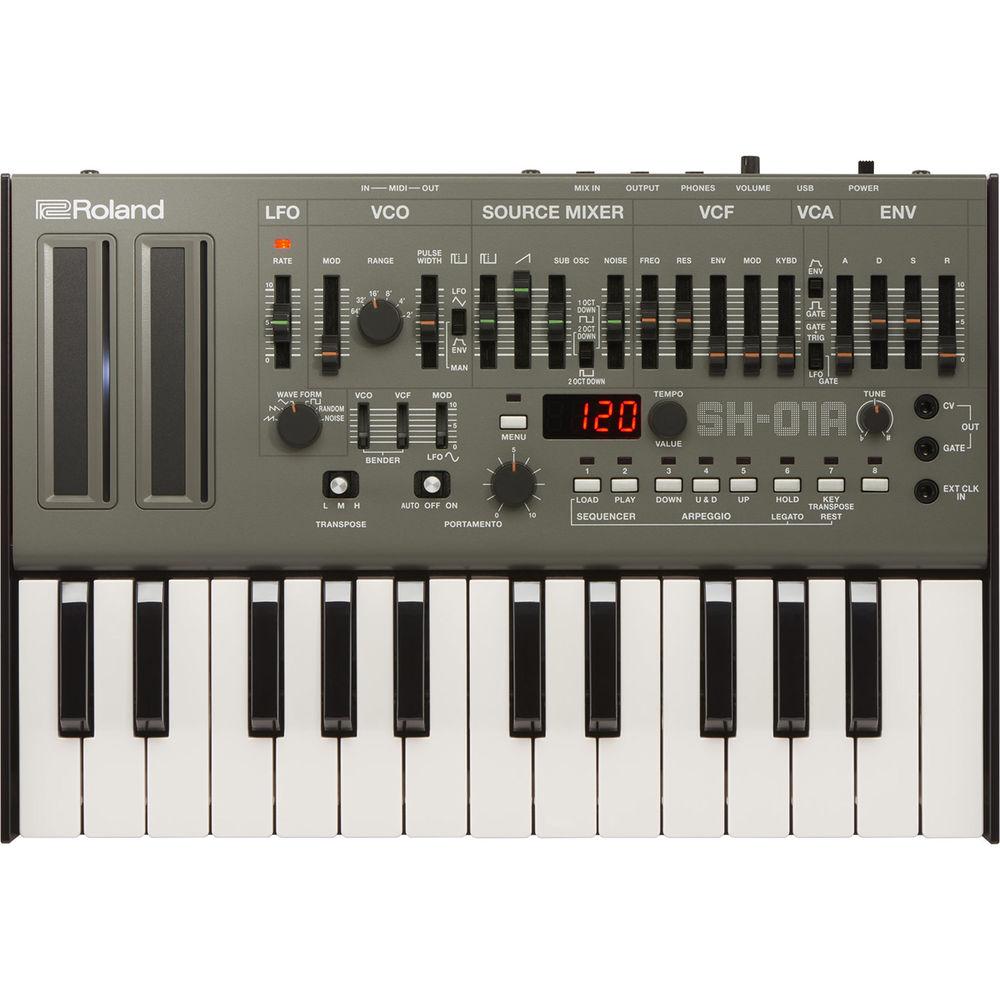

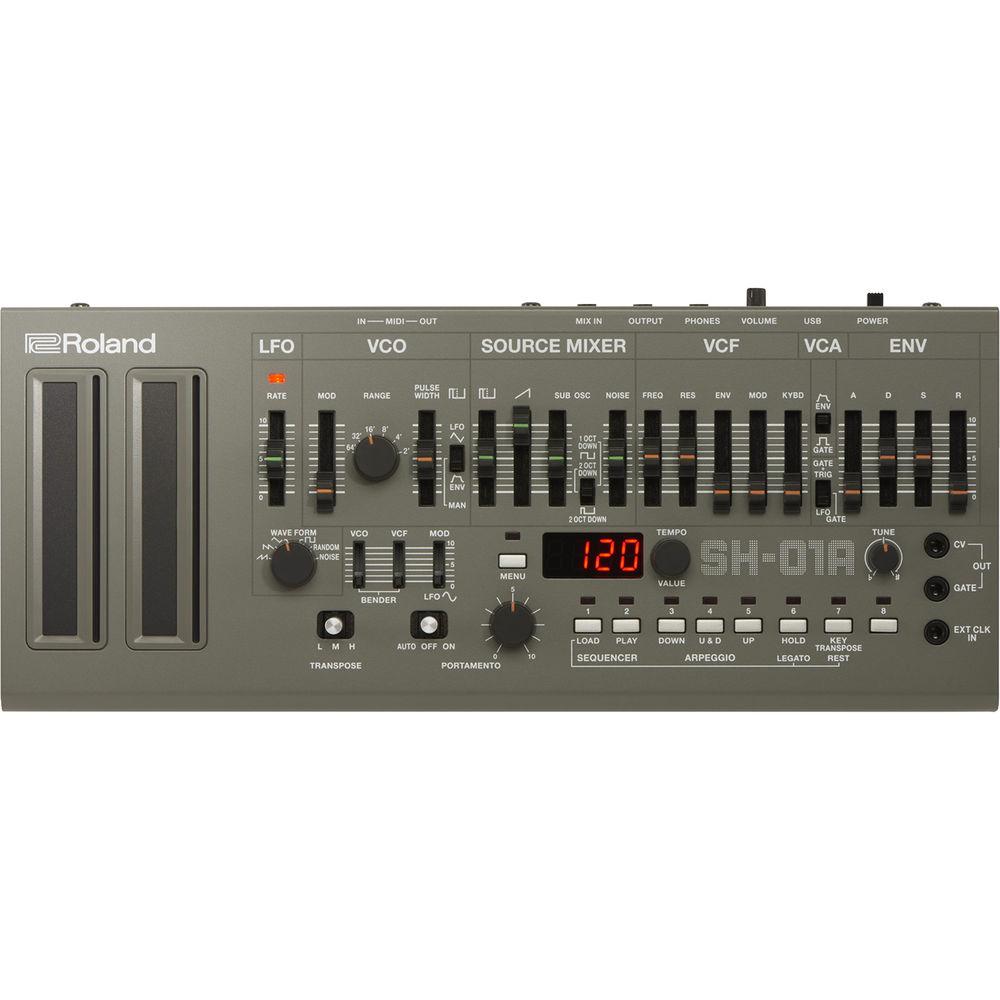

Technical parametersRoland SH-01A Specs | Sound Generation | Maximum Polyphony: 4 voices
Assign Mode: Mono/Unison/Poly/Chord | | User Memory | Sound Patch: 64
Sequencer Pattern: 64 | | Controllers | VOLUME knob
Ribbon controllers C1, C2
LFO Section:
RATE indicator and slider
WAVE FORM select knob
VCO Section:
MOD depth slider
RANGE select knob
PULSE WIDTH slider
LFO/MAN/ENV select switch
SOURCE MIXER Section:
PULSE level slider
SAW level slider
SUB OSC level slider
SUB OSC select slider
NOISE level slider
VCF Section:
FREQ: Cutoff frequency slider
RES: Resonance slider
ENV: Envelope depth slider
MOD: Modulation depth slider
KYBD: Key follow slider
VCA Section:
ENV/GATE select switch
ENV Section:
GATE+TRIG/GATE/LFO select switch
A: Attack time slider
D: Decay time slider
S: Sustain level slider
R: Release time slider
Controller Section:
TRANSPOSE switch (L/M/H)
VCO BENDER sens slider
VCF BENDER sens slider
LFO MOD slider
PORTAMENTO select switch (AUTO/OFF/ON)
PORTAMENTO time knob
MENU switch and indicator
SEQUENCER/ARPEGGIO Section:
1/LOAD switch and indicator
2/PLAY switch and indicator
3/DOWN switch and indicator
4/U&D switch and indicator
5/UP switch and indicator
6/HOLD switch and indicator
7/KEY TRANSPOSE switch and indicator
8 switch and indicator
Power switch | | Step Sequencer | 100 steps
4 notes (polyphonic) | | Arpeggio | DOWN/U&D/UP
1 OCT/2 OCT | | Display | 7 segments, 2 characters (LED) | | Connectors | CV Out Jack: 1/8" / 3.5 mm mono
Gate Out Jack: 1/8" / 3.5 mm mono
Ext Clk In Jack: 1/8" / 3.5 mm mono
Phones Jack: 1/8" / 3.5 mm stereo
Output Jack: 1/8" / 3.5 mm stereo
Mix In Jack: 1/8" / 3.5 mm stereo
MIDI (In, Out) connectors
USB port: Micro-USB (Type-B audio, MIDI) | | Power Supply | Rechargeable NiMH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power | | Current Draw | 500 mA (USB Bus power) | | Expected Battery Life | Rechargeable NiMH Battery: Approx. 6 hours under continuous use (this can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use) | | Options | Keyboard Unit: K-25m
Boutique Dock: DK-01 | | Dimensions | 11.8 x 5.0 x 1.8" / 300.0 x 128.0 x 46.0 mm | | Weight | 34.2 oz / 970.0 g | | | | Package Weight | 3.185 lb | | Box Dimensions (LxWxH) | 14.05 x 7.1 x 3.2" |
