User Manual for Roland Boutique TB-03 Bassline Synthesizer Click to enlarge the picture
Contents of the user manual for the Roland Boutique TB-03 Bassline Synthesizer
- Product category: Synthesizer Keyboards Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Synthesizer Keyboards
 |
User manual for the Roland Boutique TB-03 Bassline Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

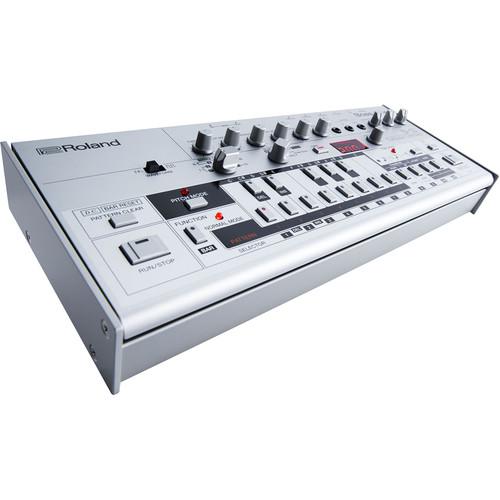

Product description The Boutique TB-03 Bassline Synthesizer from Roland features the classic sounds of the original TB-303 in the palm of your hand. The TB-03 retains the same layout and controls as the original but with several enhancements. Utilizing Roland's Analog Circuit Behavior (ACB) technology, the unit recreates the liquid grooves of the magic silver box. The enhanced feature set includes a four-digit LED display, which allows for precision sequencing, while the on-board overdrive and delay effects unleash a torrent of twisted, tribal sounds capable of sending an audience into a frenzy. The TB-03 ships in a silver Boutique DK-01 case and can be powered via USB or the included four AA batteries. - Roland's Analog Circuit Behavior
- You know when you hear a TB-303—a hypnotic, tribal sound that works best in dark, crowded rooms with big sound systems. Using the same ACB (Analog Circuit Behavior) technology from the acclaimed AIRA series, the TB-03 accurately emulates the expressive, slippery sound of its older brother, and even adds a few surprises. Saw and square waveforms are available, along with all of the rotary control knobs that help shape the 303's unique character, including tuning, cutoff, resonance, envelop mod, decay, and accent
- Features Not Found in the Original
- The TB-03 includes several enhancements over the original TB-303. Firstly, the four-digit LED display makes programming easier and more detailed, since you now have a visual representation of the value being edited. Then there are a variety of overdrive, delay, and reverb effects that dramatically change the mood and tone of the TB-03, going from smooth to spiky to squealing. Programming patterns is also easier thanks to added functions that include step write, shuffle, and fine tempo control. Finally, the inclusion of MIDI and USB ports mean that the TB-03 can send and receive control information and connect easily to computer-based DAWs
- Classic TB Sequencer with Enhanced Functions
- If you're familiar with the TB-303's programming method, then you'll feel right at home with the TB-03. The original Pitch and Time write modes are included, along with an added Step mode. Pattern programming is also enhanced by the LED display, which shows the current step in the sequence as well as showing fine tempo values (such as 125.5 BPM). The internal sequencer can be triggered externally via the trigger input, and you can even switch between write and play modes without stopping pattern playback, opening up many possibilities for live performance
- Connect with External gear
- The TB-03 includes MIDI In/Out ports and USB, allowing control information to be exchanged with other instruments and devices. This turns the TB-03 into a versatile controller, especially as you can use the CV/Gate output to control external analog gear and modular synthesizers. This level of control works both ways, thanks to the trigger input that lets external gear drive the TB-03's internal sequencer. Once connected to a Windows computer or Mac, both audio and MIDI data can be sent through the USB port
- Battery or USB Bus Power
- Some of the best music is made away from the studio, so the Roland Boutique series runs on 4 x AA batteries, ready for when inspiration strikes. Alternatively, the TB-03 can run on USB bus power
- USB Audio Interface for Direct Recording to Your DAW
- Via its USB port, the TB-03 functions as a high-quality 24-bit/96 kHz audio interface, providing a simple and reliable way of recording directly to your DAW application. You can keep your favorite settings and sequencer patterns safe too via the USB data backup function
UPC: 761294509487 In the Box Roland Boutique TB-03 Bassline Synthesizer DK-01 Boutique Dock (Silver) 4 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland Boutique TB-03 Bassline Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland TB-03 Specs | Memory | User Memory
Patterns: 96 (4 groups (I, II, III, IV) x 3 sections (A, B, C) x 8 patterns)

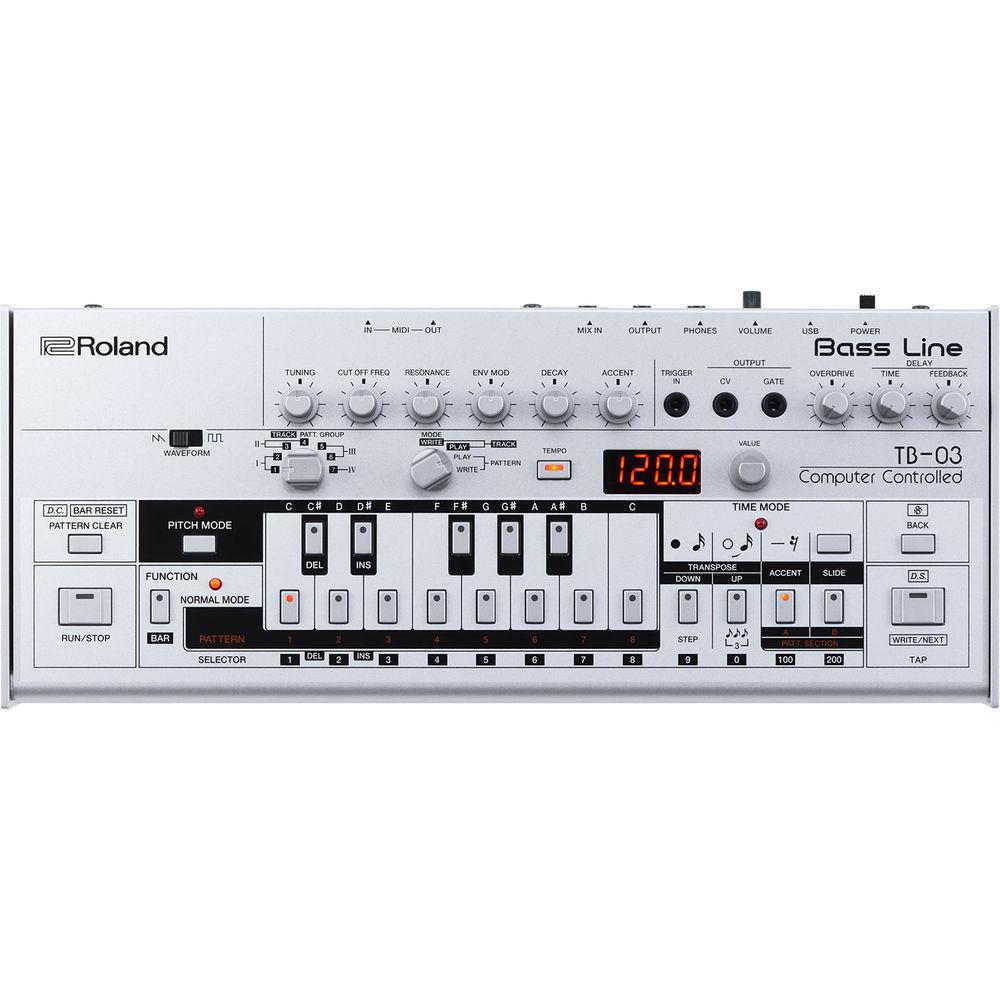

Tracks: 7 | | Waveform | 2 (Saw, Square) | | Controllers | Volume knob
Tuning knob
Cutoff Freq knob
Resonance knob
Env Mod knob
Decay knob
Accent knob
Overdrive knob
Delay Time knob
Delay Feedback knob
Waveform knob
Track Pattern Group selector
Mode Selector
Tempo button
Value knob
Pattern Clear button
Run/Stop button
Pitch Mode button
Function button
Keyboard buttons (C, C#, D, D#, E, F, F#, G, G#, A, A#, B, C)
Time Mode button
Transpose Up/Down buttons
Accent button
Slide button
Back button
Tap button | | Effects | Overdrive (Overdrive/Distortion)
Delay (Tape Echo/Digital Delay/Reverb) | | Indicators | 7 segments, 4 characters (LED)
Pitch Mode LED
Normal Mode LED

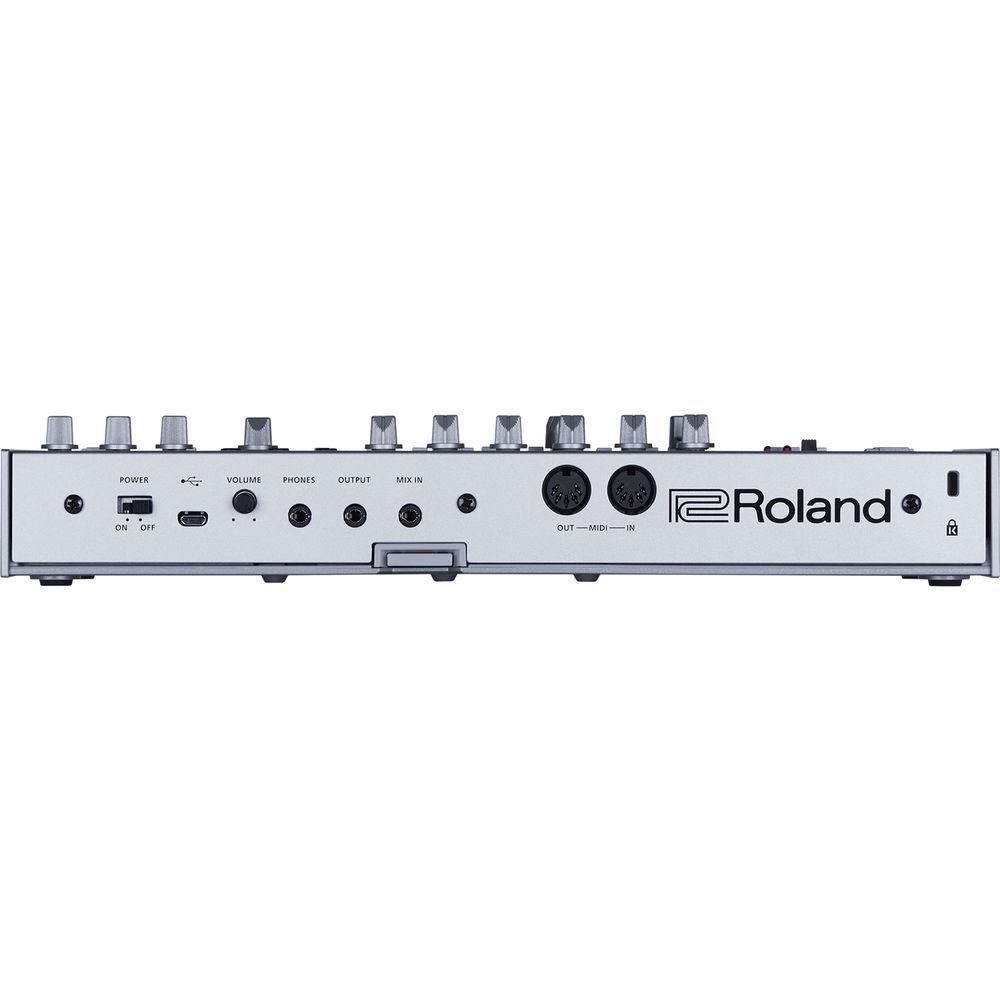

Time Mode LED | | Connectors | Trigger In: 1/8" / 3.5 mm mono (TS)
CV Output: 1/8" / 3.5 mm mono (TS)
Gate Output: 1/8" / 3.5 mm mono (TS)
Headphones: 1/8" / 3.5 mm stereo (TRS)
Output: 1/8" / 3.5 mm stereo (TRS)
Mix In: 1/8" / 3.5 mm stereo (TRS)
MIDI In/Out: 2 x 5-pin DIN

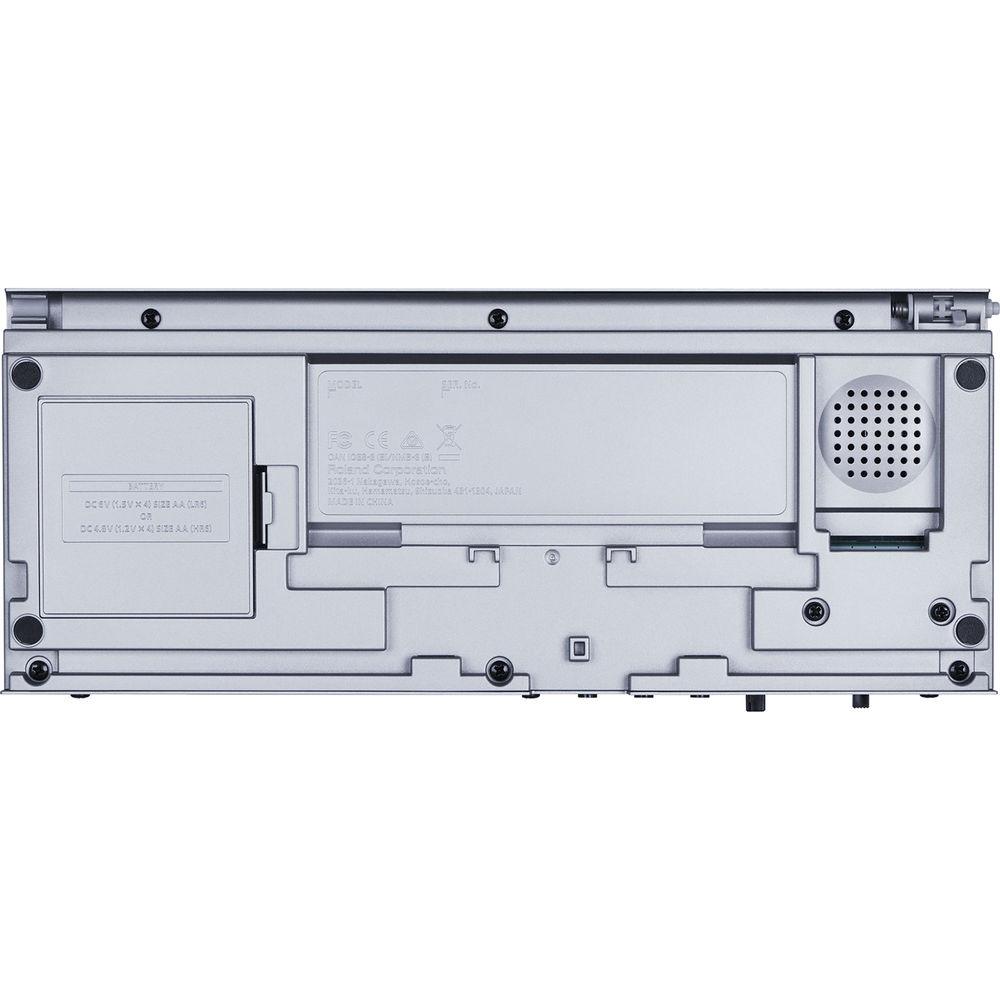

USB Port: micro-USB Type-B (Audio, MIDI) | | Power | Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power | | Current Draw | 500 mA (USB bus power) | | Battery Life (approx.) | Rechargeable Ni-MH battery: Approx. 5 hours | | Dimensions (W x D x H) | 12.1 x 5.1 x 2.0" / 308.0 x 130.0 x 52.0 mm | | Weight | 33.2 oz / 940.0 g | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 13.9 x 7.1 x 3.8" |
