User Manual for Roland CD-2u SD CD Recorder Click to enlarge the picture
Contents of the user manual for the Roland CD-2u SD CD Recorder
- Product category: CD/DVD/Blu-Ray Recorders & Players Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland CD/DVD/Blu-Ray Recorders & Players
 |
User manual for the Roland CD-2u SD CD Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description - Product Demo 1
- Product Demo 2
- Product Demo 3

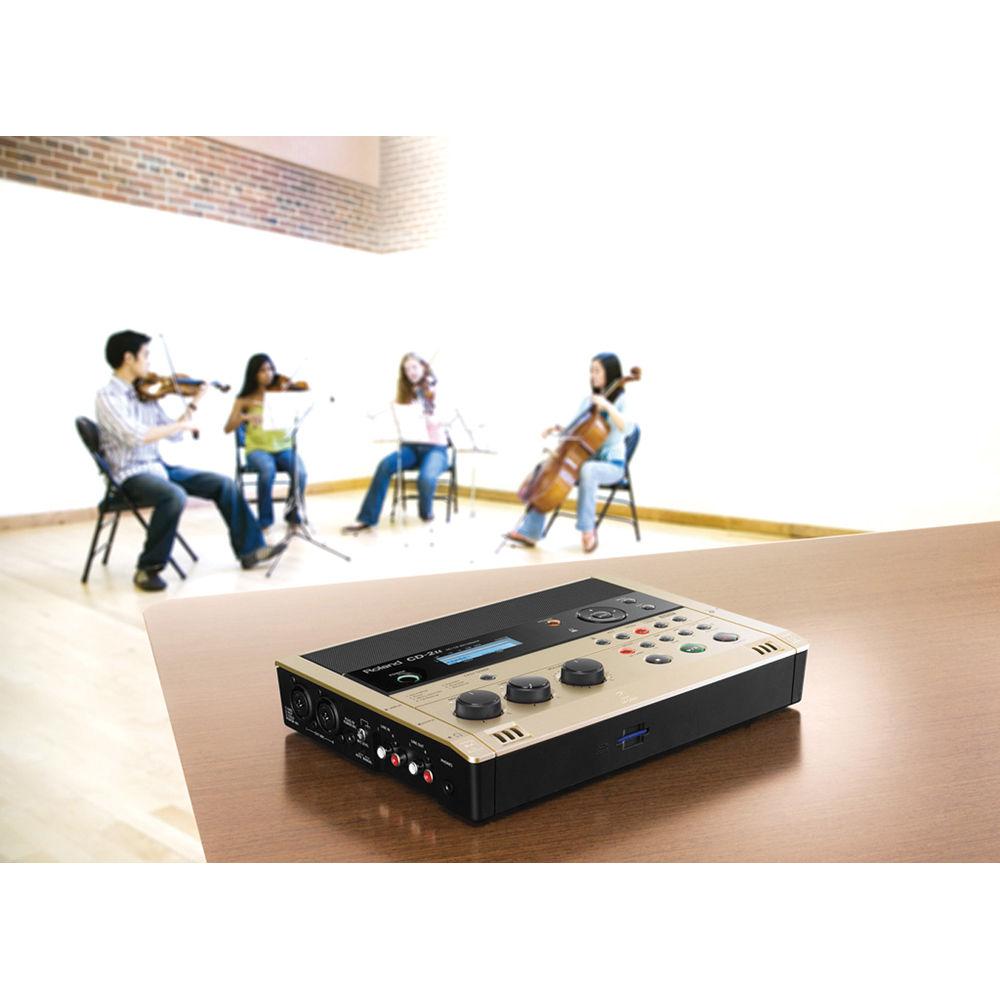

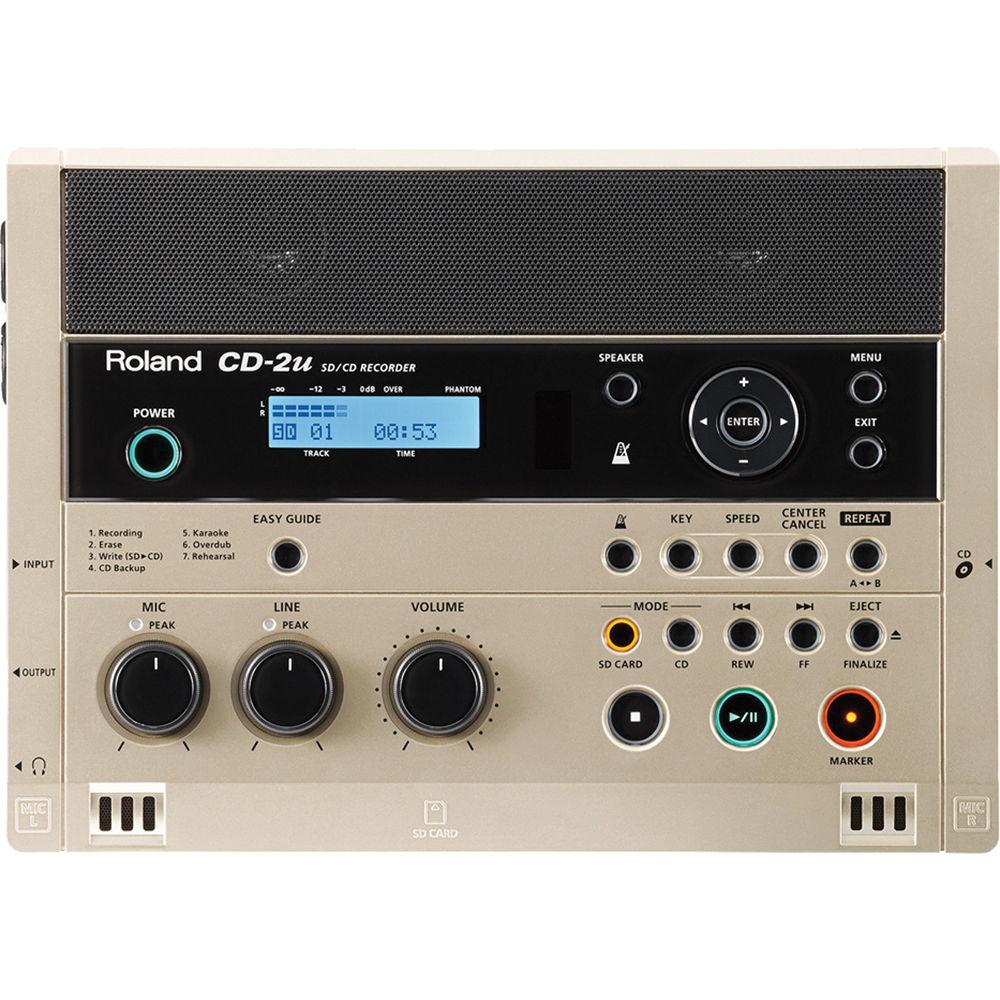

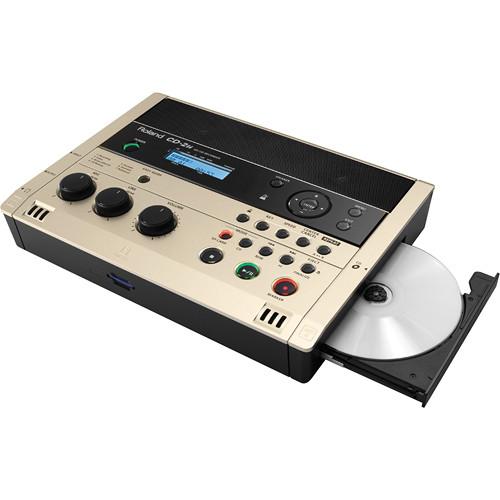

The CD-2u SD/CD Recorder from Roland can be used to record audio directly to SD and SDHC cards as well as CD-Rs and CD-RWs. It features built-in stereo microphones as well as two combination XLR/TRS microphone inputs with 48V phantom power. It also accepts audio from a 1/8" plug in power mic input as well as stereo RCA line inputs. The CD-2u is also designed to be used as a training tool and features a built-in tuner and metronome as well as playback speed and key adjustment. These features allow you to slow a song down to learn a difficult passage or adjust its key to suit your voice. The include wireless remote allows you to start and stop recording from a distance. The CD-2u can be powered by six AA batteries or the included AC adapter. - Intuitive Operation
- The CD-2u records to SD/SDHC cards, and can also record directly to CD-R and CD-RW discs when using AC power. Thanks to the Easy Guide feature has on-screen instructions that guide you every step of the way. Easy Guide covers not only recording functions, but also CD backup, creating minus-one tracks for practice and karaoke, setting proper input levels, and other operations. You can even choose among English, German, French, Italian, Spanish, or Japanese for the display language
The included AC adapter is required for CD playback and recording. - Connect External Mics and Other Devices

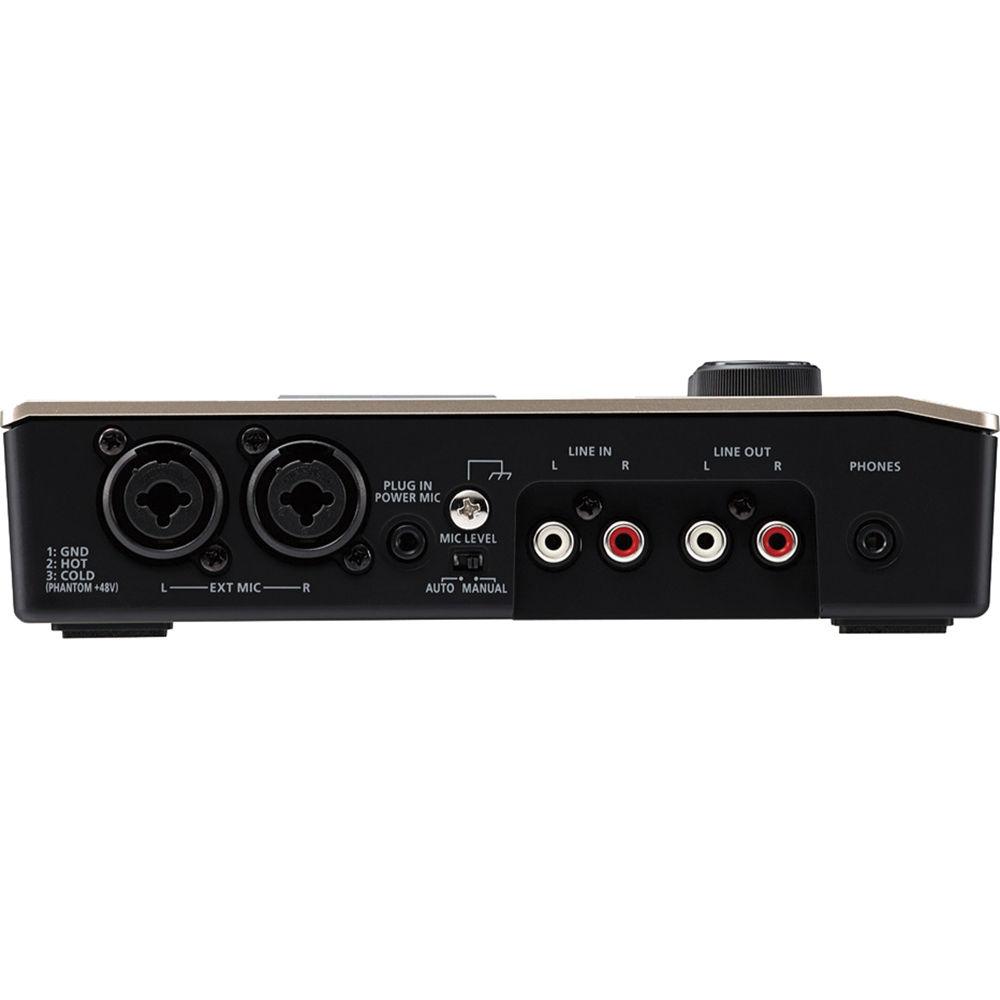

- While it can be used as a standalone unit, the CD-2u also provides connections to integrate external devices for various applications. Two XLR/TRS combo jacks allow you to connect your own mics (with phantom power available if needed), including a stereo field-recording mics. There is also a stereo mini-mic jack with Plug In Power, plus stereo RCA LINE IN jacks for connecting an instrument, music player, or other audio source
- Your Education and Practice Partner
- The CD-2u has tools not only for developing music skills, but also other applications such as learning languages, transcribing spoken-word audio, and more. You can independently adjust the speed and key with exceptional audio quality, perfect for slowing down passages to learn difficult parts or changing the key of music to match your voice. Use A-B Repeat to play audio sections over and over, and turn on Center Cancel to create minus-one tracks for practice and karaoke. There's also the Center Focus feature, which isolates center-located sounds in music tracks to make them easier to hear and learn
UPC: 761294503683 In the Box Roland CD-2u SD/CD Recorder AC Adapter Power Cord 2GB SD Memory Card SD Card Case Wireless Remote Limited Warranty: 1-Year Parts / 90-Days Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland CD-2u SD CD Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland CD-2u Specs | | | Tracks | 2x Tracks (stereo) | | Sampling Frequency | 44.1 kHz | | Signal Processing | AD/DA Conversion: 24-Bits | | Recording Mode | SD/SDHC Memory Card: 16-Bit, 44.1 kHz WAV
CD-R
CD-RW
Audio CD | | Recording Media | SD Memory Card (supports 512 MB to 2 GB)
SDHC Memory Card (supports 4 GB to 16 GB)
CD-R
CD-RW | | Recording Time | CD-R/CD-RW:
650 MB: 74 minutes
700 MB: 80 minutes
SD Memory Card:
512 MB: 47 minutes
1 GB: 94 minutes
2 GB: 189 minutes
SDHC Memory Card:
4 GB: 377 minutes
8 GB: 755 minutes
16 GB: 1511 minutes
All recording time is approximate. | | Songs | Up to 99 songs on a single SD/SDHC Memory Card, CD-R, or CD-RW | | | | Audio Input | 1x Internal Right microphone input
1x Internal Left microphone input
2x Combo XLR/TRS Extension microphone inputs (L,R with phantom power)
1x 1/8" (3.5 mm) mic input
2x RCA line inputs (L,R) | | Outputs | 2x RCA line outputs
1x 1/8" (3.5 mm) headphone output | | Frequency Response | 20 Hz to 20 kHz (+0 dB/-2 dB) | | Input Level | Combo XLR/TRS Mic Inputs: -51 to -8 dBu
1/8" (3.5 mm)Mic Input: -51 to -13 dBu
RCA Line Inputs: -24 to -4 dBu | | Input Impedance | Combo XLR/TRS Mic Inputs: 8 kΩ
1/8" (3.5 mm)Mic Input: 20 k Ω
RCA Line Inputs: 9 kΩ | | Output Impedance | RCA Line Outputs: 1 kΩ
Headphone Output: 32 Ω | | | | Display | Backlit LCD with 2 lines and 16 characters | | Power Supply | AC Adapter
6x AA Batteries | | Current Draw | 1000 mA | | Battery Life | Alkaline: 5.5 hours (approximate)
Rechargeable Ni-MH: 6 hours (approximate) | | | | Dimensions (WxDxH) | 10.9 x 7.7 x 2.2" (27.8 x 19.6 x 5.5 cm) | | Weight | 3.1 lb (1.4 kg) | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 14.9 x 10.3 x 6.7" |
