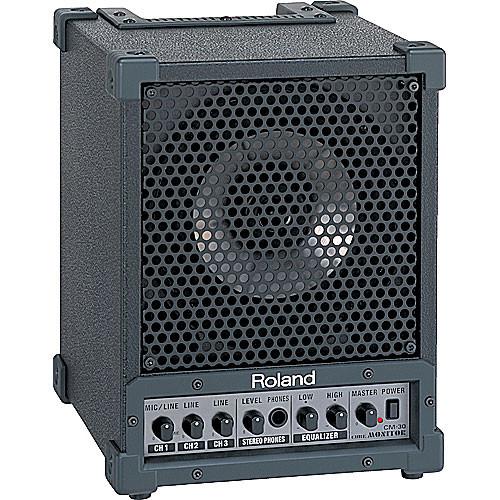

User Manual for Roland CM-30 CUBE Active Monitor Speaker Click to enlarge the picture
Contents of the user manual for the Roland CM-30 CUBE Active Monitor Speaker
- Product category: Portable PA Systems Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Portable PA Systems
 |
User manual for the Roland CM-30 CUBE Active Monitor Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Roland CM-30 CUBE Monitor CUBE Monitor is an inexpensive 2-way, 6.5" active coaxial speaker, with 30 Watts of built-in amplification, suitable for stage, studio, or presentation use. The CM-30 is equipped with an XLR input for dynamic microphones, a 2-band equalizer section, a stereo headphone output with a separate level control, and a versatile complement of line and auxiliary inputs and outputs for connecting external audio devices, such as CD or cassette players, and external outboard processors. There is also a stereo link section for connecting two units, and effectively doubling the available channels. The CM-30 is a cost-effective monitoring solution with a nice reservoir of clean power and useful features. - Versatile active monitor for the studio, stage, lectures and presentations with 30 Watt output
- 6.5" coaxial 2-way speaker with stereo preamp
- 3 separate input channels with one XLR mic or line, 2 additional Aux inputs for CD or cassette players, external effects processors
- Stereo Link function for stereo connection of two units with total of 8 stereo inputs, and 2 mono mic/line inputs
- Stereo headphone output with dedicated level control, built-in 2-band EQ
- Metal grill cover for speaker, metal corner protectors for enclosure

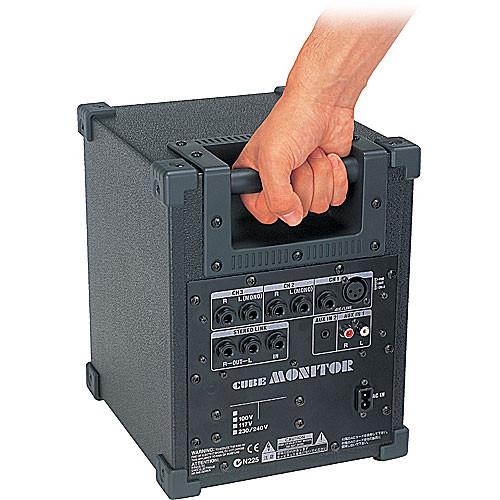

- All-metal, recessed carrying handle for easy transportation
UPC: 761294086322 In the Box Roland CM-30 CUBE Active Monitor Speaker AC Adapter 4 x Rubber Feet Owner's Manual 1 Year Warranty Manual PDF 573.1kbrwwsvfqzvtrqxvwrdedbdwaecbxdtczca Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland CM-30 CUBE Active Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

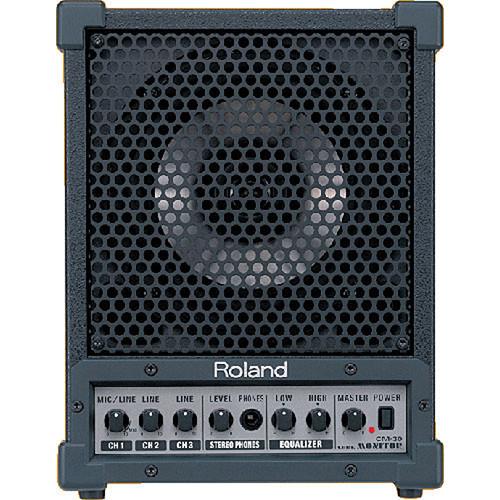

Technical parametersRoland CM-30 CUBE Specs | Low Frequency Driver | 6.5" | | Mid Frequency Driver | No | | High Frequency Driver | Tweeter(Coaxial Two-Way) | | LF Amplifier | 30 Watts | | HF Amplifier | No | | Crossover | Not Specified by Manufacturer | | Frequency Range | Not Specified by Manufacturer | | Impedance | 8 Ohms | | Maximum Sound Pressure Level (SPL) | Not Specified by Manufacturer | | Controls and Indicators | 1 x Ch.1 (Mic/Line) Volume Knob
2 x Ch.2, 3 Volume Knobs
1 x Stereo Phones Level Knob
2 x 2-Band Equalizer Control Knobs
1 x Volume Knob

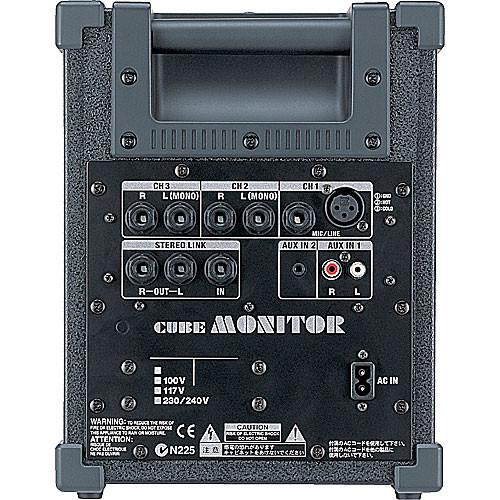

1 x Power Switch | | Connectors | 2 x Ch.1 3-pin XLR Female/1/4" TS Phone Mic/Line In
2 x Ch.2 1/4" TS Phone, L/Mono, R Line In
2 x Ch.3 1/4" TS Phone, L/Mono, R Line In
2 x RCA Phono, L, R Aux In
1 x 1/8" Stereo Mini Aux In
1 x 1/4" TRS Phone Stereo Link In
2 x 1/4" TS Phone, L, R Stereo Link Out
1 x 1/4" Stereo Headphone Out | | Shielded | No | | Power | Power Supply: 117 VAC, 60 Hz
Power Consumption: 32 W | | Dimensions (HxWxD) | 10.8 x 8.4 x 9.4" (275 x 214 x 238mm) | | Weight | 12.6 lb (5.6 kg) | | Specialties | 30 Watt Active Monitor Speaker
Stereo Headphone Out
Coaxial Speaker Design
Built-In 2-Band EQ Tone Control | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 14.0 x 12.5 x 11.5" |
