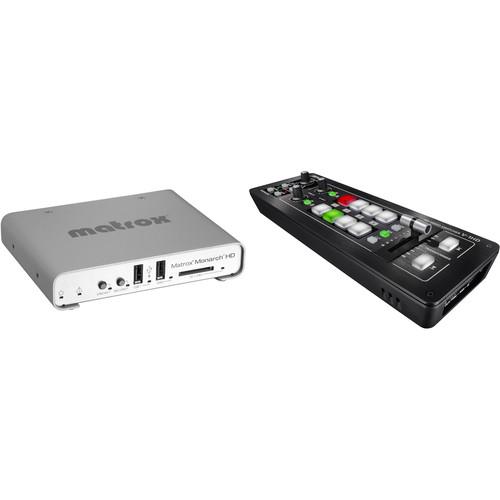

User Manual for Roland Compact Multicamera Production and Streaming Bundle

• Product category: Production Switchers Roland
• Brand: Roland
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Roland Production Switchers

Product description

• Roland V-1HD Portable 4 x HDMI Input Switcher Roland's V-1HD 4 x HDMI Input Switcher is a portable solution for HD video production that accommodates up to four HD inputs. The inputs each have a frame buffer/TBC so you don't need to genlock your input sources together. You can control the switcher manually by using the built-in controls, or connect it to a computer or iPad running optional software for electronic control. Select your working resolution and switch between your four input sources. Built into the switcher is a 12-channel audio mixer which can de-embed and embed audio signals from HDMI.

  The integrated T-fader allows you to manually control the speed of transitions, or you can use the take button to actuate your selected transition. The unit features a program and multiview preview output, as well as an analog audio input and output. Though small in size, it allows you to perform picture-in-picture, green screen, and other keying effects, while a transform control enables advanced video effects on your footage.
  HD Switcher
  • This portable HD switcher supports four inputs of HD video, allowing you to select 1080i, 1080p, or 720p as your input source. Each input incorporates a frame buffer/TBC that allows you to use non-genlocked cameras, as well as play-out devices as video sources. You select the broadcast system (59.94/50 Hz) within the menu. The format selector switch is a global switch that affects the input and output format. However, with the switch in either of the 1080 options, the V-1HD enables input of both 1080i and 1080p signals.
  Audio Mixer
  • The built-in 12-channel audio mixer allows you to de-embed audio from the HDMI stream, mix, and re-embed the audio into your output stream. The audio mixer is accessed by a connected PC running the available software.
  Output Modes
  • The V-1HD features two HDMI outputs—one output always shows your switched program output, while the other (preview) can be switched between program output and multiview of your four sources.
  Control Buttons
  • The soft rubber backlit buttons allow you to easily see the condition of your switcher, even in dim lighting conditions.
    • Red: Indicates the current source being output
    • Green: Indicates the video source that will be output on the next transition
  Transitions
  • There are three buttons for applying transition effects: Cut, Mix (4 types), and Wipe (30 types).
  Beat-per-Minute Sync
  • By using the T-fader bar and the BP-Sync button, you can deliver visuals synced to a music performance.
  Memory
  • The Memory button allows you to save or recall up to eight presets, and the Freeze button can temporarily pause the incoming video.
  Transformer Buttons
  • These buttons can be used to switch your video instantly or for applying effects.
  Transitions
  • The T-bar lets you control the speed of your selected transitions.
  Keying
  • The keying functionality permits picture-in-picture as well as green screen keying and graphics keying.
  Output Fade
  • You can select to fade your output video to either black or white.
  Effects
  • • Picture-in-picture and split screen functions
    • Supports chroma and luminance key
    • Two separate bus effects knobs allow you to apply affects independently to each bus
    • Nine types of filter effects are available including silhouette, colorpass, negative, and findedge
  Audio Effects
  • • EQ
    • Delay
    • Compressor
    • HPF
    • Gate
    • Reverb
    • Mastering effect
  Control
  • Remote control is possible with the V-1HD RCS dedicated computer software for Mac OS X and Windows, or the V-1HD Remote iPad app connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio, or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications. Please use the Lightning to USB Camera Adapter to connect an iPad to the V-1HD.
  HDCP
  • HDCP compliance can be enabled within the menu.
  UPC: 761294507209
• Matrox Monarch HD The Matrox Monarch HD is an HDMI input/output streaming and recording device that can stream live events and record master versions for post-production or storage at the same time. The streaming and recording functions are totally independent of each other, and therefore recording quality is not affected by streaming bandwidth, and record controls can be operated without disturbing streaming operations. Recorded files are available anytime during a streaming session for use as complementary streaming videos.

  Monarch HD generates RTSP/RTMP compliant H.264 streams from any HDMI source using a built-in encoder and multi-tap 10-bit scaler and de-interlacer. It records the live streams as H.264 MP4 files with two channels of embedded AAC audio to an optional SD card, USB drive, or network-mapped drive. Network-mapped drives are useful if multiple users will need to access the recorded footage. Streaming bitrates can be assigned at up to 20Mbps and recording bitrates at up to 30Mbps. You can stream to your own server or to CDNs like YouTube.

  Bitrates, resolution, and other operational details are selectable in a web-application called Command Center. Via an Ethernet connection from Monarch HD to a router, Command Center is accessible on a phone, tablet, or computer. Up to four Monarch HD units can be controlled from Command Center simultaneously. Stream and record start/stop can also be controlled via push buttons on the front panel.

  Monarch HD operates on a Linux O/S and isn't vulnerable to any automatic updates or unscheduled exchanges with 3rd party servers.
  Overview
  • Monarch HD can stream live events from HDMI sources and record master versions for post at the same time. The streaming and recording functions are independent, and recording quality is not affected by streaming bandwidth. Recorded files are available anytime during a streaming session for use as complementary streaming videos.

    H.264 Streaming & Recording
    Monarch HD encodes video from any HDMI source in H.264 in RTSP/RTMP compliant protocols using a built-in encoder and multi-tap 10-bit scaler and de-interlacer. It records the live streams as H.264 MP4 files with two channels of embedded AAC audio to an optional SD card, USB drive, or network-mapped drive. Network-mapped drives are useful if multiple users will need to access the recorded footage. Streaming bitrates can be assigned at up to 20Mbps and recording bitrates at up to 30Mbps. You can stream to your own server or to CDNs like YouTube.

    Compact and Simple-to-Use Design
    Monarch HD features one-touch stream and record front panel push buttons and an Ethernet jack for Web UI access via connection to a router. It's fanless, consumes little power, and has a locking power connector. It can be used desktop, and three units can be installed in a 1RU rack.
  Matrox Command Center Web UI
  • Each Monarch HD features its own IP address and can be controlled in a web-application called Command Center. Via an Ethernet connection from Monarch HD to a router, Command Center is accessible on a phone, tablet, or computer. Bitrates, stream/record start and stop, and other operational details are assignable in Command Center, and up to four Monarch HD units can be controlled from it simultaneously. Monarch HD runs on an embedded Linux O/S and is therefore not vulnerable to any automatic updates or unscheduled exchanges with 3rd party servers.

    Status Page
    The Command Center Status Page provides status information including input video detection and resolution, state and configuration of streaming operation and/or recording operation, error conditions, and more.

    Control Page
    Features controls for initiating recording and streaming operations, including synchronized start/stop.

    Record Settings Page
    Allows configuring recording parameters and includes presets based on intended post uses, such as a YouTube preset for VOD uploads and a master quality preset for high quality editing.

    Streaming Settings Page
    Here's where you enter RTMP or RTSP credentials and encoding parameters. Encoding presets are available for quickly choosing settings based on available bandwidth and desired delivery resolution or bitrate. The target encoding streaming parameters only need to be entered once and saved as a unique profile. Multiple profiles can be saved if the device is used in different environments. Each profile can be loaded instantly without having to reenter data.

    Administrative Tools Page
    Allows device naming, IP configuration, date/time settings, and other tasks.

    Additional Tools Page
    Features PC and Mac based utilities to help detect Monarch HD units on a particular network (DHCP server required).
  UPC: 790750244273

• V-1HD Portable 4 x HDMI Input Switcher xzsxwuxdrvdbqasfwddrcbbxy
• AC Adapter/Power Cord
• Cord Hook
• Limited 1-Year Warranty

• Matrox - Monarch HD

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Roland V-1HD Portable 4 x HDMI Input Switcher

  Video Processing	4:2:2 (YPbPr), 8-bit
  Input / Output	Input 4 x HDMI type A 1 x L/R pair RCA (audio) 1 x 3.5 mm stereo mini jack, mic (plug-in power supported) Output 2 x HDMI (preview, program output) 1 x L/R RCA (audio) 1 x 3.5 mm stereo mini jack
  Video Format	Input 1080p: 50/59.94 1080i: 50/59.94 720p: 50/59.94 Output 1080p: 50/59.94 1080i: 50/59.94 720p: 50/59.94
  Audio Processing	48 kHz 24-bit Max Audio Delay: 500 ms (each channel)
  Input Level	Audio: -10 dBu (maximum: +8 dBu) MIC: -41 to -31 dBu (maximum: -1 dBu)
  Input Impedance	Audio: 15 kOhms MIC: 10 kOhms
  Output Level	Audio: -10 dBu (maximum: +8 dBu) Headphones: 72 mW + 72 mW (32 Ohms)
  Output Impedance	Audio: 1 kOhms Headphones: 10 Ohms
  Interface - Connectors	1 x MIDI input 1 x MIDI output/through 1 x USB B (remote control from PC)
  Power	Current Draw: 1.5 A Power Consumption: 18 W
  Dimensions	12.3 x 4.0 x 2.3" / 31.3 x 10.2 x 5.9 cm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	16.3 x 9.5 x 5.2"

• Matrox Monarch HD

  HDMI Video Input	Progressive: 1920 x 1080 @ 60/59.94/50/24/23.98 fps 1280 x 720 @ 60/59.94/50 fps Interlaced: 1920 x 1080i @ 29.97/25 fps Video input format is auto-detected
  HDMI Video Output	Pass-through of video input signal 1 frame delay from input to output
  Audio Input	Processes first two channels of audio embedded in HDMI input signal Unbalanced analog stereo input via 1/8" jack (3.5 mm) Line level
  Audio Output	Pass-through of all embedded audio channels in HDMI signal Unbalanced analog stereo output via 1/8" jack (3.5 mm) -- pass-through of input Line level
  Video Encoder	Built-in H.264/MPEG-4 Part 10 (AVC)
  Resolutions	Selectable encoding resolutions: 96 x 96 to 1920 x 1080
  Video Bit Rates	100 kbps to 30 Mbps for recording 100 kbps to 20 Mbps for streaming When both streaming and recording resolutions are above 1280 x 720, the encode parameters must be identical for both processes. Independent record and streaming settings are available when either the streaming or the recording resolution is 1280 x 720 or below.
  Encode Frame Rates	Encode frame rates representing 1:1, 1/4, and 1/4 of the input frames rates are supported The maximum encoded frame rate is 30 fps when input resolution is 1920 x 1080
  Encoding Profiles	Baseline, Main, and High
  Encoding Controls	2.0, 3.0, 3.1, 4.0, 4.1 level support IBP GOP size and structure Variable bit rate support De-blocking filter
  Audio Encoder	MPEG-4 AAC
  Audio Encoding	Standard AAC-LC
  Sample Frequency	44.1 and 48 kHz when digitized from analog source
  Channels	2 channels stereo (L/R)
  Audio Bit Rates	Range from 96 kbps to 256 kbps
  Scaler	High quality multi-tap 10-bit scaler and de-interlacer Advanced noise filtering Available to both streaming and recording operations
  Recording Formats	MP4 with two channels of embedded AAC audio
  Network Interface	RJ45 connector providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing Protocols: RTMP, RTSP/RTP IPv4 support Unicast and Multi Unicast
  User Interface	HTTP computer based control via standard PC or Mac web browser Front panel push buttons for independent streaming and recording Start/Stop control
  Storage	2x USB 2.0: Support for NTFS file system Monarch HD will support writing to USB 3.0 devices at USB 2.0 speeds 1x SD card slot: Supports SD and SDHC cards Network mapped drive: Support for writing to Shared Folders in computers found on a network using NFS or Windows share protocols
  Transport and Storage	Max operating altitude: 9,842 ft (3,000 m) Max transport altitude: 39,370 ft (12,000 m) Storage humidity: 5 to 95% relative humidity (non-condensing)
  Regulatory	FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI RoHS Directive 2002/95/EC
  Power	Line voltage: 100-240 V AC, 0.5A Frequency: 50-60 Hz Input: external AC/DC adapter -- IEC320-C14 Output: +5 VDC, 3A max Total power consumption: 15 W DIN4 locking power connector
  Operating Temperature	32 to 104°F (0 to 40°C)
  Operating Humidity	20 to 80% relative humidity (non-condensing)
  Dimensions	5.6 x 4.3 x 1.2" (14.2 x 10.9 x 3 cm) 5.6 x 4.4 x 1.2" (14.2 x 11.2 x 3 cm) with optional SD card inserted
  Weight	0.66 lb (300 g) excluding power supply

  Box Dimensions (LxWxH)	14.1 x 5.6 x 3.0"
