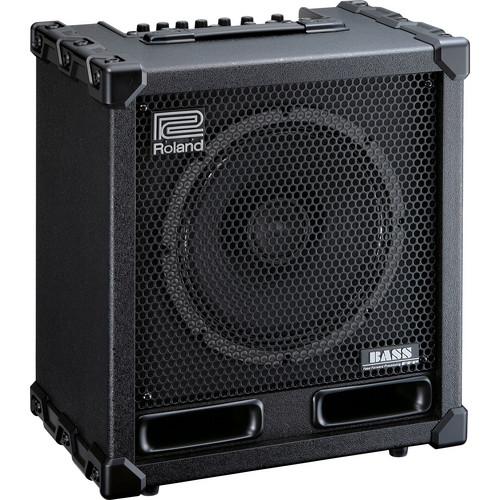

Product description The CUBE-120XL BASS from Roland is a 120W bass amplifier with a built-in 12" coaxial speaker (built-in tweeter). The unit retains the portable and travel-friendly CUBE functionality, but benefits from the XL performance enhancements. Custom FFP is one of Roland's core technologies in which each component - amplifier, cabinet, and speaker - achieves maximum efficiency and performance for incredible power from a compact body. The CUBE-120XL BASS features 8 COSM amplifier models and a Solo channel with memory. Also included are professional-quality effects (Reverb, Delay, Chorus, Solo, Poly Octave, Compression and Overdrive), and 4-band EQ. A built-in Looper can be used for constructing stacks of sound in real-time. The amplifier will punch its way through any mix, and affords players plenty of flexibility onstage. - Compact 120-watt bass amplifier with custom-designed 12-inch coaxial speaker
- Dual custom-designed Air Flow Port for deep bass and punchy sound
- Eight COSM amplifier models, including the SUPER LOW amp
- Seven effects, including Drive and Poly Octave
- SOLO function with memory for use as a second channel
- Phrase Looper onboard for sound-on-sound recording with unlimited overdubs
- Four-band EQ for fine-tuning the sound
- Built-in chromatic bass tuner with drop tuning support
UPC: 761294413142 In the Box Roland CUBE-120XL BASS - Compact Bass Amplifier/Speaker with Looper AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland CUBE-120XL BASS - Compact Bass Amplifier Speaker with Looper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

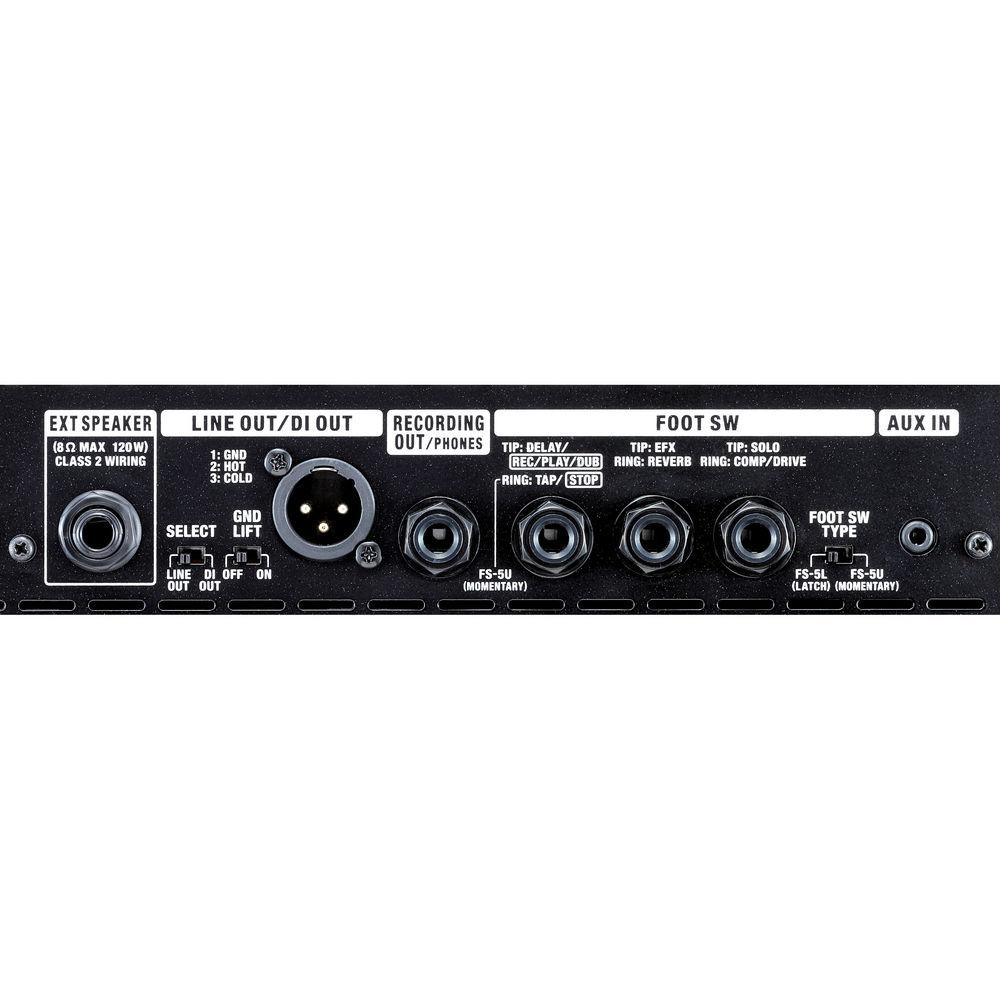

Technical parametersRoland CB-120XL Specs | Speaker | 12" (30.5cm) coaxial two-way | | Power Output | 120W | | Inputs | 1 x 1/4" TS phone
1 x 1/8" stereo mini Aux In | | Nominal Input Level | Bass Input: -10dBu/1MΩ
Aux In: -10dBu | | Outputs | 1 x 1/4" TRS phone Headphones
1 x XLR DI

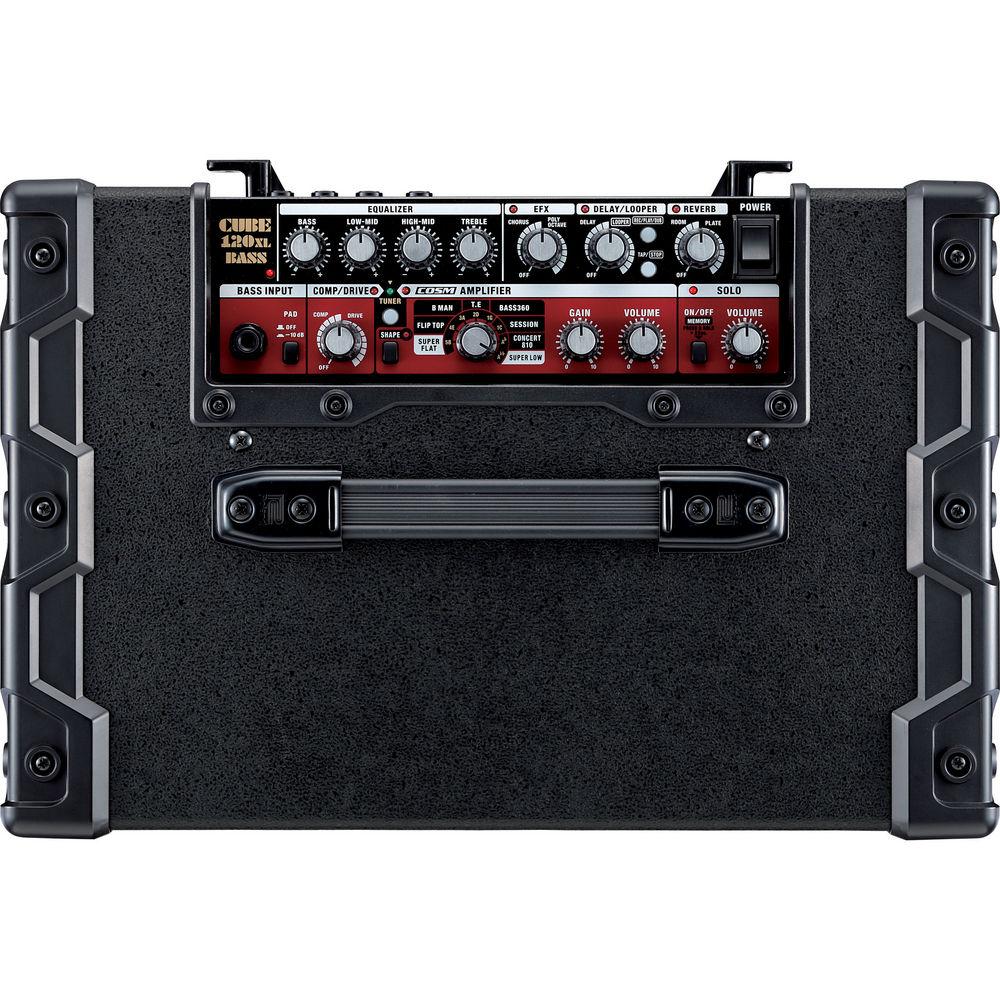

1 x 1/4" TS phone Line | | Other Connectors | 3 x 1/4" TRS phone Foot Switch | | Headphone Output | Yes | | Controls | 1 x Power switch
1 x Shape switch
1 x Tuner switch
1 x Comp/Drive knob
1 x Type switch (Super Flat, Flip Top, B Man, Bass360, Session, Concert 810, Super Low)
1 x Gain knob
1 x Volume knob
1 x Bass knob
1 x Middle knob
1 x Treble knob
1 x EFX (Chorus, Poly Octave)
1 x Reverb knob (Room, Plate)
1 x On/Off, Memory switch
1 x Rec/Play/Dub switch
1 x Tap/Stop switch
1 x Delay/Looper knob (Delay, Looper)
1 x Ground Lift switch (Off, On)
1 x Foot SW Type Switch | | Indicators | 1 x Power
1 x Comp/Drive
1 x Tuner
1 x Shape
1 x EFX
1 x Solo
1 x Delay/Looper
1 x Rec/Play/Dub
1 x Reverb | | Power Requirements | 110~120VAC, 60Hz
39W consumption | | Dimensions (WxDxH) | 18.2 x 12.8 x 20.4" (462 x 325 x 518mm) | | Weight | 43.4 lb (19.7kg) | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 25.5 x 22.3 x 16.9" |
