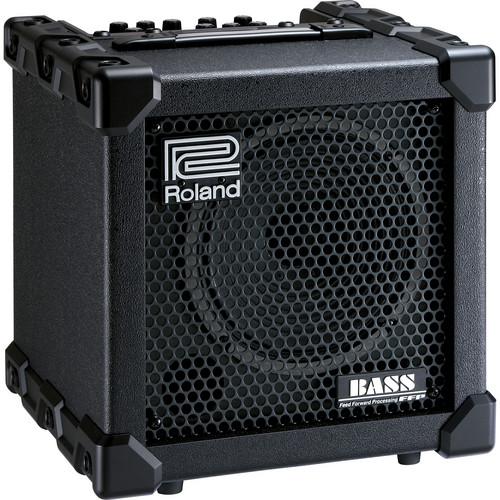

User Manual for Roland CUBE-20XL BASS - Compact Bass Amplifier Speaker Click to enlarge the picture
Contents of the user manual for the Roland CUBE-20XL BASS - Compact Bass
- Product category: Bass Amplifiers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Bass Amplifiers
|
User manual for the Roland CUBE-20XL BASS - Compact Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The CUBE-20XL BASS from Roland is a 20W bass amplifier with a built-in 8" speaker. The unit retains the portable and travel-friendly CUBE functionality, but benefits from the XL performance enhancements. Custom FFP is one of Roland's core technologies in which each component - amplifier, cabinet, and speaker - achieves maximum efficiency and performance for incredible power from a compact body. The most portable of the family, the CUBE-20XL BASS features 6 COSM amplifier models, professional-quality effects (Reverb, Delay, Chorus, Solo, Poly Octave, Compression and Overdrive), Power Squeezer for big sound at low volume, and 3-band EQ. - Ultra-compact 20-watt bass amplifier with custom-designed 8-inch speaker
- Six COSM amplifier models onboard
- Seven effects, including the new DRIVE and POLY OCTAVE
- Power Squeezer for big, rich sound at low volumes - great for home practice and other volume sensitive environments
- Three-band EQ for fine-tuning the sound
UPC: 761294413128 In the Box Roland CUBE-20XL BASS - Compact Bass Amplifier/Speaker AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland CUBE-20XL BASS - Compact Bass Amplifier Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland CB-20XL Specs | Speaker | 8" (20cm) | | Power Output | 20W | | Inputs | 1 x 1/4" TS phone
1 x 1/8" stereo mini Aux In | | Nominal Input Level | Bass Input: -10dBu/1MΩ
Aux In: -10dBu | | Outputs | 1 x 1/4" TRS phone Headphones | | Other Connectors | 1 x 1/4" TRS phone Foot Switch | | Headphone Output | Yes | | Controls | 1 x Power switch
1 x Shape switch
1 x Tuner switch
1 x Power Squeezer switch
1 x Comp/Drive knob
1 x Type switch (Super Flat, Flip Top, B Man, Bass360, Session, Concert 810)
1 x Gain knob
1 x Volume knob
1 x Bass knob
1 x Middle knob
1 x Treble knob
1 x EFX/Solo knob (Chorus, Solo, Poly Octave)
1 x Delay/Reverb knob (Delay, Reverb) | | Indicators | 1 x Power
1 x Comp/Drive
1 x Tuner
1 x EFX/Solo
1 x Power Squeezer | | Power Requirements | 110~120VAC, 60Hz
24W consumption | | Dimensions (WxDxH) | 13.2 x 12.9 x 13.2" (335 x 327 x 335mm) | | Weight | 20.75 lb (9.4kg) | | | | Package Weight | 23.55 lb | | Box Dimensions (LxWxH) | 14.4 x 13.9 x 13.4" |
