User Manual for Roland Cube Lite Guitar Amplifier Click to enlarge the picture
Contents of the user manual for the Roland Cube Lite Guitar Amplifier
- Product category: Guitar Amplifiers Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Guitar Amplifiers
 |
User manual for the Roland Cube Lite Guitar Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|

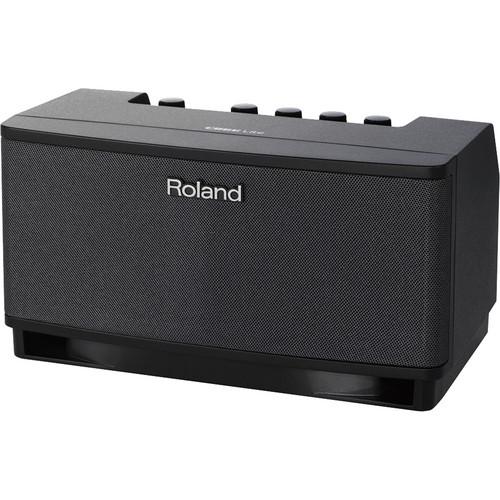

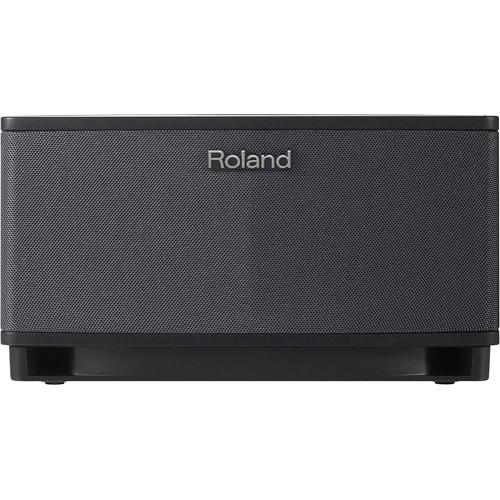

Product description The black Cube Lite Guitar Amplifier from Roland is a 2.1 channel audio system designed to allow you to play along with and record to your iPhone, iPad, or iPod touch. A pair of three-inch stereo speakers and a three-inch subwoofer produces 10-watts of total output. If you need to practice silently, the Cube Lite has a 1/8" headphone jack that mutes the speaker output when in use. Featuring Roland's COSM amp modeling technology, you can select your desired tone from built-in JC Clean, Crunch, and Extreme settings. The Cube Lite connects to any iOS device through its i-Cube Link input and included four-pole mini cable. With the free CUBE JAM app, you can play along with your own tracks or record directly to your iDevice. You can also use the Cube Lite as a playback device for your digital music library when not jamming. - COSM Guitar Tones
- The CUBE Lite Guitar Amplifier provides three COSM tones-JC CLEAN, CRUNCH, and EXTREME-giving you a range of sounds for playing any style of music. Reverb and chorus effects are onboard as well, with true stereo performance for a wide, expansive sound
- 2.1 Channel Audio System
- Equipped with stereo speakers and an integrated subwoofer, the CUBE Lite's powerful 2.1 Channel audio system delivers a sound that belies the amp's compact footprint. When you want to practice silently, just plug in a set of headphones to mute the onboard speakers
- iOS Device Integration with i-CUBE LINK
- With the i-CUBE LINK interface, the CUBE Lite Guitar Amplifier lets you integrate your iPhone, iPad, or iPod touch with your axe in a familiar and satisfying way; through a real amp. With i-CUBE LINK, you just connect to your device's audio jack with the included cable, then blend the COSM tones and iOS audio together using the amp's controls. The versatile i-CUBE LINK jack can also be used as a simple stereo input, enabling you to hook up nearly any music player or audio device and play it through the CUBE Lite
- CUBE JAM App
- The free Roland CUBE JAM app turns your iOS device into a command center for jamming, recording, and learning. Play back commercial songs and minus-one tracks through the CUBE Lite via i-CUBE LINK, and riff along for hours with COSM tones. CUBE JAM also records audio through the i-CUBE LINK connection, allowing you to easily capture your jams. After you're done recording, you can adjust the volume of your guitar and backing music independently, then export your mix to a 16-bit, 44.1 kHz WAV file. The app also includes great tools for music practice, including independent speed and pitch adjustment of audio playback, a center cancel feature that removes solos and other mono sounds, and more
- Direct Mode
- Normally, recording from the CUBE Lite Guitar Amplifier into CUBE JAM or another app captures the sound as you hear it, with the COSM tone applied. Activating the CUBE Lite's Direct Mode feature lets you capture dry guitar sounds while monitoring with the COSM sound. Recording dry tracks in this way gives you the option to experiment later by "re-amping" with any guitar app of your choice. Direct Mode also allows you to use real-time guitar processing in any app, monitoring the live output with the CUBE Lite
UPC: 761294503386 In the Box Roland Cube Lite Guitar Amplifier (Black) Mini 4-Pole Cable Limited Warranty: 1-Year Parts / 90-Days Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland Cube Lite Guitar Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland CUBE Lite Specs | Speakers | 1x 3" (7.5 cm) Right Speaker
1x 3" (7.5 cm) Left Speaker
1x 3" (7.5 cm) Subwoofer | | Rated Power Output | Stereo Speakers: 3 W x 2
Subwoofer: 4 W

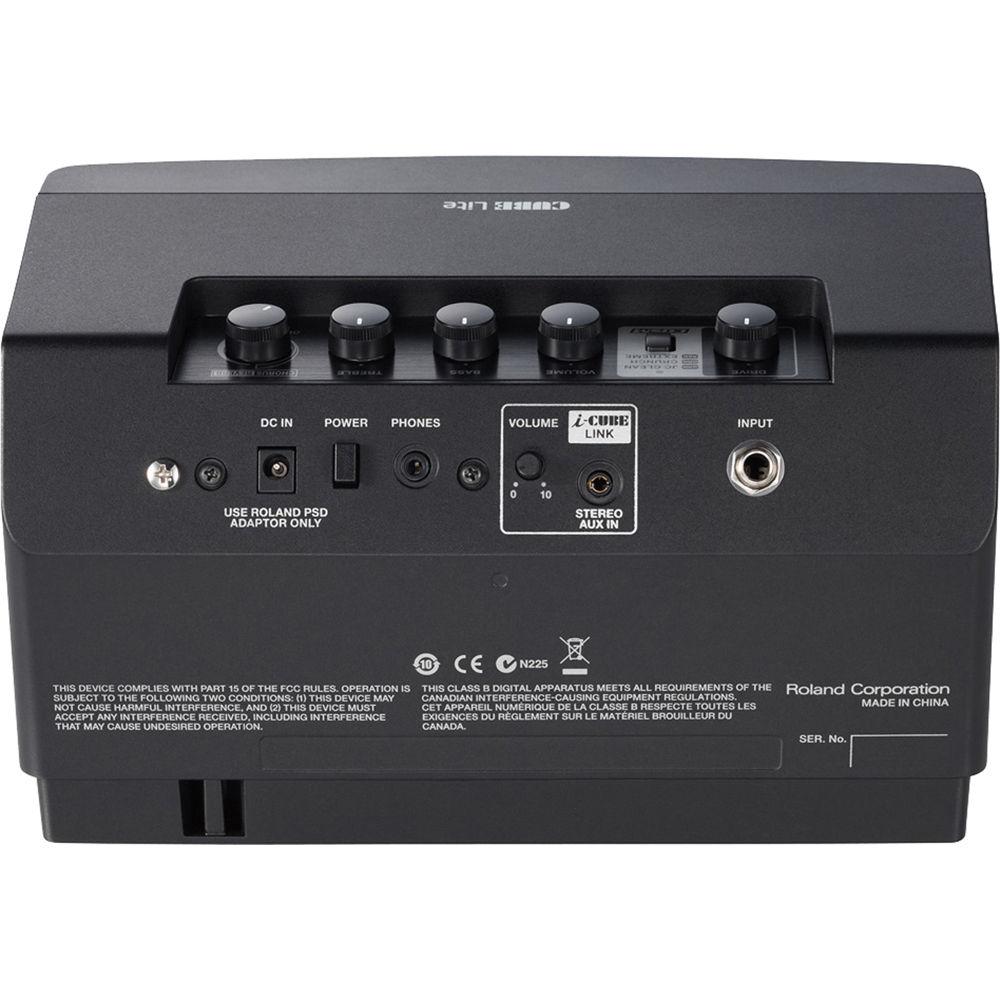

Total: 10 W | | Connectors | 1x 1/4" (6.35 mm) TS input
1x 1/8" (3.5 mm) i-Cube Link
1x 1/8" (3.5 mm) headphone jack
1x DC IN jack | | Input Level | Input: -10 dBu (nominal)
i-Cube Link/Stereo Aux: -10 dBu (nominal) | | Amp Types | JC Clean
Crunch

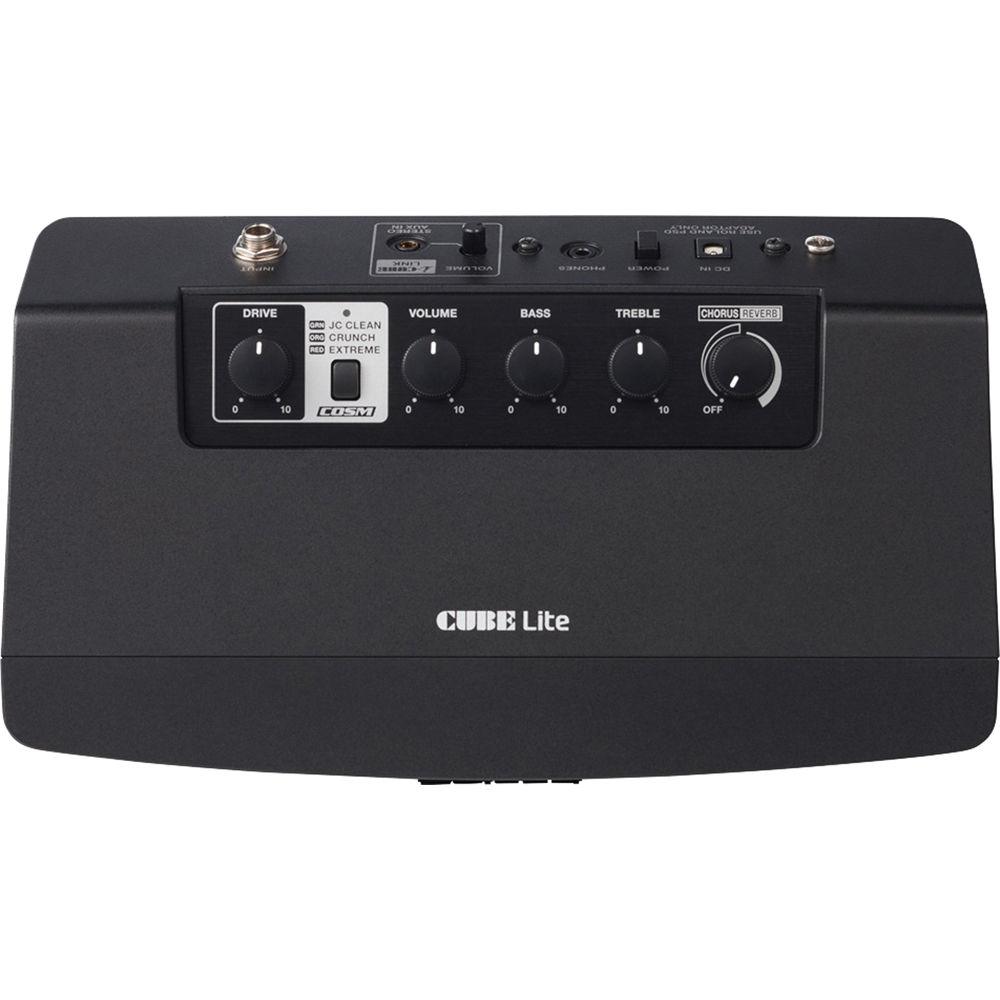

Extreme | | Controls | 1x Power Switch
1x Amp Type Switch
1x Drive Knob
1x Volume Knob
1x Bass Knob
1x Treble Knob
1x Chorus/Reverb Knob
1x i-Cube Link Volume Knob | | Indicators | 1x Amp Type | | Power Supply | AC Adaptor (DC 5.7 V) | | Current Draw | 1000 mA | | Dimensions (W x D x H) | 9.8 x 5.9 x 5.3" (25.0 x 14.7 x 13.5 cm) | | Weight | 3.8 lb (1.7 kg) | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 15.5 x 8.6 x 7.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
