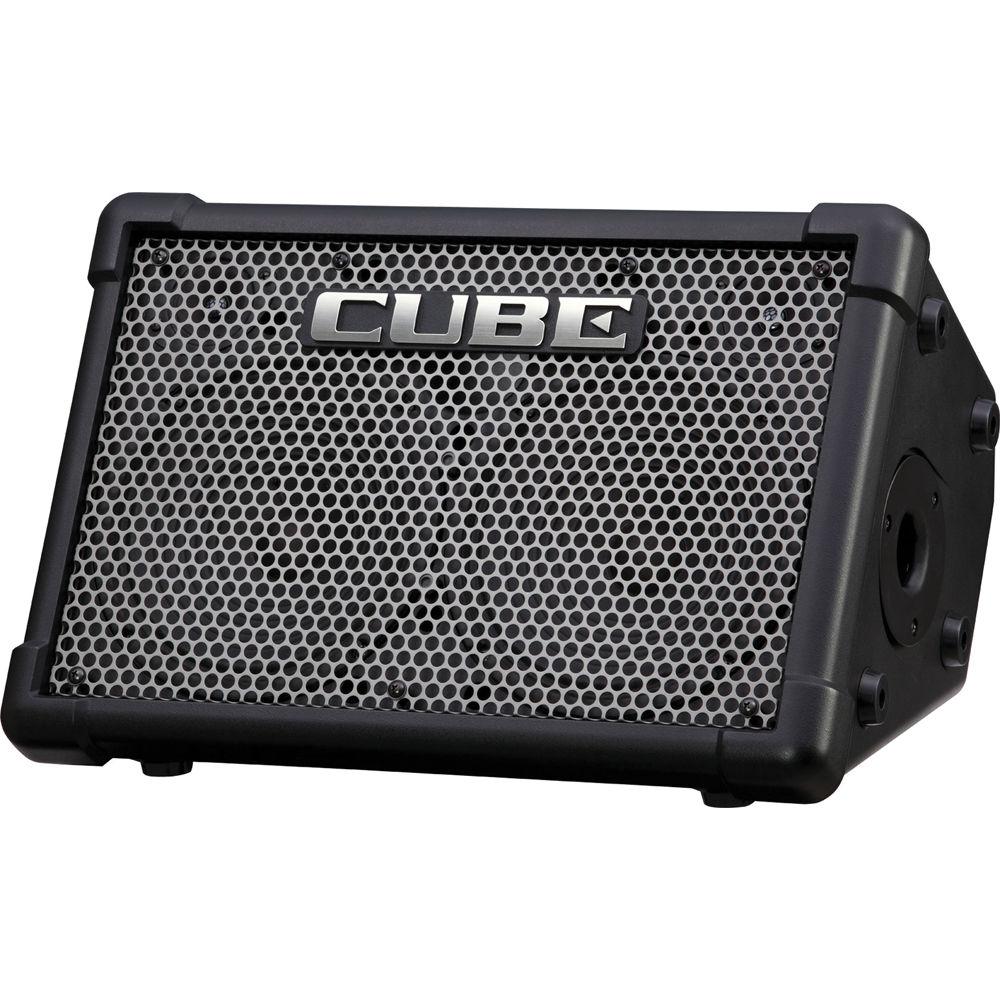

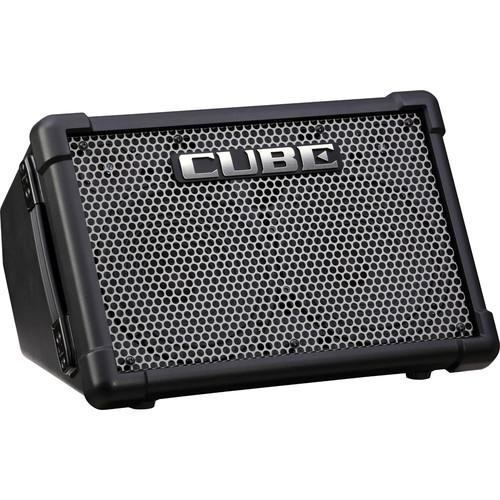

Product description The CUBE Street EX from Roland is a compact, battery-powered portable amplifier/speaker combo that infuses the already popular mobile amp line with a performance upgrade that delivers extended projection, more channels, and enhanced versatility. Fifty watts of power and a stereo speaker system with dual woofers and tweeters provide clean sound for reaching larger crowds, while four independent channels offer connections for a variety of microphones and instruments.
Sound adjustment is available with separate EQ and reverb controls, and guitar tones can be dialed in easily with the onboard COSM amplifier simulations. Selectable power modes provide up to twenty hours of operation with eight AA batteries, while two units can be linked together for more sound coverage if needed. And with i-CUBE Link, an iPhone or iPad can be connected to play backing music and record the performances. - Innovative technology provides fifty watts of stereo power from eight AA-size batteries
- Selectable output power modes to optimize battery life for different performing situations
- Portable, lightweight design with durable ABS injection-molded cabinet
- Full-range stereo sound with dual 8" woofers and 2" tweeters
- Four independent channels for connecting a variety of microphones, instruments, and audio devices
- Two XLR microphone inputs allow two vocalists to perform simultaneously
- COSM tones for electric guitar, including clean, crunch, and lead
- Preamp for acoustic guitar provides clean, natural sound
- Angled back for use as a stage monitor

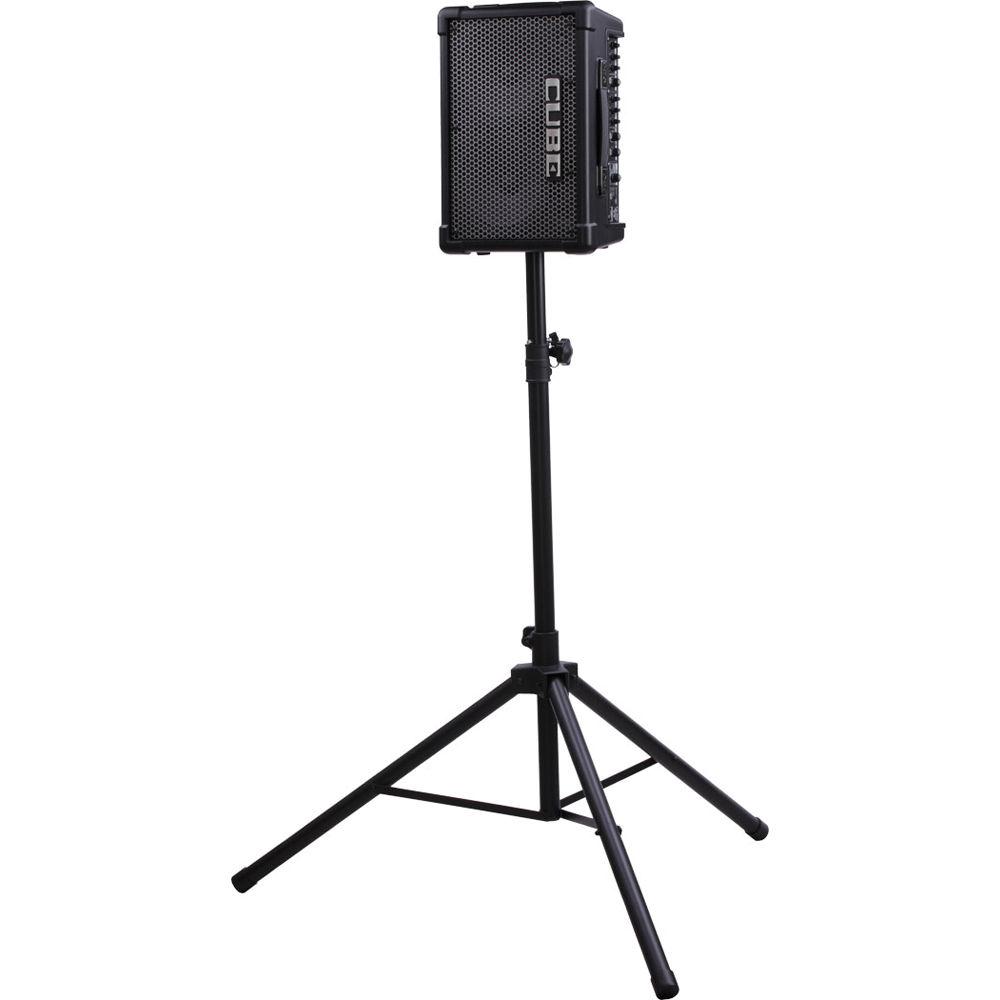

- Mounting hole for use with optional ST-A95 speaker stand
- Stereo line out jacks for connecting to an external sound system when used as a stage monitor
- Stereo link jacks to connect a second CUBE Street EX for broader sound coverage
- Easy recording into an iPhone/iPad via i-CUBE Link and free CUBE Jam app
- Optional CB-CS2 Carrying Case made with water-repellent material
UPC: 761294505625 In the Box Roland CUBE Street EX - Battery Powered Stereo Amplifier External Power Supply with AC Cable Mini Cable (4-Pole Mini Phone) Owner's Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland CUBE Street EX - Battery Powered Stereo Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland CUBE-ST-EX Specs | Maximum Power Output | 50 W (25 + 25) | | Speakers | 2 x 2" (5 cm)
2 x 8" (20 cm) | | Nominal Input Level | Microphone/Instrument: -50 dBu/-10 dBu
Microphone/Guitar: -10 dBu
Line: -10 dBu
Audio In (i-CUBE Link): -10 dBu
Aux In/Stereo Link In: -10 dBu
All measurements @ 1 kHz | | Nominal Output Level | Line (L/Mono, R)/Stereo Link (L, R): -10 dBu

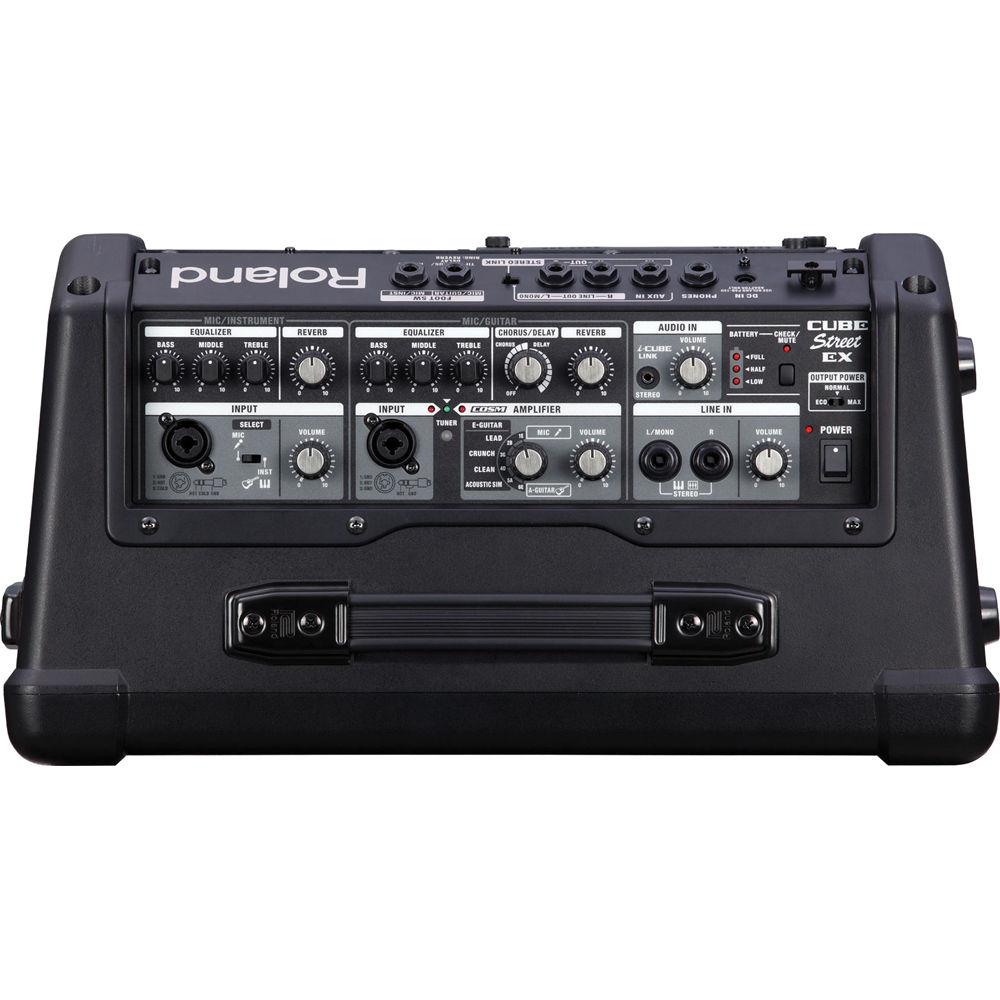

Measurement @ 1 kHz | | Controls | Power switch
Battery Check/Mute button
Output Power switch (Eco, Normal, Max)
Microphone/Instrument
Select switch
Volume knob
Bass knob
Middle knob
Treble knob
Reverb knob
Microphone/Guitar
Tuner button
Type switch (A-Guitar, Acoustic Sim, Clean, Crunch, Lead, Mic)
Volume knob
Bass knob
Middle knob
Treble Knob
Chorus/Delay knob
Reverb knob
Audio In
Volume knob
Line In
Volume knob
Battery Check/Mute button

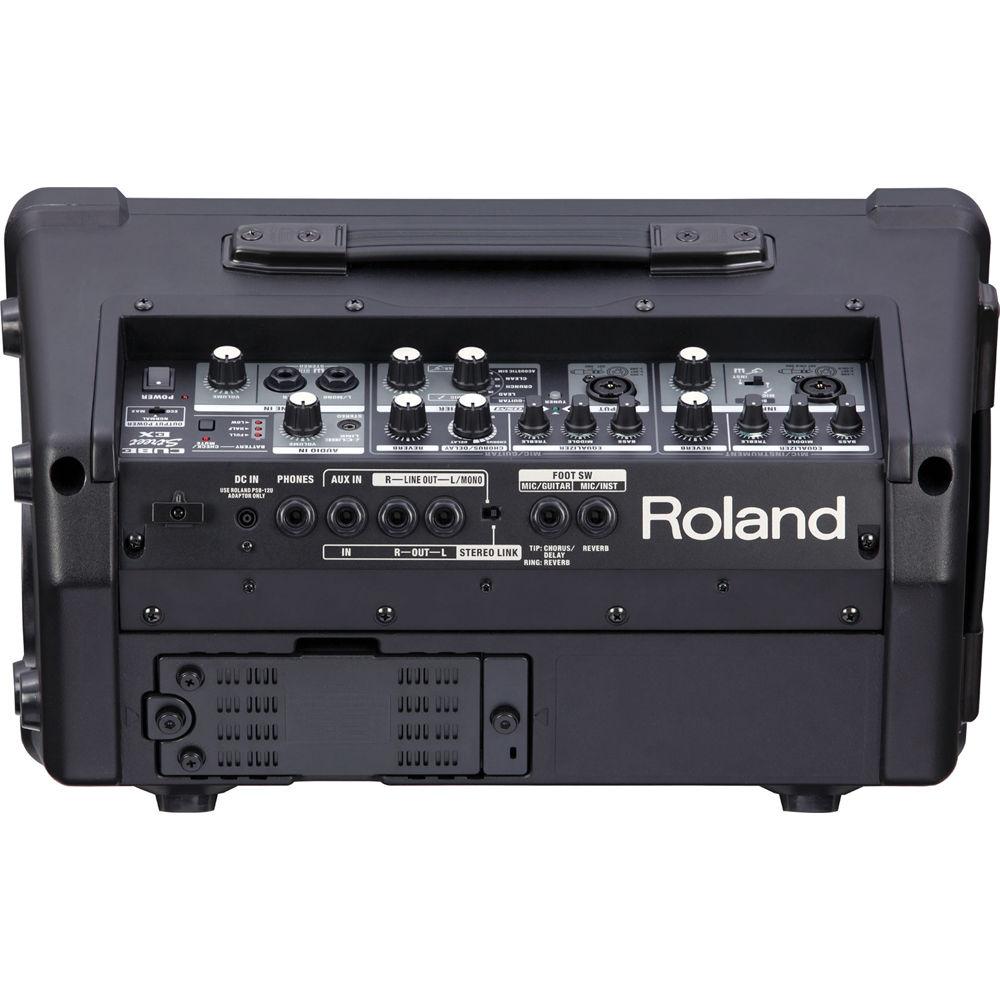

Stereo Link/Line Out switch | | Connectors | Microphone/Instrument
Input: 1 x XLR/TRS combo, balanced
Foot Switch (Reverb): 1 x 1/4" TRS
Microphone/Guitar
Input: 1 x XLR/TRS combo, unbalanced
Foot Switch (Tip=Chorus/Delay, Ring=Reverb): 1 x 1/4" TRS
Stereo Audio In (i-CUBE Link): 1 x TRRS 4-pole mini
Stereo Audio In (L/Mono, R): 1 x 1/4" TRS
Aux In/Stereo Link In: 1 x 1/4" TRS
Line Out (L/Mono, R)/Stereo Link Out (L, R): 1 x 1/4" TRS
Headphones: 1 x 1/4" TRS
DC In | | Indicators | Power
Battery
Battery Check/Mute
Tuner | | Power Requirements | 120V AC, 60 Hz for included 13V DC power adapter

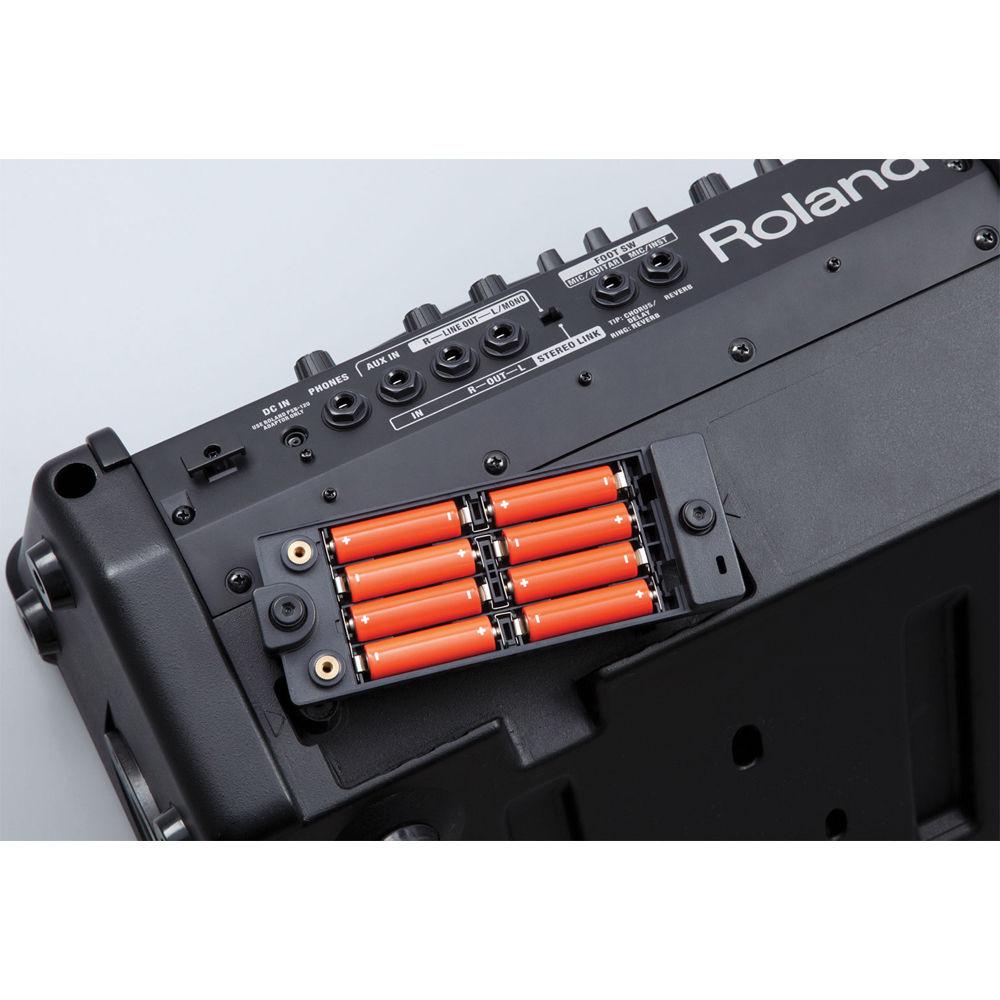

8 x AA, LR6 alkaline battery
8 x AA, HR6 rechargeable Ni-MH battery
730 mA power draw | | Battery Life | Output Power Switch Maximum (power output 50 W)
Alkaline Battery: Approximately 4 hours
Rechargeable Ni-MH Battery: Approximately 5 hours*
Output Power Switch Normal (power output 25 W)
Alkaline Battery: Approximately 8 hours
Rechargeable Ni-MH Battery: Approximately 10 hours*
Output Power Switch ECO (power output 10 W)
Alkaline Battery: Approximately 16 hours
Rechargeable Ni-MH Battery: Approximately 20 hours*
* When using batteries with a capacity of 2,450 mAh | | Dimensions (WxDxH) | 19.3 x 13.4 x 12.1" (490 x 341 x 305 mm) | | Weight | 16.4 lb (7.4 kg) | | | | Package Weight | 21.6 lb | | Box Dimensions (LxWxH) | 24.0 x 16.0 x 13.0" |
