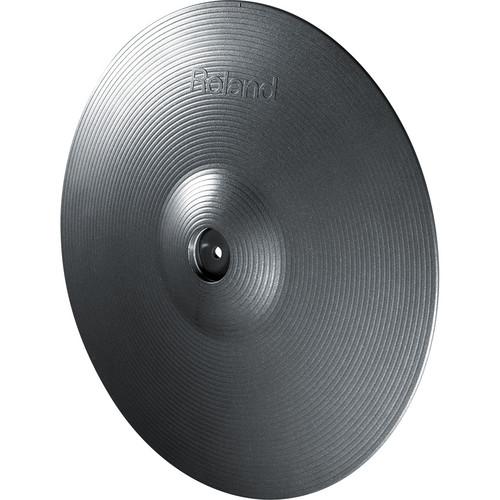

User Manual for Roland CY-15R V-Cymbal Ride Click to enlarge the picture
Contents of the user manual for the Roland CY-15R V-Cymbal Ride
- Product category: Electronic Drums Roland
- Brand: Roland
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Roland Electronic Drums
|
User manual for the Roland CY-15R V-Cymbal Ride contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Roland product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Roland user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Roland product will considerably shorten its lifespan!
|
Product description The CY-15R from Roland is a cymbal pad for an electronic drum kit. It features three individual sensors on the bell, the bow and on the edge of the cymbal. This enables it to be played like a real cymbal when struck on its different surface areas. Two of the sensors can be used at a time. You can select to use the bow/bell sensors to use the CY-15R as a ride cymbal, or select the edge/bow sensors to use it as a large crash cymbal. This functionality is compatible with any Roland TD or SPD series sound module. You can use all three sensors simultaneously when interfaced with a Roland TD-10 sound module equipped with the latest TDW-1 Wave and System Expansion Board (TDW-1 with V-Cymbal Control). Its 15" diameter is intentionally sized to match the size of a real ride cymbal. When you strike the CY-15R, it's designed to move and rebound physically as a real cymbal would. You can even choke the cymbal with your hand to mute its decay. Every detail, even down to the mounting hardware, is dedicated to recreating the acoustic drumming experience electronically. - 15-inch ride cymbal with realistic playing feel and metallic-gray finish
- Designed with same inertia (movement) as an acoustic ride cymbal
- Selectable dual-trigger system (edge/bow or bow/bell) allows use as ride cymbal or large crash cymbal
- Simultaneous triple sensing (edge/bow/bell) possible using V-Drums TD-10 sound module equipped with the new version of TDW-1 Wave and System Expansion Board (TDW-1 with V-Cymbal Control)
- Circular design with acoustic cymbal dimensions and natural rebound
- Concentrated mass around rim ensures uniform sensing
- Compatible with all Roland TD and SPD series sound modules
UPC: 761294502495 In the Box Roland CY-15R V-Cymbal Ride (Metallic Gray) Wing Nut Felt Washer Stopper 2 x Connection Cables Cable Tie 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Roland CY-15R V-Cymbal Ride in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRoland CY-15R Specs | Size | 15" | | Color | Metallic gray | | Triggers | 3 (Bow & Edge & Bell)
Switch Between Edge/Bow and Bow/Bell Use
All three sensors can be used simultaneously with the V-Drums TD-10 sound module equipped with the new version of TDW-1 Wave and System Expansion Board (TDW-1 with V-Cymbal Control) | | Connectors | Bow/Bell Output Jack
Bow/Edge Output Jack | | Compatibility | Compatible with Roland TD-Series/SPD-Series Sound Modules | | Dimensions | 14.8 x 14.8 x 1.96" (37.6 x 37.6 x 5.0 cm) | | Weight | 3.52 lb (1.6 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
